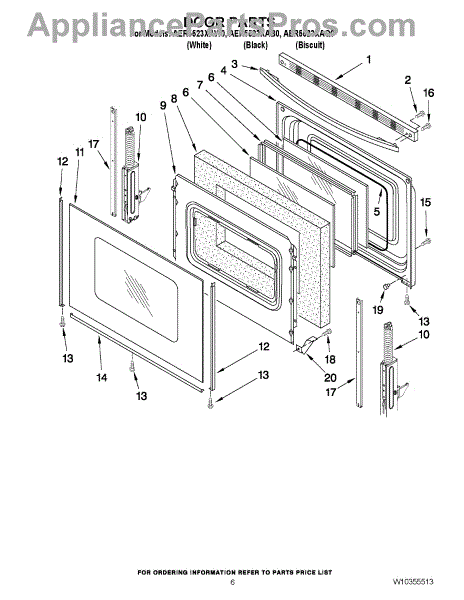

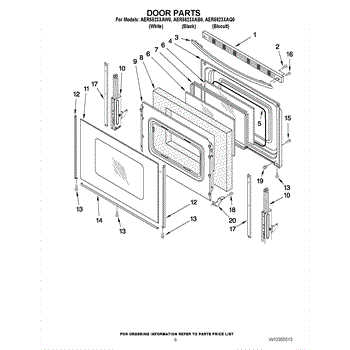

Parts for Amana AER5523XAB0: 05 - Door Parts

Color: Black.

Color: Biscuit.

Color: White.

The Screw is an OEM part for Whirlpool appliances that is responsible for securing various parts in place. The screw ensures a tight and secure fit, preventing any loose parts. A bad screw can occur due to wear and tear or accidental damage. If the screw becomes stripped, rusted, or lost, it can lead to instability or even malfunction of the affected parts.

Symptoms of a bad screw include:

• Loose or wobbly parts.
• Components not securely fastened.
• Difficulty in assembling or disassembling the appliance.
• Rattling or unusual noises during operation.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Color: White. For black order WPW10202217. For almond order 8522446. If your unable to use your old mounting screws order WP3196164.

Color: Black. For white order WPW10202216. For almond order 8522446.New mounting screws need to also be ordered WP3196164.

Qty 4 needed to complete full insulation

The Door Hinge is an OEM replacement part for Whirlpool ranges. It acts as the pivot point to allow access to the oven cavity.

Causes of a bad hinge can include wear over time through repeated use. Damage from excessive force or improper handling are also causes.

Symptoms of a bad hinge include:

• Difficulty latching or locking the door securely
• Gaps appearing around the door seal when closed
• The door not staying firmly in the fully open or closed position
• Grinding or grinding noises coming from the hinge area
• Visible damage, bending, or separation of hinge components

This OEM Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This Door Hinge is an OEM replacement part for Whirlpool ranges. This door hinge consists of three parts, the spring, the hinge receiver and the hinge arm, which work together to support the weight of the door and ensure proper alignment. It allows the door to swing open and close securely, providing easy access to the appliance's interior.

Causes of a faulty door hinge can include wear and tear over time, loose or damaged hinge parts, or broken springs.

Symptoms of a bad door hinge:

• Difficulty in opening or closing the oven door
• Loose or sagging door
• Uneven or improper sealing, leading to heat loss

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Color: Biscuit. For black glass use WP9762477. For white glass use WP9762476.

Replace a cracked or shattered front panel with this black outer door glass for your oven/range. It restores the viewing window and finished look while helping the door seal and contain cooking heat as designed.

• Forms the exterior glass panel and viewing window of the oven door
• Helps contain heat and protect the door's insulation
• Replace if glass is cracked, shattered, deeply scratched, or discolored
• Can address a loose or rattling exterior panel after impact

• Disconnect power and allow the oven to cool completely before starting.
• Remove the door per your model's manual and place it on a padded surface.
• Transfer the handle and any trim/brackets from the old panel as required for your model.
• Wear cut-resistant gloves and eye protection; handle glass carefully and avoid overtightening fasteners.

The Outer Door Glass is an OEM part for Whirlpool ovens. Specifically designed for the oven door, it serves as a protective barrier while allowing you to observe the cooking process. It helps maintain the desired temperature inside the oven while protecting it from external elements.

This particular outer door glass is white in color and measures 29.44" by 20.11", providing a precise fit for your oven model.

Causes of a faulty outer door glass can include accidental impact, cracks, or shattered glass. These factors can compromise the aesthetics, insulation, and safety of the oven.

Symptoms of a bad outer door glass may include:

• Visible cracks or breakage in the glass
• Impaired visibility into the oven cavity
• Heat loss or inadequate insulation

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Color: Biscuit. Left hand side. For right hand use WP8523167

Color: Biscuit. Right hand side. For left hand use WP8523173

The Right Side Door Trim is an OEM part for Whirlpool ranges. This part covers any gaps and protects the internal components from dust and debris.  Note: For Left-Hand use WP8523172

Causes of a bad side door trim can include general wear and tear, accidental damage, or deterioration due to exposure to heat and moisture over time.

Symptoms of a bad side door trim include:

• Visible cracks or breaks in the trim
• Gaps between the range door and cabinetry
• Loose or misaligned trim pieces
• Accumulation of dust or debris inside the range door

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Range Side Trim is an OEM replacement part for Whirlpool brand cooking ranges. This decorative trim piece attaches along the sides of the range and protects the outer edge. Left Hand Trim. For the Right Hand use WP8523166

Causes of a bad range trim can include normal wear from regular use of oven and cooktop surfaces over time, as well as potential impact or heat damage.

Symptoms of bad trim include:

• Cracks, peeled paint, or damaged coating on the trim material
• Gaps appearing at trim joints or attachment points
• Reduced aesthetic appeal or protection of the range exterior

This OEM Whirlpool part is also compatible with Kenmore, KitchenAid, Roper, and some Frigidaire cooking ranges.

The Door Trim is an OEM replacement part for Whirlpool ranges. It is the outer decorative coating that wraps around the edges of the oven door opening. The trim piece provides a sleek finished look while protecting internal elements from accidental contact when accessing the oven cavity. For Right-Hand use W10761014

Symptoms of a failing door trim include:

• Peeling or flaking of the outer coating
• Cracks or breaks in trim corners exposing raw edges
• Loose fitting or inability to securely mount around the opening

Causes involve normal wear over time from routine cleaning and occasional impact during use. Exposure to heat radiating from the oven door can accelerate surface deterioration as well.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: Black

The Door Trim is an OEM replacement part for Whirlpool ranges. It covers the outer edge of the oven door, protecting it from wear and dust while retaining heat and improving aesthetics.

Causes of a bad door trim include normal wear and tear over time from repeated door openings and closings, exposure to heat and steam from cooking, or accidental damage. The high-temperature paint coating can peel or bubble and the rigid trim material may crack or warp.

Symptoms of a bad door trim include:

• Peeling, bubbling, or cracked paint
• Warped or misshapen trim
• Gaps appearing around the door seal
• Increased heat loss from the oven cavity
• Declining aesthetic appeal

Color: Black - Right Hand Trim. For the Left Hand use W10761018

This OEM Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Range Screw is an OEM part for Whirlpool ranges. It is a small but essential component used to secure various parts and panels of the range. It is designed to fit securely into pre-drilled holes, holding components tightly in place.

There are a few factors that can lead to a bad Range Screw. Over time, screws may become loose or stripped due to frequent use or inadequate tightening. Accidental cross-threading or overtightening can also damage the screw or the surrounding components.

Symptoms of a bad screw may include loose or wobbly parts, rattling noises during operation, or difficulty in keeping components securely attached. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Color: Biscuit.

Color: Black

The Bottom Door Trim is an OEM part for Whirlpool ranges. It provides a finished appearance to the bottom edge of the oven door and helps to prevent heat from escaping, ensuring efficient oven operation and consistent cooking results. For Stainless Steel order 8523180, for Black 8523177, and for Bisque 8523178 and for the universal part W10067550.

Causes of a bad bottom door trim include wear and tear from opening and closing the oven door, damage from cleaning processes, or the trim becoming loose or detached due to thermal expansion and contraction.

Symptoms of a bad bottom door trim include:

• Heat escaping from the bottom of the oven door
• Loose or detached trim
• Visible cracks or warping in the trim
• Difficulty in closing the oven door properly

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This factory fastener secures appliance panels, brackets, and internal components. Replacing a missing, stripped, or corroded screw restores proper fit and stability, helping reduce vibration, rattling, and wear during everyday operation.

• Secures covers, brackets, and assemblies to the cabinet or frame
• Restores alignment to reduce gaps, looseness, and vibration
• Replaces lost, damaged, corroded, or stripped hardware
• Matches the original fastener for correct fit and retention

• Disconnect power and shut off water or gas before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent thread or plastic damage
• Inspect receiving threads or clips; repair/replace if stripped or broken

The Screw is an OEM part for Whirlpool appliances, commonly utilized in a variety of their products such as washing machines, dryers, refrigerators, and dishwashers. This screw is essential for securing different components, ensuring they are properly attached and aligned to maintain the appliance’s functionality and safety.

Over time, screws can become loose, stripped, or lost due to vibrations, regular use, or during maintenance and repairs. A damaged or missing screw can lead to unstable parts, which may affect the performance and safety of the appliance.

Symptoms of a bad or missing screw include:

• Loose or rattling components
• Misalignment of parts
• Noise during operation
• Panels or parts not staying securely in place

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

This support bracket secures an appliance cabinet component or mounting point to restore alignment and reduce movement. It replaces worn or broken supports so panels and internal parts stay properly positioned during normal operation. What it does

• Holds a cabinet panel, frame, or internal component in place to maintain proper alignment.
• Stabilizes mounting points to help reduce vibration, rubbing, or intermittent noise.
• Common replacement when you notice a loose or sagging panel, rattling, or unusual chassis movement.
• Provides a direct mechanical fix—matches the OEM bracket design and fit.

• Disconnect power (and shut off gas supply for gas appliances) before starting any repair.
• Remove necessary panels and fasteners to access the old bracket; keep track of all screws and clips.
• Compare the new bracket to the old part for orientation before installing; secure using the original fasteners—do not overtighten.

Size: 8-18 x 1/2 inch.

Rubber bumper. Color: Grey.
