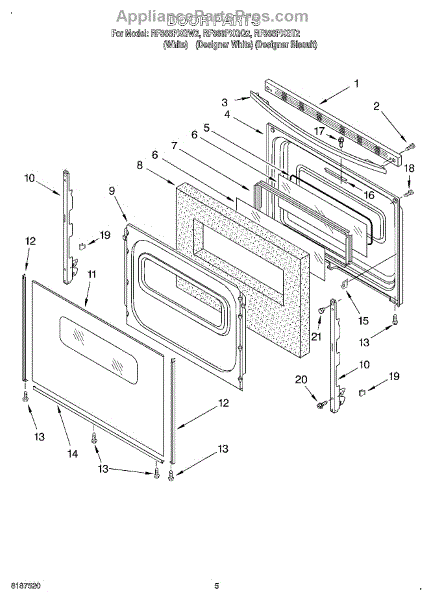

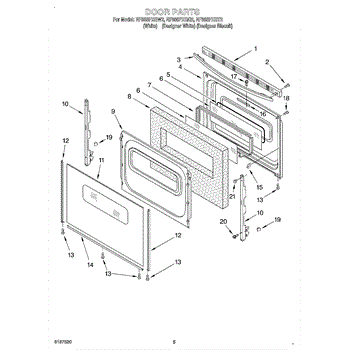

Parts for Whirlpool RF366PXGT2: 04 - Door Parts

Color: Black.

Color: Biscuit.

Color: White.

The Screw is an OEM part for Whirlpool appliances that is responsible for securing various parts in place. The screw ensures a tight and secure fit, preventing any loose parts. A bad screw can occur due to wear and tear or accidental damage. If the screw becomes stripped, rusted, or lost, it can lead to instability or even malfunction of the affected parts.

Symptoms of a bad screw include:

• Loose or wobbly parts.
• Components not securely fastened.
• Difficulty in assembling or disassembling the appliance.
• Rattling or unusual noises during operation.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Color: White. For black order WPW10202217. For almond order 8522446. If your unable to use your old mounting screws order WP3196164.

Color: Black. For white order WPW10202216. For almond order 8522446.New mounting screws need to also be ordered WP3196164.

Qty 4 needed to complete full insulation

This hinge is for painted door only. For stainless steel door use WP8272822.

Color: Biscuit. For black glass use WP9762477. For white glass use WP9762476.

Replace a cracked or shattered front panel with this black outer door glass for your oven/range. It restores the viewing window and finished look while helping the door seal and contain cooking heat as designed.

• Forms the exterior glass panel and viewing window of the oven door
• Helps contain heat and protect the door's insulation
• Replace if glass is cracked, shattered, deeply scratched, or discolored
• Can address a loose or rattling exterior panel after impact

• Disconnect power and allow the oven to cool completely before starting.
• Remove the door per your model's manual and place it on a padded surface.
• Transfer the handle and any trim/brackets from the old panel as required for your model.
• Wear cut-resistant gloves and eye protection; handle glass carefully and avoid overtightening fasteners.

The Outer Door Glass is an OEM part for Whirlpool ovens. Specifically designed for the oven door, it serves as a protective barrier while allowing you to observe the cooking process. It helps maintain the desired temperature inside the oven while protecting it from external elements.

This particular outer door glass is white in color and measures 29.44" by 20.11", providing a precise fit for your oven model.

Causes of a faulty outer door glass can include accidental impact, cracks, or shattered glass. These factors can compromise the aesthetics, insulation, and safety of the oven.

Symptoms of a bad outer door glass may include:

• Visible cracks or breakage in the glass
• Impaired visibility into the oven cavity
• Heat loss or inadequate insulation

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Color: Bisque. For black order 8184858. For white order 8184859. Kit includes two side pieces and one bottom piece. NOTE: This part has been redesigned by the manufacturer. The lower screws are no longer used and the side trim now locks into the lower trim with the dimples on the lower end of the side trim.

The Oven Door Trim Kit is an OEM part for Whirlpool ranges. This kit includes trim pieces that frame the oven door, providing a finished look and helping to seal the door properly.

Causes of a bad oven door trim can include wear and tear from regular use, exposure to high temperatures, or physical damage from impacts or mishandling.

Symptoms of a bad oven door trim include:

• Visible cracks or damage to the trim
• The oven door not sealing properly
• Heat escaping from around the oven door
• The trim becoming loose or detaching

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Oven Door Trim Kit is an OEM replacement part for Whirlpool ranges.

Causes of faulty trim pieces involve normal wear from opening and closing the oven door hundreds of times over the years. Exposure to high heat cycles can dull finishes or cause cracking in lower-quality materials.

Symptoms of inadequate trim include:

• Loose, wobbly or missing door handles
• Gaps appearing around door perimeter
• Scratches or deterioration on visible surfaces
• Broken trim detracting from clean aesthetic

Color: White. For black order 8184858. For bisque order 8184860. The kit includes two side pieces and one bottom piece.

NOTE: This part has been redesigned by the manufacturer. The lower screws are no longer used and the side trim now locks into the lower trim with the dimples on the lower end of the side trim.

This OEM Whirlpool replacement kit is also compatible with Maytag, KitchenAid, Jenn-Air, Amana and Magic Chef ranges.

The Range Screw is an OEM part for Whirlpool ranges. It is a small but essential component used to secure various parts and panels of the range. It is designed to fit securely into pre-drilled holes, holding components tightly in place.

There are a few factors that can lead to a bad Range Screw. Over time, screws may become loose or stripped due to frequent use or inadequate tightening. Accidental cross-threading or overtightening can also damage the screw or the surrounding components.

Symptoms of a bad screw may include loose or wobbly parts, rattling noises during operation, or difficulty in keeping components securely attached. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Color: Bisque. For black order 8184858. For white order 8184859. Kit includes two side pieces and one bottom piece. NOTE: This part has been redesigned by the manufacturer. The lower screws are no longer used and the side trim now locks into the lower trim with the dimples on the lower end of the side trim.

The Oven Door Trim Kit is an OEM part for Whirlpool ranges. This kit includes trim pieces that frame the oven door, providing a finished look and helping to seal the door properly.

Causes of a bad oven door trim can include wear and tear from regular use, exposure to high temperatures, or physical damage from impacts or mishandling.

Symptoms of a bad oven door trim include:

• Visible cracks or damage to the trim
• The oven door not sealing properly
• Heat escaping from around the oven door
• The trim becoming loose or detaching

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Oven Door Trim Kit is an OEM replacement part for Whirlpool ranges.

Causes of faulty trim pieces involve normal wear from opening and closing the oven door hundreds of times over the years. Exposure to high heat cycles can dull finishes or cause cracking in lower-quality materials.

Symptoms of inadequate trim include:

• Loose, wobbly or missing door handles
• Gaps appearing around door perimeter
• Scratches or deterioration on visible surfaces
• Broken trim detracting from clean aesthetic

Color: White. For black order 8184858. For bisque order 8184860. The kit includes two side pieces and one bottom piece.

NOTE: This part has been redesigned by the manufacturer. The lower screws are no longer used and the side trim now locks into the lower trim with the dimples on the lower end of the side trim.

This OEM Whirlpool replacement kit is also compatible with Maytag, KitchenAid, Jenn-Air, Amana and Magic Chef ranges.

Screw for side trim.

This 10-32 machine screw secures panels, brackets, and internal assemblies in your appliance. Replacing missing or stripped hardware restores a tight, rattle-free fit and helps keep components properly aligned.

• Provides a threaded fastener for metal-to-metal connections
• Helps maintain correct alignment of panels, brackets, and housings
• Replaces missing, rusted, or stripped screws
• Symptoms include loose or vibrating panels, gaps/misalignment, or hardware that won't tighten

• Disconnect power (and shut off gas/water, if applicable) before servicing
• Match the 10-32 thread and length to the original screw for the location
• Start by hand to avoid cross-threading; tighten snugly without over-torquing
• Retain and reinstall any original clips, spacers, or washers used in your model

This door stop clip mounts at the oven door hinge area to limit how far the door opens. Replacing a bent or missing clip restores the correct stop point and helps protect the hinge from overextension.

• Limits the oven door opening angle to a designed stop
• Helps prevent overextension that can strain or damage the hinge mechanism
• Common symptoms include the door dropping open too far, loose-feeling travel, or difficulty reinstalling the door
• Visual clues: bent, cracked, or missing clip at the hinge area

• Disconnect power or shut off gas; allow the appliance to cool completely
• Support the door; removal may be required to access the hinge area
• Install the clip in the same orientation/location as the original; replace on both hinges if your model uses two
• Verify smooth movement and that the door stops at the normal open position before use

Size: 8-18 x 1/2 inch.

Rubber bumper. Color: Grey.
