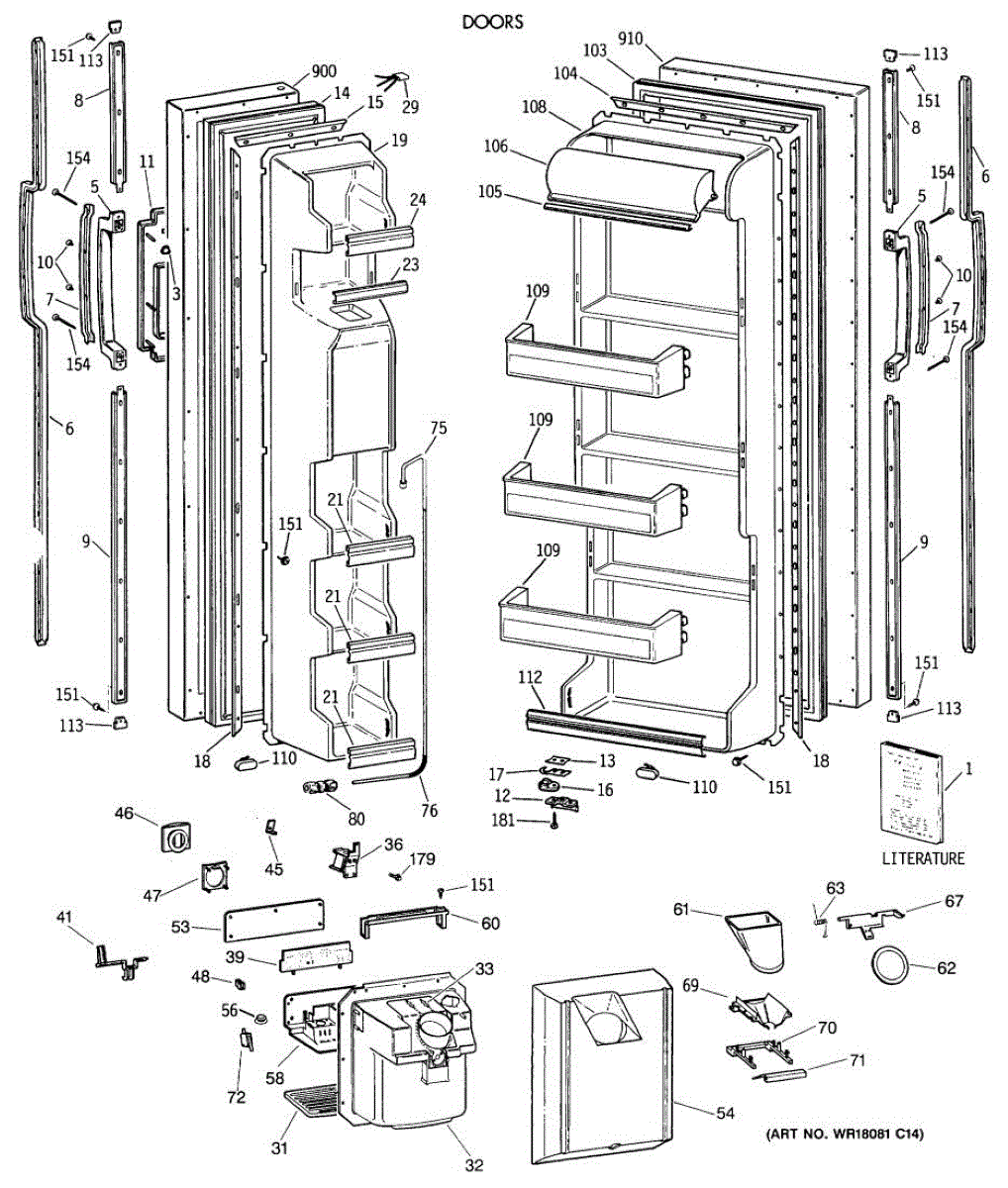

Parts for Ge MSG22GRXAWW: 01 - Doors Parts

This dispenser trim assembly replaces the plastic trim around a refrigerator dispenser to restore the finished look and help align the dispenser opening. It provides a clean appearance and secures dispenser controls and components. What it does

• Covers and finishes the dispenser opening for a clean, factory appearance
• Helps hold dispenser controls and actuator components in place
• Guides dispensed water/ice and reduces edge gaps where spills can occur
• Replaces cracked, warped or loose trim that detracts from appearance or fit

• Disconnect power and water supply before starting any repair
• Remove the existing trim by releasing retaining clips or removing mounting screws as applicable
• Align new trim with clips/mounting points and press or fasten until secure; avoid over-tightening
• After installation, restore power and water, then test dispenser function and check for proper fit

The Cam Riser is an OEM part for GE refrigerators. It plays a crucial role in the door mechanism, helping to lift and align the door as it opens and closes. This ensures the door operates smoothly and maintains a proper seal, which is essential for the efficient functioning of the refrigerator.

Over time, the cam riser can wear out or become damaged. Causes of a bad cam riser can include frequent use, physical damage from heavy door loads, or general wear and tear of the plastic components.

Symptoms of a bad Cam Riser include:

• Difficulty in opening or closing the refrigerator door
• The door not staying aligned or sealing properly
• Unusual noises when operating the door

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Riser Cam Shim is an OEM part for GE refrigerators. This part helps in aligning and leveling the refrigerator door, ensuring it opens and closes smoothly.

Causes of a bad riser cam shim can include regular wear and tear, damage from repeated door openings and closings, or deformation from improper installation.

Symptoms of a bad riser cam shim include:

• The refrigerator door not closing properly
• Difficulty in opening or closing the door
• The door appearing misaligned
• Reduced cooling efficiency due to an improper seal

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The recess door retainer secures the dispenser's ice chute flapper in the refrigerator door. Replacing a cracked or missing retainer restores proper flapper pivot and sealing to help reduce frost buildup and air leaks around the dispenser.

• Holds the recess/ice door on its pivot within the dispenser assembly
• Helps the flapper close fully to seal the ice chute
• Restores smooth open/close action of the dispenser door
• Common symptoms: loose or fallen flapper, poor chute seal, frost or condensation in the dispenser area, and ice clumping near the chute

• Unplug the refrigerator before servicing the dispenser
• Carefully remove the dispenser bezel/control panel to access the ice chute door assembly
• Note spring orientation and retainer position; transfer components to the new retainer
• Verify flapper movement and seal before reassembly and restoring power

Color: Black.

The Ice Door Assembly is an OEM part for GE refrigerators. It is integral to the ice dispenser system, controlling access to the ice chute. This component ensures the efficient delivery of ice cubes or crushed ice when activated and seals off the chute when not in use to maintain the freezer's temperature and prevent frost buildup.

Symptoms of a bad Ice Door Assembly include:

• Frost or ice buildup around the dispenser area
• Ice escaping from the dispenser when not in use
• Failure to dispense ice
• Noise during operation indicating misalignment or malfunction

Causes of a bad Ice Door Assembly can include mechanical wear from frequent use, failure of the spring mechanism or solenoid that operates the door, or damage to the sealing surfaces that leads to air leaks.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Ice Door Spring is an OEM part compatible with GE refrigerators. It is responsible for providing tension and support to the ice chute door, allowing it to open and close smoothly. When you activate the ice dispenser, the spring helps to release the door and allow the ice to pass through. After dispensing, the spring assists in closing the door to prevent cold air leakage and maintain the desired temperature inside the refrigerator.

You should replace the ice door spring if it loses tension or breaks, which can happen due to regular wear and tear, frequent use, or accidental damage. A faulty spring can lead to issues with the ice dispenser's operation and overall efficiency.

Symptoms of a bad ice door spring may include:

• Difficulty in opening or closing the ice chute door
• Ice dispensing issues, such as the door not opening when the dispenser is activated
• Cold air leakage from the ice chute area
• Ice buildup on the front of the icemaker

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Includes 12 screws.

This dispenser crank links the dispenser solenoid and the ice chute door. When you press the dispenser lever, the crank pivots to open and close the ice door so cubes or crushed ice can dispense cleanly without warm air leaking into the freezer.

• Connects the solenoid to the ice chute door to control door movement
• Helps seal the chute when not dispensing to reduce frost and moisture issues
• Common failure signs include ice door not opening/closing, constant frost around chute, or warm/moist air leakage at dispenser
• Can cause ice clumping, frost buildup, or water/ice dispensed irregularly when worn or broken

• Disconnect power before servicing the dispenser area
• Access typically requires removing the dispenser front panel and trim; use care with plastic tabs and wiring
• Note linkage orientation to the solenoid and door flap before removal
• Inspect related parts for wear while open

Color: Black.

Color: Black.

The Refrigerator Union Connector is an OEM replacement part for GE refrigerators. It is responsible for connecting the water supply lines from the kitchen plumbing to the refrigerator, allowing water to flow to the ice maker and water dispenser. The plastic connector assists your water dispenser by joining two 5/16 inch x 5/16 inch plastic water lines. Over time, Union Connectors can crack or break under pressure.

Causes of a bad Union Connector include wear and tear from repeated use, exposure to extreme fluctuations or surges in water pressure, or damage from accidental mishandling.

Symptoms of a bad Refrigerator Union Connector include:

• Water leaks at or near the connector area
• Inconsistent or no water flow to the ice maker/dispenser
• Fluctuations in water pressure to the fridge
• Water damage to surrounding kitchen areas from leaks

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Includes 12 screws. Size: 8-18 ab.

This replacement screw secures appliance components and panels where an 8-36 threaded fastener is required. Durable and ready for repair, it restores proper fit and reduces rattles or loose parts. What it does:

• Fastens panels, brackets, or components that use an 8-36 threaded screw
• Replaces stripped, lost, or damaged screws that cause vibration or loose parts
• Restores secure mechanical connections to help maintain normal operation

• One screw

• Disconnect power and follow appliance safety procedures before starting repairs
• Use the correct driver and match thread engagement; do not force or cross-thread
• Tighten to snug; avoid overtightening which can strip threads or damage parts

This is a replacement 8-18 x 9/16 machine screw used to secure internal and external appliance components. It restores proper fastening and helps stop rattling or loose panels caused by worn or missing fasteners. What it does

• Secures panels, brackets, or small assemblies to prevent movement and vibration
• Replaces stripped, corroded, or missing screws that can cause rattling or misalignment
• Helps maintain electrical and mechanical connections by holding parts in proper position
• Appropriate where an 8-18 thread size and 9/16" length are required

• Replacement screw

• Disconnect power to the appliance before accessing internal components
• Use the correct driver to avoid stripping the screw head and ensure proper torque
• Do not overtighten; snug until secure to avoid damaging threads or parts

Includes 12 screws.

8 - 18 x .375

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

2 wire insulator.

Size: 10-16 ab.

Size: 8-32 t. Includes 12 screws.

This water tube fastener secures the refrigerator's water tube/line to the cabinet or chassis, keeping the tubing routed and stable to prevent kinks and inconsistent water flow. Simple replacement helps restore proper line routing and reduces vibration noise. What it does:

• Holds the water inlet/dispenser tube in place to prevent movement and rubbing
• Keeps tubing routed away from sharp edges and hot components
• Helps prevent kinks that can restrict water flow to the dispenser/ice maker
• Reduces vibration-related noise from loose tubing

• Disconnect power and shut off the water supply before replacing any water-line hardware.
• Remove any access panels needed to reach the existing clip; use hand tools to unclip or remove fastener.
• Check for leaks and secure routing after installation.

8-18 AB IHW 5/8 S

Black. 8-18 AB HXW 3/8
