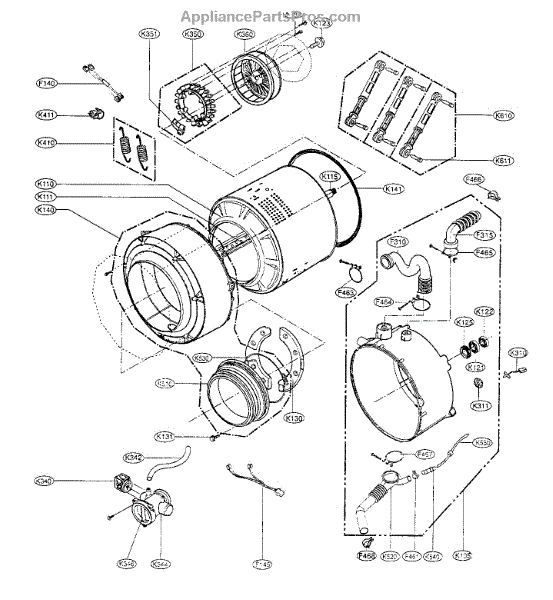

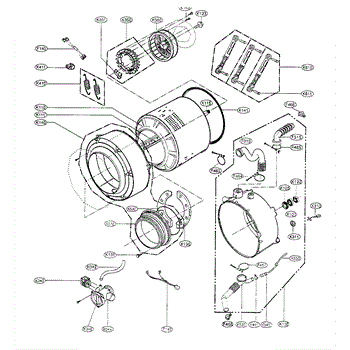

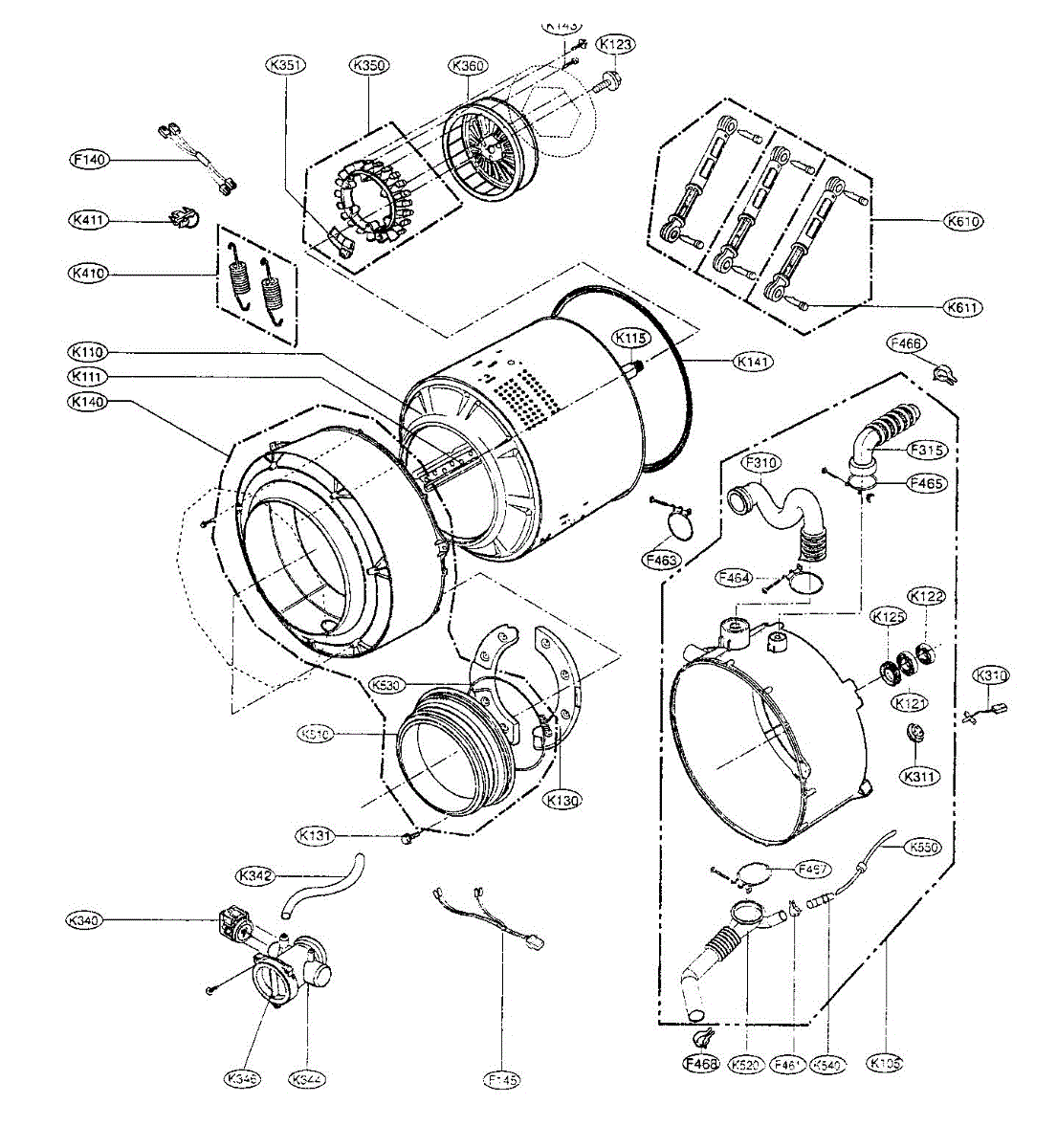

Parts for Lg WM1815CS: Drum / Tub Assy Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

The Spider is an OEM part for LG washing machines. As the rear tub support, it is located behind the outer tub and provides structural support during the spinning cycles. The spider braces against excessive vibration and movement to maintain integrity of the washer tub under heavy loads.

Causes of a bad spider can include cracks, breaks, or loosening due to wear and tear over time from stress of the spinning cycles. Metal fatigue from years of use also contributes.

Symptoms of a bad spider include:

• Excessive shaking and rattling during spin cycles
• Rubbing or grinding noises emanating from the rear of the washer
• Difficulty with load distribution and spinning effectiveness
• Potential leaks due to compromised tub support

This LG part is also compatible with some Kenmore models.

The Tub Bearing is an OEM replacement part for LG washing machines. This component is essential for the smooth rotation of the washer drum, reducing friction and ensuring quiet, efficient operation during wash and spin cycles.

Causes of a bad tub bearing can include wear and tear from regular use, exposure to water and detergent, or overloading the washing machine. Over time, the bearing can degrade, leading to increased friction and noise.

Symptoms of a bad tub bearing include:

• Loud noises during the spin cycle, such as grinding or roaring
• The drum wobbling or moving excessively
• Water leaking from the bottom of the washer
• Poor washing performance or the drum not spinning properly

This OEM LG part is also compatible with Sears/Kenmore models.

This ball bearing supports a rotating shaft in the drive system, reducing friction so the appliance runs smoother and quieter. Replacing a worn bearing can curb rumbling and help prevent damage to adjoining shafts, housings, or seals.

• Supports and centers a rotating shaft within the assembly
• Reduces friction and wear between moving parts for smooth operation
• Helps limit noise and vibration from the drive system
• Common symptoms of failure include grinding/roaring noises, excessive play or wobble, rough or stiff rotation by hand, or seized rotation

• Disconnect power and, if applicable, shut off water before servicing
• Access the bearing by disassembling the related housing; note orientation and order of components
• Press the bearing out/in with a driver or press; do not hammer on the inner or outer race
• Inspect the shaft and any companion seals or bearings; clean the bore and seat the new bearing fully

The Motor Rotor Bolt is an OEM part for LG washing machines. It secures the rotor to the motor shaft, playing a crucial role in the efficient functioning of the motor and ensuring the washer drum spins correctly during wash cycles.

Causes of a bad motor rotor bolt can include wear and tear from prolonged use, corrosion due to exposure to moisture, or damage from over-tightening or accidental impacts. A faulty motor rotor bolt can compromise the stability of the motor, leading to various operational issues.

Symptoms of a bad motor rotor bolt include:

• The washer drum not spinning or spinning irregularly
• Unusual noises during operation, such as banging or clunking
• The washer failing to complete cycles or stopping mid-cycle
• Visible wear or damage to the bolt or surrounding components

This OEM LG part is also compatible with Sears/Kenmore models.

The Lower Tub Seal is an OEM part for LG front-loading washing machines. It is located between the inner and outer tubs, creating a barrier to prevent water from leaking through the space between these two components.

Symptoms of a leaking lower tub seal include:

• Water stains or moisture accumulating on the outer tub surface
• Puddles of water found underneath the machine
• Excess vibration or noise from unbalanced water pressure

Failure can occur from mineral deposits obstructing the sealing surface over time. Cracks or tears in the seal material also compromise its leak-prevention ability.

This OEM LG part can also be used on Kenmore/Sears appliances.

This Screw (drawing) is a factory fastener used to secure appliance panels and components. Replacing a stripped, corroded, or missing screw restores a tight fit, reduces vibration, and helps keep assemblies correctly aligned.

• Secures panels, brackets, and mounting points as specified by the manufacturer
• Replaces screws that are lost, damaged, corroded, or stripped
• Helps address rattling, vibration, or loose-fitting parts caused by missing hardware
• Maintains proper alignment and stability of the assembly

• Disconnect power and, if applicable, shut off gas/water before servicing
• Match the screw to its original location; start threads by hand to avoid cross-threading
• Use the correct driver; tighten snugly without over-torquing into metal or plastic
• Refer to your model's parts diagram to correct location and quantity

This is a replacement single electrical harness that restores the factory wiring connection between components. It provides a like-for-like connection to help return affected functions to normal operation when wiring is damaged. What it does:

• Carries electrical signals/power between components and the appliance control circuits
• Replaces frayed, melted, or broken wiring that can cause intermittent or complete function failure
• Commonly used when a component has no power, a circuit is open, or functions stop responding
• Helps eliminate loose connector issues that cause intermittent operation or error codes

• One (1) single electrical harness (part 6877ER3003C)

• Always disconnect power (unplug or shut off breaker) before inspecting or replacing wiring
• Match connector shapes and pin counts; do not force connectors—verify secure seating
• Route and secure the harness per factory paths and clips to prevent chafing or heat exposure
• If you see melted connectors, burned insulation, or repeated failures,

This is a replacement screw used to secure internal components and assemblies. It restores proper fastening when original screws are stripped, loose, or missing. What it does

• Secures panels, brackets, or small assemblies to prevent rattling and misalignment
• Restores proper fit when original fasteners are worn, stripped, or lost
• Helps stop vibration-related noise from loose parts
• Matches OEM fastening locations and thread style for intended application

• Screw as shown

• Unplug the appliance or disconnect power before starting any repair
• Use the correct screwdriver or driver bit to avoid stripping the head
• Tighten until snug; avoid overtightening which can strip threads or crack plastic
• Keep small parts away from children and dispose of damaged fasteners

The Thermistor Assembly is an OEM component specifically designed for front loading LG washing machines. It plays an important role in monitoring and regulating temperatures during heated wash cycles. The thermistor detects temperature changes within the wash drum and sends this information to the control board to ensure clothes are washed at the optimal temperature.

Causes of a bad thermistor assembly can include general wear and tear over time, exposure to extreme temperatures, or damage due to impact or mishandling during cycles.

Symptoms of a bad thermistor assembly include:

• Inability to reach or maintain set temperatures
• Fluctuating water temperatures
• Error codes related to temperature sensing

This OEM LG part is also compatible with Sears/Kenmore washers.

The Dispenser Hose is an OEM part for LG washing machines. It connects the detergent dispenser to the washer tub, allowing detergent and other cleaning agents to be delivered effectively during the wash cycle.

Causes of a bad dispenser hose can include regular wear and tear, damage from harsh detergents, or physical damage due to kinks, pinches, or impact. Over time, the hose can become brittle, cracked, or clogged, affecting its ability to function properly.

Symptoms of a bad dispenser hose include:

• Leaks or drips from the hose area
• Detergent not dispensing correctly or at all
• Water pooling around the washer
• Visible cracks or splits in the hose

This OEM LG part is also compatible with Sears/Kenmore models.

This thermistor seal is the grommet that seals the temperature sensor where it passes through the washing machine's outer tub. Replacing a worn seal restores a watertight fit and helps prevent leaks that can damage surrounding components. What it does

• Forms a watertight barrier around the tub temperature sensor (thermistor)
• Helps keep the sensor securely positioned in the mounting port
• Common failure symptoms: water leaking during cycles, puddles under the unit, visible cracking/hardening of the grommet, or a loose sensor fit

• 1 thermistor seal

• Disconnect power and water; drain any remaining water from the tub
• Access the thermistor on the outer tub, disconnect its harness, and remove the sensor
• Pull out the old seal, clean the opening, press in the new seal, and reinstall the sensor fully seated
• Run a brief test cycle and check for leaks before final reassembly

The Vent Hose is an OEM part for LG washing machines. This hose is essential for ensuring proper ventilation within the washer, allowing air to circulate and preventing the buildup of moisture and mildew. It helps maintain the efficiency of the washing machine by facilitating the expulsion of air and excess water vapor during operation.

Causes of a bad washer vent hose can include wear and tear over time, blockages from lint or debris, or damage due to bending or pinching.

Symptoms of a bad vent hose include:

• Excessive moisture or condensation inside the washer
• Musty odors from the washing machine
• Visible cracks or holes in the hose
• Poor ventilation leading to inefficient washing cycles

This OEM LG part is also compatible with Sears/Kenmore.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

The Drain Pump and Motor is an original LG (OEM) replacement part for LG made washing machines that is responsible for removing water from the washer at the end of the wash cycle. The pump forces water out through the drain hose so that clothing comes out free of excess water, making the drying process faster.

Symptoms of a failing Drain Pump Motor include:

• Water not draining out of the washing machine
• Noisy or unusual sounds coming from the pump area during the drain cycle
• The washing machine stopping mid-cycle

Causes of a bad Drain Pump Motor can range from obstructions in the pump or hose, which can strain or damage the motor, to wear and tear from regular use leading to motor failure. Electrical issues can also affect the motor's performance, preventing it from operating correctly.

This OEM LG part can also be used on Kenmore/Sears appliances.

The Drain Hose is an OEM part for LG washing machines. It is designed to carry used water from the washing machine to the household drain. This hose ensures that water is efficiently expelled from the washer, preventing any overflow or leakage issues.

Causes of a bad drain hose can include cracks or splits due to wear and tear, clogs from debris or residue buildup, and damage from mishandling or improper installation. Such issues can compromise the hose's ability to transport water effectively.

Symptoms of a bad Drain Hose include:

• Water leaks during or after the wash cycle
• The washer not draining properly
• Visible cracks or damage to the hose
• Unpleasant odors due to trapped debris or standing water

This OEM LG part is also compatible with Sears/Kenmore models.

The Pump Casing is an OEM replacement part for LG washing machines. It is a crucial component that houses the drain pump, which is responsible for removing water from the wash tub during the drain and spin cycles.

Symptoms of a need to replace the pump casing:

• Leaks or water seeping from the pump area
• Unusual noises or vibrations during the drain or spin cycles
• Pump failure or inability to drain water effectively
• Cracks or damage to the casing itself

Causes of a faulty pump casing can include physical impact or mishandling, excessive wear and tear over time, or potential manufacturing defects.

This OEM LG part is also compatible with Sears/Kenmore washing machines.

This rotor position sensor (Hall sensor) tracks the direct-drive motor's rotor position and speed so the control can commutate the washer motor accurately. Replacing a failed sensor can restore proper wash/agitate and spin performance. What it does:

• Detects rotor position and speed from the stator assembly
• Sends timing feedback to the control for correct motor start, direction, and speed
• Supports smooth agitation and spin ramp-up/ramp-down
• Failure may cause: no spin or agitation, cycle stalling/pausing, or an LE motor error code

• 1 rotor position sensor assembly

• Unplug the washer and shut off water; wear protective gloves
• Access the motor at the rear of the tub; remove the back panel if needed
• Remove the rotor and stator; support the stator to protect wiring, then unclip/unscrew and replace the sensor
• Align the sensor correctly and seat the connector fully before reassembly and testing

The Suspension Spring Holder is an OEM part for LG washing machines. This holder supports the suspension springs that help stabilize the washer drum during operation, reducing vibration and movement. It plays a critical role in ensuring smooth and quiet operation of the washing machine.

Over time, the suspension spring holder can become worn or damaged due to regular use, heavy loads, or accidental impacts. Causes of a bad suspension spring holder include wear and tear, physical damage, or corrosion from moisture exposure.

Symptoms of a bad suspension spring holder include:

• Excessive vibration or shaking during wash cycles
• Unusual noises, such as banging or clunking
• The washer drum appearing misaligned or sagging
• The washing machine moving or walking during operation

This OEM LG part is also compatible with Sears/Kenmore.

A replacement hose clamp that secures a flexible hose to its fitting to help prevent leaks and disconnections. Restores a tight, reliable seal so hoses stay seated during normal use. What it does:

• Holds a rubber or plastic hose firmly to a pump, valve or connection to prevent leaks.
• Helps stop hose pull-off that can cause water leaks or appliance interruptions.
• Commonly replaced when clamps are corroded, bent, cracked or missing.
• Works as a low-cost repair to restore a secure hose connection without replacing the hose assembly.

• Disconnect power to the appliance and shut off the water supply before servicing.
• Use the correct tool (slip-joint pliers for spring-style clamps or a screwdriver for screw-type clamps) and avoid pinching the hose.
• Inspect the hose and fitting for damage; replace the hose if it's cracked or excessively worn.
• After installing, restore power/water and run a short test cycle or check for leaks.

This hose clamp secures a washer hose to its fitting to maintain a tight, leak-resistant connection. Replace a weakened or damaged clamp to stop seepage at hose joints and keep the washer operating reliably.

• Holds the hose firmly on pump, tub, or drain fittings to help prevent leaks
• Maintains clamping pressure during operation and vibration
• Replace if rusted, bent, cracked, or no longer holding tension
• Typical symptoms: water dripping at hose connections or a hose that slips off

• Disconnect power and shut off water; drain any remaining water from the unit
• Release and slide back the old clamp, then remove the hose
• Fully seat the hose on the fitting and position the clamp just behind the hose bead/ridge
• Secure the clamp and run a brief test to check for leaks

This tub-to-pump hose connects the washer's outer tub to the drain pump, carrying water out during the drain cycle. Replace it to resolve leaks or drain errors caused by cracks, splits, or internal blockages.

• Routes wash water from the outer tub to the drain pump
• Flexible bellows section helps prevent kinking and accommodates tub movement
• Failure signs: water leaking under the washer, slow/no draining, drain-related error codes, or visible cracks/soft spots
• Often needed after clamp corrosion, physical damage, or age-related deterioration

• Unplug the washer and turn off water supply; drain any remaining water from the tub/hoses
• Access location varies by model; remove panels as needed to reach the hose and clamps
• Use pliers to release spring clamps; note routing and clamp orientation before removal
• Seat the hose fully on fittings, secure clamps, and test with a short drain/rinse cycle to check for leaks

The Hinge Pin is an OEM part for LG washing machines. It serves as a pivot point for the washer door, allowing it to open and close smoothly. This component is crucial for maintaining the proper alignment and function of the washer door, ensuring a secure and reliable seal during operation.

Common causes of a bad hinge pin include frequent use leading to wear and tear, physical damage from accidental impacts, or rust and corrosion over time. A compromised hinge pin can result in misalignment of the door, affecting the washing machine's ability to close properly and maintain an effective seal.

Symptoms of a bad hinge pin include:

• Difficulty opening or closing the washer door
• Door not staying securely closed during operation
• Squeaking or grinding noises when the door is moved
• Visible wear or damage to the hinge pin

This OEM LG part is also compatible with Sears/Kenmore models.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.
