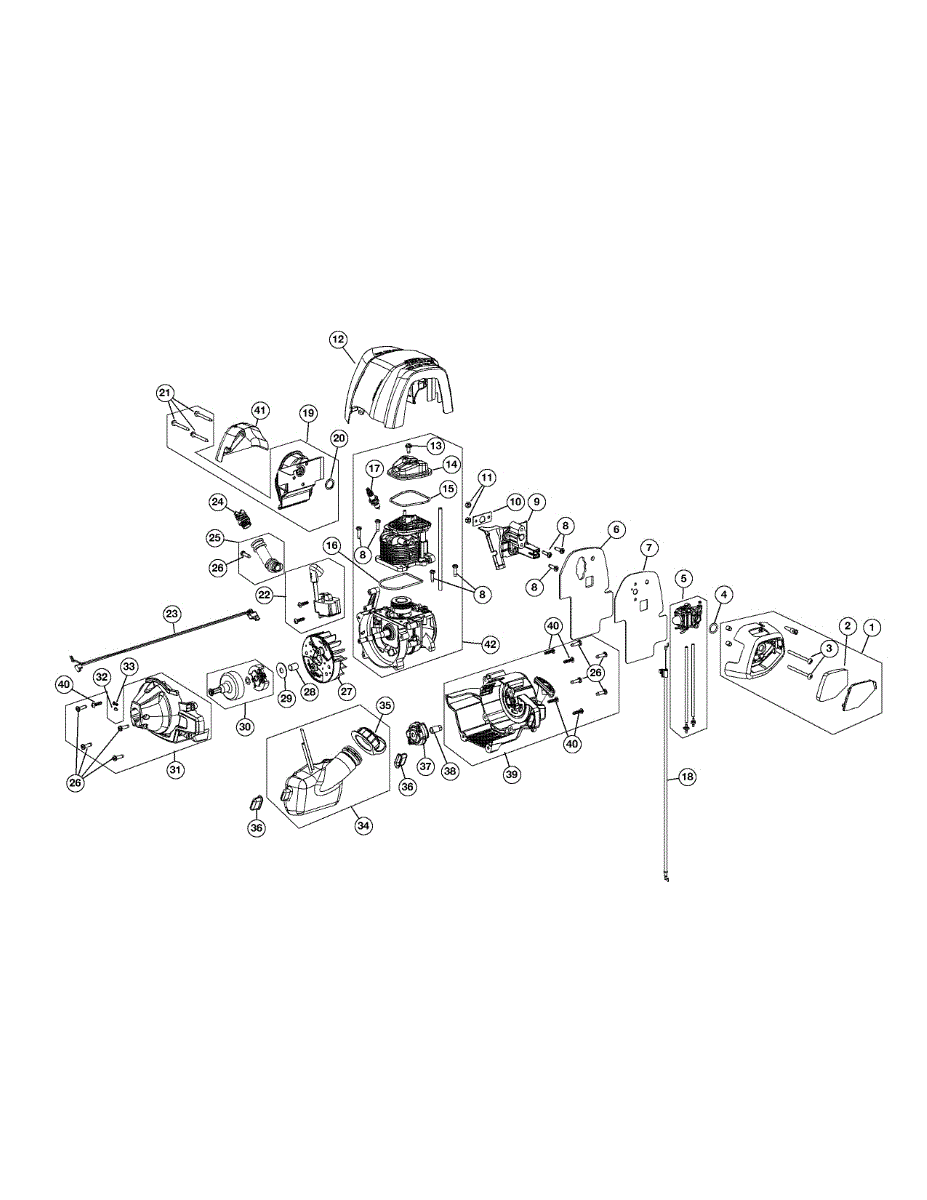

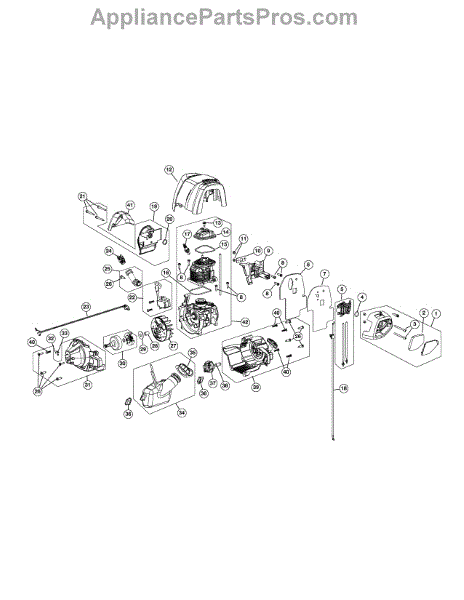

Parts for Craftsman 41CD604G799: Engine Assembly Parts

This genuine OEM air filter assembly is a complete unit that aids in filtering the air that comes into the engine while the trimmer is in use. The plastic housing protects a foam filter that catches dust and debris. Over time, air filters become clogged with regular use and are usually replaced as a part of routine maintenance. In the event that the air cover or base becomes damaged, however, a replacement of the entire assembly may be needed. This part can do the job for compatible machines. This OEM air filter assembly is manufactured by MTD and meets exact standards for original equipment manufacturing. It is compatible with many trimmers from MTD and Craftsman. The replacement of the air filter assembly requires a screwdriver to remove the mounting screws of the old base and secure the new unit in place. Be sure to allow the engine to cool completely before doing any repairs. Since air filters are known to clog, it may be a good idea to purchase an extra one to have on hand in case of emergencies. This is sold as an individual unit and includes the foam filter along with the plastic housing.

This brand-new, original MTD air filter attaches inside the air filter housing of a string trimmer to block debris and dirt. Tiny particles can accumulate inside the machine and cause carburetor and engine problems. String trimmers come with pre-installed air filters, but when it becomes too dirty, it will not be able to filter the tiny particles efficiently. It may also cause overheating issues. When there's too much dirt accumulation inside the string trimmer, it may disrupt the carburetor and engine performance. Some symptoms include carburetor and engine spit back and rough idling. In some scenarios, it will lead to complete machine failure. Replacing the air filter is easy, only requires a screwdriver, and will take less than 10 minutes. Open the air filter cover and remove the dirty filter. Put the replacement filter into the air cleaner housing. Make sure it is aligned. Then, close the air cleaner cover. This genuine MTD air filter will only work with string trimmer models from MTD, Bolens, Yard Machines, Craftsman, and Cub Cadet. This air filter is sold individually.

This is a genuine replacement O-ring, which is a standard part on a number of engines. This O-ring is specifically designed as a replacement for the one found in the carburetor on select lawn and garden engines. The O-ring is designed to create a seal in the carburetor to ensure optimal performance and prevent leaks. It is also designed to help create the right amount of pressure. Over time, O-rings can become corroded, worn, or damaged due to their exposure to pressure and high heat. If they become broken or damaged, they can result in poor engine performance or even total engine failure. This genuine OEM O-ring is manufactured by RYOBI and compatible with a number of tillers, trimmers, and blowers from this brand. It is also designed for use with select models from Bolens, Yard Man, MTD, and Troy-Bilt. There are more than 150 models that can use this specific O-ring. It is made of durable materials and sold as an individual unit. Keep in mind that because O-rings have multiple applications and engines may have more than one type, it is important to double-check the location and application of the part to ensure the right one is being used.

This is a replacement carburetor for gas trimmers. The carburetor is an important part of gas-powered equipment. The part mixes air and fuel in the correct ratio before sending it to the engine for ignition. It ensures that the trimmer's engine starts efficiently and runs well.Carburetors are durable thanks to their metal body, and they will typically last for a long time, but may be damaged by corrosion, wear and tear, or clogging. If the carburetor is not working properly, it could reduce the performance of the engine and cause overheating. It may also mean that the trimmer is difficult to start. When replacing a carburetor, it is a good idea to replace the gaskets at the same time. This will help to ensure that no added air gets into the engine.This carburetor is built for gas trimmers from MTD, Cub Cadet, Craftsman, and Troy-Bilt. It includes the rubber primer bulb. This is a genuine OEM replacement carburetor that is sourced from the manufacturer. It is sold individually.

This is a screw that is used for many pieces of lawn and garden equipment in a host of different ways. Screws such as this one are used to hold two components together. If the screw is not affixed properly or if there is an issue with the screw itself, it could affect the stability of the machine. If it is missing or not tight, it might also result in added noise when the machine is in use.Screws are made from metal and can last for a long time. However, if the threads are stripped or if the head of a screw wears down, it should be replaced. There is also the chance of corrosion or of losing the screw when working on the machine.This part is sold individually, and it can work well for a range of different machines from MTD, Craftsman, Bolens, and Yard Machines. This is a genuine OEM replacement part that is from the manufacturer.

This replacement part is an insulator gasket. Insulator gaskets isolate the metal surfaces of a flanged joint, electrically insulating them.A new insulator gasket might be needed if the current one is damaged in any way. If the engine struggles to turn on or does not start at all, it might be due to a damaged or malfunctioning insulator gasket. When replacing this part, be sure that the engine is completely powered off and cooled down.This is a genuine OEM replacement part manufactured by MTD. This part is sold individually.

This spark plug is a genuine Husqvarna part, sold individually. This spark plug can be used as a replacement part for outdoor appliances with small engines such as string trimmers and leaf blowers. This spark plug provides an ignition source for the engine.The spark plug might have to be replaced at some point in the standard lifespan of the appliance if it suffers enough damage to render it useless. The spark plug might be cracked, punctured, or eroded enough to reduce its functionality. If this occurs, the spark plug should be removed and replaced with this genuine OEM replacement part before using the appliance again. Remember to wear work gloves as a safety precaution while repairing or replacing parts within an outdoor appliance. This is an OEM part sourced directly from the manufacturer. It is sold individually. This spark plug is compatible with the following outdoor appliance brands: MTD and Craftsman.

This is an MTD muffler screw designed to hold the cover of the muffler in place.The muffler screw is tightened in place in the center of the muffler cover using the proper screwdriver. Do not overtighten the screw, as this can cause potential damage and stripping. There should be no need for any extra fastening components to be added to the muffler.The part listed is a genuine OEM product and is sourced directly from the manufacturer. The component is sold individually. This product is compatible with MTD and Briggs and Stratton products.

The ignition module coil is part of a blower's ignition assembly. The coil inside the ignition module is charged by the flywheel. The module then sends this charge through the ignition wire and on to the spark plug to start the engine. If the ignition coil fails due to age or excessive use, the engine will not crank, and the ignition coil will have to be removed and replaced.Always wear work gloves and safety goggles when working on equipment. Remove the spark plug and empty the fuel tank. Remove the air filter cover and engine housing. Remove the fuel tank and ignition module cover. Disconnect the wires and take the screws out of the ignition module. Remove and dispose of the module. Install the new module and reconnect the wires. Reverse the process to reassemble the blower.This ignition module is sold as an individual unit. It does not come with screws. This module is designed for use in blowers manufactured by MTD, Craftsman, and Troy-Bilt. This is an authentic OEM part sourced directly from the manufacturer.

This is a genuine replacement oil plug that is found in certain trimmers, edgers, and blowers designed for outdoor use. The oil plug is used to seal and fill the oil in the engine. This part is a high-quality plastic piece that features threads for screwing it into place and an O-ring to create a strong seal to prevent leaks and ensure optimal engine pressure. The oil cap may become stripped or damaged over time, or the O-ring could become faulty. In either case, replacing the entire cap/plug is the easiest solution.This genuine OEM replacement oil plug is compatible with machines from Troy-Bilt, MTD, Yard-Man, Yard Machines, and Cub Cadet. The plug is sold individually and comes with the O-ring. There are no other parts or hardware included. No tools are required to replace this plug. Simply unscrew the old one and screw the new one into place once the O-ring has been put on the new plug. Wear gloves whenever engine work is being performed to ensure hand protection. The oil should be checked regularly in all machines, which is a good time to check the cap to ensure it isn't damaged or in need of replacement.

The clutch assembly uses centrifugal force to connect the shafts and create the drive shaft motion that powers the machine. The drive shaft nests inside the other shaft, and over time these parts can wear and become damaged with regular use. Today's parts can even continue to function long past when they should, so it may not be apparent that a clutch assembly needs to be replaced until the entire unit is bad. If the engine is not performing as it should or if the drive shaft seems unstable, it may be time to replace the clutch assembly. This genuine OEM part includes everything needed for the job. This OEM clutch replacement is designed for use with various cultivators, edgers, and trimmers. It can be used on machines from MTD, RYOBI, Troy-Bilt, Bolens, Yard-Man, Cub Cadet, Murray, and Husky. This assembly includes the clutch, clutch drum, washer, and left-hand threaded screw. Always disengage the spark plug and allow the engine to cool completely before beginning repairs.

This is a genuine replacement screw designed for use in select MTD engines on lawn and garden equipment. Specifically, this is an anti-rotation screw, which is used to stop the drive shaft housing from turning inside of the main housing assembly. This screw is a small part that is subject to constant vibrations, pressure, and high temperatures. It can sometimes become worn or damaged as a result or even break off entirely, which would mean that the inner housing would no longer be held in place accordingly. If this screw is damaged or lost, it needs to be replaced with a genuine OEM replacement as soon as possible. This MTD anti-rotation screw is manufactured with high-quality materials and designed for use in select trimmers from MTD, RYOBI, Yard-Man, Troy-Bilt, Murray, Cub Cadet, Yard Machines, and Bolens. This replacement will require a screwdriver. Simply remove the damaged screw, if it is not already missing, from the clutch cover assembly, and then install the new screw. It should only take a few minutes to perform the replacement. Be sure to wear gloves to protect the hands. This screw is sold individually and does not include any additional parts or hardware.

This is a genuine OEM replacement fuel tank that is sourced directly from the manufacturer. It is used in various trimmer models and holds the fuel for operation. When the machine is not in use for long periods, the fuel that is in the tank causes the tank to become brittle. Exposure to the elements and normal use may also cause damage to the tank. Cracks, pinholes, leaking fuel lines, or bad O-rings in the fuel cap can all lead to fuel loss that not only affects engine performance, but that could also be a safety hazard.Turn the engine off and allow it to cool. Empty the fuel into a clean container to reuse later. Disconnect the fuel lines from the fuel pump. These lines are part of the fuel tank. Remove the fuel tank and lines. Install the new fuel tank with fuel lines. Refill with fuel and apply the fuel cap. Reinstall the spark plug. Check the new fuel tank for leaks.This fuel tank is made of high-quality white plastic with a black cap. It is sold as an individual unit complete with attached fuel lines and a fuel cap. It is compatible with string trimmers manufactured by MTD, Troy-Bilt, and Cub Cadet.

This fuel tank support is a genuine MTD part, sold individually. A fuel tank support can be used as a replacement part for outdoor appliances including tillers, string trimmers, leaf blowers, and edgers. This genuine OEM part is made out of high quality, durable materials that are specifically designed to last and hold up to possible general wear and tear over long-term usage.The fuel tank support might be subject to various forms of damage that can reduce or negate the efficacy of its function. If this occurs, the fuel tank support should be removed and replaced by this genuine OEM replacement part in order to guarantee safe continued usage of the appliance over its typical lifespan.This is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This fuel tank support is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Troy-Bilt, and Yard Machines.

This is a genuine replacement pawl assembly for select MTD engines. This pawl assembly attaches to the crankshaft in the motor. It is responsible for rotating the shaft and flywheel as a reaction to the recoil starter rope being pulled. The part is subject to constant motion and can wear down over time or otherwise fail. If the pawl assembly goes bad, the shaft and flywheel will not be able to rotate and the engine will not run properly, if at all. A replacement part like this model will solve the problem for compatible units. This genuine OEM pawl is manufactured by MTD to exact standards to provide a fit for compatible machines from Troy-Bilt, MTD, Cub Cadet, and Yard Man, including blowers and trimmers. This pawl assembly includes the metal housing, two plastic pawls, and two springs, which makes it a complete part that requires no additional purchase. This unit is sold as an individual piece. Ensure the engine is cool prior to repair and wear gloves to ensure hand protection when working on the moving parts of the engine. Disconnect the spark plug to protect from accidental engine engagement, as well.

This part is a replacement screw. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part can be used to replace a stripped or misplaced screw in a variety of outdoor power equipment. This screw is a genuine piece of standard hardware that can have many potential uses. It's important to use screws sourced from the manufacturer to ensure a proper fit and high quality. Screws are essential for securing parts and holding the equipment together and should be replaced if worn, broken, or lost. It is always recommended that the appropriate safety precautions are adhered to when attempting to fix any power tools or machinery. When working on or near an engine, ensure the equipment is powered off and completely cooled down before starting any repairs. For more accurate information on how and where to install this screw, the appropriate owner's manual and included diagrams should be referenced.As an authentic replacement part, this screw is suitable for use on several different models of blowers, edgers, and trimmers manufactured by MTD, Ryobi, Yard Man, Cub Cadet, and Troy-Bilt. This is a genuine part made of high-quality, durable metal and is sold individually.
