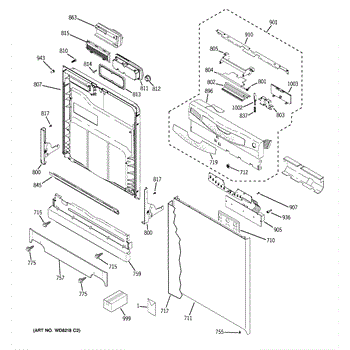

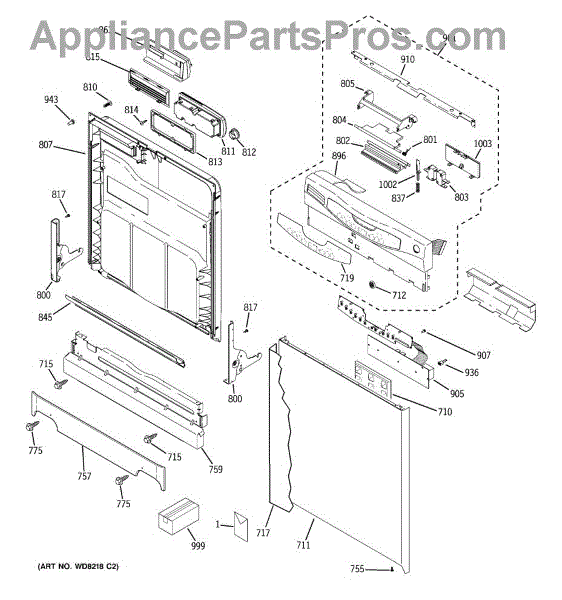

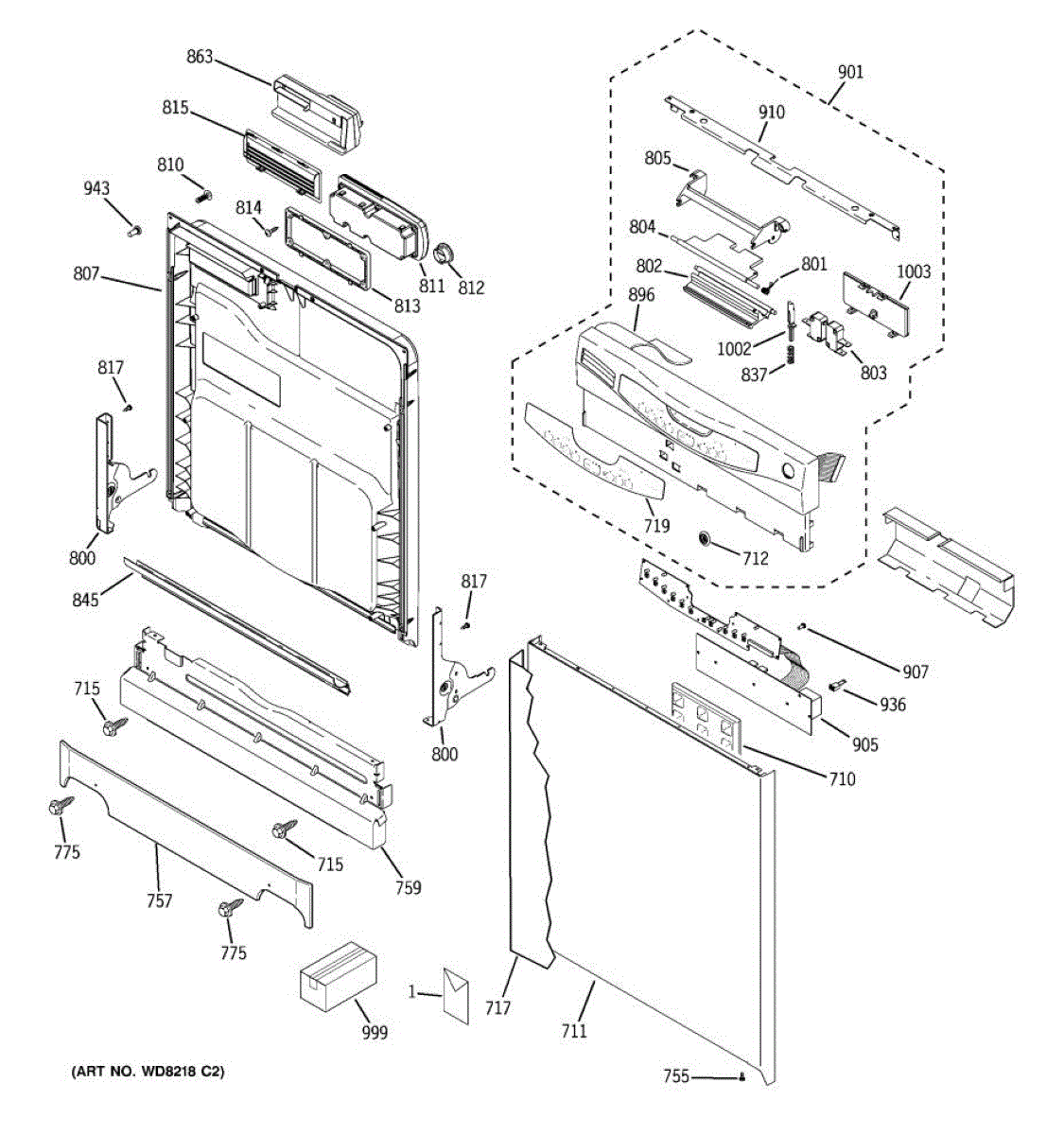

Parts for Ge GLC4100N10BB: 01 - Escutcheon & Door Assembly Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This is a replacement 8-18 x 9/16 machine screw used to secure internal and external appliance components. It restores proper fastening and helps stop rattling or loose panels caused by worn or missing fasteners. What it does

• Secures panels, brackets, or small assemblies to prevent movement and vibration
• Replaces stripped, corroded, or missing screws that can cause rattling or misalignment
• Helps maintain electrical and mechanical connections by holding parts in proper position
• Appropriate where an 8-18 thread size and 9/16" length are required

• Replacement screw

• Disconnect power to the appliance before accessing internal components
• Use the correct driver to avoid stripping the screw head and ensure proper torque
• Do not overtighten; snug until secure to avoid damaging threads or parts

The Door Recess Spring is an OEM replacement part for GE side-by-side refrigerators. It sits within the icemaker door frame to control movement and allow smooth closing/opening of the access point.

Causes of a bad icemaker door recess spring include wear and tear of thin metal coils repeatedly compressing over many years of filling cycles. Exposure to humidity intrusions from melting ice accumulates oxidation shortening spring elasticity.

Symptoms of a bad icemaker door recess spring include:

• Difficulty opening and shutting the icemaker access door securely
• Excessive slamming noise caused by abrupt closing
• Sagging or improper alignment of the door against the frame
• Struggles retaining positioning of the transparent plastic doorway

This genuine GE replacement spring is compatible with Hotpoint, RCA and Kenmore models.

The GE latch handle is an OEM replacement part responsible for allowing the opening and closing of the dishwasher door. Located on the inner door panel, this part ensures that the dishwasher door latches securely when the machine is in operation, preventing any leaks or disruptions in the cleaning process. Additionally, it provides a convenient means for users to open and close the dishwasher, allowing easy access to load and unload dishes.

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This part fixes the following symptoms

• Difficulty in opening or closing the dishwasher door.
• The door not staying securely closed during a wash cycle.
• Visible damage to the latch handle.

The Interlock Switch is an OEM replacement part for GE dishwashers. It is an electronic sensor located inside the dishwasher door that detects when the door is securely closed.

Symptoms of a bad Interlock Switch include:

• The dishwasher will not start a cycle even with the door closed
• Error messages related to the door being open displayed
• Failure to advance through cycle selections
• Inconsistent or unreliable door closure sensing

Causes can be normal wear and tear over extended use. Moisture exposure inside the dishwasher environment may also contribute to switch malfunction over time.

This OEM part is also compatible with some Hotpoint, RCA and Kenmore branded dishwashers.

The Handle Actuator is an OEM part for GE dishwashers. This component plays a role in the dishwasher's operation by linking the door handle to the latch mechanism. When you pull on the handle, the actuator engages the latch, allowing the door to open smoothly.

Symptoms of a failing handle actuator include:

• Difficulty opening or closing the dishwasher door
• The door not latching properly or staying closed
• The handle feeling loose or unresponsive

Causes of handle actuator failure typically involve mechanical wear from regular use, material fatigue, or damage incurred from forceful handling of the dishwasher door.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

Specs: 8-18 ab tr 7/8 s

The Detergent and Rinse Aid Dispenser is an OEM part for GE dishwashers. It is responsible for holding and releasing detergent and rinse aid during the dishwashing cycle, ensuring that dishes are cleaned and rinsed effectively.

Causes of a bad detergent and rinse aid dispenser can include clogging or blockage in the dispenser mechanism, damage to the dispenser door or latch, or malfunctioning electronic components that control the dispensing process. These issues can arise from regular use, buildup of detergent residue, or accidental impact.

Symptoms of a bad detergent and rinse aid dispenser include:

• Improper dispensing of detergent or rinse aid
• Insufficient cleaning or rinsing results
• Leaks or drips from the dispenser area
• The dispenser door not opening or closing correctly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: blue-gray. It measures about 1-1/2 inches in diameter.

This mounting bracket secures the dishwasher rinse module/dispenser assembly so the dispenser stays properly positioned for reliable rinse-aid delivery. A correctly seated bracket helps prevent dispenser misalignment and related rinse-aid issues. What it does:

• Holds the rinse module/dispenser firmly in place inside the dishwasher tub or door
• Keeps the dispenser aligned so rinse aid can be released as designed
• Helps prevent dispenser rattling, shifting, or partial seating during cycles
• Can reduce symptoms like poor rinsing, visible spots, or uneven rinse-aid release

• Disconnect power to the appliance before starting any work for safety
• Basic hand tools (screwdriver, nut driver) are typically needed; follow OEM instructions
• Align the bracket and secure fasteners without over-tightening to avoid damage

The GE screw is an OEM replacement part responsible for securing various components and parts of the dishwasher together. The screw is designed to provide a tight and secure connection for different panels, brackets, or other elements within the dishwasher. It plays a crucial role in maintaining the structural integrity of the appliance by preventing loose parts.

Common causes of a bad screw can include regular wear and tear from frequent use, exposure to moisture leading to corrosion, or damage from over-tightening. A compromised screw can result in loose or unstable components, which can affect the dishwasher's performance and safety.

Symptoms of a bad screw include:

• Loose or wobbly components within the dishwasher
• Difficulty in securing parts properly
• Visible rust or corrosion on the screw
• The screw head being stripped or damaged

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Plunger Spring is an OEM part for GE dishwashers. This spring is part of the door latch mechanism, helping to ensure that the dishwasher door latches and unlatches properly. It provides the necessary tension to keep the door securely closed during operation, preventing leaks and ensuring the appliance runs efficiently.

Causes of a bad plunger spring can include wear and tear from regular use, corrosion due to exposure to moisture, or physical damage such as bending or breaking. Keeping the plunger spring in good condition is crucial for the proper functioning of the door latch.

Symptoms of a bad plunger spring include:

• Difficulty in latching or unlatching the dishwasher door
• The door not staying securely closed during operation
• Water leaking from the door
• The door feeling loose or not closing properly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Lower Door Seal is an OEM replacement part for GE dishwashers. Located along the bottom edge of the dishwasher door, this rubber seal creates an airtight barrier when closed to prevent leaks during wash cycles.

Causes of a faulty lower door seal often involve normal deterioration of rubber over extended use, allowing cracks to form and reducing its flexibility.

Symptoms of an inadequate lower door seal include:

• Puddles or water leaks beneath the appliance
• Mineral deposits left behind after drying cycles
• Inability to maintain optimal interior humidity
• Gaps appearing along the bottom door perimeter

This OEM GE replacement seal is also compatible with Hotpoint, RCA, and some Kenmore models.

This air diverter assembly routes and redirects airflow inside the appliance to help maintain proper venting and circulation. Replaces a worn or broken diverter to help restore normal airflow and reduce venting issues. What it does:

• Directs airflow between ducts and chambers to maintain intended ventilation paths
• Helps prevent air from bypassing heating elements or sensors
• Can reduce symptoms like uneven drying, long cycles, or reduced airflow
• Stops rattling or unusual air-noise caused by a broken or loose diverter

• One air diverter assembly

• Disconnect power before beginning any repairs
• Access may require removing the appliance back panel or cabinet; keep track of fasteners
• Inspect mating surfaces and seals; replace damaged seals or gaskets for best performance

The Main Control Board Kit is an OEM part for GE dishwashers. This electronic control board manages various dishwasher functions, including water intake, temperature settings, wash cycles, and drying times. It's the brain behind the efficient operation of your dishwasher, ensuring that all components work in harmony for optimal cleaning results.

The primary causes of control board failure often involve power surges, moisture damage, or component wear and tear, which can disrupt the electrical pathways and circuits within the board.

Symptoms of a bad Main Control Board include:

• Dishwasher failing to start or stopping mid-cycle
• Unusual error codes displayed on the dishwasher panel
• Non-responsive controls or settings that don’t change appropriately

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This silicon controlled rectifier (SCR) switches and regulates power to heating or motor circuits, helping the appliance control temperature and run cycles reliably. It's a direct-fit electronic switching component used in a variety of control systems. What it does:

• Acts as an electronic switch to regulate AC power to heating elements or motors
• Helps control temperature output and maintain consistent cycle performance
• Can prevent unwanted continuous current flow when functioning properly
• Commonly replaced when ovens, ranges, or dryers fail to heat or cycle correctly

• One silicon controlled rectifier (SCR) as shown

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Handle the SCR by its body; avoid touching terminals and static-sensitive areas
• Verify proper orientation and secure mounting; follow OEM wiring and torque practices

Includes 12 screws.

The Interlock Switch Plunger is an OEM part for GE dishwashers. This component works with the door latch to ensure the dishwasher operates only when the door is securely closed, providing safety and preventing water leaks.

Over time, the interlock switch plunger can wear out or become damaged due to repeated use, mechanical stress, or debris buildup. Causes of a bad interlock switch plunger include frequent door openings and closings, misalignment of the door latch, and exposure to moisture.

Symptoms of a bad interlock switch plunger include:

• The dishwasher not starting or stopping unexpectedly
• Error codes related to door lock issues
• The dishwasher door not closing properly or securely
• The dishwasher operating even when the door is slightly open

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Interlock Switch Cover is an OEM part for GE dishwashers. It is designed to protect the interlock switch, which ensures the dishwasher operates only when the door is securely closed.

Causes of a bad interlock switch cover can include wear and tear over time, accidental damage during loading or unloading, or exposure to moisture and detergent that can degrade the cover's material.

Symptoms of a bad Interlock Switch Cover include:

• Dishwasher not starting or stopping unexpectedly
• Visible damage or wear on the cover
• The door not latching properly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
