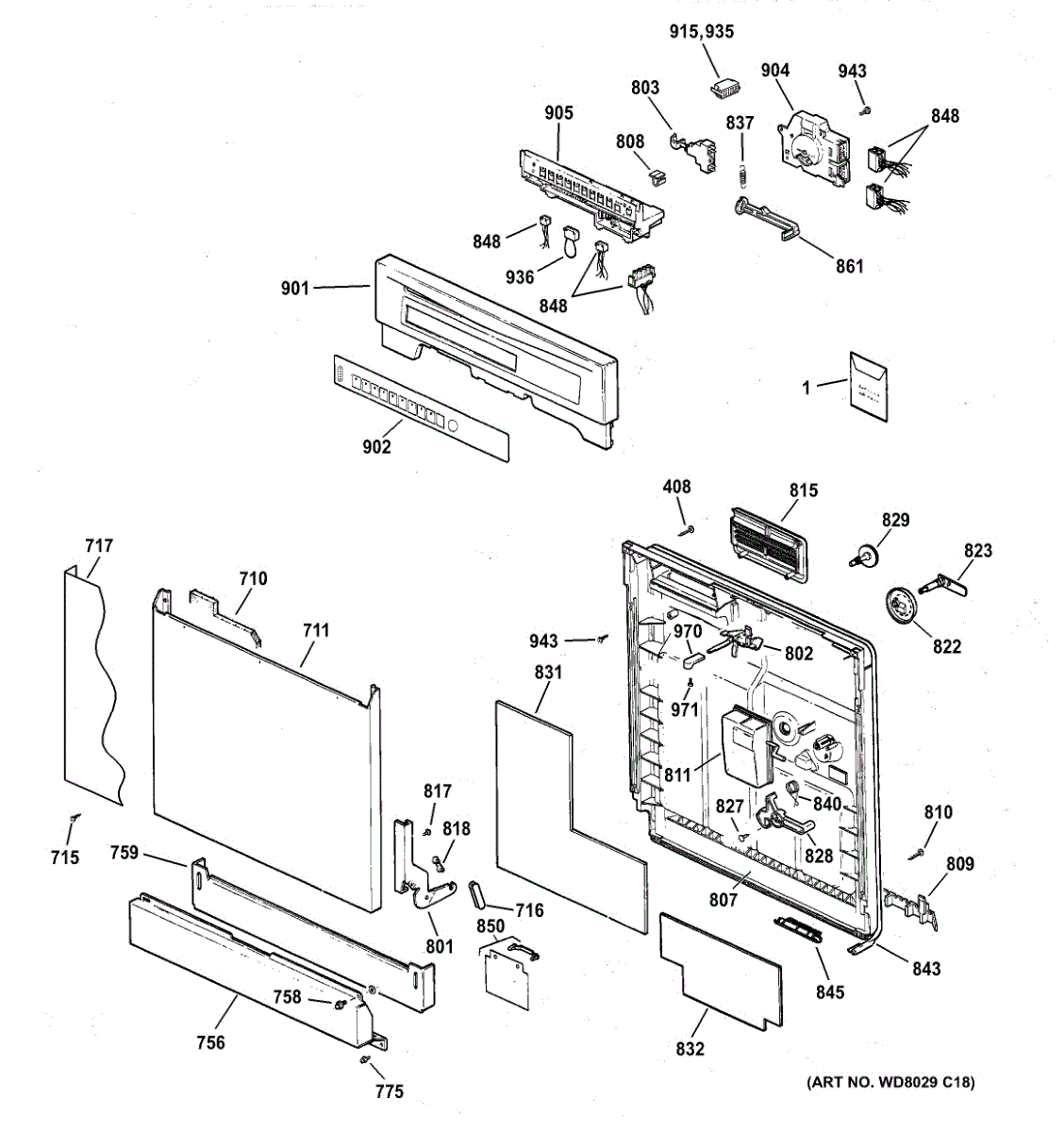

Parts for Ge GSD5124D03BB: Escutcheon & Door Assembly Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Size: 8-32 x 5/8 inch.

Color: Black

Black. 8-18 x 5/16 inch.

Replaces the outer front door panel on your dishwasher. Order a new cover if your current panel is streaked, scratched, faded, or damaged.

A stainless steel hex-washer-head screw used to secure panels and components on compatible appliances. Corrosion-resistant construction helps maintain a secure fit where short, strong fasteners are required. What it does

• Fastens appliance panels, trim, or brackets where an 8-18 thread and short 3/8" length are specified
• Hex washer head provides a larger bearing surface to reduce pull-through
• Stainless finish resists rust in humid appliance areas
• Common replacement when original mounting screw is stripped, missing, or corroded

• One stainless steel hex-washer-head screw

• Use the correct 8-18 thread fastener and do not force mismatched screws to avoid thread damage
• Tighten securely but avoid overtightening to prevent stripped threads or cracked panels
• Power tools may be used with appropriate bit, but start by hand to ensure proper alignment
• If installing near electrical components, disconnect power before servicing

Size: 10-16 ab.

This hex washer-head screw secures dishwasher components like brackets, shields, and panels. Replacing a stripped or missing screw restores a tight fit and helps prevent vibration, rattling, and loose parts during operation.

• Fastens parts where a #10-16 x 1/2-inch hex washer-head screw is specified
• Secures brackets, panels, and assemblies to the tub or frame
• Helps resolve symptoms like loose panels, vibration, or rattling noises
• Restores proper hold when the original screw is stripped, missing, or damaged

• Disconnect power and shut off water to the dishwasher before servicing
• Match length and thread to the original; replace screws one at a time to maintain alignment
• Start threading by hand to avoid cross-threading; tighten snugly—do not overtighten, especially into plastic
• Verify no wires or hoses are pinched before reassembly

• Size: #10-16 x 1/2 inch
• Head: hex washer-head
• Type: AB tapping screw

This is the complete right side hinge assembly. For left side use WD14X10007.

If your dishwasher won't start or the door won't lock, the door latch assembly is likely failed. DIY-friendly repair takes about 30 minutes to replace.

Dishwasher won't start or stops mid-cycle? This door interlock switch assembly secures the door and completes the circuit for safe operation.

Replaces the interior face of your dishwasher door. Ideal when the door liner is cracked, dented, melted, or visibly worn. Restores a clean surface.

Secure wire harnesses in your dishwasher with this harness clip. Replace if wires are loose or clip is broken. Verify fit with your model number.

Size: 8-18 x 7/8 inch.

Fixes spotty dishes and rinse aid leaks. This reservoir holds and releases rinse agent during the final cycle. Quick DIY repair with video guide.

Replacement door vent directs humid air out during the dry cycle. Install inside the door panel to replace a cracked, clogged, or missing vent.

Replacement mounting screw for dishwashers. Secures internal components and panels. Order a new screw if yours is stripped, missing, or damaged.

Replacement hex head screw for dishwasher component mounting. Secures solenoids, valves, and internal parts. Order when original is rusted, stripped, or missing.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Dispenser won't close or stay shut? This dishwasher detergent cup cover securely latches to prevent mid-cycle opening. Moderate DIY repair, 1 hour.

Dishwasher detergent cup won't stay closed or won't open fully? This soap dispenser lever controls detergent release. DIY repair in 15 minutes.

Size: 10-12 x 1/2 inch.

The Fill Cap Assembly is an OEM part for GE dishwashers. This assembly includes the cap that covers the opening where rinse aid or other additives are poured into the dishwasher. It ensures that the additives are securely contained and properly dispensed during the wash cycles, contributing to effective cleaning and drying.

Over time, the fill cap assembly can become damaged due to regular use, exposure to cleaning agents, or accidental mishandling. A compromised fill cap can lead to leaks or improper dispensing of rinse aid, affecting the dishwasher's performance.

Symptoms of a bad fill cap assembly include:

• Rinse aid or additives leaking from the dispenser
• The cap not securing properly or coming off easily
• Improper dispensing of rinse aid
• Visible cracks or damage to the cap

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Damper has adhesive backing.

Replacement spring for dishwasher detergent cup door assembly. Provides tension to keep cup door latched closed. Replace if broken, stretched, or lost.

Seals dishwasher door to prevent leaks during wash cycles. Replace if worn, torn, or causing water leakage. Press-fit installation, no glue needed.

Seals the bottom center of your dishwasher door to prevent leaks during wash cycles. Replace if water leaks from the door bottom. Verify fit by model.

Color: White.

Color: Black.

Includes 12 screws.

Black plastic knob that covers the dishwasher door latch handle. Replace if your knob is missing, cracked, or broken. Installs over the latch lever.

Includes 12 screws.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.
