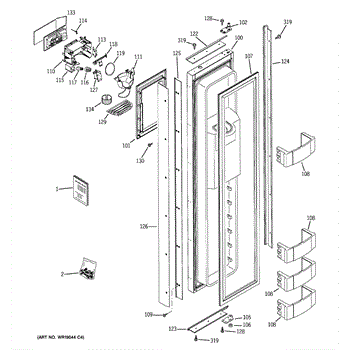

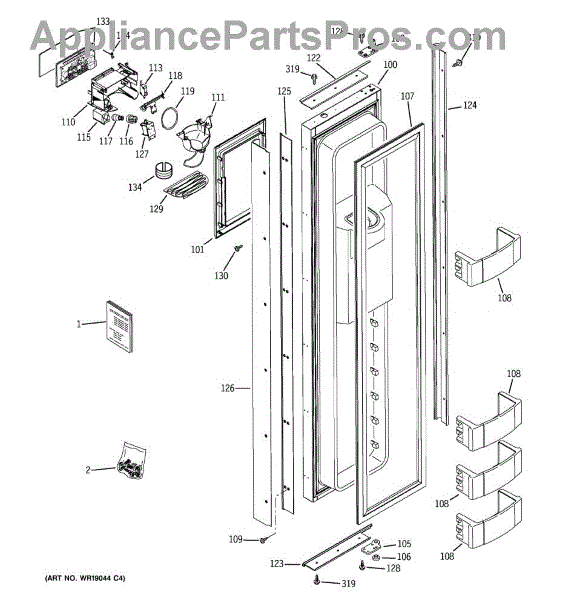

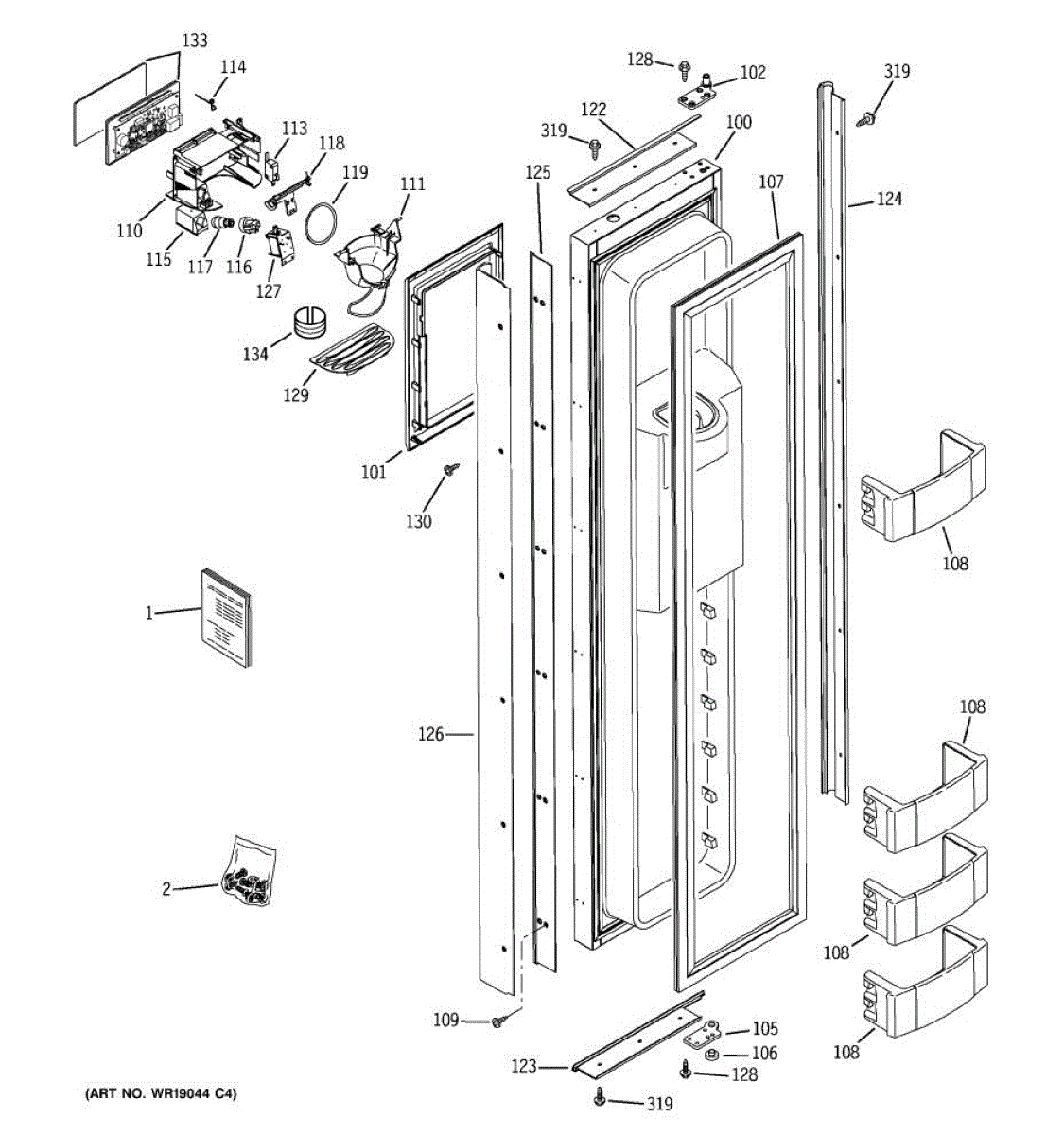

Parts for Ge ZISB360DMC: 01 - Freezer Door Parts

The water filter is an OEM part for GE refrigerators. This filter removes or reduces various contaminants.

Features and Benefits:

• Easy DIY replacement, typically mounted inside the refrigerator at the back of the compartment.
• Removes or reduces various contaminants in your water and ice, including lead, cysts, asbestos, atrazine, , taste and odor, chlorine, sediment, turbidity, and more
• NSF/ANSI 42 and 53 standards
• 6 Month lifespan filter
• Carbon Block media
• Micron rating: 0.5-1 micron (Class I)

When to replace your filter:

• Bad taste or odor in water and ice
• Cloudy or discolored ice
• Reduced water flow or pressure
• Refrigerator replace filter indicator light is on

Note: If replacing the Culligan metal canister design filter for the first time, a special adapter, part number AP2615702 is needed, which is not included with this part. The compatible bypass cap is part number AP6891551.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This hardware pack provides the assorted fasteners needed to secure trim, panels, and small appliance components, helping replace missing or damaged screws and clips for a clean, stable fit. What it does

• Replaces lost or damaged screws, clips and small fasteners used on appliance trim and panels
• Helps stop rattling or loose panels by restoring proper fastening
• Secures small components during reassembly after maintenance or part replacement
• Useful when original mounting hardware is missing or corroded

• Disconnect power to the appliance before servicing to reduce shock risk
• Use the correct screwdriver or driver bit to avoid stripping fasteners
• Keep small parts away from children and pets; work on a covered surface to catch dropped pieces

This foamed dispenser block secures the dispenser assembly and helps channel water/ice through the dispenser area. It replaces damaged or cracked blocks to restore proper dispenser routing and reduce leaks around the dispenser. What it does

• Supports and positions dispenser components inside the door/dispenser cavity.
• Seals and guides water/ice lines to prevent leaks and maintain proper flow.
• Commonly replaced when the dispenser area is cracked, warped, or causing visible leaks.
• Helps stop water from pooling around the dispenser and improves dispenser alignment.

• Disconnect power to the appliance before beginning any work.
• Shut off the water supply and relieve pressure from water lines when applicable.
• Follow manufacturer service instructions; use proper tools to avoid damaging surrounding trim and wiring.

A black collar kit that replaces worn or damaged trim around the appliance opening, restoring fit and finish while helping maintain a secure seal between connected components. What it does:

• Replaces cracked, chipped, or faded collar/trim to improve appearance and restore proper alignment.
• Helps reduce gaps or drafts at the appliance opening caused by broken or warped trim.
• Prevents rubbing or interference between adjacent parts where the collar provides a finished edge.
• Useful when original collar is bent, loose, or no longer holds in mounting clips.

• Always disconnect power (and water, if applicable) before servicing the appliance.
• Basic hand tools such as a screwdriver or nut driver are typically required; follow the OEM diagram for correct orientation.
• Inspect mounting clips and surrounding seals; replace any damaged hardware or gaskets as needed.

This bottom freezer door hinge secures and guides the freezer door at the lower pivot, restoring proper door alignment and sealing for consistent cooling. Designed to replace a worn, bent or broken lower hinge. What it does:

• Provides a stable pivot point so the freezer door opens and closes smoothly
• Helps maintain an even door gap to improve seal and reduce cold air loss
• Prevents sagging or misalignment that can cause rubbing or difficulty latching
• Fits the lower/bottom position on compatible freezer doors

• Inspect hinge mounting holes and fasteners; replace any damaged screws or clips
• Support the door during removal/installation to avoid strain or injury
• Tighten fasteners snugly but avoid over-torquing to prevent damage
• If door continues to sag after replacement, check upper hinge and door gasket condition

This replacement freezer bottom hinge bushing helps the freezer door pivot smoothly and maintain proper alignment, reducing rubbing and uneven wear for more reliable closing. What it does:

• Provides a smooth pivot surface for the freezer bottom hinge
• Restores proper door alignment to help ensure a tight seal
• Reduces hinge noise, sticking, and rubbing during door movement
• Helps prevent premature wear of the hinge and door components

• One freezer bottom hinge bushing

• Disconnect power to the appliance and empty or support the door before starting
• Support the door while removing hinge fasteners to prevent falling or injury
• Inspect the hinge and shaft for wear; replace the hinge assembly if damaged
• Do not overtighten fasteners; test door operation after installation

This is the magnetic door gasket that seals the refrigerator compartment. A tight, intact gasket helps maintain proper temperature and reduces energy loss by keeping warm air out and cold air in.

• Creates an airtight seal between the refrigerator door and cabinet
• Helps prevent temperature swings, frost, and moisture around the door
• Worn, torn, or warped gaskets can cause warm spots, condensation, or doors not closing properly
• Replace if you see cracks, gaps, or if the gasket no longer holds a seal

• Unplug the appliance before service and remove door contents for easier handling
• Gently warm the gasket (hair dryer on low) to relax folds and improve fit
• Transfer and reuse any retaining hardware; seat the gasket fully in the channel
• Check door alignment and perform a dollar-bill test around the perimeter to confirm sealing

Restore secure, organized door storage with this door bin assembly. It replaces a cracked or missing bin so bottles, jars, and condiments stay in place, easy to reach, and less likely to tip or spill.

• Creates a sturdy shelf on the door to hold jars, bottles, and condiments
• Common symptoms: cracked plastic, broken/loose mounting tabs, bin falls off or won't stay seated, missing bin
• Restores original door storage capacity and organization
• "36/42" denotes the manufacturer's designated bin style for those series; confirm fit by model

• Remove items from the old bin; lift the bin straight up to release from the door rails
• Allow cold plastic to warm to room temperature before handling to reduce cracking risk
• Align new bin on the molded door ribs/rails and press down until fully seated
• Verify a secure fit before reloading; avoid overloading the bin

White

The Dispenser Housing Shield is an OEM part for GE refrigerators. This component plays a crucial role in protecting the internal mechanisms of the water and ice dispenser from damage and contamination. It ensures that the dispenser operates efficiently and maintains hygiene standards by shielding the delicate internal parts from debris and moisture.

Causes of a bad dispenser housing shield can include wear and tear over time, physical damage from excessive force or mishandling, or exposure to moisture that leads to material degradation. Regular inspection and maintenance can help in identifying issues before they affect the dispenser's functionality.

Symptoms of a bad dispenser housing shield include:

• Water or ice leakage from the dispenser area
• Visible cracks or damage to the shield
• Poor water or ice flow
• Contamination of dispensed water or ice

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Dispenser Lever is an OEM part for GE refrigerators. This lever activates the dispensing mechanism, allowing you to release water or ice from the refrigerator's dispenser.

Causes of a bad dispenser lever can include regular wear and tear, damage from excessive force or mishandling, and breakage due to frequent use.

Symptoms of a bad dispenser lever include:

• The dispenser lever not returning to its original position
• Difficulty in activating the dispenser
• The lever feeling loose or unresponsive
• Water or ice not dispensing when the lever is pressed

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Dispenser Lever is an OEM part for GE refrigerators. It is located on the front panel of the refrigerator and is responsible for activating the dispenser mechanism. When pressed, it engages the internal mechanisms to dispense ice or water into a glass or container.

Causes of a faulty dispenser lever can include regular wear and tear, physical damage, or misalignment. These factors can result in issues such as the lever not engaging or sticking, difficulty in dispensing ice or water, or improper alignment with the dispenser mechanisms.

Symptoms of a bad dispenser lever may include:

• Inability to dispense ice or water when the lever is pressed
• Sticking or jamming of the lever
• Misalignment with the dispenser mechanisms

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Dispenser Switch is an OEM replacement part for GE refrigerators. This switch is crucial for the functionality of the water and ice dispenser, as it activates the dispensing mechanism when the user presses the lever or button. The switch ensures that the refrigerator dispenses water or ice on demand, providing convenience and ease of use.

Over time, the dispenser switch can wear out or become damaged due to frequent use, exposure to moisture, or electrical issues. This can result in the switch failing to activate the dispenser properly, impacting the performance of the refrigerator's dispensing system.

Symptoms of a bad dispenser switch include:

• The water or ice dispenser not responding when the lever or button is pressed
• Intermittent or inconsistent dispensing of water or ice
• The dispenser working only occasionally or requiring excessive pressure to activate
• No audible click or feedback when pressing the dispenser lever or button

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Torsion Spring is an OEM part for GE refrigerators. It is essential for maintaining the proper tension and operation of the refrigerator door. This spring ensures the door closes smoothly and stays securely shut, preventing cold air from escaping and maintaining the appliance’s efficiency.

Causes of a bad torsion spring can include metal fatigue from regular use, corrosion from exposure to moisture, or damage due to excessive force or mishandling. Over time, these factors can weaken the spring, affecting the door’s performance.

Symptoms of a bad Torsion Spring include:

• Door not staying closed
• Difficulty in opening or closing the door
• Door feels loose or unbalanced
• Unusual noises when operating the door

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This light reflector directs and protects the appliance lamp, improving illumination and preventing direct bulb contact. It restores proper light focus so interior areas are evenly lit and bulbs remain securely positioned. What it does:

• Reflects and directs light from the lamp for better interior visibility
• Shields the bulb from contact with food or components
• Helps maintain consistent light output and coverage
• Commonly replaced when light appears dim, uneven, or the reflector is cracked or missing

• Disconnect power to the appliance before servicing to avoid electric shock
• Remove the bulb before installing the reflector; handle bulbs and reflector with care to avoid damage
• Use only compatible replacement parts and follow the appliance manufacturer's instructions

This refrigerator lamp socket holds an E12-base appliance bulb and provides the electrical connection for the light fixture. Replace it when the light won't turn on or flickers despite a known-good bulb and functioning door switch.

• Secures an E12 (candelabra) bulb and supplies power to it
• Works with the door/light switch to illuminate the compartment or dispenser area
• Typical failures include heat damage, cracking, or internal contact wear
• Symptoms: no light, intermittent flicker, or a bulb that won't seat firmly

• Disconnect power to the refrigerator before servicing
• Remove any lens/cover, note wire placement, and install the new socket in the original orientation
• Use an E12-base appliance bulb with the wattage specified on your model's rating label
• Restore power and verify operation with the door switch

The Dispenser Light is an OEM part for GE refrigerators. It illuminates the water and ice dispenser area, providing visibility when accessing these features in low-light conditions. This light enhances user convenience and helps to ensure accurate and spill-free operation.

Causes of a bad dispenser light can include burnout from regular use, electrical issues, or damage from moisture or impacts. A faulty light can compromise visibility and the overall functionality of the dispenser area.

Symptoms of a bad dispenser light include:

• The light not turning on when using the dispenser
• Flickering or dim illumination
• Complete failure of the light to activate
• Inconsistent or intermittent lighting

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Dispenser Door Recess Crank is an OEM part for GE refrigerators. This crank is a crucial component of the refrigerator's ice and water dispenser system, helping to operate the dispenser door by opening and closing it when activated. It ensures that ice or water is dispensed efficiently and prevents unwanted air from entering the freezer compartment.

You should replace the dispenser door recess crank if it becomes faulty or damaged. Causes of a bad crank can include wear and tear from frequent use, accidental damage, or mechanical failure. A malfunctioning crank can lead to issues with the dispenser door's operation.

Symptoms of a bad dispenser door recess crank include:

• The dispenser door not opening or closing properly
• Ice or water not dispensing correctly
• Unusual noises during the dispensing process
• The dispenser door staying open or not sealing properly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Ice Door Assembly is an OEM part for GE refrigerators. It is integral to the ice dispenser system, controlling access to the ice chute. This component ensures the efficient delivery of ice cubes or crushed ice when activated and seals off the chute when not in use to maintain the freezer's temperature and prevent frost buildup.

Symptoms of a bad Ice Door Assembly include:

• Frost or ice buildup around the dispenser area
• Ice escaping from the dispenser when not in use
• Failure to dispense ice
• Noise during operation indicating misalignment or malfunction

Causes of a bad Ice Door Assembly can include mechanical wear from frequent use, failure of the spring mechanism or solenoid that operates the door, or damage to the sealing surfaces that leads to air leaks.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Ice Dispenser Solenoid is an OEM replacement part for GE refrigerators. It is a crucial component that controls the flow of ice from the ice maker to the dispenser chute.

Symptoms of a bad ice dispenser solenoid include:

• Failure to dispense ice from the dispenser
• Ice getting stuck or jammed in the dispenser chute
• Continuous flow of ice even when the dispenser is not activated

Causes of a bad solenoid can include electrical malfunctions, physical obstructions preventing proper operation, or simply wear and tear over time.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This pack contains twelve replacement screws used to fasten appliance panels, trim, and components. They restore secure mounting and help stop rattling, loose panels, and gaps for a safer, quieter appliance. What it does:

• Secures exterior and interior panels, brackets, and trim pieces
• Restores proper fit where missing or stripped screws cause movement or noise
• Helps maintain appliance alignment and prevents parts from vibrating loose
• Used for general-purpose repairs on compatible GE appliances

• Disconnect power or unplug the appliance before performing any internal repairs
• Use the correct screwdriver bit and avoid overtightening to prevent stripping threads
• Keep remaining screws in a labeled container for future service
• If a screw does not seat easily, stop and verify correct fit to avoid damage

This is a refrigerator ice and water dispenser drip tray located on the freezer door. Color: White. It measures about 8 inches wide by 4 inches deep. For black order WR17X11655.

The Dispenser Drip Tray is an OEM part for GE refrigerators. It serves as a catchment area for any drips or spills that may occur during the dispensing process. It helps prevent water or ice from dripping onto the floor or making a mess on the front of the refrigerator. For white order WR17X11654.

Causes of a faulty or damaged dispenser drip tray can include regular use, accumulation of debris, or cracks. These factors can result in issues such as water or ice leaking onto the floor, an unsightly appearance, or difficulties in cleaning and maintenance.

Symptoms of a bad dispenser drip tray may include:

• Water or ice leaking from the dispenser area
• Cracks or damage to the drip tray
• Difficulty in removing and cleaning the drip tray

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Replacement screw that secures panels and internal components, helping stop rattles and keep parts aligned. Use it to replace stripped, rusted, or missing fasteners and restore a secure fit. What it does:

• Secures panels, trim, or internal parts to prevent movement and vibration.
• Replaces worn, corroded, or missing screws that cause loose panels or rattling.
• Restores proper alignment for doors, covers, and mounted components.
• Provides a simple hardware fix that helps maintain safe, stable operation.

• Always disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or bit to avoid stripping the head; apply firm but controlled torque.
• Verify screw length, head style, and thread type match the original before installation.
• If threads are damaged, replace with a matching OEM screw rather than over-tightening.

Glass touch dispenser assembly replaces the front touch surface and dispenser controls on refrigerators with a glass-style dispenser, restoring responsive touch operation and a clean, finished look for water and ice dispensing. What it does:

• Replaces the glass touch panel and integrated dispenser control so touch commands register correctly.
• Restores proper water and/or ice dispensing when the original touchpad is cracked, scratched, or unresponsive.
• Covers the dispenser opening and improves the refrigerator's appearance by replacing a damaged or discolored front panel.
• Works with the existing dispenser hardware and wiring when the original assembly is removed intact.

• Always disconnect power to the appliance (and shut off the water supply if working on the water/ice dispenser) before starting.
• Handle the glass panel carefully to avoid breakage and personal injury; wear gloves and eye protection when needed.
• Installation typically requires removing the dispenser bezel/door access panel and unplugging the harness from the old assembly—retain existing screws and clips unless replacements are provided.

If you need the funnel in white you must order this extension and funnel part number WR17X11264.

This refrigerator dispenser funnel extension attaches at the front of the dispenser to better direct the stream into your cup. Replacing a cracked or missing extension reduces splashing and helps keep the dispenser area cleaner.

• Directs the dispenser stream to help prevent splashes and drips
• Extends the spout area for easier filling of glasses and bottles
• Restores fit and appearance when the original is cracked, warped, or missing
• Common symptoms: water splashing at the dispenser, loose/broken piece, water running down the door

• Unplug the refrigerator and shut off water before servicing the dispenser area
• Remove the old extension by releasing its retaining tabs, if present
• Align the new extension with the slots and press until it snaps securely into place
• Restore power/water and test the dispenser to verify proper flow and a secure fit
