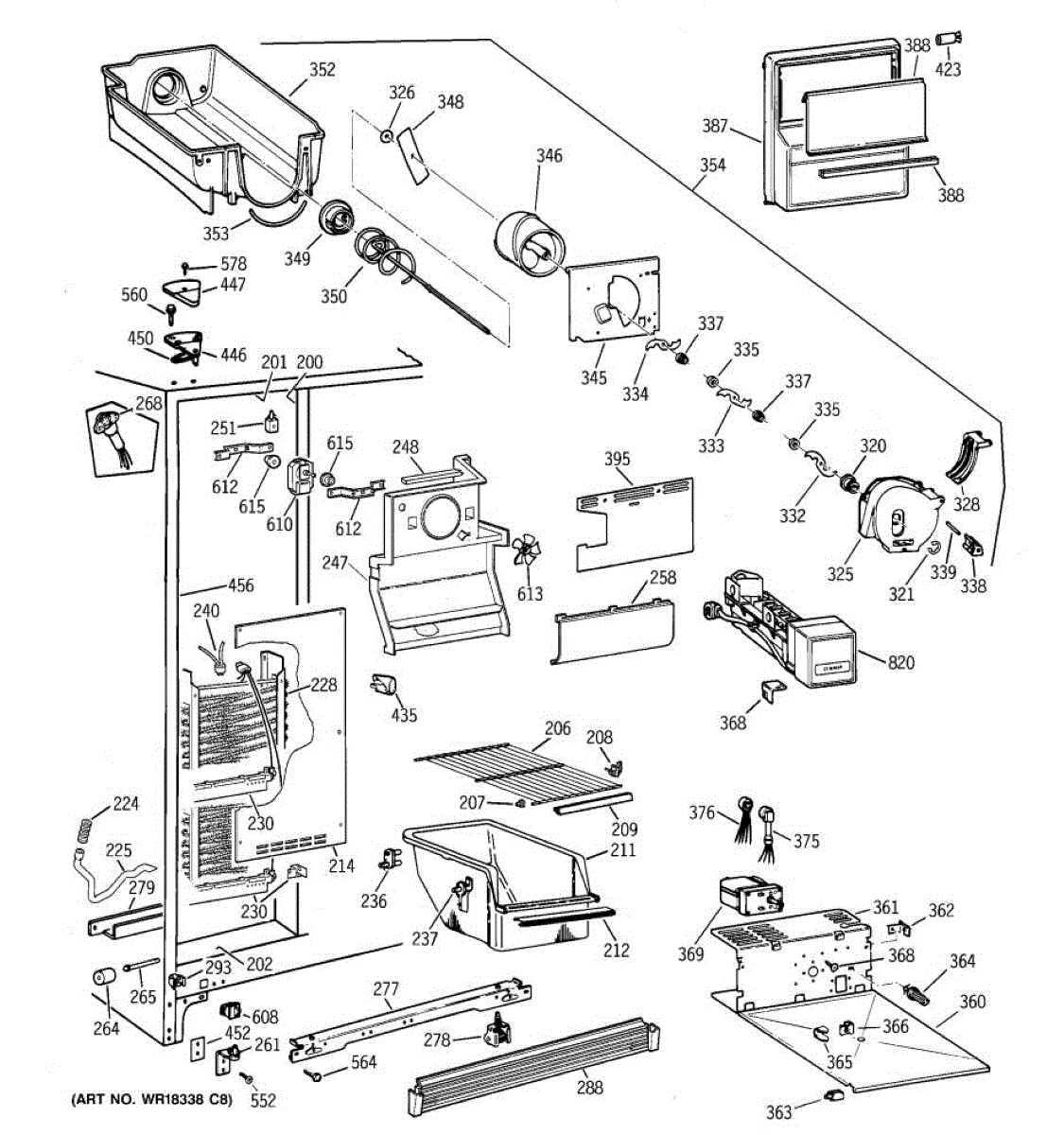

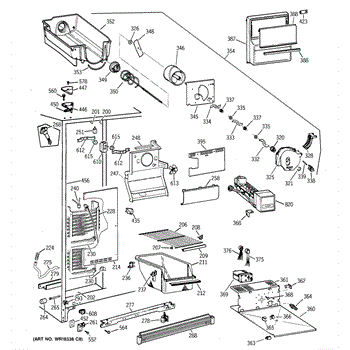

Parts for Ge CSX22BCXDWH: 02 - Freezer Section Parts

This shelf support secures an interior refrigerator shelf in place so food items stay level and storage remains organized. It replaces a cracked or worn support to restore proper shelf seating and stability. What it does

• Holds a refrigerator shelf or shelf trim in the correct position to prevent sagging or tipping
• Restores stable support for glass or wire shelving that no longer stays seated
• Helps eliminate shelf movement that can cause items to slide or spill
• Works where a broken, chipped, or missing support prevents proper shelf alignment

• Disconnect power to the appliance before starting any repair and empty the shelf area
• Remove the affected shelf or trim to access the support; reinstall shelf to confirm correct seating
• Use basic hand tools as needed and avoid forcing parts to prevent further damage
• Replace all affected pieces for consistent shelf alignment

The Defrost Heater is an OEM part for GE refrigerators. It plays a crucial role in the defrost system by heating the evaporator coil to melt any frost buildup. This ensures that the refrigerator operates efficiently by preventing ice accumulation that can obstruct airflow and cooling.

Over time, defrost heaters can fail due to factors such as electrical issues, prolonged use, or thermal stress. When the defrost heater malfunctions, frost can accumulate excessively on the evaporator coils, leading to cooling problems.

Symptoms of a bad defrost heater include:

• Frost buildup on the evaporator coils
• Inadequate cooling in the refrigerator or freezer compartments
• The refrigerator running continuously without cycling off
• Water leakage inside the refrigerator due to melting frost

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Defrost Thermostat is an OEM part for GE refrigerators. It regulates the temperature of the defrost cycle by sensing the temperature of the evaporator coils and signaling the defrost heater to turn on or off. This helps prevent ice buildup on the coils, ensuring efficient cooling and proper refrigerator operation.

You should replace this defrost thermostat if it fails to regulate the defrost cycle correctly. Common causes of a bad thermostat include electrical failures, wear and tear from regular use, or damage from temperature fluctuations.

Symptoms of a bad defrost thermostat include:

• Excessive frost buildup in the freezer
• Refrigerator not maintaining the correct temperature
• Defrost cycle not activating
• Water leaking inside the refrigerator

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Lower Door Hinge Kit is an OEM part for GE refrigerators. This kit is essential for the proper functioning and alignment of the refrigerator door, providing the necessary support and pivot point for smooth opening and closing.

Symptoms of a failing Lower Door Hinge include:

• The refrigerator door sagging or failing to close properly
• Squeaking or grinding noises when the door is opened or closed
• Resistance or difficulty when moving the door
• Visible wear or damage to the hinge or surrounding area

Causes of a bad lower door hinge can include mechanical stress from frequent use, improper alignment or installation that increases wear, or corrosion from moisture exposure, which can weaken the metal components.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This rear wheel roller replaces a worn or damaged drawer/glide wheel to restore smooth movement and reduce sticking or noise. Durable molded construction fits the rear guide position to help support and steady the sliding drawer or bin. What it does

• Supports and guides the appliance drawer or bin for smooth in-and-out motion
• Replaces cracked, chipped, or worn rear wheel that causes binding or catching
• Helps reduce squeaks and uneven movement from a damaged roller
• Restores proper alignment and load support at the rear glide point

• One rear wheel (roller)

• Disconnect power and remove the drawer/bin per your owner's manual before replacing the wheel
• Typically installs by snapping or sliding into the rear glide bracket; basic hand tools may be needed
• Inspect mating tracks or brackets for damage and clean debris before installing the new wheel

Includes 12 retainer rings.

This replacement crusher dispenser housing restores the outer housing that supports the ice crusher and dispenser chute, helping the dispenser operate smoothly and keep ice contained while in use. What it does:

• Replaces cracked or broken dispenser housing that can allow ice to jam or fall out
• Provides the proper mounting surface for the crusher and chute to align ice flow
• Helps reduce noise and rubbing caused by a misaligned or damaged housing
• Restores the dispenser's outer enclosure for a finished appearance and safe operation

• Disconnect power to the refrigerator before starting any repair.
• Remove ice bin and dispenser components as needed to access the housing; keep track of fasteners.
• Inspect adjacent seals, gaskets and mounting clips and replace if damaged.
• Handle plastic parts carefully to avoid cracking; reassemble components to factory alignment.

Includes 12 washers.

This pivot is the replacement pivot piece that supports and guides a refrigerator door or sliding drawer, restoring proper alignment for smooth opening and closing. Fits original equipment pivot points. What it does:

• Supports the weight of a door or drawer and keeps it aligned on its track
• Guides smooth opening and closing and prevents binding or sagging
• Restores proper contact and seal when a worn pivot causes misalignment
• Helps reduce noise from loose or worn pivot points

• Disconnect power to the appliance before beginning any repair
• Access may require removing interior panels, trim, or the drawer/door per model instructions
• Handle carefully to avoid scratching sealed surfaces; replace worn fasteners if needed
• If alignment issues persist after replacement, check related hinges, tracks, and mounting hardware

This replacement part is an ice dispenser deflector, and it is intended for use in different types of appliances. This is a genuine replacement part made by General Electric. Ice dispenser deflectors are found inside of the ice-making assembly and are an important part of many freezers. The ice dispenser deflector allows the ice to come down from the tray into the dispensing area. A new ice dispenser deflector might be needed if the current one has become too brittle and has even cracked or broken. Be sure that the refrigerator is completely powered off before starting this repair. The user must have access to the ice maker assembly and will need common household tools like a screwdriver and pliers. The user might also need working gloves as some parts in and around the assembly have sharp edges or blades.Note that this part is sold individually. This ice dispenser deflector is sourced directly from the manufacturer and is a genuine OEM replacement part.

This spacer is a small mounting support used to maintain proper clearance and alignment between refrigerator panels, doors, or components. It helps reduce rubbing, vibration, and noise by restoring correct spacing and fit. What it does:

• Keeps panels, trim, or components spaced correctly to prevent metal-on-metal contact and wear
• Helps align doors and panels for a flush fit and smoother operation
• Reduces vibration and rattling caused by misaligned parts
• Used wherever a fixed clearance or gap is required during reassembly

• Disconnect power to the appliance before beginning any service that requires panel or component removal
• Inspect mating surfaces for damage or debris before installing the spacer; replace any damaged fasteners
• Install in the same orientation and location as the original spacer; do not overtighten mounting hardware

This blade rest stabilizer supports and centers the blade assembly to keep cutting/wiping components aligned and operating quietly. It helps prevent blade wobble and uneven operation caused by a worn or damaged rest. What it does

• Holds the blade assembly in the correct position so blades remain centered during use
• Reduces vibration, rattling, and uneven motion from a loose or broken rest
• Helps maintain proper clearance between blade and housing for consistent performance
• Restores stable blade engagement after cracks, wear, or deformation

• One blade rest

• Disconnect power (unplug or switch off breaker) before servicing
• Remove surrounding housing or components as needed to access the blade assembly
• Handle blades carefully — they are sharp; use gloves if available
• Follow the appliance manufacturer's instructions and replace only with the correct part number

According to GE you must also replace part number WR17X4341 auger when replacing this part.

This replacement part is an ice auger blade, and it is intended for use in different types of appliances. This is a genuine replacement part made by General Electric. Ice auger blades are usually found in ice maker assemblies and are used during the ice-making and dispensing process. These blades are what are used when the user is in need of shaved or crushed ice. The mechanism takes full ice cubes and cuts the ice cubes down to create the different types of ice. A new ice auger blade might be needed if the user noticed that the current blades are dull or unable to cut ice. It is possible that the blades become dull over time after many years of use, so replacing them might be a good idea. Be sure the power is completely off before attempting to repair this part.This ice auger blade is sourced directly from the manufacturer and is a genuine OEM replacement part. Note that this part is sold individually.

The Drive Cup is an OEM part for GE refrigerators. This part engages with other parts to drive the ice out of the molds and into the storage bin.

Causes of Drive Cup failure can range from physical wear and tear from regular use, which may lead to cracks or deformities in the part, to accumulation of frost or ice that hinders its movement.

Symptoms of a malfunctioning Drive Cup include:

• The ice maker fails to eject ice properly, leading to clogs or jams within the system.
• Unusual noises during the ice-making cycle, which could indicate that the drive cup is not engaging correctly with other components.
• Decreased efficiency in ice production, as the mechanism struggles to operate smoothly.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is the ice container only.

Replacement bucket seal that fits around the refrigerator ice bucket to restore a snug fit and help keep ice contained while reducing frost, spills and water pooling. What it does

• Seals the ice bucket to the cabinet/shelf to help keep ice from spilling or shifting.
• Reduces frost build-up and melting around the ice bin area.
• Helps prevent minor water pooling from melting ice.
• Restores proper fit so the bucket sits flush and operates as intended.

• Disconnect power to the appliance before beginning any service.
• Remove the ice bucket and carefully peel out the old seal; clean the mounting surface of ice, debris and residue.
• Press the new seal into place, making sure it is fully seated and oriented correctly around the bucket.

This part has been discontinued and is no longer available.

Includes 12 clips.

This screw fastens appliance panels, brackets, and trim so parts stay secure and aligned. Replace a missing, stripped, or rusty screw to stop rattles and restore a tight, factory fit.

• Secures covers, brackets, and trim to the appliance cabinet or liner
• Replaces missing, stripped, or corroded hardware
• Helps reduce vibration noise and loose or misaligned parts
• Maintains proper fit of guards, kickplates, or internal panels

• Disconnect power; turn off water supply if working near water lines
• Match to the original fastener to size and thread
• Start threads by hand to avoid cross-threading; tighten snugly, not excessively
• If threading into plastic, avoid overtightening to prevent damage

This replacement motor powers the dispenser's auger/crusher mechanism to move ice from the bucket to the chute. Replacing a weak or seized motor helps restore reliable cube or crushed-ice dispensing from the freezer door.

• Drives the ice auger/crusher to feed ice from the bucket through the dispenser chute
• Helps deliver cubes or crushed ice, depending on the control selection
• Common symptoms: no ice dispensing, auger not turning, loud humming or grinding, intermittent or weak dispensing
• Located in the freezer-door dispenser assembly and engages the ice bucket coupler

• Disconnect power to the refrigerator before servicing
• Remove the ice bucket and dispenser trim/panel to access the motor; note wire orientation and fasteners
• Transfer any mounting hardware or coupler from the old motor
• Reassemble, restore power, and test ice dispensing

This part has been discontinued by the manufacturer and is no longer available.

Ice storage bin holds and stores ice produced by the refrigerator's ice maker so cubes are ready for dispensing and stay contained. Replaces cracked, broken, or missing bins to restore normal ice storage and delivery. What it does:

• Collects and stores ice made by the ice maker so cubes are available for dispensing.
• Guides ice toward the dispenser/auger area and helps prevent ice from spilling into the freezer.
• Restores proper ice containment when the original bin is cracked, warped, or missing.
• Helps reduce ice clumping and jams caused by broken or misaligned storage containers.

• Disconnect power to the refrigerator before removing or installing the ice bin.
• Remove shelves or drawer(s) as needed for access; lift out the old bin carefully to avoid damaging the ice maker or dispenser components.
• Align tabs and guides on the new bin and slide into place without forcing; listen for the bin to seat properly.
• After installation, restore power and run the ice maker/dispenser through a test cycle; discard the first batch of ice after reinstallation.

The Light Socket is an OEM part for GE refrigerators. It is responsible for holding the refrigerator's light bulb and ensuring it receives power to illuminate the interior when the door is opened.

You should replace the light socket if it becomes faulty. Causes of a bad light socket can include wear and tear from regular use, electrical issues such as short circuits or power surges, and corrosion from moisture exposure.

Symptoms of a bad light socket include:

• The refrigerator light not turning on when the door is opened
• Flickering or intermittent light operation
• Visible damage or corrosion on the socket
• The light bulb not fitting securely or falling out

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Package of 12

Package of 12

This freezer door light switch turns the interior freezer light on and off when the door opens and closes, restoring proper illumination so you can see contents clearly and avoid wasting food. What it does:

• Activates the freezer interior light when the door opens; deactivates it when the door closes.
• Replaces a worn, stuck or intermittent switch that causes the light to stay on, not turn on, or flicker.
• Fits into the door or cabinet frame mounting and connects to the existing wiring harness for direct replacement.

• Disconnect power to the appliance before starting any repair to prevent shock.
• Typically snaps into place and connects to the factory wiring harness; no special parts required.

The Evaporator Fan Motor Kit is an OEM part compatible with GE refrigerators. It is a critical component responsible for circulating air and maintaining proper airflow within the refrigerator's evaporator system, ensuring efficient cooling and temperature regulation. It features a shaft that measures 3/8 of an inch and two right-side terminals. Notably, the motor no longer comes with harness wires, which must be obtained separately for installation.

Symptoms of a faulty evaporator fan motor include:

• Inconsistent or inadequate cooling in the refrigerator or freezer compartments
• Warm spots or temperature fluctuations within the refrigerator
• Excessive frost buildup or ice accumulation in the freezer

Causes of a bad evaporator fan motor can include wear and tear over time, electrical issues or short circuits, or physical damage from foreign objects or improper maintenance.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

The Evaporator Fan Blade is an OEM component for GE freezers and bottom-mount refrigerator designs. Located inside the freezer compartment, this fan blade spins to circulate cold air evenly throughout the storage space.

Causes of a faulty evaporator fan blade include natural fatigue from running year-round. Freezers exposed to humid environments may experience faster corrosion.

Symptoms include:

• Abnormal sounds like knocking or clunking from inside the walls
• cold spots developing in certain freezer areas
• Higher power bills from inefficient temperature regulation
• Frost or ice patches forming on evaporator coils

This part is also compatible with some brands like Hotpoint, RCA, and Kenmore.

The Fan Blade Grommet is an OEM replacement part for GE brand refrigerators. Located behind the evaporator fan blade where its central shaft passes through, this rubber sealing piece creates a protective barrier isolating the fan assembly.

Causes of a potentially problematic fan blade grommet include cracks or deterioration that develop from continuous vibration and impacts over extended use. Exposure to temperature fluctuations can also cause the rubber to harden and lose elasticity.

Symptoms of a faulty fan blade grommet include:

• Airflow obstructions within the duct
• Noisy vibrations from the fan assembly
• Rubber debris collecting on components

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore model refrigerators.

The Electromechanical Icemaker Kit is an OEM replacement part for GE refrigerators. It includes the ice maker assembly components responsible for harvesting, ejecting, and monitoring the ice-making process.

Symptoms of a faulty electromechanical kit include:

• Ice not being produced or dispensing properly
• The ice maker failing to turn on or stop automatically
• Strange noises emanating from the ice maker

Causes can be worn parts like the ejector assembly or drive motor, as well as electrical malfunctions. Continued use puts wear on components that regulate ice production.

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models. Replace yours today for reliable ice on demand.
