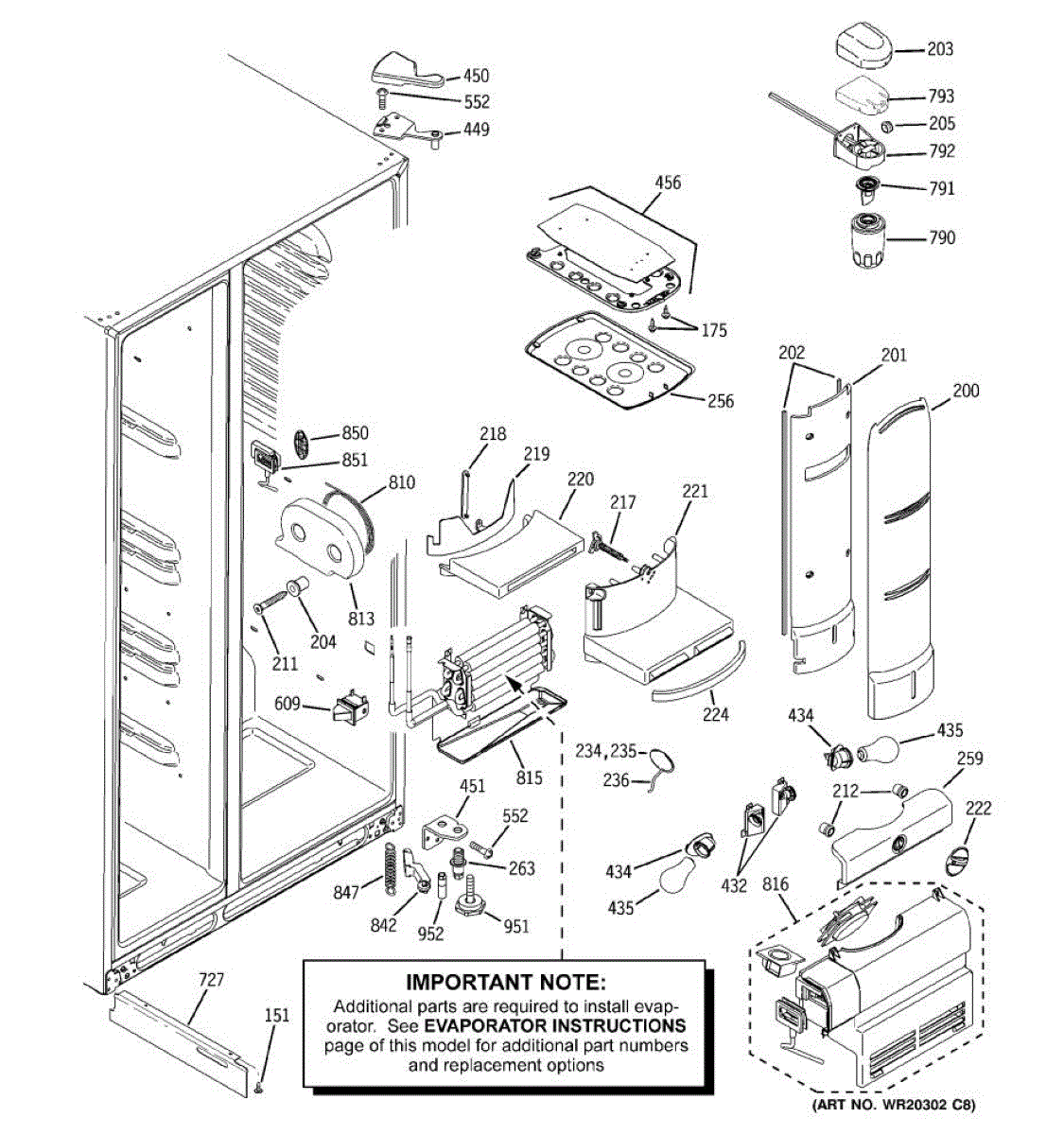

Parts for Ge PSDF3YGXBFBB: 08 - Fresh Food Section Parts

This 8-18 x 9/16 screw is a short sheet-metal fastener used to secure panels, trim and small components on appliances. It replaces missing or stripped screws to restore proper fit and reduce noise from loose parts. What it does

• Secures appliance panels, brackets and trim to prevent movement and rattling
• Holds small components in correct alignment for reliable operation
• Replaces lost, worn or stripped screws that cause gaps or loose fittings
• Common symptom link: fixes rattling panels, loose trim, or parts that shift during use

• One 8-18 x 9/16 screw

• Use the correct 8-18 driver bit and hand or low-torque power driver to avoid stripping
• Do not overtighten; snug until secure to prevent thread damage or panel deformation
• Turn power off/unplug appliance when installing near electrical components
• Keep extra screws on hand—hardware often comes in single quantities

Specs: 8-18 AB IHW 5/8 S

This water filter cover protects and secures the refrigerator's inline filter assembly while keeping the filter compartment sealed and tidy. It helps ensure a proper fit so the filter can seat correctly and water flows as intended. What it does:

• Replaces a cracked, broken or missing water filter cover to restore proper filter seating and alignment
• Helps prevent leaks by maintaining the cover seal around the filter area
• Keeps the filter compartment clean and prevents debris from entering the housing
• Supports correct water flow and helps avoid dispensing problems caused by a loose or damaged cover

• One water filter cover

• Disconnect power and turn off the refrigerator water supply before servicing
• Remove the old cover and gently snap or screw this cover into place per your model's mounting points
• Hand-tighten fasteners; do not overtighten plastic clips or screws
• After installation, restore power and water, check for leaks, and run a few cycles to confirm proper seating

This shelf support replaces a broken or missing bracket that holds a refrigerator shelf in place. Restore a level, secure shelf surface and stop sagging or unexpected drops with a simple, like-for-like replacement.

• Supports the edge of an interior shelf and keeps it level
• Locks the shelf into the cabinet/liner mounting point
• Common signs to replace: shelf sags or tilts, won't stay positioned, support is cracked, loose, or missing
• Helps prevent shelf movement that can lead to spills

• Disconnect power and remove items from the affected shelf before starting.
• Note the position and orientation of the old support to match placement.
• Snap or screw the new support into the existing mounting point; transfer any reusable hardware.
• Reinstall the shelf and verify it seats level and secure.

Front mounting grommet.

This replacement screw secures refrigerator panels, brackets, and trim to help keep components aligned and quiet. It matches the specified #8-18 thread and 1-1/2 inch length used at designated mounting points.

• Fastens panels, brackets, covers, and hardware as designed by the manufacturer
• Restores a missing or damaged fastener to keep parts secure and aligned
• Correct #8-18 tapping thread and 1-1/2 in. length for specified locations

• Unplug the refrigerator or disconnect power before servicing
• Wear cut-resistant gloves to protect from sharp edges
• Start the screw by hand to avoid cross-threading; tighten snugly without overtightening
• Reuse any model-specific washers or clips originally installed on your unit

This rubber grommet secures the appliance's base grille, helping keep the grille fitted and reducing vibration and rattle. It's a simple replacement part to restore a snug, finished look at the appliance base. What it does:

• Cushions and retains the base grille in place to prevent gaps and movement
• Helps reduce vibration noise and rattling from a loose grille
• Restores proper fit where a grommet is cracked, torn, or missing

• One (1) grommet for the base grille

• Disconnect power to the appliance before beginning any service
• Typically installs by pressing into the grille or cabinet opening—no special tools required
• Inspect surrounding grille tabs or mounting points and replace any damaged hardware as needed

This dial installs on the refrigerator chill/pan control to let you set the compartment temperature. Replacing a broken or loose dial restores proper control and makes adjusting the chill drawer quick and reliable. What it does:

• Rotates on the chill/pan control shaft to change the compartment temperature setting.
• Replaces worn, cracked, or missing dials that are hard to turn or don't stay set.
• Helps address inconsistent deli/drawer temperatures when the control dial fails.
• Matches the original OEM shape for correct fit and alignment on the control shaft.

• Always unplug the appliance or shut power to the refrigerator before servicing.
• Remove the drawer/pan or access panel as needed to reach the control shaft.
• Pull the old dial straight off the shaft and press the new dial onto the shaft until fully seated; avoid forcing at an angle.
• After installation, restore power and verify the dial turns smoothly and adjusts the compartment temperature setting.

This small replacement linkage secures and positions the pan-chill assembly in compatible refrigerators, helping keep the drain/collector aligned and reducing movement or vibration. Replace a broken link to restore stable pan alignment. What it does:

• Connects and secures the pan-chill (drain/collector) assembly to the fridge framework
• Keeps the pan aligned for proper drainage and to prevent water pooling
• Reduces rattling or movement caused by a cracked or worn linkage
• Helps maintain correct spacing so adjacent components fit and operate without interference

• One linkage pan-chill mounting link

• Disconnect power to the appliance before starting work
• Access may require removing interior panels or shelving—keep fasteners organized
• Install by aligning the linkage with mating tabs and snapping or fastening into place; do not force broken plastic

This replacement chill pan collects defrost and condensation water and channels it away so your refrigerator interior stays dry and free of pooled water. Designed to restore normal drainage and reduce leaks. What it does:

• Collects defrost and condensation water from the evaporator area
• Directs water to the evaporator/condenser area to evaporate safely
• Helps prevent water pooling inside the fresh-food or freezer compartment
• Can reduce musty odors caused by standing water and trapped debris

• Disconnect power to the appliance before beginning any service
• Empty the compartment and remove any components blocking access
• Inspect and clean the drain tube and mounting points when replacing the pan
• Use OEM instructions for fitment and reassembly

This replacement knob fits the temperature control on the refrigerator's chill/deli/snack pan. It restores your ability to adjust airflow to the drawer so you can set the pan to a colder or warmer setting when the original knob is broken or missing. What it does:

• Attaches to the chill/deli pan temperature control to regulate cold-air flow into the drawer
• Restores user control of the drawer's colder/warmer setting
• Typical symptoms include a cracked or missing knob, a knob that won't stay on, or slipping/stripped engagement
• May help if the drawer setting can't be adjusted because the knob is damaged

• 1 control knob

• Unplug the refrigerator before servicing
• Remove the deli/snack pan for access to the control shaft
• Align the knob with the shaft and press on firmly until fully seated
• Reinstall the pan and restore power; verify the control turns smoothly

The Temperature Sensor Grille is an OEM part for GE refrigerators. This grille covers and protects the temperature sensor, ensuring it accurately measures the internal temperature of the refrigerator.

Causes of a bad grille can include physical damage from impacts, regular wear and tear, or the buildup of dust and debris that can obstruct airflow.

Symptoms of a bad temperature sensor grille include:

• Inaccurate temperature readings
• The refrigerator running continuously or not cooling properly
• Visible damage or obstruction on the grille
• The sensor becoming loose or dislodged

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Temperature Sensor Seal is an OEM part for GE refrigerators. This seal is designed to protect the temperature sensor from moisture and other environmental factors that could affect its accuracy and longevity. By providing a barrier against the harsh conditions within a refrigerator, such as humidity and temperature fluctuations, this seal ensures that the sensor can accurately monitor and control the refrigerator's internal temperature.

Causes of a malfunctioning Temperature Sensor Seal can include wear and tear over time, degrading the seal's effectiveness. Physical damage like tears or punctures can allow moisture to reach the sensor. Improper installation may leave gaps or loose areas around the sensor, compromising the seal.

Symptoms of a bad Temperature Sensor Seal include:

• Inaccurate temperature readings.
• Condensation or frost near the sensor location.
• Frequent cycling or unusual patterns in the refrigerator's cooling process.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Temperature Sensor is an OEM replacement part for GE refrigerators, designed to accurately monitor and relay the temperature inside the refrigerator and freezer compartments to the electronic control board. By detecting the slightest changes in internal temperature, the sensor allows the control board to make real-time adjustments to the cooling system, activating the compressor and fans as needed to maintain optimal conditions for food preservation.

Over time, the temperature sensor can fail due to electrical issues, exposure to moisture, or general wear and tear. A malfunctioning sensor can lead to improper temperature regulation, affecting the efficiency of the refrigerator and the freshness of stored food.

Symptoms of a bad Temperature Sensor include:

• The refrigerator or freezer not maintaining the set temperature
• The appliance running continuously or more frequently than normal
• Inaccurate temperature readings displayed

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This bottom hinge pin supports and serves as the pivot for the refrigerator door. An accurate, tight-fitting hinge pin helps the door swing smoothly and seal properly to maintain temperature and reduce wear.

• Serves as the lower pivot point for the door on the bottom hinge
• Helps keep the door aligned for proper closing and gasket contact
• Replacing a worn pin can improve door movement and reduce stress on the hinge

• Unplug the appliance before servicing
• Support the door to relieve weight from the hinge before removing hardware
• Transfer any spacers/shims in their original order to maintain alignment
• Tighten fasteners securely and check door swing and seal after installation

This middle reflector assembly directs and focuses heat inside the oven cavity to help ensure even cooking and protect surrounding components. It restores proper heat reflection when the original reflector is warped, dented, or missing. What it does

• Reflects and redirects oven heat toward the cooking cavity for more even baking and roasting.
• Protects adjacent oven panels and wiring from direct heat exposure.
• Replace when the reflector is cracked, bent, heavily corroded, or causing uneven temperatures or hot spots.
• Matches OEM fit and mounting points for its intended oven model families.

• One middle reflector assembly.

• Disconnect power to the appliance and allow the oven to fully cool before servicing.
• Handle the reflector carefully—edges may be sharp; wear gloves and eye protection.
• Verify fit and orientation against the oven's service diagram; do not force into place.

This middle reflector assembly directs heat and light inside the appliance to help ensure even cooking and protect surrounding components. It replaces a damaged or missing middle reflector to restore proper internal reflectivity and airflow. What it does:

• Reflects heat/light away from the heating element to promote even cooking and prevent hotspots
• Shields internal wiring and components from direct heat exposure
• Helps maintain designed airflow patterns for efficient operation
• Replace if warped, cracked, burned, or missing to reduce risk of uneven cooking or component damage

• Disconnect power (and gas, if applicable) before servicing; allow the appliance to cool completely
• Handle carefully—edges may be sharp; wear gloves and eye protection
• Keep all original fasteners; verify alignment before tightening

This light socket connects the interior lamp to the refrigerator wiring so the interior light turns on when the door opens. It replaces a damaged or burned socket to restore reliable lighting. What it does:

• Holds the interior lamp securely and provides the electrical contact for operation
• Restores lighting when a damaged socket causes the light to fail or flicker
• Prevents intermittent connections from poor contacts or heat damage
• Works with the appliance's existing wiring and bulb style

• Disconnect power to the appliance before inspecting or replacing the socket.
• Handle bulbs and sockets carefully; use gloves to avoid cuts and for hygiene.
• Test operation after installation; replace the bulb if necessary.

The Light Bulb (40W) is an OEM component for GE refrigerators. As an essential task lamp, it illuminates the interior of the refrigerator and freezer compartments.

All light bulbs will eventually burn out with consistent use over many years. Vibration during compressor cycles can also potentially disrupt bulb filaments faster.

Symptoms of a burnt out refrigerator light bulb include:

• Dim or no light illuminating inside refrigerator shelves
• Shadows and dark spots making it difficult to find items
• Higher utility costs from leaving the door open to see inside

This bulb is also compatible with refrigerators from brands like Hotpoint, RCA, and some Kenmore models.

This is the top hinge pin for a refrigerator door. It serves as the pivot point for the door at the upper hinge, helping the door swing smoothly and stay aligned so it seals properly.

• Provides the upper pivot for the door at the hinge
• Worn or bent pins can cause sagging, squeaking, or poor door closure
• May help resolve doors that don't seal, bind, or drop
• Replacing a damaged pin can improve door alignment and operation

• Unplug the refrigerator before servicing
• Support the door while removing the upper hinge
• Keep track of any spacers/washers and reinstall in the same order
• Tighten hinge fasteners and check door alignment and seal after installation

This white cover hinge replaces a worn or broken hinge that supports and pivots the appliance cover, restoring proper alignment and smooth opening/closing for the lid. Designed as a direct-fit replacement where specified. What it does:

• Provides a secure pivot point so the cover or lid opens and closes smoothly
• Keeps the cover aligned to prevent sagging, rubbing, or binding
• Restores a proper seal/closure when hinge wear causes gaps or misalignment
• Helps eliminate rattling or excess play caused by a damaged hinge

• Disconnect power (and water if applicable) before starting any repair.
• Handle the lid/cover carefully during removal to avoid dropping or injury.
• Basic hand tools are typically required; follow your model's service diagram for location and fastener details.
• Replace with the same OEM part number to ensure fit.

This black cover hinge replaces a damaged or worn hinge cover to restore proper fit and appearance where the hinge mounts. It helps protect the hinge area and keeps the lid or top closing and opening smoothly. What it does:

• Covers and secures the hinge area to prevent wear and reduce rubbing or noise
• Helps keep the lid/top aligned for smooth opening and closing
• Restores finished appearance where the original hinge cover is cracked or missing
• Commonly used when the hinge cover is broken, loose, or causes wobble or misalignment

• Disconnect power to the appliance before servicing to avoid shock or injury
• Basic hand tools (screwdriver, socket) are typically required; keep removed fasteners for reinstallation
• Handle sharp edges carefully and support the lid/top during removal and installation

This bottom door hinge secures the refrigerator/freezer door at the lower pivot and helps ensure smooth, stable opening and closing. Durable replacement that restores proper door alignment and keeps the seal functioning. What it does:

• Supports the bottom of the door and serves as the lower pivot point
• Keeps the door aligned so it closes fully and maintains a proper seal
• Reduces door sag, rubbing, or uneven gaps that cause cooling issues
• Fits and functions as the factory replacement hinge for compatible GE units

• Disconnect power to the appliance before beginning any repair
• Support the door while removing and installing the hinge to prevent injury or damage
• Use appropriate hand tools; avoid overtightening fasteners which can misalign the door

This bottom door hinge supports the refrigerator door and serves as the pivot point for smooth opening and closing. Replacing a worn hinge restores proper alignment and sealing to help prevent door sagging and cooling loss. What it does:

• Supports the door's weight at the lower corner and maintains alignment
• Provides the pivot for opening/closing and reduces friction at the door base
• Wear can cause door sagging, rubbing/binding, or the door not closing fully
• Misalignment may lead to poor gasket contact, warm spots, or condensation/frost near the door

• 1 bottom door hinge

• Disconnect power and, if applicable, shut off water before starting
• Remove items from the door and have a helper support it during removal
• Remove the upper hinge to lift the door off the lower hinge; retain any shims/spacers
• Swap the hinge, transfer shims as found, align the door, tighten fasteners, and verify the gasket seals all around

This replacement screw secures panels, brackets, and other hardware in your appliance. Installing a new fastener restores a tight, rattle-free fit when the original is missing, stripped, or corroded, helping keep components properly aligned.

• Fastens components, trim, and brackets to the cabinet or frame
• Replaces a missing, stripped, or rusted screw
• Helps reduce rattles, vibration, and loose panels or handles
• Maintains proper alignment of panels and hardware

• Disconnect power (and water/gas if applicable) before servicing.
• 12-24 thread, approximately 0.90-inch length; match to the original location.
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening.
• Replace any additional damaged fasteners to ensure even clamping and a secure fit.

The Light Switch is an OEM part for GE refrigerators. It controls the refrigerator's interior light, turning it on when the door is opened and off when the door is closed. This ensures energy efficiency and convenience, illuminating the refrigerator's interior for easy visibility while searching for items.

Causes of a bad light switch include mechanical wear from constant use, damage from an impact, or electrical issues.

Symptoms of a bad Light Switch include:

• The interior light does not turn on when the refrigerator door is opened
• The light stays on when the door is closed, potentially leading to overheating or melted plastic components in the light housing area
• Intermittent functioning of the light, indicating a loose or damaged switch

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Keep water and ice flowing without internal filtration. This MSWF water filter bypass plug replaces the filter to seal the housing and route water properly to the dispenser and ice maker when a filter is not used.

• Installs in place of the MSWF filter to bypass filtration
• Maintains water flow to the dispenser and ice maker with no filter installed
• Helpful for troubleshooting restricted flow or when using an external filtration system
• Seals the filter head to help prevent leaks during bypass
• Note: No water is filtered while this plug is installed

• Shut off the water supply and dispense water to relieve system pressure
• Remove the MSWF filter; align and twist the bypass plug to lock into the filter head
• Restore water, check for leaks, and run the dispenser briefly to purge air
• Follow your refrigerator's instructions and use appropriate hand/eye protection

The Water Filter Housing Assembly is an OEM part for GE refrigerators. The water filter head holds the water filter and connects the water lines to the water filter. Includes the filter head and water lines.

Causes can involve cracks, deformities or wear to sealing surfaces over time. Accidental dents or impacts may compromise housing integrity.

Symptoms of a bad housing assembly include:

• Leaks or drips around the filtration compartment
• Inability to properly seat replacement cartridges
• Failure of water lines to engage the filtration system

This is a genuine OEM part that works for some models of GE, and Hotpoint models.

This foam insulation for the refrigerator manifold helps reduce heat transfer and condensation around the refrigerant/water manifold, improving temperature stability and preventing unwanted frost buildup in the cabinet area. What it does:

• Wraps and insulates the refrigerator manifold and nearby tubing to limit heat gain and condensation
• Helps maintain consistent cooling performance by reducing thermal interference with the manifold
• Reduces risk of localized frost or moisture buildup that can affect nearby components
• Be needed if existing insulation is torn, compressed, missing, or water-damaged

• Disconnect power to the appliance before servicing to avoid electrical shock
• Remove shelves, panels, or drawers as needed for access; keep track of fasteners
• Replace damaged insulation carefully to ensure full coverage of the manifold and tubing; trim if necessary for a snug fit
• If adhesive backing is present, press firmly to secure; do not block airflow or pinch tubing

The Evaporator Drip Pan is an OEM part for GE refrigerators. This pan collects condensation and defrost water, preventing leaks and water damage to your kitchen floors.

Causes for replacement often stem from physical damage, such as cracks or holes that allow water to leak out. Over time, the drip pan may also become brittle and more susceptible to damage due to the constant exposure to moisture and temperature fluctuations.

Symptoms of a bad Evaporator Drip Pan include:

• Water accumulation under or around the refrigerator
• Mold or mildew smell coming from beneath the refrigerator
• Overflowing, indicating a crack or hole in the pan

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is an evaporator cover assembly that is used in many refrigerators. It is a component that is located on the top of the evaporator at the back of the fresh food compartment in the refrigerator. It acts as a protective part for this essential component of the appliance. The evaporator helps remove heat from water, air, and other items inside the refrigerator.If the evaporator cover assembly is cracked or broken, it will no longer be capable of protecting the evaporator and should be replaced. The typical tools needed include a flathead screwdriver and a Phillips screwdriver. Make sure the refrigerator is unplugged for safety reasons. Remove the door bins and vegetable drawers to gain access to the fresh food evaporator cover assembly. Take out the screws to remove it from the refrigerator. Install the new component in the same location and reassemble the refrigerator. Plug it back in before using it.Designed for refrigerators, this is an authentic OEM replacement part. It is directly sourced from the manufacturer and sold on an individual basis. This evaporator cover assembly is designed to be compatible with General Electric refrigerators.

Fresh food side. For the same part in black, purchase WR11X10009.

The Fresh Food Lever Assembly is an OEM part for GE refrigerators. It plays a crucial role in the operation of the refrigerator, enabling the smooth adjustment of settings within the fresh food compartment. This lever assembly is responsible for the user's ability to fine-tune the temperature and humidity levels, ensuring that the food stored inside remains fresh and well-preserved. For the same part in white, purchase WR11X10007.

Over time, the lever assembly may become worn or damaged due to regular use, accidental impacts, or environmental factors such as extreme temperatures or humidity.

Symptoms of a bad Fresh Food Lever Assembly include:

• Difficulty in adjusting the temperature or humidity settings.
• The lever becoming loose or unresponsive.
• Inconsistent temperature control within the fresh food compartment.
• Increased energy consumption as the refrigerator works harder to maintain settings.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Door Closure Spring is an OEM replacement part for GE refrigerators. It provides balanced tension to assist the door hinges and latch mechanism in securely closing the refrigerator door. The spring helps the door shut fully while preventing it from slamming closed abruptly.

Symptoms of a bad door closure spring include:

• The door not latching securely or remaining slightly ajar
• Difficulty closing the door fully without assistance
• Increased thermal loss as the door does not seal tightly
• Risk of food items falling out from an open door position

Causes of failure include metal fatigue from prolonged use. Springs can also weaken from mineral buildup over many years of repeated openings and closings.

This OEM GE replacement spring is also compatible with models including GE, Monogram, and select Kenmore units.

This adjustable leveling screw replaces a worn or damaged leg adjustment used to raise, lower, and level the appliance for stable operation. It restores proper fit and helps reduce rocking and uneven appliance height. What it does:

• Provides height adjustment to level the appliance on uneven floors
• Stabilizes the unit to reduce rocking and vibration
• Helps align doors and drawers that hang or bind due to uneven stance
• Works as the threaded lower leg/adjuster for proper weight support

• Disconnect power and water and move the appliance to access the leveling assembly safely.
• Support the appliance with a jack or block before removing or adjusting legs to prevent tipping.
• Turn the screw with an appropriate wrench or pliers; adjust gradually and check level frequently.
• If the leg assembly includes a mounting bracket, keep fasteners secure and replace any worn hardware.
