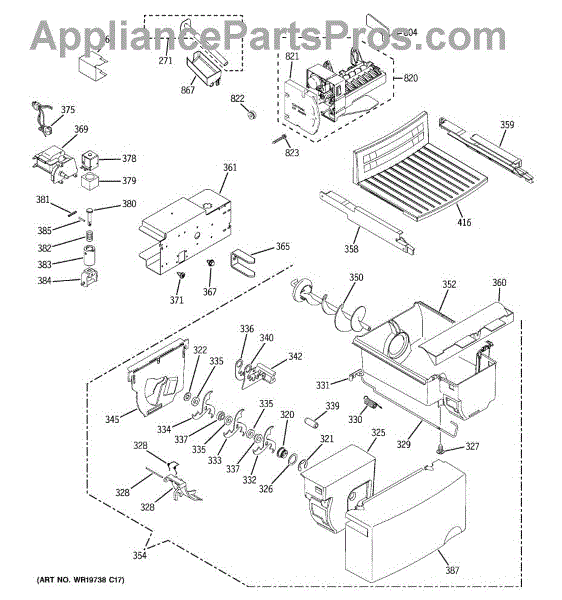

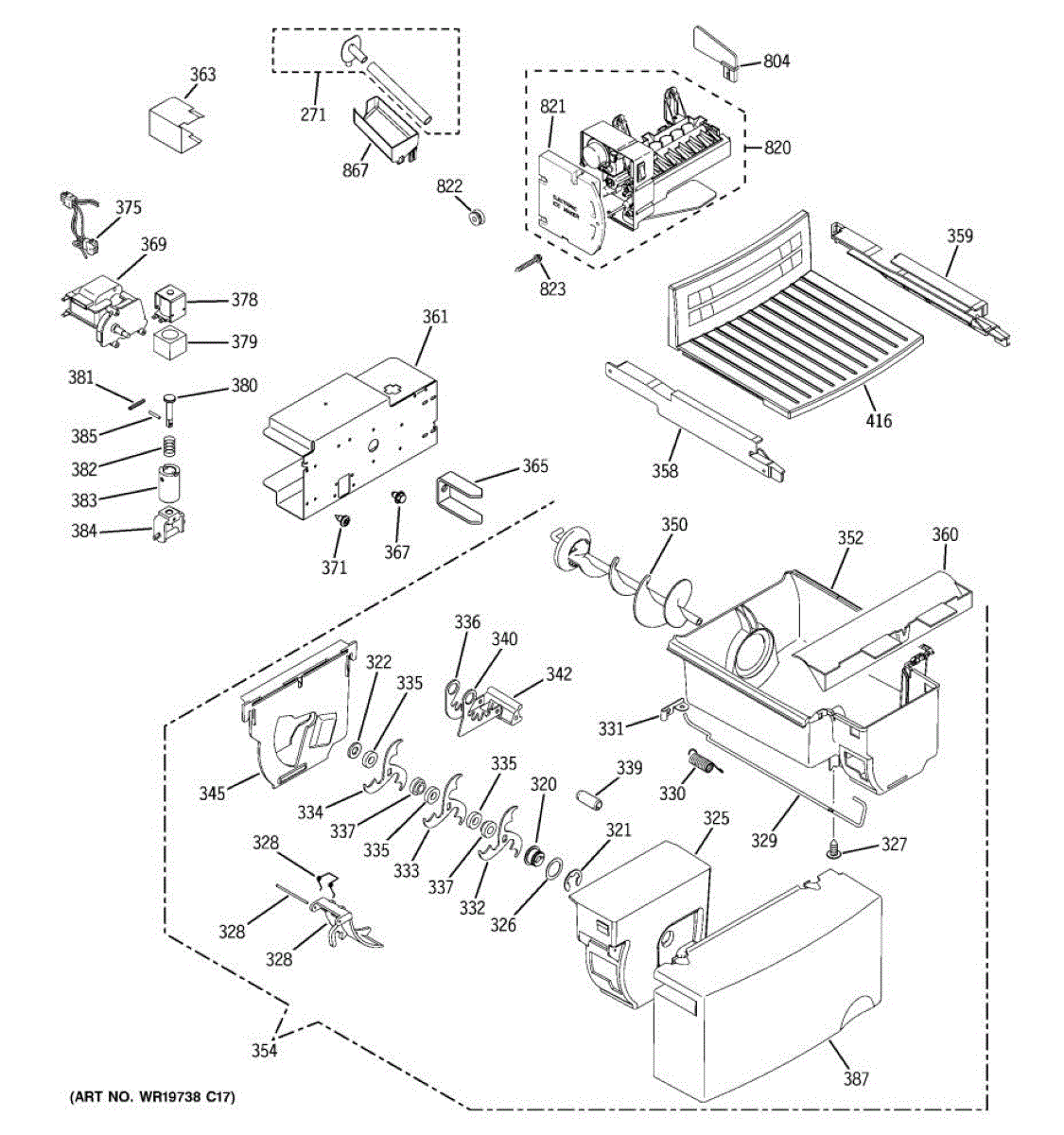

Parts for Ge GSS20IETPBB: 05 - Ice Maker & Dispenser Parts

Replaces a cracked, severed, or frozen ice maker fill tube and grommet. Delivers water from valve to ice maker. Includes tube, grommet, and plate.

Secures the auger shaft in the icemaker assembly. Replace if stripped, cracked, or loose, preventing proper ice transport from bin to dispenser.

Includes 12 retainer rings.

Protective enclosure for the ice crusher mechanism in your refrigerator's dispenser. Replace if cracked, broken, or damaged from ice jams or wear.

Includes 12 washers.

This is a self-tapping Phillips head screw used to secure various components inside the refrigerator. It measures 8-18 thread size and 1/2 inch in length. Replace if the original screw is stripped, missing, or damaged during a repair, which can cause panels or parts to come loose.

Replacement pivot that supports and aligns refrigerator doors or drawers. Needed when original pivot is cracked, broken, or worn, causing misalignment.

Ice scattering everywhere? This deflector guides cubes or crushed ice down the chute into your glass. Replaces cracked or missing deflectors in 30 minutes.

These refrigerator dispenser moving blades are the rotating components that crush ice cubes into smaller pieces for dispensing. They work together to break down ice as it moves through the crushing mechanism. Replace them when ice comes out in large chunks instead of crushed pieces or if you hear grinding noises during ice dispensing.

Fix ice dispenser jamming or not crushing ice with replacement auger blades. Common fix for ice crushing problems in side-by-side refrigerators.

Mounting spacer maintains proper clearance between refrigerator panels, doors, or components. Replace if cracked, broken, or missing to restore fit.

This stationary display blade secures and positions the appliance's front display/overlay so controls and indicators stay aligned and visible. It replaces a cracked, loose, or missing display blade to restore a stable display surface. What it does:

• Holds the display/overlay in the correct position behind the control panel
• Prevents the display from rattling or shifting during normal use
• Restores a flush, aligned appearance when the original blade is broken or worn
• Helps keep buttons and indicators properly supported for reliable operation

• Disconnect power to the appliance before starting any repair.
• Removal usually requires removing the front/display trim or bezel; use basic hand tools.
• Handle small plastic parts carefully to avoid cracking during removal/installation.

Ice dispenser not working or crushed ice won't dispense? This crusher cover protects the ice crushing mechanism. Easy DIY repair with step-by-step video.

Ice won't dispense? A broken auger often causes this. This helical shaft pushes ice from bucket to chute. DIY-friendly repair, about 20 minutes.

Holds and delivers ice from freezer to dispenser chute. Replace if cracked, broken, or missing. Molded design ensures clean ice storage and release.

Left-side glide rail that supports and guides your refrigerator's ice bucket or drawer. Replace when cracked, broken, or worn to restore smooth sliding.

Replacement diverter overflow that helps channel excess water away from the ice maker/water system to reduce pooling and leaks. Restores proper drainage so the refrigerator interior stays dry and operates as intended. What it does:

• Directs overflow or stray water from the ice maker/water area into the drain path
• Helps prevent water pooling or dripping inside the freezer or cabinet
• Use when you notice leaks, water pooling under shelves, or water coming from the dispenser/ice area

• Always disconnect power and shut off the water supply before starting any repair
• Removal of interior shelves/trim or access panels may be required to reach the diverter
• Handle plastic tabs and clips carefully to avoid breakage; replace any damaged fasteners

Ice won't dispense or auger spins freely? The drive coupler connects the motor to the auger. Moderately easy DIY repair with pliers and patience.

Ice won't dispense or humming noise? The auger motor powers ice movement from maker to dispenser. DIY repair in 30 minutes with video guide.

10-18 hex washer screw for securing panels, trim, brackets, and components in appliances. Replaces lost, stripped, or corroded fasteners.

Secures and guides the ice maker assembly to prevent shifting during operation. Replace if cracked, broken, or missing to restore proper alignment.

Ice maker not producing ice or stopped working? This ice maker kit restores ice production. Includes full assembly for harvesting and ejecting ice.

Ice maker not producing ice or stopped working? This ice maker kit restores ice production. Includes full assembly for harvesting and ejecting ice.

Hex washer head screw for refrigerator assembly and panels. Replace this fastener if lost, stripped, or corroded during repairs or maintenance work.

Small funnel-shaped component in the ice maker that directs water into ice molds during the filling process. Replace if the ice maker produces hollow, small, or irregularly shaped ice cubes.
