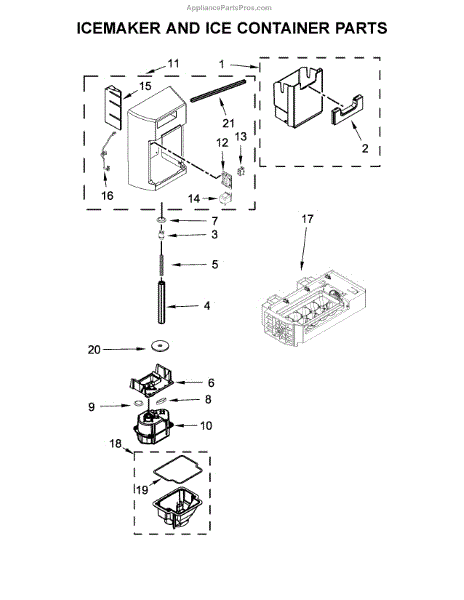

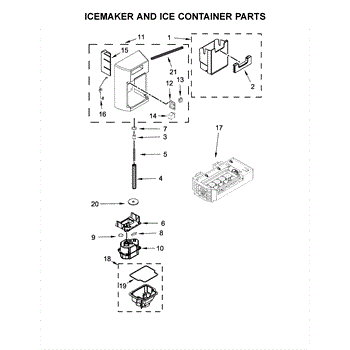

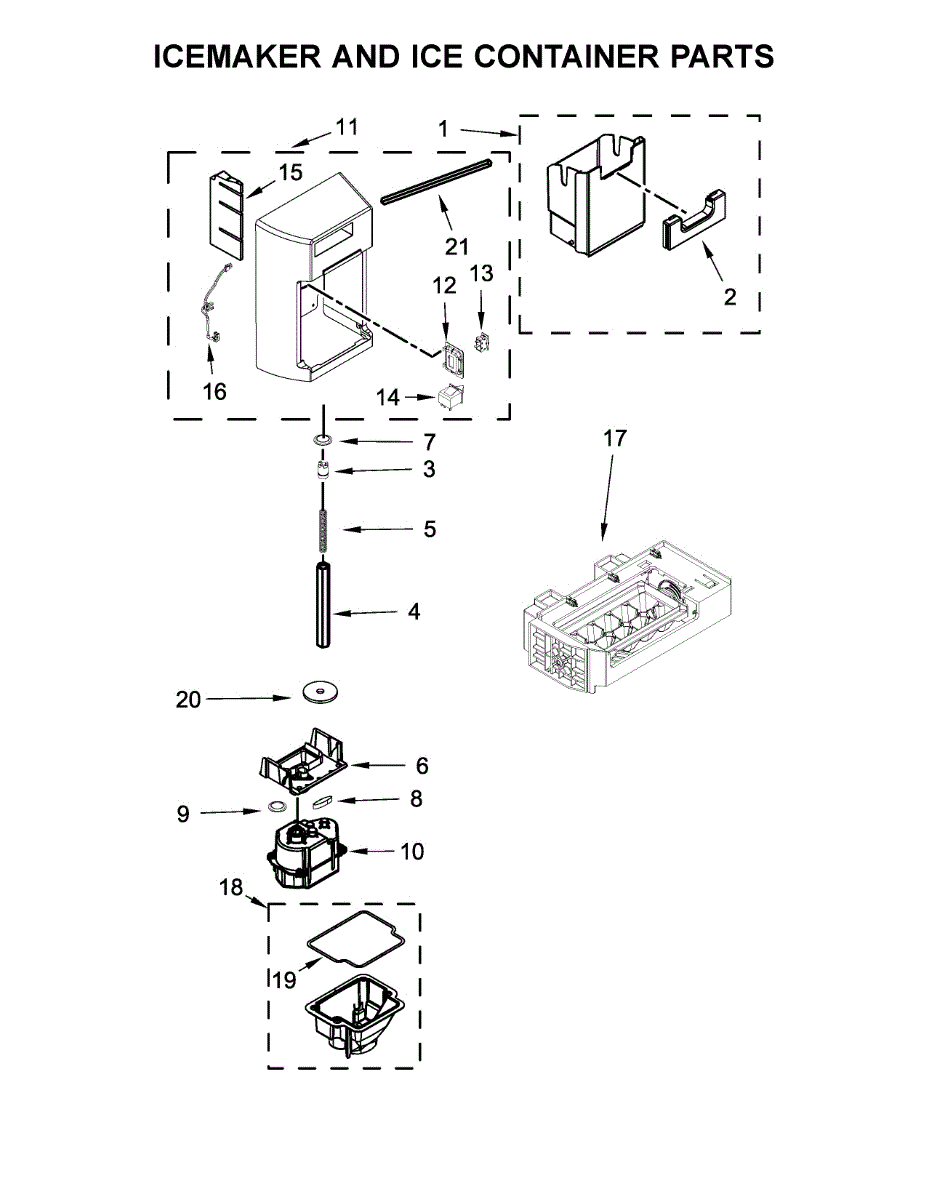

Parts for Kenmore 106.51139213 (10651139213, 106 51139213): Icemaker And Ice Container Parts

The FreshFlow Refrigerator Air Filter is an OEM component for Whirlpool and Maytag refrigerators. Located inside the ventilation system, this filter purifies circulated air. This air filter is 3" wide by 2" high and white in color. It should be replaced every 6 months to ensure the best performance.

Causes of failure relate to clogging from trapped dust, dander and other allergens despite regular replacement intervals. Performance decreases as filter media becomes saturated over months of use.

Symptoms of a dirty or blocked refrigerator air filter include:

• Reduced airflow causes higher compressor runtime hours
• Odors being pulled into the fridge from unfiltered vents
• Shortening of food storage life due to unpurified air exposure
• Reduced fan speeds or strange noises originating from the vents

This genuine Whirlpool filter is also compatible with Maytag, Jenn-Air, and Amana models as well.

The Whirlpool EveryDrop Ice and Refrigerator Water Filter 1 is an OEM replacement part for Whirlpool refrigerators. This filter works to remove small particles from water to ensure clean, great-tasting ice and drinking water directly from the refrigerator door.  Measuring approximately 2.50 x 2.50 x 8.69 inches, this filter is easy to install.

For optimal performance, we recommend replacing the filter every six months. The filter material is made from coconut carbon block, which has a micron rating of 0.5 and a flow rate of 0.5 gpm. The filter is designed to operate at a maximum pressure of 125 psi and an operating temperature of 38-100°.

Symptoms of a filter needing replacement include:

• Gradual decline in water/ice quality over time exhibiting muddy appearance or odd tastes
• Filter life indicator appears showing it is time for a new one

Causes stem from normal usage over the stated capacity of the original filter. Allowing one to expire could produce unhealthy water.

This OEM replacement part is compatible with select Maytag, Jenn-Air, and Amana models as well.

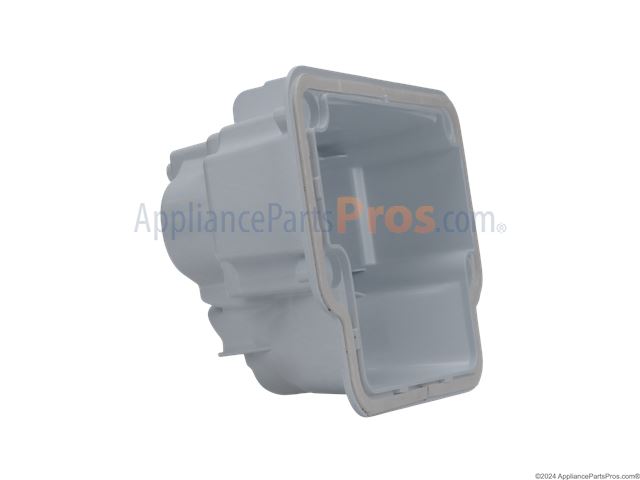

The Ice Container is an OEM part for Whirlpool refrigerators. It is responsible for holding and dispensing ice from the icemaker into the dispenser chute.

The ice container ensures the proper storage and convenient access to ice whenever you need it. It is designed to provide a reliable ice storage solution.

A bad ice container assembly can occur due to wear and tear over time or damage to the container or its components. If you notice symptoms such as the ice not dispensing properly, leaks from the dispenser area, or a broken or cracked ice container, it may be time to replace this part.

Symptoms of a bad ice container include:

• Improper dispensing of ice
• Leaks from the dispenser area
• Broken or cracked ice container

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This ice bin latch assembly secures the refrigerator ice bin and allows the dispenser door to open and close smoothly. Replacing a worn or broken latch restores proper bin seating and helps prevent ice from spilling or dispenser jams. What it does:

• Secures the ice bin in place so the dispenser door can engage and dispense ice.
• Ensures the ice bin opens and closes smoothly, preventing the bin from falling out.
• Can resolve symptoms like a loose or broken latch, ice bin not staying seated, or dispenser not engaging.
• Restores proper alignment between the ice bin and dispenser door for reliable operation.

• One ice bin latch assembly as shown

• Disconnect power to the refrigerator before starting any repair to avoid electrical or mechanical hazards.
• Remove the ice bin and any obstructions for clear access; replace the latch using basic hand tools.
• Align the new latch and snap or fasten per the original mounting; verify smooth operation before reassembling.

The Ice Maker Coupler is an OEM part for Whirlpool refrigerators. It connects the ice maker drive motor to the auger shaft and gear assembly inside the ice storage bin. This allows rotational force to be transferred between components, ensuring efficient ice harvesting and delivery.

Symptoms of a bad ice maker coupler include:

• Slow or inconsistent dispensing of ice
• Improper filling of the storage bin
• Ice that is jammed or dispensed in clumps

Causes can involve normal wear and tear over time that leads to slippage between connected parts. Cracks or fractures in the coupler housing also inhibit smooth transmission of motor power throughout ice vending operations.

This genuine Whirlpool OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This hex drive shaft sits inside the ice bucket auger/crusher assembly. It transfers rotation from the dispenser motor to the auger so ice dispenses and crushes smoothly, helping restore consistent ice flow when the original shaft is worn.

• Couples the dispenser motor to the ice-bin auger/crusher assembly
• Maintains positive hex engagement to reduce slippage under load
• Helps with symptoms such as no ice dispensing, auger not turning while the motor runs, clicking/grinding during dispense, or a visibly rounded/corroded shaft
• Replace if bent, stripped, or excessively worn

• Disconnect power and remove the ice bin before service
• Disassemble the auger/crusher stack, noting the exact order of blades, spacers, and washers (take a photo for reference)
• Transfer all components to the new shaft in the same orientation and reassemble per your model's service information
• Ensure the hex end fully seats in the drive coupling; verify smooth auger rotation before reinstalling the bin; wear cut-resistant gloves—edges and blades are sharp

The Spring is an OEM part for Whirlpool refrigerators. It is a small but important internal part that applies pressure to dispense cubed or crushed ice from the refrigerator door. The spring is located within the ice dispenser mechanism and works with a lever to push ice out through the dispenser chute upon activation.

Causes of a bad spring can include wear and tear over time, putting undue pressure on the dispenser by jamming items into the chute, or damage from excessive force applied during dispensing.

Symptoms of a bad spring include:

• Ice cubes or crushed ice becoming jammed or failing to dispense properly
• The ice dispenser failing to push ice fully through the chute
• Excessive pressure needs to be applied to activate the dispenser
• Ice cubes are dispensed in irregular sizes or clumps rather than individual pieces

This OEM Whirlpool part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This mounting plate assembly provides a sturdy base that keeps the appliance firmly secured and properly aligned with its supporting structure. Replace a bent, missing, or stripped plate to restore a safe, solid installation and reduce vibration.

• Secures and anchors the unit to its support surface or frame
• Maintains correct alignment and fastener locations for a stable fit
• Helps prevent vibration, shifting, sagging, or rattling during operation
• Replace if the plate is bent, cracked, rusted, or has stripped mounting holes
• Common signs include a loose or wobbly install, gaps, or difficulty tightening mounting screws

• Disconnect power before service; support the appliance while removing mounting hardware
• Fasten to solid backing (studs or approved anchors) using hardware specified for your model
• Level and align the plate with existing hole pattern before fully tightening
• Avoid overtightening and drilling into concealed utilities

The Drive Shaft Seal is an OEM part for Whirlpool washing machines. It plays a role in preventing water from leaking out of the tub and onto the drive system. This seal ensures that the connection between the drive shaft and the washing machine tub remains watertight, protecting the mechanical components from water damage and corrosion.

Causes of a bad drive shaft seal include aging and deterioration of the material, excessive load sizes that strain the washer, and foreign objects caught between the seal and the shaft, which can lead to tears or breaks.

Symptoms of a bad Drive Shaft Seal include:

• Water leakage from the underside of the washing machine
• Unusual noises during the spin cycle
• A visible tear or damage to the seal itself
• Increased vibration and movement of the machine during operation

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This ice chute gasket seals the dispenser funnel opening to the freezer door. A tight seal keeps warm air and moisture out of the chute, helping prevent frost buildup, condensation, and drips around the dispenser. What it does:

• Seals the ice dispenser chute/funnel to prevent air leaks
• Helps reduce frost and ice buildup in the chute area
• Minimizes condensation and water droplets at the dispenser opening
• Supports consistent ice flow by limiting clumping from warm air intrusion

• 1 ice chute gasket

• Disconnect power to the refrigerator before servicing
• Remove dispenser trim/control and funnel to access the gasket
• Note orientation; press the new gasket evenly into place without stretching
• Reassemble and verify the ice door closes and seals properly

The Coupling is an OEM replacement part for Whirlpool French door bottom-mount refrigerators equipped with an interior automatic icemaker. As an internal part, this coupling connects the auger motor to the ice mold assembly, allowing the motor to transmit rotational force during the ice harvest cycle.

Causes of a damaged coupling can include regular wear from years of exposure to changing temperatures inside the refrigerator. Mineral deposits accumulating on surfaces over many harvest seasons have the potential to deteriorate plastic material. Physical obstructions lodged in the icemaker mechanism could potentially bend or crack the coupling.

Symptoms of a failing coupling involve:

• Inability of the auger motor to engage fully and eject frozen cubes
• Grinding or knocking sounds emitting from the icemaker
• Restricted or incomplete ice harvest that leaves cubes in molds

This OEM replacement is compatible with some Kenmore Elite French door models.

The Ice Dispenser Auger Motor is an OEM part for Whirlpool refrigerators. It powers the auger, which moves ice from the ice bin to the dispenser chute, enabling the dispensing of ice through the refrigerator door.

Causes of a bad auger motor can include electrical malfunctions, wear and tear from regular use, or damage due to ice buildup or obstructions. These issues can hinder the motor's ability to function correctly, impacting ice dispensing performance.

Symptoms of a bad ice dispenser auger motor include:

• Ice not dispensing from the door
• Unusual noises when trying to dispense ice
• The auger not turning or moving ice
• Inconsistent or intermittent ice dispensing

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This front cover is the outer cabinet panel that restores the dryer/washer front appearance and protects internal components from dust and accidental contact. It provides a clean, finished look and helps maintain appliance safety. What it does:

• Replaces a cracked, dented, or faded front panel to restore the appliance's appearance
• Protects internal components and control area from dust, lint, and moisture
• Helps ensure proper alignment of doors/controls by maintaining the front cabinet structure
• Addresses symptoms like visible damage, gaps at the door, or increased debris buildup

• One front cover panel

• Verify power is disconnected before beginning any repair
• Removal typically requires access to the cabinet and basic hand tools; follow OEM instructions
• Handle carefully to avoid scratching the finish and to prevent contact with sharp edges
• If clips or screws are damaged, replace them with OEM-approved fasteners

This replacement mounting plate secures internal components and restores proper alignment so panels and assemblies sit correctly. It's a direct-fit OEM plate used where a stable mounting surface is required. What it does

• Secures and supports internal components to prevent shifting or vibration.
• Restores proper alignment for panels or assemblies that rely on the plate for fit.
• Helps eliminate noises or rattling caused by a loose or damaged plate.
• Maintains the original mounting points for fastener reattachment.

• Disconnect power to the appliance before starting any repair.
• Keep track of fasteners and mounting hardware; reuse original screws unless damaged.
• Use basic hand tools; avoid over-tightening fasteners which can strip threads or warp the plate.

The Rocker Switch is an OEM part for Whirlpool refrigerators. This switch is responsible for controlling the operation of your refrigerator's ice maker, allowing you to turn it on or off as needed, providing you with easy control over the ice maker.

A bad switch can occur due to regular wear and tear, electrical issues, or physical damage. If you notice symptoms such as an unresponsive switch, inability to turn the ice maker on or off, or inconsistent ice production, it may be time to replace the rocker switch.

Symptoms of a bad switch include:

• Unresponsive switch
• Inability to turn the ice maker on or off
• Inconsistent or inadequate ice production

Regain control over your Whirlpool refrigerator's ice maker by replacing the faulty or malfunctioning on/off rocker switch with this genuine OEM part.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This short electrical wire jumper completes a circuit between adjacent connector pins to restore power or signal continuity where a dedicated harness jumper is required. It's a simple replacement for worn, broken, or missing jumpers. What it does

• Bridges two connector points to complete a circuit or bypass a failed trace
• Restores power or signal flow to components that rely on a jumper connection
• Can resolve intermittent connections caused by damaged or corroded wiring
• Used where a short lead is needed to replace a missing or compromised factory jumper

• Disconnect power to the appliance before servicing to avoid shock or damage
• Verify correct connector orientation and secure fit; avoid forcing terminals
• Route jumper clear of moving parts and hot surfaces to prevent wear or melting

The Ice Maker is an OEM part for Whirlpool refrigerators. It automates the ice production within the freezer, providing a steady and reliable supply of ice cubes.

Causes of a bad Ice Maker can include malfunctioning water valves, clogged filter systems, or issues with the thermostat that affect ice production. Additionally, mechanical failures in the ice ejector arms or the heating mechanism that releases the ice can prevent proper functioning.

Symptoms of a bad Ice Maker include:

• No ice production or very slow ice production
• Ice cubes that are smaller or larger than normal
• Ice that tastes odd or smells bad
• Loud noises during the ice-making process

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

A replacement door gasket that restores a tight seal to your appliance, helping maintain proper temperature control and preventing leaks or air exchange. Use this part when the existing seal is torn, deformed, or no longer sealing fully. What it does:

• Seals the door to prevent water, air, or cold/heat loss from the cabinet
• Helps maintain consistent internal temperature and efficient operation
• Reduces leaks, moisture buildup, and frost where applicable
• Common symptoms: visible cracks, gaps, warping, or leaking from the door area

• Disconnect power (and water if applicable) before starting any work
• Remove the old gasket completely and clean the sealing surface before installing the new gasket
• Align and seat the new gasket into the retainer; some models use screws or clips—refer to model-specific instructions
• Check the seal all the way around after installation and run a short cycle or close the door to ensure a proper fit

This rubber boot seals and shields a component or connector within the appliance. Replacing a worn boot helps keep out moisture and debris, preventing corrosion and wear so the protected part continues to operate reliably.

• Provides a protective seal around the targeted connection or component
• Helps keep out moisture, dust, and debris
• Minimizes vibration and abrasion at the connection point
• Direct replacement when the original boot is cracked, brittle, torn, or missing
• Symptoms can include visible damage, loose fit, or signs of moisture/rust near the protected area

• Disconnect power and turn off water supply before starting
• Access the area and note the boot's orientation and seating depth
• Remove the old boot; fully seat the new boot and transfer any reusable clips/covers
• Restore power/water and verify a secure seal and normal operation
