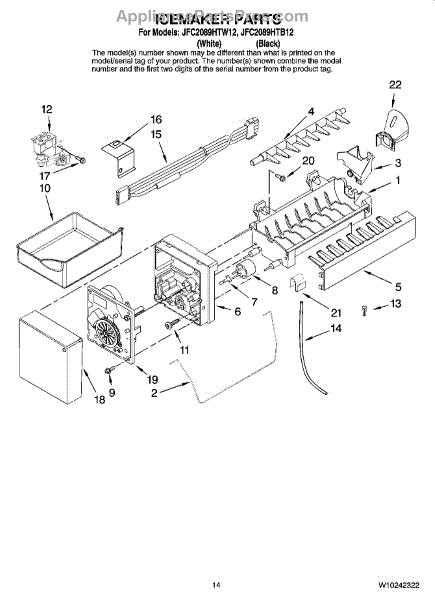

Parts for Maytag JFC2089HTB12: 08 - Icemaker Parts, Optional Parts (Not Included) Parts

The Water Filter is an OEM part for Whirlpool refrigerators. It is designed to filter and purify the water for your refrigerator, ensuring clean and fresh drinking water and ice.

A bad refrigerator water filter can be caused by regular use and the buildup of contaminants over time. It may also become less effective if not replaced according to the manufacturer's recommended schedule.

Symptoms of a bad refrigerator water filter include:

• A decrease in water flow or water pressure.
• An unpleasant taste or odor in the water.
• The presence of particles or sediment in the water.
• Cloudy or discolored ice cubes.

If you notice any of these signs or if it has been more than six months since your last filter replacement, it's time to replace the refrigerator water filter with this genuine OEM part. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The Ice Mold is an OEM part for Whirlpool refrigerators. This component forms the ice cubes in the icemaker, shaping the water into cubes as it freezes. The ice mold is crucial for the efficient production of ice, ensuring that each cube is properly formed and easily released into the ice bucket.

You should replace the ice mold if it shows signs of wear or damage. Causes of a bad ice mold can include mineral buildup from hard water, physical damage to the mold surface, or malfunctioning heating elements that prevent ice from releasing properly.

Symptoms of a bad Ice Mold include:

• Ice cubes not forming correctly or being irregular in shape
• Ice cubes sticking to the mold and not dispensing
• The icemaker not producing ice at all
• Leaks around the icemaker area

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Icemaker Shut-Off Arm is an OEM replacement part for Whirlpool refrigerators. Located within the freezer compartment attached to the ice maker assembly, this lever arm activates the shut-off switch to terminate the harvest cycle once the ice bin is full.

Causes relate to cracked or broken lever arms no longer reliably engaging the switch assembly. Mineral scale accumulation may also inhibit smooth operation over time.

Symptoms of a faulty shut-off arm include:

• Ice piling up outside the bin instead of dispensing properly
• The Bin light remaining on indicates a full bin when more ice can still fit
• Excessive ice production drives up energy costs

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This icemaker fill cup guides incoming water from the refrigerator's inlet tube into the ice mold, helping prevent splashing and freeze-ups during the fill cycle. Replacing a cracked or missing cup restores consistent fills and reduces leaks.

• Directs water from the fill tube straight into the icemaker mold
• Helps prevent overspray, splashing, and ice buildup around the icemaker
• Replace if the cup is cracked, warped, loose, or missing
• Common symptoms: water dripping/freezing under the icemaker, clumped or misshapen cubes

• Unplug the refrigerator and turn off the water supply before servicing
• Remove the icemaker assembly as needed to access the inlet/fill area
• Release the old cup and seat the new cup so the fill tube aligns with the opening
• Restore water and power; check for proper fill and any leaks

This replacement ejector is the plastic arm that pushes harvested ice cubes out of the ice mold and into the storage bin, helping restore proper ice ejection and reduce ice that sticks inside the tray. What it does:

• Pushes ice cubes out of the ice mold during the ice maker's harvest cycle.
• Works with the ice maker's motor/gear assembly to advance cubes into the bin.
• Replaces worn, cracked, or broken ejector arms that can leave ice stuck in the mold.
• Can help address symptoms such as cubes that don't eject, partial fills, or frequent ice jams.

• Disconnect power to the refrigerator before servicing to prevent electrical shock.
• Remove the ice bin and follow the OEM ice maker removal steps to access the ejector.
• Handle plastic components carefully to avoid cracking; inspect gears, mounts, and the ice tray for related wear.

Ice stripper removes ice cubes from the ice maker mold so the dispenser or storage bin fills properly. Replacing a worn or broken stripper helps the ice maker eject cubes cleanly and reduces ice jams or stuck cubes. What it does:

• Pushes or guides harvested cubes out of the ice mold into the bin during the ice maker's harvest cycle.
• Prevents cubes from sticking in the mold; a damaged stripper can cause incomplete ejection or leftover ice in the mold.
• Works with the ice maker's ejector mechanism to maintain consistent cube release and storage.
• A faulty or broken stripper may lead to noisy operation, partial fills, or visible ice build-up in the mold.

• Disconnect power to the appliance before starting any repair to avoid electrical shock.
• Remove the ice maker or access panel per the manufacturer's instructions to reach the stripper; keep small parts and screws organized.
• Inspect the ice mold and surrounding components for damage or ice build-up; clear ice before installing the new stripper.
• After installation, restore power and run a test harvest cycle to ensure proper cube ejection.

This support mounts in the dispenser area to secure the ice housing assembly. It helps keep the chute and door properly aligned so ice dispenses smoothly and the opening seals as designed.

• Supports and positions the ice housing/chute assembly in the freezer door
• Helps maintain proper alignment and sealing of the ice door/flapper
• Reduces wobble or flex that can affect dispensing performance
• Typical signs it may be needed: loose or misaligned dispenser housing, ice or air leaking at the chute, frost buildup around the dispenser, inconsistent ice dispensing

• Disconnect power to the refrigerator before servicing
• Remove the dispenser trim/control to access the housing; handle wiring and tabs carefully
• Remove mounting fasteners, replace the support, and transfer any reusable hardware
• Reassemble, restore power, and test ice dispensing and chute seal

This thermostat retainer clip secures the defrost thermostat to the evaporator tubing in your refrigerator or freezer, maintaining firm contact for accurate temperature sensing and dependable defrost operation.

• Holds the thermostat firmly against the evaporator line for proper temperature feedback
• Helps prevent a loose or dangling thermostat that contribute to frost buildup and poor defrost performance
• Restores correct mounting when the original clip is cracked, bent, or missing
• Common signs include a broken clip or a thermostat not attached to the coil

• Disconnect power to the appliance before servicing; wear cut-resistant gloves
• Access the evaporator compartment; remove accumulated frost/ice as needed without prying on coil fins
• Position the thermostat body flat against the tubing and snap the retainer over it, avoiding pinched wires or damaged fins
• Confirm a secure fit and proper wire routing before reassembling and restoring power

The Icemaker Cycling Thermostat is an OEM part for Whirlpool refrigerators. This thermostat plays a crucial role in the icemaker's operation by monitoring the temperature in the icemaker and ensuring it is at the appropriate level for proper ice production. It reads the temperature to determine when the icemaker should cycle on and off.

Causes of a bad icemaker cycling thermostat can include electrical malfunctions, temperature sensor issues, or wear and tear.

Symptoms of a bad icemaker cycling thermostat may include:

• Inconsistent ice production.
• The icemaker not cycling properly.
• The icemaker not dumping the ice into the ice bin.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

This refrigerator ice bucket stores ice made by the icemaker and positions it for dispensing. Replacing a cracked or warped bin restores smooth ice flow and helps prevent jams, spills, and mess inside the freezer.

• Holds and contains ice cubes in the freezer for easy access and dispensing
• Interfaces with the auger/crusher assembly in dispenser-equipped models
• Helps correct issues like ice jamming or inconsistent dispensing caused by a damaged bin
• Addresses visible damage such as cracks, chips, warping, or a bucket that won't seat properly
• Can reduce stray ice or moisture under/around the bin when the original is compromised

• Unplug the refrigerator and turn off the icemaker/water supply before starting
• Remove the old bin; transfer any auger/crusher components from the original if your model uses them
• Seat the new bucket fully so it latches/aligns correctly with the drive
• Restore power and verify proper dispensing operation

This replacement screw secures panels, trim pieces and small assemblies so covers and components stay aligned and rattle-free. It's a simple, direct fastening part used when an original screw is missing or damaged. What it does:

• Fastens panels, trim, control housings and other small components to the appliance chassis
• Replaces missing, worn or stripped screws that cause loose panels or rattling noises
• Restores correct alignment of covers and trims after service or disassembly
• Provides a direct, hardware-level repair instead of temporary fixes

• Disconnect power (and gas, where applicable) and ensure the appliance is cool before starting.
• Use the correct screwdriver bit and turn until snug; do not overtighten to avoid stripping threads or damaging parts.
• Keep removed hardware for reference; replace like-for-like if threads or inserts are damaged.
• Wear eye protection and gloves when working on appliances.

The Dual Water Inlet Valve is an OEM part for Whirlpool refrigerators. This valve controls the flow of water into the refrigerator's ice maker and water dispenser, ensuring the proper functioning of both features.

Causes of a bad dual water inlet valve can include mineral buildup from hard water, electrical malfunctions, or wear and tear from regular use. Physical damage or leaks can also compromise the valve's performance.

Symptoms of a bad dual water inlet valve include:

• No water flow to the ice maker or water dispenser
• Slow filling or low water pressure in the dispenser
• Leaking water around the valve area
• Ice maker not producing ice

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This small insert slides into the end of plastic water tubing to reinforce it for a compression-style connection. It helps create a secure, leak-resistant seal at valves and couplings on appliance water lines.

• Supports the tubing wall so the ferrule and compression nut can tighten without collapsing the tube
• Helps prevent drips or seepage at the connection point
• Useful when the tubing end is cracked, deformed, or won't hold a tight seal
• Common symptoms include leaks at a fitting, a connection that won't stay tight, or restricted flow from a pinched tube end

• Shut off the water supply and disconnect power before servicing
• Cut the tubing square; remove any damaged section and deburr the edge
• Slide the compression nut and ferrule onto the tube, fully seat the insert, then assemble the fitting—do not overtighten
• Restore water and check all connections for leaks

Ice maker water line: 1/4x 8ft.

Wire harness contains thermal fuse.

The Ice Maker Wiring Harness is an OEM part for Whirlpool refrigerators. This part ensures electrical connectivity between the ice maker and the refrigerator's power supply, facilitating the various functions required for ice production. The wiring harness is key to the ice maker's operation, transmitting power and sensor signals that govern the ice-making cycle, including water filling, freezing, and ejecting ice into the bin.

Causes of a bad Ice Maker Wiring Harness can include physical damage from overextension or pinching, corrosion due to moisture exposure, and wear over time that leads to electrical failures.

Symptoms of a bad wiring harness include:

• Ice maker unit not operating or defective icemaking
• Malfunctions and error codes displayed relating to harness faults
• Physical cracks or splits in wires or connectors

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement bracket secures the refrigerator ice maker assembly so it stays properly positioned for reliable ice production. It restores stable mounting and helps prevent the ice maker from shifting or coming loose. What it does:

• Holds the ice maker assembly in place on the freezer liner or mounting frame
• Keeps the ice maker aligned for proper operation and water fill
• Helps stop vibration or movement that can cause noisy operation or misfeeds
• Useful when the original bracket is bent, broken, or missing

• Disconnect power to the refrigerator and shut off the water supply before starting
• Remove the ice maker to access the bracket mounting screws
• Reuse existing screws if undamaged; tighten to secure but avoid overtightening
• If mounting points or surrounding plastic are damaged, replace or repair before reinstalling

Screw: 8-16 x 3/8 inch.

This ice maker cover shields the front of the ice maker assembly, protecting the module and moving parts from dust and accidental contact. Replacing a cracked or missing cover restores a clean, finished appearance and keeps components protected.

• Shields the ice maker's front components and control module
• Helps keep dust, splashes, and debris out of the mechanism
• Prevents accidental contact with moving ejector parts
• Replace if the cover is cracked, warped, missing, or will not stay attached

• Unplug the refrigerator before servicing
• Access the ice maker in the freezer compartment
• Carefully release the retaining tabs and remove the old cover; note orientation
• Align the new cover and press until it snaps securely into place—do not force the tabs

The Icemaker Motor Module is an OEM part for Whirlpool refrigerators. This module is the heart of the icemaker, responsible for controlling the ice production cycle. It manages the timing, water fill, and ice tray ejection, ensuring that your refrigerator consistently produces and dispenses ice.

Symptoms of a bad Icemaker Motor Module include:

• The icemaker failing to produce ice,
• Ice cubes not ejecting into the bin,
• The icemaker making unusual noises during operation.

Causes of motor module failure typically involve mechanical wear from continuous use, electrical failures such as short circuits, or water damage affecting the electronic components.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Screw is an OEM part for Whirlpool refrigerators, designed to secure components of the ice maker assembly. This screw maintains the structural integrity of the ice maker, ensuring that all parts are tightly fastened to prevent malfunction or inefficiency in ice production.

Causes of failure can include stripping of the screw threads through over-tightening or corrosion, leading to a less secure fit.

Symptoms of a bad Screw include:

• Loose or dislodged components within the ice maker assembly.
• Inconsistent or halted ice production due to components shifting.
• Unusual noises emanating from the ice maker as a result of loose parts.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This small metal mounting clip secures the thermal fuse in place to maintain proper thermal contact and stable wiring. It helps keep the fuse positioned so the appliance can monitor temperature reliably and operate safely. What it does:

• Secures the thermal fuse to the appliance housing or duct to prevent movement
• Keeps the fuse in correct contact with temperature-sensing surfaces
• Helps prevent intermittent heating or thermal-sensor misreads caused by a loose fuse
• Useful when replacing a damaged or missing fuse retainer during fuse service

• One thermal fuse mounting clip

• Disconnect power to the appliance before servicing to avoid shock or injury
• Remove access panels per your model's service instructions to reach the fuse location
• Install clip in the same orientation as the original; use pliers if needed to seat it firmly
• Inspect the thermal fuse and wiring while installing; replace any damaged components per OEM guidance

This funnel directs water into the ice maker fill cup to ensure proper filling and reduce spills. It helps maintain reliable ice production by guiding water flow to the correct inlet area. What it does:

• Directs incoming water into the ice maker's fill cup so the correct amount reaches the ice mold
• Reduces splashing and overflow during the fill cycle
• Helps prevent water from pooling inside the freezer compartment near the ice maker
• Supports consistent ice production when installed and aligned properly

• Disconnect power to the appliance before servicing to avoid electrical shock
• Remove the ice maker or access panel as needed to reach the old funnel
• Align the replacement funnel with the mounting tabs and secure per OEM orientation; avoid forcing it into place
• Test fill cycle after installation and check for leaks; for detailed steps

The Replacement Icemaker is an OEM replacement part for Whirlpool made refrigerators including Whirlpool, Amana, Maytag, and many others. It is a component responsible for producing ice cubes or crushed ice, ensuring a constant supply of fresh ice for your convenience. Measuring approximately 11 inches long and 5 inches wide, this ice maker assembly is made of durable plastic and metal

Symptoms of needing a replacement icemaker include:

• No ice production or significantly reduced ice output
• Ice cubes appearing misshapen or clumped together
•  Leaks or water buildup in the icemaker area
• Strange noises or grinding sounds coming from the icemaker

Causes of a faulty icemaker can include normal wear and tear over time, water supply issues, clogging or blockages, or electrical malfunctions.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

Please note: that this ice maker is a replacement only and not suitable for add-ons or brand-new installations. It does not include the harness or hardware. For wire harness(Plug)order WPD7813010. For cover order WPW10289690. For shut off bail arm order WP67004028.

Epoxy repair kit - aluminum tubing.

Size: 1/4 lb.

Size: 63-1/2 x 35-1/2 x 2-5/8 inch.

This drive coupling connects the washer motor to the transmission, transferring power to spin and agitate the tub. Replacing a worn coupling restores proper drivetrain engagement and reduces slipping, grinding, or loss of agitation. What it does:

• Transfers rotational force from the motor to the transmission so the washer can agitate and spin.
• Failsafe for worn motor-to-gearcase connection; a broken coupling commonly causes no-agitate or no-spin symptoms.
• Can produce burning smell, loud grinding, or slipping when deteriorated.
• Helps prevent further damage to the motor or transmission by isolating shock loads.

• Disconnect power and water before starting any repair.
• Basic disassembly of the washer cabinet and access to the motor/transmission area is required.
• Verify correct alignment of tabs/slots during installation to ensure proper engagement.

Sealer for refrigerant line insulation.

This OEM grease is a purpose-made appliance lubricant that reduces friction and protects moving parts for smoother operation and longer component life. Use where specified by the manufacturer for bearings, slides, or motor shafts. What it does:

• Lubricates gears, bearings, rollers and shafts to reduce wear and noise
• Helps prevent binding, seizing, and grinding on moving components
• Protects metal parts from corrosion where grease is specified
• Keeps parts moving smoothly under normal operating temperatures

• Disconnect power before servicing any appliance; follow manufacturer service instructions
• Apply sparingly to clean, dry surfaces; avoid over-greasing which can attract debris
• Wear gloves and wipe excess grease from surrounding areas to prevent staining

This clip kit secures small panels, wiring harnesses, or trim on compatible Whirlpool appliances to prevent rattling and keep components in their intended position. It restores proper fit and helps reduce noise from loose parts. What it does:

• Holds wiring harnesses and cables in place to prevent chafing or contact with moving parts
• Secures panels, trim, or hoses so assemblies stay aligned and quiet
• Reduces rattling, buzzing, or vibration caused by loose components
• Keeps parts positioned during normal use and transport

• Disconnect power (unplug or shut off breaker) before starting any repair
• Use basic hand tools; avoid forcing clips into place to prevent breakage
• Replace any damaged clips with the exact kit to ensure proper fit
• Re-check that fastened parts are secure and that there are no pinched wires before restoring power

The Alumilastic Cement is an OEM part for Whirlpool appliances, typically used in refrigerators and freezers. It serves as a thermal mastic compound, designed to provide a secure and heat-conductive bond between various components, such as evaporator coils and the interior walls of the appliance.

Causes of a bad alumilastic cement can include drying out, cracking, or losing its adhesive properties over time. This can occur due to age, exposure to temperature fluctuations, or improper application. When the cement fails, it can lead to poor thermal conductivity and decreased cooling efficiency.

Symptoms of a bad alumilastic cement include:

• Reduced cooling performance
• Unusual noises from the cooling system
• Components becoming loose or detaching
• Increased energy consumption

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
