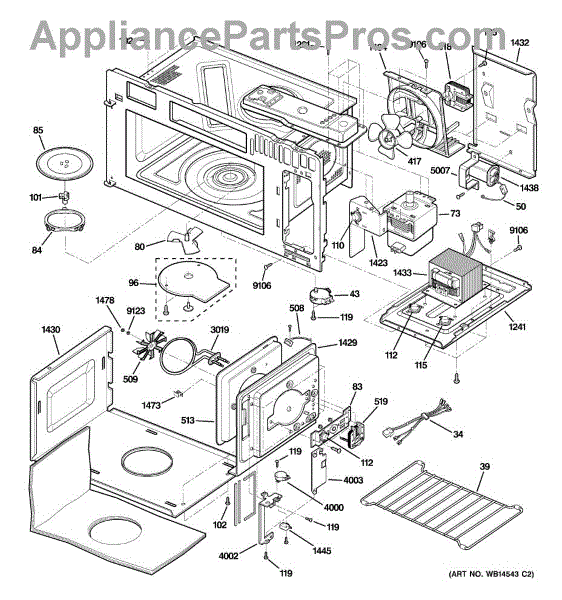

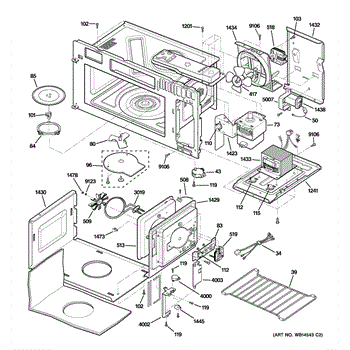

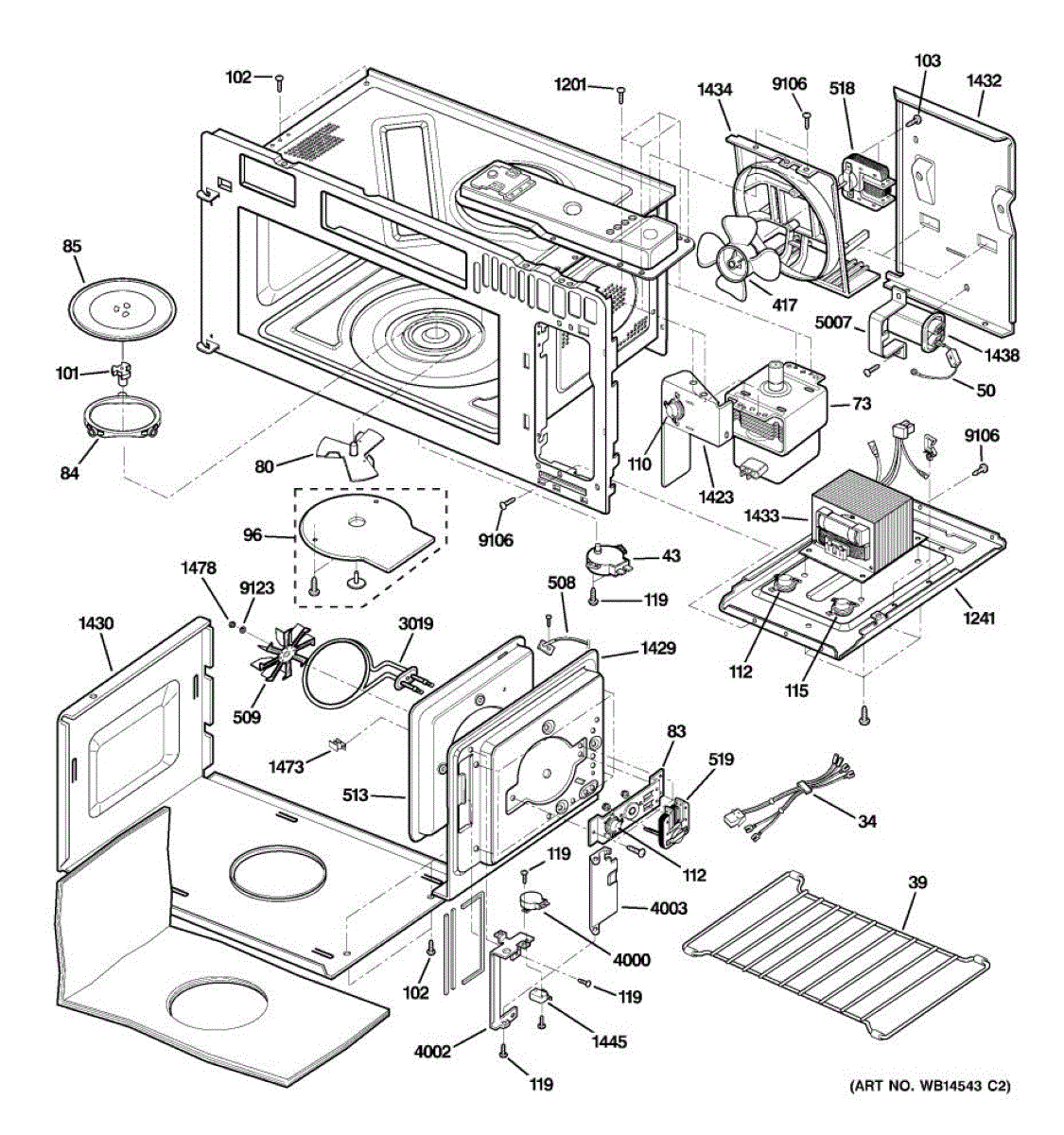

Parts for Ge PVM1790DR1BB: 05 - Interior Parts (1) Parts

This wiring harness connects the appliance's control and power circuits so switches, sensors and the control board can communicate and receive power. Replacing a damaged harness restores reliable electrical connections and component signaling. What it does:

• Carries power and signals between the control board and components
• Routes multiple connector leads to the correct appliance parts
• Prevents intermittent or lost connections caused by broken or burned wires
• Helps resolve failures where controls, lights or functions are unresponsive

• Disconnect power before starting work to avoid shock or damage
• Label or photograph connector locations for correct reassembly
• Inspect mounting points and routing to avoid pinching or contact with sharp edges
• If connectors are corroded or damaged, replace the harness rather than splicing

This oven rack restores a stable, level surface for cookware inside your range. Replace a bent, missing, or hard-sliding rack to maintain safe support and proper spacing for baking, roasting, and broiling.

• Provides a sturdy, level platform for pans and dishes on adjustable oven positions
• Slides on the side rails to change rack height as recipes require
• Replace if bent, rusted, or missing to prevent unstable cookware
• Common signs: won't slide smoothly, wobbles or sags, damaged wires

• Disconnect power and let the oven cool completely before installing
• Tilt the front up, align the rear of the rack with the side rails, then lower and slide fully in
• Wear gloves to protect hands from sharp edges

This AC synchronous motor powers the microwave's rotating mechanism—such as the mode stirrer or, on some models, the turntable—to circulate energy for more even cooking. Replacing a noisy, seized, or non-turning motor restores smooth rotation and consistent heating.

• Provides steady, low-speed rotation to drive the internal stirrer or turntable
• Promotes more uniform heating by distributing microwave energy
• Common symptoms of a failing motor: uneven heating, rattling/grinding from the cabinet, or the rotating component not turning
• Direct replacement for the original synchronous drive motor

• Disconnect power before servicing; microwaves contain high-voltage components that can retain a charge
• Access and location vary by model; remove the outer cover/grille to reach the motor
• Note shaft orientation and transfer any coupler; reuse existing mounting hardware
• Do not operate the unit with covers removed; after reassembly, test with a microwave-safe cup of water

The Diode Assembly is an OEM part for GE microwaves. It plays a crucial role in converting alternating current (AC) to direct current (DC), which is essential for the microwave’s high-voltage functions, including powering the magnetron to generate microwave energy.

Over time, diodes can fail due to electrical surges, excessive heat, or wear and tear. A faulty diode assembly can lead to inefficient or non-functional microwave operation, impacting its ability to heat food properly.

Symptoms of a bad diode assembly include:

• Microwave not heating food
• Sparking or arcing inside the microwave
• Burning smell or unusual noises during operation
• Microwave turning on but failing to generate heat

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This magnetron is the microwave's RF generator—the tube that creates the microwave energy used to heat food. Replacing a failed unit restores proper heating performance so your oven reliably cooks, reheats, and defrosts as intended. What it does:

• Produces high-frequency microwave energy to heat food inside the cavity
• Common failure symptoms: runs but no heat, loud humming/buzzing, burning odor, breaker trips or shutting off shortly after start
• Resolves weak heating and unusually long cook times when the magnetron has degraded

• 1 magnetron

• Unplug the microwave and discharge the high-voltage capacitor before servicing; high voltage can remain even when unplugged
• Handle the tube by the metal body; avoid stressing the ceramic insulators or antenna
• Reinstall using the original mounting hardware; ensure correct orientation and reconnect wires as noted
• Test with a cup of water after reassembly; if no heat persists, further diagnosis of the HV diode, capacitor, or transformer may be required

A complete fan assembly that restores airflow to the appliance to help maintain proper cooling and component ventilation. Installs as a direct replacement for the original fan assembly. What it does:

• Circulates air across coils and components to support proper cooling and temperature control
• Helps prevent frost or ice buildup by maintaining consistent airflow in refrigeration systems
• Replaces a failed or noisy fan motor that causes reduced airflow or unusual sounds
• Restores normal ventilation when a damaged blade or assembly disrupts air movement

• Always disconnect power to the appliance before starting any repair
• Handle the fan blades and motor housing carefully to avoid bending blades or damaging wiring
• Verify mounting orientation and connector fit before finalizing installation
• Test the assembly after installation to ensure proper operation

This plate side heater is the oven heating element that produces heat along the oven side to help maintain even cooking temperatures. Designed to restore proper heating when the side element is worn or failed. What it does:

• Heats the side area of the oven cavity to support even cooking and baking.
• Replaces a damaged or open side heating element that can cause weak or uneven oven heat.
• Helps address symptoms such as oven not reaching set temperature, uneven baking, or visible element damage.
• Works as a direct replacement when the original side plate heater fails.

• One plate side heater

• Disconnect power to the appliance at the breaker before starting any repair.
• Allow the oven to cool completely and use proper PPE when handling the element.
• Remove mounting screws and electrical connectors carefully; note wire locations for reinstallation.
• Reconnect securely and test the oven on a low heat setting to verify proper operation.

The Rotating Ring Assembly is an OEM part for GE microwaves. It supports the microwave turntable, enabling it to rotate during operation to ensure even cooking and heating of food. This ring is approximately 10 inches in diameter.

Causes of a bad rotating ring assembly can include wear and tear from regular use, accumulation of food debris or grease that hampers movement, or physical damage such as cracks or warping from overheating.

Symptoms of a bad rotating ring assembly include:

• The turntable not rotating
• Uneven cooking or heating of food
• Noisy or jerky movement of the turntable
• Visible damage or warping of the ring

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: clear. Measures about 14 inches in diameter.

The Stirrer Fan Cover Assembly is an OEM part for GE microwaves. It covers and protects the stirrer fan, which distributes microwave energy evenly within the cooking cavity, ensuring food is heated uniformly.

Causes of a bad stirrer fan cover assembly can include exposure to high heat, physical damage from improper handling, or buildup of food particles and grease over time.

Symptoms of a bad stirrer fan cover assembly include:

• Uneven cooking or heating of food
• Rattling or unusual noises during operation
• Visible damage or warping of the cover
• The cover not fitting securely in place

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This turntable shaft connects the microwave's turntable motor to the glass tray, keeping the tray centered and rotating smoothly for even cooking. Durable replacement for worn or damaged shafts. What it does:

• Couples the turntable motor to the glass tray so the tray spins during operation
• Centers and supports the glass tray to prevent wobbling or scraping
• Restores smooth rotation if the tray slips or turns intermittently
• Stops grinding or scraping noises caused by a bent or worn shaft

• Disconnect power before attempting any service.
• Remove the glass tray and roller support, then lift out the old shaft.
• Seat the new shaft onto the motor drive pin and reinstall the roller support and glass tray, ensuring proper alignment.
• Test operation at short intervals to ensure smooth rotation and no unusual noise.

The Thermostat is an OEM part for GE ovens. This critical component functions as a temperature sensor and controller within the oven, ensuring that the oven heats to the set temperature and maintains it throughout the cooking process. The thermostat prevents the oven from overheating by cycling the heat on and off as needed.

Symptoms of a failing thermostat include:

• Oven not reaching the desired temperature
• Overheating beyond the set temperature
• Uneven cooking or baking results
• Oven temperature fluctuating more than usual

Causes of thermostat failure generally include age-related wear and tear, calibration issues, or exposure to extreme temperatures that can damage its internal components.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Thermostat is an OEM part for GE microwaves. This part regulates the temperature within the microwave, ensuring it operates within safe and efficient temperature ranges. It helps prevent overheating by monitoring and controlling the internal temperature, protecting both the appliance and the user.

Causes of a bad thermostat can include wear and tear over time, electrical malfunctions, or damage from power surges.

Symptoms of a bad thermostat include:

• Microwave not heating properly
• Overheating or shutting off unexpectedly
• Error codes related to temperature issues
• Inconsistent cooking times

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Thermostat (Plate) is an OEM part for GE microwaves. This thermostat helps to prevent overheating, which can cause damage to the microwave and potentially pose a safety risk.

Over time, the thermostat can wear out or fail due to electrical issues, repeated heating cycles, or manufacturing defects.

Symptoms of a bad thermostat include:

• The microwave not heating properly
• The microwave shutting off unexpectedly during use
• Error codes or warning signals related to temperature issues
• The microwave not starting at all

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement blower fan mounts on the blower motor to move air through the appliance's ventilation path and cool internal components. It restores proper airflow to help clear steam/smoke and reduce noise from a cracked or warped wheel. What it does:

• Couples to the blower motor to push/pull air through the exhaust or recirculation ducts
• Helps cool internal parts while venting cooking steam and odors
• Typical failure signs: scraping/rattling noises, reduced or no airflow, poor venting performance, or intermittent overheating shutdown

• 1 blower fan wheel

• Disconnect power at the breaker or unplug before servicing
• If over-the-range or built-in, support the unit and follow manufacturer procedures to access the blower housing
• Match the original wheel orientation and seat fully onto the motor shaft
• Spin by hand to ensure free rotation and clearance; reassemble and test all fan speeds

This temperature thermistor is the sensor that lets the control board monitor and regulate appliance temperature for reliable cooling performance. Replacing a failing thermistor can restore proper temperature control and cycling. What it does:

• Senses internal temperature and sends readings to the control board
• Helps the compressor, fans, and defrost system run at the right times
• Commonly linked to symptoms like incorrect temperatures, overcooling, or frequent on/off cycling
• A faulty thermistor can cause improper defrost timing or erratic cooling behavior

• Disconnect power before inspecting or replacing the sensor to avoid shock
• Handle the sensor and wiring connector gently to avoid damage
• Mount the sensor in the original location and secure wiring per OEM routing

This fan assembly circulates air inside the appliance to help maintain proper cooling and airflow, restoring efficient operation and reducing temperature and moisture-related issues. What it does:

• Moves air through the appliance evaporator and cabinet to support temperature regulation
• Helps prevent warm spots and excess frost buildup by improving airflow
• Reduces overheating of components by improving ventilation
• Stops unusual noise or vibration when a worn fan is replaced

• Disconnect power before servicing to avoid electrical shock.
• Handle the fan blades carefully to avoid damage or injury.
• Verify proper mounting orientation and connector seating during installation.
• Test operation after installation and reassemble panels securely.

This AC fan motor is the refrigerator fan motor that circulates air to maintain proper cooling and airflow. It replaces a worn or failed fan motor to help restore steady airflow and consistent temperatures. What it does:

• Spins the evaporator/condenser fan blade to move air through the refrigerator cooling system
• Restores airflow when fan has stopped running or runs intermittently
• Reduces unusual fan noise or vibration caused by a failing motor
• Helps correct uneven cooling or frost build-up linked to poor air circulation

• Disconnect power to the appliance before starting any work
• Handle the fan blades carefully to avoid bending or injury
• Verify fan blade seating and clearances during reassembly to prevent rubbing

This circulation motor powers air movement inside the appliance to maintain proper airflow and even temperatures. Replacing a failed motor restores circulation for more consistent cooling and reduces noise or performance issues. What it does:

• Spins the fan to circulate air through the cooling/ventilation path
• Helps maintain even temperatures and proper airflow in the appliance
• Commonly replaced when airflow is weak, cooling is uneven, or the motor is noisy
• Stops operation if the motor fails, which can lead to frost buildup or reduced performance

• Disconnect power to the appliance before starting any repair
• Access and mounting steps vary by model; follow the appliance's service manual or wiring diagram
• Handle wiring connectors carefully and confirm proper fan rotation before reassembly

This is a binding-head screw used to fasten panels and components on compatible GE appliances. It provides secure, low-profile fastening where a binding head design is required for proper fit and alignment. What it does

• Secures panels, brackets, or small assemblies to prevent movement or rattling.
• Replaces a missing or stripped screw that causes loose parts or squeaks.
• Restores proper alignment for components that rely on the binding-head profile.
• Works where a shallow, rounded head and threaded shaft are specified.

• Use the correct driver size to avoid cam-out or head damage.
• Do not overtighten; snug until secure to avoid stripping threads or damaging parts.
• Disconnect power and follow all appliance-specific safety procedures before accessing panels.

This suction guide positions and supports the appliance's suction component to help ensure proper fit and reliable operation. Replacing a damaged guide restores alignment so the suction assembly can work as intended. What it does:

• Holds and guides the suction component or cup into the correct position
• Prevents misalignment that can cause vibration, rubbing, or reduced suction performance
• Helps maintain a consistent seal where the suction component interfaces with the appliance
• Useful when the original guide is cracked, broken, or worn

• Disconnect power (and water, if applicable) before servicing the appliance
• Access may require removing an outer cover or access panel and a few fasteners
• Handle plastic parts carefully to avoid cracking during removal and installation

This is the microwave's high-voltage capacitor. It stores and releases energy in the high-voltage circuit to power the magnetron so food heats. A failed capacitor can cause no heat, loud humming, or blown fuses.

• Works with the high-voltage transformer and diode to supply the magnetron with operating voltage
• Stores and smooths high-voltage DC in the microwave's power circuit
• Failure may result in no heat while lights and turntable still run
• Can cause loud buzzing, sparking, or a burning smell during operation
• May open the internal fuse or trip a breaker when the cycle starts

• Unplug the appliance; capacitors can retain a dangerous charge—properly discharge the capacitor before servicing
• Photograph wire routing; transfer leads one at a time and secure the capacitor firmly in its bracket

The Switch Monitor Interlock is an OEM replacement part for GE microwaves. This safety component ensures that the microwave operates only when the door is securely closed. It prevents the microwave from running if the door is open, providing a critical safety feature to protect users from exposure to microwave radiation.

Causes of a bad switch monitor interlock can include wear and tear over time, mechanical damage from frequent door opening and closing, or electrical malfunctions that impact its performance.

Symptoms of a bad Switch Monitor Interlock include:

• The microwave not starting or operating intermittently
• The microwave running with the door open
• Error messages or safety warnings displayed on the control panel
• Unusual clicking or buzzing noises when the microwave door is opened or closed

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This heater holder is the mounting bracket that secures the oven heating element in place so the element stays aligned for reliable heating and safe operation. It helps prevent movement that can cause uneven cooking or damage. What it does:

• Holds and stabilizes the oven/heater element in the cavity so it stays properly positioned
• Keeps the element from contacting other components, reducing the risk of shorts or damage
• Helps maintain even heat distribution by preventing element sagging or misalignment
• Fits where the element mounts and supports normal operation of the heating circuit

• One heater holder/mounting bracket

• Turn power to the appliance off at the breaker before servicing to avoid shock
• Inspect the element and surrounding insulation for damage when replacing the holder
• Typically secures with screws or clips—retain hardware and note orientation for reassembly

This heater sheath is the protective metal sleeve that surrounds a dryer/oven heating element, helping protect the element and focus heat where needed for reliable appliance heating performance. What it does:

• Protects and supports the heating element inside the appliance
• Helps direct and contain heat for efficient operation
• Can prevent direct contact between the element and surrounding components
• Commonly replaced when the sheath is corroded, dented, or damaged
• Linked to uneven heating or visible element damage

• High-level replacement only; disconnect power before servicing to avoid shock hazard
• Inspect surrounding components (element, terminals, mounting clips) and replace any damaged parts
• Use proper fasteners and ensure sheath is seated securely to avoid contact with other components

This AC synchronous motor drives timed or fixed-speed rotations in compatible appliances to restore reliable timing and rotation. Ideal when a worn motor prevents timers, clocks or small gear-driven functions from operating. What it does:

• Turns at a constant, AC-synchronous speed to drive timers, clocks or small mechanical linkages.
• Replaces a failed or noisy timer/clock motor to restore timed functions.
• Common symptoms: appliance clock or timer won't advance, no rotation of small mechanisms, or intermittent timer operation.
• Operates as a direct replacement for the listed part number when matched to the appliance's OEM specification.

• Always disconnect power at the breaker or unplug the appliance before starting any repair.
• Note or photograph original wire locations and mounting orientation to ensure correct reconnection.
• Use basic hand tools; some models require removing a control panel or control box to access the motor.

This is a truss-head self-tapping screw used to secure appliance panels and trim. It replaces a lost or damaged mounting screw to restore proper fit and stop rattles or loose parts. What it does

• Secures trim, panels, brackets or small components where a low-profile, wide-head screw is required
• Self-tapping design cuts threads into sheet metal or similar substrates—no nut required
• Restores tight mounting to reduce vibration, rattling or misaligned panels
• Commonly used in refrigerators, ranges and other household appliances

• One truss-head self-tapping screw

• Disconnect power to the appliance before servicing and work on a cool appliance
• Use the correct screwdriver or bit to avoid stripping the head
• Do not overtighten—turn until snug and the part is secure but not distorted
• Replace with the exact part number to ensure fit and function
