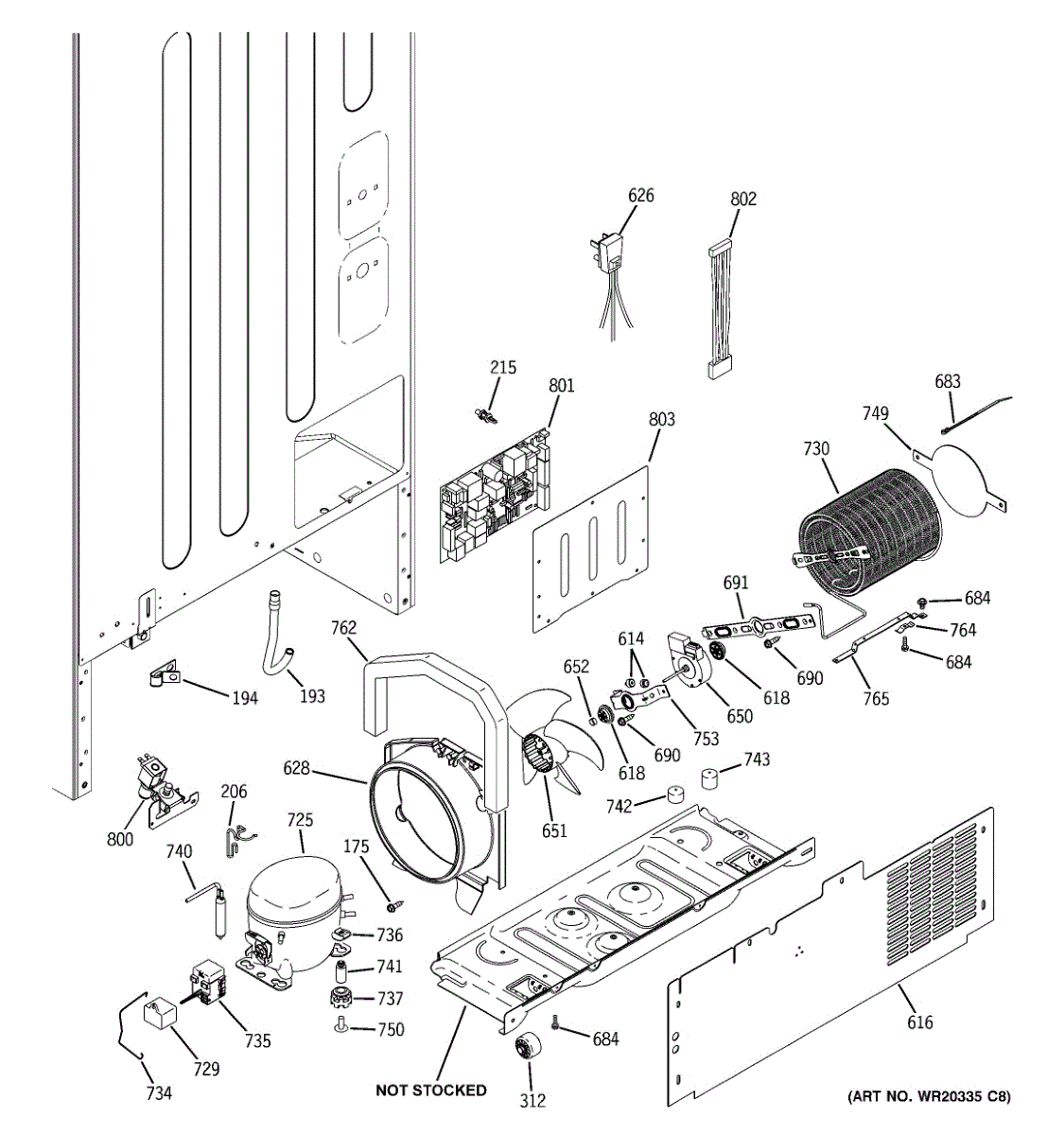

Parts for Ge GDE23ESEARSS: Machine Compartment Parts

Specs: 8-18 AB IHW 5/8 S

The Drain Tube is an OEM part for GE refrigerators. It is responsible for directing defrost water to the drain pan located beneath the appliance, where it can evaporate safely.

Causes of a bad drain tube can include blockages from debris or ice, physical damage such as cracks or splits that allow water leakage, or a disconnection from its fitting points due to improper installation or material fatigue.

Symptoms of a bad Drain Tube include:

• Water pooling at the bottom of the refrigerator compartment
• Ice accumulation in or around the freezer area
• Leakage of water onto the kitchen floor beneath the refrigerator

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

A small retaining clip that secures the refrigerator drain tube to the cabinet or drain assembly to keep the tube in place and help direct defrost water to the drain pan. Simple replacement for loose or broken clips. What it does:

• Holds the drain tube or drain hose in the correct position to prevent kinks or dislodging
• Helps maintain proper water flow from the defrost/drain channel to the drain pan
• Commonly used when water pools inside the fridge, leaks onto the floor, or drips from the cabinet
• Prevents tube movement that can lead to freeze-ups or overflow at the drain inlet

• One drain tube retaining clip

• Disconnect power to the appliance before beginning any service
• Access the clip by removing the rear or interior access panel as required by your model
• Snap the clip over the drain tube and into the cabinet or mounting boss until it seats securely
• Inspect the tube and surrounding area for blockages or damage while replacing the clip

This stand off is a small mounting spacer that secures and spaces internal components, restoring proper alignment and reducing panel movement or vibration for quieter, more reliable operation. What it does:

• Provides a solid mounting point to hold panels, brackets or wiring harnesses in place.
• Replaces broken, cracked or missing standoffs that allow components to shift or rub.
• Helps stop rattling, buzzing or misalignment caused by loose mounting points.
• Keeps proper clearance between parts to prevent wear or chafing over time.

• Disconnect power to the appliance before starting any repair.
• Remove the affected panel or access cover to reach the damaged standoff.
• Replace the old standoff with the new part; retain and reuse any existing screws or fasteners unless damaged.
• Hand-tighten mounting hardware and test the appliance; avoid overtightening plastic standoffs.

The Lid Bumper is an OEM part for GE refrigerators. It is designed to provide cushioning and protection for the refrigerator lid, preventing damage and ensuring smooth, quiet closing.

Causes of a bad Lid Bumper can include deterioration over time due to frequent use, exposure to temperature variations, or damage from accidental impacts. A worn or damaged bumper may no longer provide adequate cushioning, leading to potential damage to the lid or the refrigerator itself.

Symptoms of a bad Lid Bumper include:

• The refrigerator lid closing too hard
• Unusual noises when closing the lid
• Visible wear or cracks on the bumper

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This access cover closes a service opening on the refrigerator cabinet, protecting internal components and restoring a secure, finished fit. Replacing a cracked or missing cover helps keep debris out and supports proper operation and airflow paths.

• Covers the machine/service compartment to shield wiring, fan, and other components from contact and debris
• Helps maintain designed airflow through the compartment when properly installed
• Reduces vibration and rattling when the cover is secured
• Replace if the cover is missing, cracked, warped, or no longer fastens securely

• Disconnect power before servicing
• Remove any retaining screws/clips and note the cover's orientation and vent/slot alignment
• Transfer any original grommets or insulation to the new cover if present
• Reinstall with existing hardware; do not overtighten; ensure openings/vents remain unobstructed

This fan-mount grommet fits the evaporator or condenser fan assembly to isolate vibration and keep the motor aligned. Replacing a worn grommet can quiet rattles and prevent the fan blade from rubbing the housing. What it does:

• Isolates the fan motor from its bracket to reduce vibration and operating noise
• Helps maintain proper fan motor and blade alignment/clearance
• Replaces cracked, flattened, hardened, or missing grommets
• Typical symptoms: rattling, buzzing, or vibration sounds from the freezer or rear machine compartment

• 1 fan motor grommet

• Disconnect power before servicing; pull the refrigerator forward for rear access if needed
• Evaporator fan: remove the freezer's rear panel; condenser fan: remove the rear service panel
• Support the motor, remove the fan blade and mounting hardware as needed, replace the grommet, and reassemble
• Ensure the fan spins freely and does not contact the shroud before restoring power

This power cord assembly supplies electrical power from the wall outlet to your refrigerator. Replace a cut, frayed, or overheated cord to restore safe, reliable operation and eliminate intermittent power loss caused by a damaged cord. What it does:

• Provides the electrical connection between the household outlet and the refrigerator's wiring
• Helps resolve no-power or intermittent power when the cord is moved
• Addresses visible damage such as cuts, cracks, fraying, or a melted/discolored plug
• Mitigates arcing, sparking, or a burning odor originating from the cord or plug area

• One power cord assembly

• Disconnect power by unplugging the unit or switching off the circuit breaker before servicing
• Pull the refrigerator forward for access; note the original cord routing and connections
• Install the new cord along the same path and secure any built-in strain relief; ensure the ground connection is properly seated
• Restore power and verify operation

This condenser shroud is the plastic cover that protects and channels airflow around the refrigerator condenser, helping the cooling system run efficiently and keeping components shielded from debris. What it does:

• Directs airflow over the condenser coils to help dissipate heat
• Protects condenser and nearby components from dust, pet hair, and accidental contact
• Helps maintain proper clearance and airflow paths behind the fridge
• Can reduce vibration noise by stabilizing condenser area

• One condenser shroud/cover

• Designed to mount in the condenser compartment; follow your model's service manual for correct orientation and fasteners
• Disconnect power to the appliance before accessing the condenser area to avoid electrical shock
• Inspect and clean condenser coils while the shroud is removed for best performance
• If clips or screws are damaged, replace them with OEM-recommended hardware

The Condenser Fan Motor is an OEM part for GE refrigerators. This fan motor circulates air in the fridge, helping to cool the compressor and condenser coils for better temperature control. It also evaporates extra water in the drain pan, stopping problems from water buildup.

Symptoms of a failing condenser fan motor include:

• The refrigerator running hotter than usual
• Loud noise or rattling sounds coming from the back of the refrigerator
• The refrigerator cycling on and off more frequently or for longer periods

Causes of condenser fan motor failure typically include wear and tear from continuous use, dust and debris accumulation obstructing fan movement, or electrical issues such as faulty wiring or capacitor problems.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Note: This is a (12-volt DC) fan motor. For the (115-volt AC) fan motor, order part number WR60X10220.

The Condenser Fan Blade is an OEM part for GE refrigerators. It is responsible for moving air across the condenser coils to help dissipate heat, allowing the refrigerator to maintain the proper cooling temperature. This fan blade ensures efficient operation of the cooling system by facilitating proper airflow.

You should replace this condenser fan blade if it becomes damaged, warped, or fails to move air effectively. Common causes of a bad fan blade include physical damage from debris, wear and tear over time, or warping due to prolonged exposure to heat.

Symptoms of a bad condenser fan blade include:

• Refrigerator not cooling properly
• Increased noise from the refrigerator
• Overheating of the condenser coils
• Reduced airflow around the condenser area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Compression Ring is an OEM part for GE refrigerators. It is designed to secure and seal connections within the refrigerator’s water and ice dispensing system, ensuring a leak-free operation. This small yet vital component helps maintain the integrity of the connections, preventing water leaks and ensuring the proper flow of water through the dispenser and ice maker.

Over time, the compression ring can wear out or become damaged due to regular use and the natural aging of materials. If the compression ring is compromised, it can lead to water leaks or poor water flow, which can affect the overall performance of the refrigerator’s water and ice dispensing functions.

Symptoms of a bad compression ring include:

• Water leaks around the dispenser or ice maker
• Reduced water flow or no water flow at all
• Drips or puddles forming inside the refrigerator

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a 10-32 machine-thread screw used to secure appliance panels, trim, and components. It replaces missing or damaged fasteners so parts fit tightly and operate without rattles or misalignment. What it does:

• Fastens panels, brackets, or assemblies that use a 10-32 machine screw
• Restores secure mounting where a stripped, missing, or corroded screw causes looseness
• Helps eliminate vibration noise or gaps caused by loose hardware
• Matches OEM thread size and length for correct fit in designated mounting holes

• One 10-32 x 5/16 machine screw

• Disconnect power and remove power source or batteries before servicing appliances
• Use the correct screwdriver or nut driver to avoid stripping the head
• Thread carefully; do not force or overtighten to prevent thread damage
• Replace any damaged mating hardware or clipped inserts for a secure repair

Size: 8-32 t. Includes 12 screws.

The Run Capacitor is an OEM part for GE refrigerators. It plays a crucial role in the refrigerator's cooling system by providing the necessary start and run voltage to the compressor. Without a properly functioning run capacitor, your refrigerator may struggle to maintain the desired temperature, leading to spoiled food and inefficient energy use.

Causes of a bad run capacitor include electrical surges, wear and tear over time, or overheating due to a malfunctioning refrigerator compressor or poor ventilation.

Symptoms of a bad Run Capacitor include:

• The refrigerator compressor fails to start.
• Unusual humming noises coming from the refrigerator.
• The refrigerator cycles on and off more frequently than normal.
• A noticeable increase in energy consumption as the refrigerator struggles to maintain the proper temperature.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This condenser assembly is the condenser coil used in compatible refrigerators to release heat from the refrigerant so the appliance can cool efficiently. Replacing a damaged coil helps restore proper cooling performance and energy use. What it does:

• Circulates refrigerant through the condenser coil to dissipate heat from the refrigeration system
• Supports normal compressor cycling and helps maintain steady internal temperatures
• Common symptom fixes: reduces long run times, improves inadequate or uneven cooling, and addresses overheating or noisy compressor operation
• Works with the condenser fan and other sealed-system components to complete the heat-exchange process

• Disconnect power to the refrigerator before servicing to avoid electric shock
• Access commonly from the rear lower panel or front grille; may require removal of kick plate or back cover
• Avoid damaging the coil fins; handle carefully and use fin comb if needed

This assembly mounts on the refrigerator compressor and combines the PTC start relay with a thermal overload protector. It helps the compressor start reliably and cuts power if overheating occurs to protect the motor and maintain cooling performance.

• Supplies initial start current to the compressor via the PTC relay
• Opens on overcurrent/overheat to prevent compressor damage
• Common failure symptoms: compressor won't start, repeated clicking/buzzing from compressor area, warm refrigerator/freezer, short cycling
• Useful when the original start device is burned, cracked, or rattles when shaken

• Disconnect power and allow the compressor area to cool before servicing
• Remove the terminal cover, note wire locations, and pull off the old start device
• Push the new start device fully onto the compressor pins and reconnect wires per the wiring diagram
• If your model uses a run capacitor, transfer/reconnect it as directed and reinstall the cover before restoring power

This is a grommet and it is intended for use on refrigerators and freezers. This is a genuine replacement part made by General Electric. A new grommet might be needed if the current one is visibly worn out or damaged in any way. If there are noises from vibration coming from the lower back area of the fridge there might be need for a new grommet. This is an OEM part sourced directly from the manufacturer, and it is sold individually. It is compatible with refrigerators and freezers, or units with a compressor and is made by General Electric.

The R134 Drier is an OEM part for GE refrigerators. This component plays a critical role in the refrigeration system by removing moisture and contaminants from the refrigerant, ensuring efficient cooling and preventing damage to other parts of the system. It helps maintain the purity and effectiveness of the refrigerant as it cycles through the system.

You should replace the R134 drier if it becomes clogged or damaged. Common causes of a bad drier include wear and tear over time, exposure to moisture, or contamination from other failing components in the refrigeration system.

Symptoms of a bad R134 drier include:

• Reduced cooling efficiency
• Frost buildup on the evaporator coils
• Unusual noises from the refrigeration system
• Increased energy consumption
• Refrigerator not maintaining the set temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a replacement screw used to secure appliance components and panels so parts stay properly attached for safe operation. It's a direct-fit fastener matching OEM form and function. What it does

• Secures panels, trim, or internal components to prevent rattling or gaps
• Restores factory attachment where a screw is missing or stripped
• Helps maintain proper alignment of housing and service access
• Suitable when repair requires original-fit fasteners

• Disconnect power or unplug the appliance before servicing to avoid shock
• Use the matching screwdriver or bit to avoid stripping the head
• Thread carefully and avoid overtightening to prevent damage to threads or plastic parts
• Keep removed screws organized; replace only the screws that match the original locations

This condenser fan mounting bracket secures the condenser fan motor and blade in the correct position to move air across the coils. Replacing a cracked or bent bracket restores stable mounting, reduces vibration, and helps maintain proper condenser airflow.

• Holds the condenser fan motor/blade assembly in alignment for proper airflow through the condenser
• Maintains clearance to prevent the fan blade from rubbing or contacting nearby components
• Helps reduce rattling, vibration, or scraping noises from the rear of the refrigerator
• Damage or misalignment can contribute to restricted condenser airflow and warmer temperatures

• Disconnect power and pull the refrigerator away from the wall to access the rear service area
• Remove the rear lower access panel; note wiring and hardware locations
• Support the fan motor/blade while removing the old bracket; transfer motor, blade, grommets, and screws to the new bracket
• The fan spins freely with proper clearance and correct airflow direction before reassembly

This self-adhesive foam strip provides a flexible seal and buffer for appliance gaps, helping reduce drafts, rattling, and moisture intrusion. Designed for easy stick-on replacement where foam padding or sealing is needed. What it does

• Seals small gaps between components to help reduce air leaks and temperature loss
• Cushions panels and doors to minimize noise and vibration
• Helps block moisture and dust from entering sensitive areas
• Self-adhesive backing allows for quick placement without extra glue

• One self-adhesive foam strip

• Surface must be clean and dry; wipe with isopropyl alcohol for best adhesion
• Measure and trim the foam strip to fit—use scissors or a utility knife
• Press firmly along the length to ensure full contact; allow adhesive to set before closing doors or panels
• For safety, disconnect power to the appliance before working in internal areas

The Water Valve is an OEM replacement part for GE side-by-side refrigerators. As part of the internal plumbing system, the valve controls the supply of water into the refrigerator for ice and water dispensing functions. It opens and closes precisely based on electronic signals from the control board.

Causes of a bad water valve can include mineral buildup disrupting water flow, seal deterioration from repeated use, or damage due to freezing temperatures.

Symptoms of a bad water valve include:

• Slow fill times for the ice maker or water dispenser
• Odd sounds coming from the valve area
• Water leaks at the valve inlet/outlet ports
• Failures of the ice/water dispenser to function normally

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Main Control Board is an OEM part for GE refrigerators. It serves as the central hub for managing and coordinating the various functions of the refrigerator, including temperature regulation, defrost cycles, and the operation of fans and compressors.

Over time, the main control board can fail due to electrical surges, wear and tear, or manufacturing defects. A malfunctioning control board can disrupt the refrigerator’s ability to maintain proper temperature and operate efficiently.

Symptoms of a bad main control board include:

• The refrigerator not cooling properly
• Erratic temperature fluctuations
• The refrigerator not running or turning off unexpectedly
• Unresponsive controls or display panel
• Unusual noises or clicks from the control board area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
