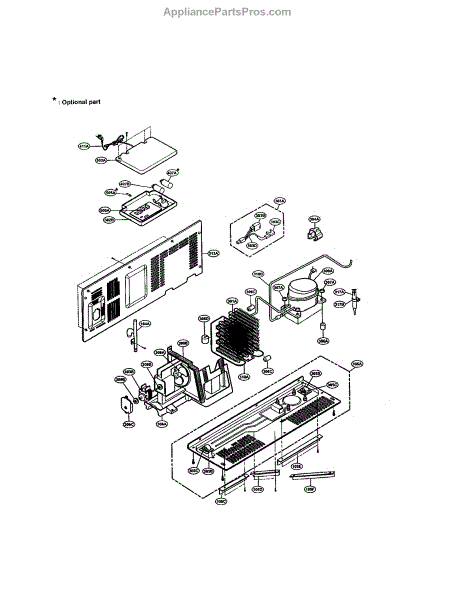

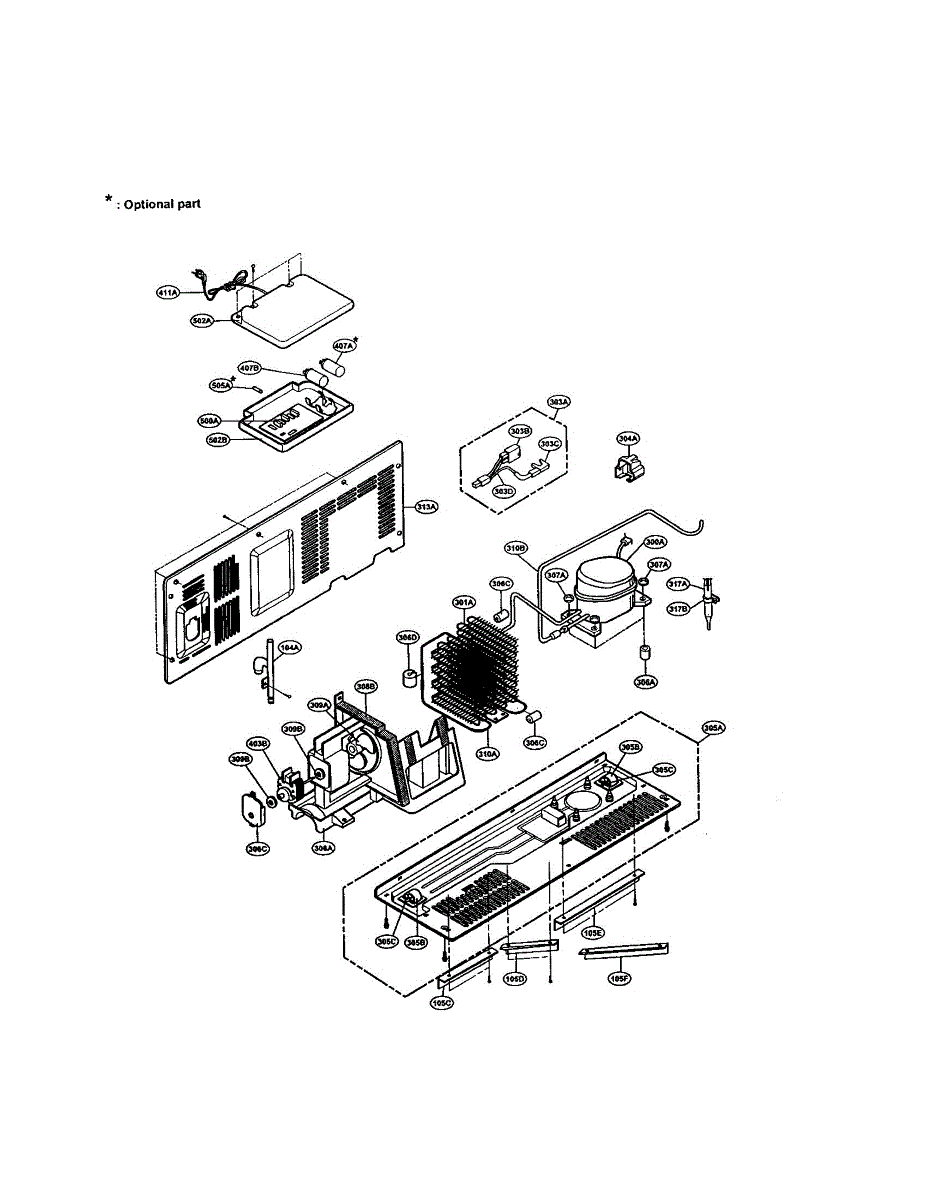

Parts for Lg LRSPC2331W: Machine Compartment Parts

Water pooling in your refrigerator? A cracked or clogged drain tube assembly causes leaks and ice buildup. Direct replacement part for proper drainage.

Replace your refrigerator's cracked or discolored light lens cover to restore even illumination and protect the bulb from spills and impact. Confirm fit.

Secures the refrigerator motor to the cabinet for proper positioning. Replace if your original bracket is cracked, broken, or missing to restore stability.

This is a rubber or elastomer damper that supports and isolates the evaporator fan motor inside the refrigerator. It absorbs vibration from the motor to reduce noise during normal operation. Replace this part if you hear excessive buzzing, rattling, or vibration coming from the freezer section, which often indicates the damper has hardened or deteriorated.

Refrigerator egg tray that holds and organizes eggs in your fridge door or shelf. Replace if cracked, broken, or missing to safely store eggs again.

Replacement door stopper assembly that cushions and limits door travel. Installs at the hinge area. Needed when original is cracked, broken, or missing.

Upper door hinge assembly for side-by-side refrigerators. Mounts at the top of the door to support weight and enable opening. Replace if cracked or worn.

This hinge lever mounts on the refrigerator door hinge to guide door movement and closure, helping the door seal properly. Replacing a worn or broken lever restores smooth operation and consistent sealing.

• Guides hinge motion so the door opens and closes smoothly
• Helps maintain door alignment for a reliable gasket seal
• Replace if the lever is visibly cracked, worn, or deformed

• Disconnect power and support the door to prevent injury or damage
• Remove the hinge cover and fasteners; note the lever's orientation before removal
• Install the new lever in the same position and reassemble the hinge components
• Adjust hinge per model procedures if needed

Lower hinge assembly for side-by-side refrigerators. Mounts the door to the cabinet frame. Replace if cracked, bent, or causing door alignment issues.

Lower door hinge assembly for side-by-side refrigerators. Secures and aligns the bottom of the door. Replace if cracked, bent, or worn causing door misalignment.

This dispenser lever holder is the mounting bracket behind the refrigerator's dispenser paddle. It supports and aligns the lever and switch so water or ice dispenses reliably when the paddle is pressed.

• Holds and guides the dispenser lever and actuator switch inside the dispenser housing
• Provides a secure pivot point for smooth paddle movement
• Helps ensure consistent activation of water and ice dispensing
• Damage can cause a loose or stuck paddle, intermittent dispensing, or no dispense

• Disconnect power and shut off the water supply before servicing
• Remove the dispenser panel/escutcheon to access the lever assembly; note part orientation
• Transfer the lever, switch, and return spring to the new holder and secure with the original fasteners
• Restore power/water and test dispensing before reinstalling trim

This wire harness connects the condenser to the refrigerator's electrical system, providing power for the cooling process. It carries electrical signals that control condenser fan operation and cooling cycles. Replace if your refrigerator isn't cooling properly, the condenser fan isn't running, or you notice damaged or corroded wiring.

Rubber seat bumper for refrigerator shelves and drawers. Replaces worn, cracked, or missing rubber cushions that protect surfaces and reduce noise.

This motor support damper sits between the refrigerator's compressor and base to absorb vibration and movement. Replacing a worn damper helps quiet rattles and humming from the back of the cabinet and keeps the compressor properly supported.

• Cushions the compressor to reduce transmitted vibration and noise
• Helps quiet humming, buzzing, or rattling from the lower rear of the refrigerator
• Maintains proper compressor alignment and support on the base pan
• Common signs of wear: increased vibration/noise, a cracked or flattened damper, or noticeable compressor movement when running

• Unplug the refrigerator and pull it forward to access the rear; allow the compressor to cool before working
• Support the compressor to remove load from the mount before loosening hardware
• Replace the damper and tighten mounting hardware evenly without over-compressing the rubber
• Avoid bending or stressing refrigerant tubing; wear gloves and eye protection

The Rear Evaporator Motor Grommet is an OEM part for LG refrigerators. It's designed to secure and cushion the evaporator motor, ensuring it remains in place and operates quietly. This grommet plays a crucial role in minimizing vibrations and noise from the motor, which can otherwise lead to a disruptive refrigerator operation.

Causes of a bad Rear Evaporator Motor Grommet can result from deterioration due to cooling and thawing cycles in the refrigerator. Physical damage during cleaning or servicing may cause a loose motor fit.

Symptoms of a malfunctioning Rear Evaporator Motor Grommet include:

• Unusual noises or vibrations from the back of the refrigerator.
• The evaporator motor shifting out of place, which can affect cooling efficiency.
• Increased wear on the evaporator motor due to lack of proper cushioning and support.

This OEM LG part is also compatible with some Kenmore models.

This holder is a small mounting bracket used to secure internal components in place, helping keep parts aligned and stable for reliable operation. It provides a direct, OEM-compatible replacement to restore proper fit and function. What it does

• Secures and supports nearby components to prevent shifting or vibration.
• Restores proper alignment where a worn or broken holder causes rattling or loose parts.
• Helps maintain normal operation by keeping assemblies seated correctly.
• Works behind panels or inside assemblies where a dedicated bracket is required.

• One holder/mounting bracket as shown.

• Installation generally requires removing the panel or access cover where the holder is located.
• Use proper fasteners shown in your appliance; replace any damaged screws or clips as needed.
• Disconnect power before servicing electrical appliances to reduce shock risk.

Drier assembly for refrigerators. Installs in the sealed refrigerant system to remove moisture and contaminants. Replace if damaged or worn during repair.

The Light Bulb is an OEM part for LG refrigerators. It can be used in either the fresh food section or freezer compartment, providing illumination for easy visibility of the stored items.

Causes of a faulty light bulb can include regular wear and tear, reaching the end of its lifespan, or accidental breakage. These factors can result in issues such as a dark or poorly lit interior, making it difficult to see the contents of the refrigerator.

Symptoms of a bad light bulb may include:

• No illumination or dim lighting inside the refrigerator
• A flickering or intermittent light
• Visible damage or broken filament inside the bulb

This LG OEM bulb is also compatible with Sears/Kenmore models.

Interior light won't turn on when door opens? This refrigerator door switch signals when the door opens or closes. DIY-friendly repair, takes about 5 minutes.

Fix FF error codes and warm spots with this evaporator fan motor. Stops grinding noises and restores airflow. DIY-friendly, 30-minute repair.

The Ice Door Solenoid Assembly is an OEM replacement part for LG refrigerators. This assembly controls the opening and closing of the ice door, which allows ice to be dispensed from the freezer to the exterior of the appliance. When you request ice, the solenoid activates, opening the ice door and permitting ice to pass through.

Symptoms of a bad Ice Door Solenoid Assembly include:

• Ice door not opening or closing properly
• Failure to dispense ice
• Ice accumulating or jamming at the dispenser

Causes for a malfunctioning Ice Door Solenoid Assembly can include electrical issues such as faulty wiring, wear and tear from frequent use, or mechanical problems affecting the solenoid's ability to move the ice door.

This OEM LG part is also compatible with Sears/Kenmore models.

The Ice Cube Tray is an OEM part for LG refrigerators. It is located in the freezer section of the refrigerator and provides a designated space for freezing water into ice cubes. It is designed with individual compartments to form ice cubes in a specific shape and size.

Causes of a faulty ice cube tray can include regular wear and tear, physical damage, or improper handling. These factors can result in issues such as the tray cracking or breaking, difficulty in removing ice cubes, or improper freezing of the cubes.

Symptoms of a bad ice cube tray may include:

• Cracked or broken tray
• Difficulty in removing ice cubes from the tray
• Irregularly shaped or improperly frozen ice cubes

This OEM LG part can also be used on Kenmore/Sears appliances.

Not making ice or water not refilling? This ice maker assembly fixes failed ice production. DIY-friendly repair takes about 15 minutes with a screwdriver.

This sensor cover protects and secures the appliance sensor assembly to help maintain accurate sensor positioning and guard the sensor from damage, dust, and moisture that can interfere with normal operation. What it does:

• Shields the sensor housing from physical damage, dust and moisture.
• Keeps the sensor properly positioned so it can read conditions reliably.
• Can prevent intermittent sensor faults and related error codes when damaged.
• Helps avoid false readings that can cause incorrect cycles or behavior.

• Disconnect power to the appliance before starting any work to avoid shock or injury.
• Handle nearby wiring and sensor components carefully; avoid touching circuit contacts.
• Verify the cover seats flush and secures to the sensor housing; do not force or deform plastic tabs.
• If any sensor or wiring was disturbed during installation, recheck connections and test operation before regular use.

This is a guide bracket that directs ice from the ice maker into the storage bin inside the freezer compartment. It ensures ice cubes are properly channeled and don't scatter or jam during the harvest cycle. Replace this bracket if ice is falling outside the bin, getting stuck, or if the bracket is cracked or broken.

Changes between cubed or crushed ice.

This is a polyethylene (PE) plastic tube with a 1/4" outer diameter used to carry water within the refrigerator, typically connecting the water inlet valve to the ice maker or water dispenser. It provides a flexible, food-safe pathway for water flow. Replace this tubing if you notice leaks, cracks, kinks, or reduced water flow to the ice maker or dispenser.

The Water Supply Line is an OEM part for LG refrigerators. It is responsible for delivering water from the household supply to the refrigerator's water dispenser and ice maker. This line ensures a consistent flow of water, crucial for producing ice and dispensing chilled water.

Over time, water supply lines can wear out or become damaged due to factors such as mineral buildup, kinks, or punctures. These issues can lead to leaks or reduced water flow, affecting the refrigerator's functionality.

Symptoms of a bad Water Supply Line include:

• Leaks or puddles around the refrigerator
• Reduced or no water flow to the dispenser
• Ice maker not producing ice
• Unusual noises when the dispenser is used

This OEM LG part is also compatible with Sears/Kenmore.

The Water Line is an OEM part for LG refrigerators, designed to supply water to the ice maker and water dispenser. Made from durable materials to withstand water pressure and prevent leaks, this water line is essential for access to clean, filtered water at all times. Note: color of the water tube may be different from original. Tube is 5/16" diameter

Symptoms of a bad Water Line include:

• Leaking of water at the connection points or along the tubing.
• A noticeable decrease in water flow to the dispenser or ice maker.
• A bad taste or odor of the water and ice

Causes of failure can range from physical damage, such as kinks or punctures, to wear and tear over time leading to brittleness or weakening of the material. These issues can compromise the integrity of the water supply, affecting both the quality and safety of the water and ice provided by your refrigerator.

This OEM LG part can also be used on Kenmore/Sears appliances.

No water from dispenser or ice maker? This water inlet valve controls flow to both. DIY-friendly repair—takes about 15 minutes with basic tools.

The Water Tube Connector is an OEM part for LG refrigerators. It is specifically designed to securely connect the water supply tubes in the refrigerator. The connector ensures a proper seal, preventing leaks and ensuring a consistent water supply to your refrigerator.

Causes of a bad water tube connector can include wear and tear over time, exposure to water pressure, or damage due to accidental impact or mishandling. These factors can result in leaks, water flow disruptions, or a loose connection, leading to issues with water dispensing or ice making.

Symptoms of a bad water tube connector may include:

• Water leaks at the connection point
• Reduced or intermittent water flow
• Complete water flow blockage

This OEM LG part can also be used on Kenmore/Sears appliances.

Secures bracket assemblies inside your refrigerator to keep components aligned and reduce vibration. Replace if cracked, bent, or missing.

Secures hoses and tubing in your refrigerator to prevent leaks. Replace if worn, cracked, or losing grip. Verify fit with your model number listed.

Refrigerator not dispensing water or making ice without a filter? This bypass cap lets water flow directly to the dispenser and ice maker. Easy install.

The LG Refrigerator Water Filter is an OEM Replacement Part. It is designed to improve the quality of water and protect refrigerators and ice machines from sediment deposits. This NSF-Certified filter effectively reduces iron and particulates. It also preserves beneficial minerals like fluoride. The filter measures 5.6 inches high and 3.3 inches in diameter.

It is installed by removing the top shelf and pulling the old filter downward. Then turn it counter-clockwise, and replace it with the new filter aligned in a horizontal position. To ensure the best performance and the removal of trapped air and contaminants, it's recommended to flush the dispenser with 2.5 gallons of water in alternating cycles. If your model includes a water filter indicator, press and hold the Filter or Reset button for 5 seconds after installation. With a lifespan of 6 months and a 500-gallon capacity, this filter provides both quality and longevity.

Note: 90 degree elbow coupler (Fits 5/16" diameter tubing on each end) For 1/4" elbow connector, order part# 4932JA3009A.

90-degree elbow connector for 1/4" refrigerator water lines. Replaces cracked, leaking, or broken tube fittings between filter and dispenser.

Secures internal components in place to prevent rattling and misalignment. Replace if cracked, broken, or missing. Confirm fit with your model number.
