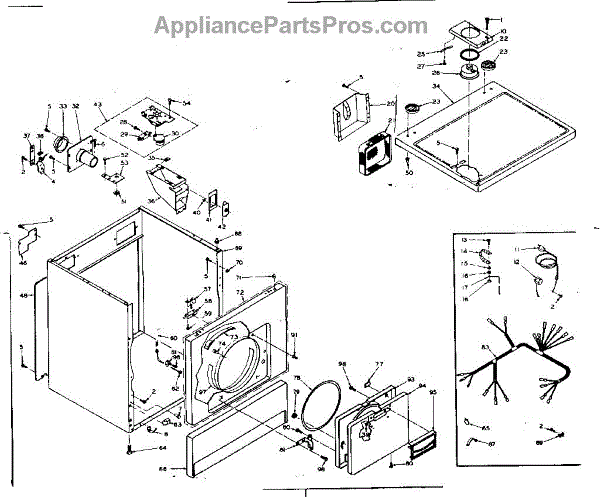

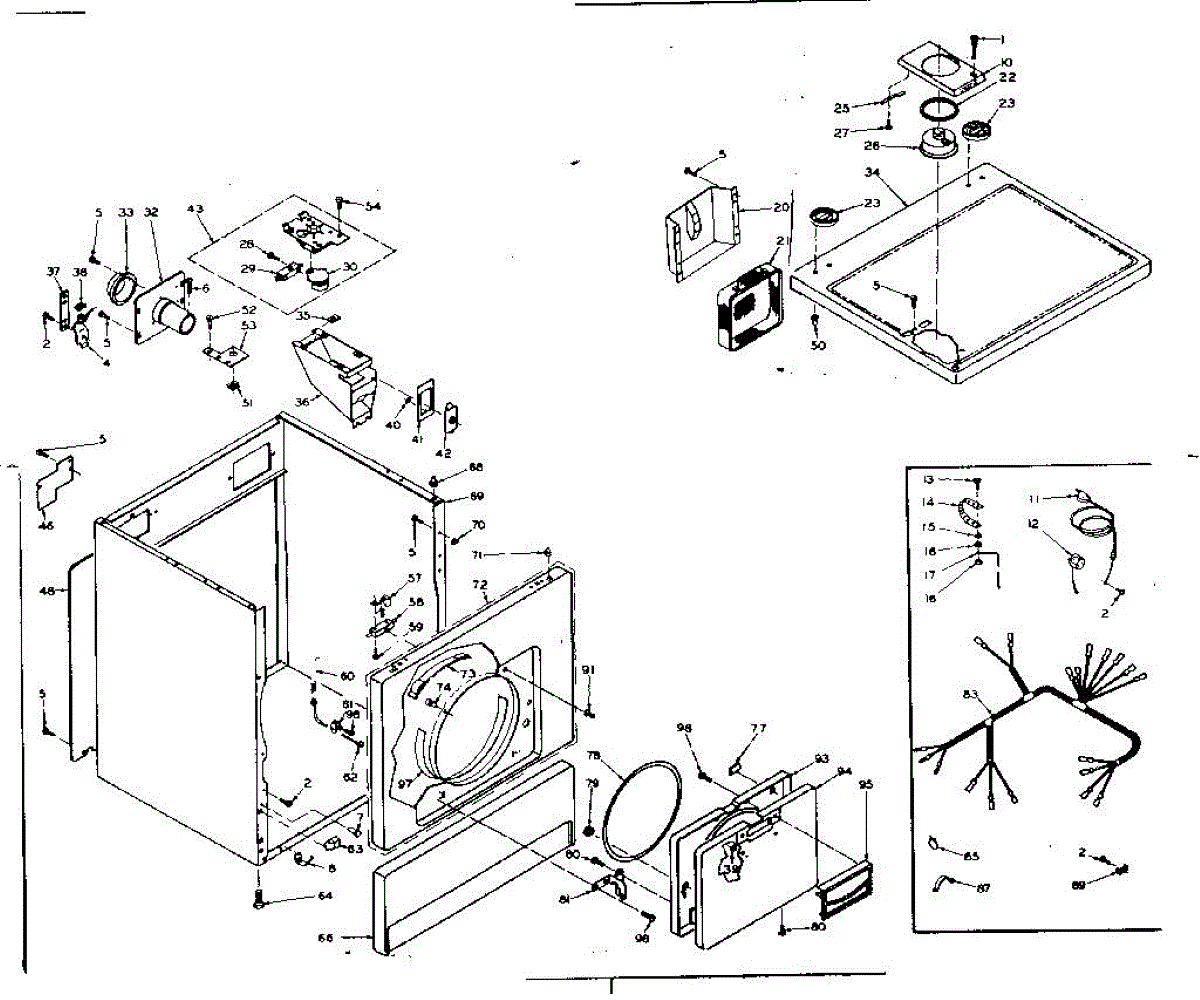

Parts for Kenmore 110.6117235 (1106117235, 110 6117235): Machine Sub-Assembly Parts

Supports and pivots the hinged dryer top panel for service access. Replace if cracked, broken, or causing wobble, scraping, or alignment gaps.

Self-drilling screw secures panels, brackets, and trim without pre-drilling. Replace missing or stripped screws during appliance repair or reassembly.

Rubber bumper. Color: Grey.

This small retaining clip secures the door hinge in place so the door opens and closes smoothly and stays properly aligned. Replacing a worn or missing clip helps restore reliable hinge support and consistent door operation.

• Retains the hinge/hinge pin to prevent shifting or separation
• Helps maintain door alignment to avoid rubbing, sagging, or binding
• Replaces a clip that is bent, cracked, corroded, or missing
• Common signs it's needed: loose or wobbly door, difficulty closing, misaligned door, visible damaged/missing clip

• Unplug the appliance and, if applicable, remove items from the door to reduce weight
• Support the door before working on the hinge
• Remove any hinge cover/fasteners, swap the clip, and ensure it seats fully
• Reassemble and check door alignment and smooth operation

This power cord connects your appliance to household electricity, supplying safe, reliable power to its controls and components. Replace a damaged or overheated cord to restore dependable operation and reduce the risk of shorts.

• Supplies AC power from the wall outlet to the appliance's electrical system
• Helps resolve no power, intermittent power loss, or tripped breaker issues
• Replace if the cord is cut, frayed, melted, discolored, or feels hot at the plug
• Restores safe operation when the original plug or insulation is damaged

• Disconnect power at the outlet or circuit breaker before servicing
• Note wire routing and connection points; match the original orientation for hot, neutral, and ground
• Seat the cord properly and secure with the model's required strain relief or clamp to prevent tension on terminals
• Ensure the cord is not pinched and is clear of sharp edges, hot surfaces, and moving parts; test for proper operation

Cage nut clips into panel openings to create a threaded anchor point for secure mounting. Replace if broken, stripped, or missing to restore hardware.

Screw secures appliance panels and access covers. Replace missing, stripped, or corroded screws to restore tight fit and eliminate rattles or gaps.

The Door Switch Lever is an OEM part for Whirlpool dryers. It plays a vital role in ensuring the dryer only operates when the door is securely closed by engaging with the door switch to signal the door's status.

Causes of a bad door switch lever can include normal wear and tear from repeated use, physical damage from accidental impact, or deformation from heat and humidity inside the dryer. A faulty lever can prevent the dryer from starting or stopping correctly.

Symptoms of a bad door switch lever include:

• Dryer not starting
• Dryer stopping mid-cycle
• Door not latching properly
• The dryer continuing to run with the door open

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Washer Door Switch is an OEM part for Whirlpool washing machines. This component is crucial for ensuring the washer operates safely by detecting whether the door is open or closed. The door switch prevents the washer from starting or continuing its cycle when the door is open, and it allows the machine to function only when the door is securely closed.

Symptoms of a failing Washer Door Switch include:

• The washer not starting or stopping unexpectedly during a cycle
• Error codes related to door closure issues displayed on the washer's control panel
• The washer door not locking properly or the lock mechanism not engaging
• The washer continuing to operate with the door open

Causes of a bad door switch can include wear and tear from frequent use, damage from repeated opening and closing of the door, electrical faults such as short circuits, or physical damage from mishandling or impact.

This OEM Whirlpool part is also compatible with some models from Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore.

Size: 6 - 20 x 1 1/16 inch.

This spring connects to the dryer door hinge assembly and provides tension to keep the door properly aligned and functioning. It helps the door open and close smoothly and stay securely shut during operation. Replace this spring if your dryer door won't stay closed, swings open on its own, or if the existing spring is stretched, broken, or missing.

This kit secures the lower toe/kick panel to the front of the appliance, keeping the panel tight and properly aligned. Replacing worn or missing clips restores a secure fit and makes access for service straightforward.

• Holds the toe/kick panel in place at the base of the cabinet
• Helps prevent panel rattling, gaps, or a loose/hinging lower panel
• Common fix when the lower panel won't stay secured after service
• Durable metal clip design for repeated panel removal and reattachment

• Unplug appliance before servicing; wear gloves to avoid sharp edges
• Support the toe panel while releasing old clips to prevent bending
• Install clips in the cabinet slots first, then engage the panel into the clips
• Verify the panel is fully seated on both sides before restoring power

Replacement adjustable leveling feet that stabilize your dryer and help keep it sitting level on uneven floors. Restores proper clearance and reduces rocking, vibration and movement for safer, quieter operation. What it does

• Replaces worn or damaged leveling feet to stabilize the appliance
• Allows height adjustment so the dryer sits level on uneven surfaces
• Helps reduce rocking, rattling or excessive vibration during cycles
• Can improve door alignment and reduce friction-related noise

• One set of replacement leveling feet

• Unplug the dryer and move it away from the wall before installing
• Adjust feet by turning them to raise or lower each corner; use a level for best results
• Use two people when tipping or sliding the dryer to prevent injury or damage
• Do not operate the dryer without all leveling feet installed and secured

This part has been discontinued and is no longer available.

This small spring clip secures the top panel of the dryer to the cabinet frame. It snaps into place to hold the top firmly shut during operation. Replace this clip if your dryer's top panel feels loose, pops open during use, or won't stay latched when closed.

Replaces worn dryer front bearing and seal that cause squealing or scraping noise. Essential for smooth drum rotation. Confirm fit with your model.

Includes two bumpers and two locking clips. You will use one or the other depending on hole size.

The Door Latch Kit is an OEM replacement part for Whirlpool washers. This component is responsible for securely locking the washer door during the wash cycle, preventing it from opening unexpectedly and ensuring a safe and efficient operation.

Symptoms of needing to replace the door latch kit include:

• Difficulty in closing or latching the washer door
• Door opening unexpectedly during the wash cycle
• Leaks or water seeping due to an improper door seal
• Excessive wear or damage to the latch components

Causes of a faulty door latch kit can include normal wear and tear over time, physical damage due to impact or mishandling, or issues with the door alignment or strike plate.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washer models.

Heat-resistant fiberglass gasket seals your oven door perimeter to maintain consistent temperatures. Replace when worn, frayed, or flattened to restore efficiency. Verify fit by model number.

Snap-in plug button covers access holes and fastener openings in your dryer. Replace if cracked, broken, or missing to restore a finished look.

Right side

This left-hand hinge assembly supports and pivots the appliance door or lid so it opens and closes smoothly and stays aligned for a proper seal. Replacing a worn hinge can correct sagging, rubbing, and hard-to-close doors. What it does:

• Provides the pivot point and support on the left side of the door or lid
• Maintains alignment to help ensure proper latch engagement and gasket contact
• Restores smooth opening/closing and reduces binding or scraping
• Common symptoms of a bad hinge: door droops, squeaks/grinds, rubs the cabinet, won't close flush, or shows visible play/damage

• 1 left-hand hinge assembly

• Disconnect power (and shut off water, if applicable) before servicing
• Support the door/lid while removing fasteners to prevent dropping or damage
• Transfer any original screws, bushings, or trim pieces as needed
• After installation, adjust mounting as needed for smooth operation

The Door Latch Kit is an OEM replacement part for Whirlpool washers. This component is responsible for securely locking the washer door during the wash cycle, preventing it from opening unexpectedly and ensuring a safe and efficient operation.

Symptoms of needing to replace the door latch kit include:

• Difficulty in closing or latching the washer door
• Door opening unexpectedly during the wash cycle
• Leaks or water seeping due to an improper door seal
• Excessive wear or damage to the latch components

Causes of a faulty door latch kit can include normal wear and tear over time, physical damage due to impact or mishandling, or issues with the door alignment or strike plate.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washer models.

Replaces worn dryer front bearing and seal that cause squealing or scraping noise. Essential for smooth drum rotation. Confirm fit with your model.

Replacement 8-18 thread screw for securing panels, brackets, and trim on appliances. Replace worn, stripped, or missing screws to keep components aligned.
