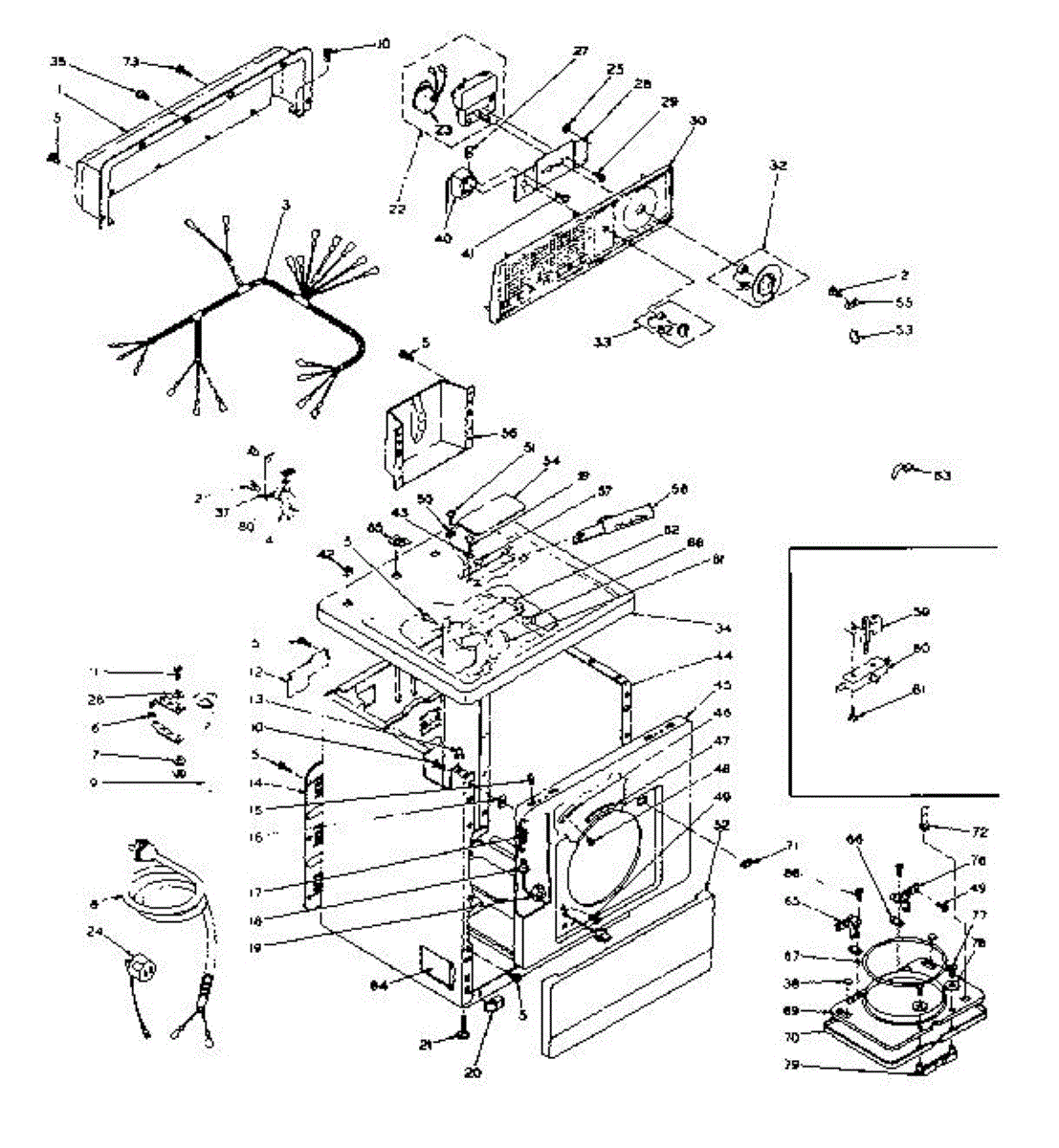

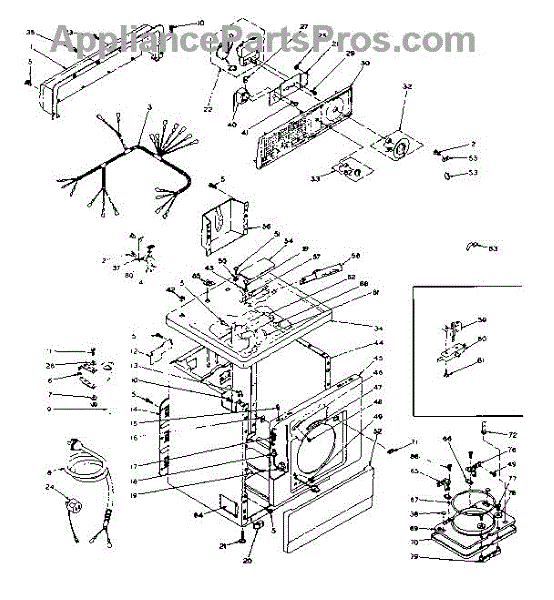

Parts for Kenmore 110.6217501 (1106217501, 110 6217501): Machine Sub-Assembly Parts

Supports and pivots the hinged dryer top panel for service access. Replace if cracked, broken, or causing wobble, scraping, or alignment gaps.

Specs: 10-16 x 1/2 inch.

The Top Lock is an OEM component for Whirlpool electric and gas dryers. It secures the outer metal cabinet door during drying cycles for safety and ventilation. This lock provides a method for releasing and latching the door tightly when shut.

Symptoms of a failing top lock may include:

• Inability to fully close or properly latch the dryer door
• Accidental opening from deficient locking during operation
• Difficulty manipulating the lock due to worn or broken parts

Causes related to normal wear of moving parts through frequent use over several years. Deformation from excessive exterior impacts could also damage locking mechanisms.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This door spring restores the counterbalance on a dishwasher door so it opens smoothly and doesn't drop. Replacing a worn or broken spring brings back controlled door movement and helps protect the hinges and linkages. What it does:

• Provides tension to counterbalance the dishwasher door for smooth, controlled opening and closing
• Helps prevent the door from slamming open or feeling excessively heavy
• Common failure signs include a door that drops suddenly, won't stay partially open, or makes snapping/spring noises
• Visual signs may include a stretched, broken, or missing spring

• 1 door spring

• Disconnect power; if working on a built-in dishwasher, also shut off water and support the door
• Springs are under tension—use eye protection and gloves, and release/attach carefully
• Access is typically behind the lower/toe panel; note original spring routing and hole positions before removal
• Inspect related door linkage/cords and hinge brackets; replace any worn components to maintain proper balance

This kit secures the lower toe/kick panel to the front of the appliance, keeping the panel tight and properly aligned. Replacing worn or missing clips restores a secure fit and makes access for service straightforward.

• Holds the toe/kick panel in place at the base of the cabinet
• Helps prevent panel rattling, gaps, or a loose/hinging lower panel
• Common fix when the lower panel won't stay secured after service
• Durable metal clip design for repeated panel removal and reattachment

• Unplug appliance before servicing; wear gloves to avoid sharp edges
• Support the toe panel while releasing old clips to prevent bending
• Install clips in the cabinet slots first, then engage the panel into the clips
• Verify the panel is fully seated on both sides before restoring power

Replacement adjustable leveling feet that stabilize your dryer and help keep it sitting level on uneven floors. Restores proper clearance and reduces rocking, vibration and movement for safer, quieter operation. What it does

• Replaces worn or damaged leveling feet to stabilize the appliance
• Allows height adjustment so the dryer sits level on uneven surfaces
• Helps reduce rocking, rattling or excessive vibration during cycles
• Can improve door alignment and reduce friction-related noise

• One set of replacement leveling feet

• Unplug the dryer and move it away from the wall before installing
• Adjust feet by turning them to raise or lower each corner; use a level for best results
• Use two people when tipping or sliding the dryer to prevent injury or damage
• Do not operate the dryer without all leveling feet installed and secured

Snap-in plug button covers access holes and fastener openings in your dryer. Replace if cracked, broken, or missing to restore a finished look.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This rubber bumper cushions and protects moving parts and panels, reducing noise and preventing metal-to-metal contact. It restores proper spacing and stops rattles so doors, drawers or panels close smoothly and quietly. What it does:

• Acts as a shock-absorbing cushion to prevent damage from impact or slamming
• Reduces vibration and rattling noise from doors, drawers or panels
• Maintains proper clearance and helps parts align during operation
• Commonly replaced when worn, flattened, missing or causing noise

• One rubber bumper

• Typically press-fits into a hole or onto a mounting post
• Clean the mounting surface of dirt and old adhesive or debris for best retention
• No special tools required for most installs; use gentle pressure or a blunt tool to seat the bumper
• Unplug the appliance or disconnect power before servicing

The Door Switch Lever is an OEM part for Whirlpool dryers. It plays a vital role in ensuring the dryer only operates when the door is securely closed by engaging with the door switch to signal the door's status.

Causes of a bad door switch lever can include normal wear and tear from repeated use, physical damage from accidental impact, or deformation from heat and humidity inside the dryer. A faulty lever can prevent the dryer from starting or stopping correctly.

Symptoms of a bad door switch lever include:

• Dryer not starting
• Dryer stopping mid-cycle
• Door not latching properly
• The dryer continuing to run with the door open

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Washer Door Switch is an OEM part for Whirlpool washing machines. This component is crucial for ensuring the washer operates safely by detecting whether the door is open or closed. The door switch prevents the washer from starting or continuing its cycle when the door is open, and it allows the machine to function only when the door is securely closed.

Symptoms of a failing Washer Door Switch include:

• The washer not starting or stopping unexpectedly during a cycle
• Error codes related to door closure issues displayed on the washer's control panel
• The washer door not locking properly or the lock mechanism not engaging
• The washer continuing to operate with the door open

Causes of a bad door switch can include wear and tear from frequent use, damage from repeated opening and closing of the door, electrical faults such as short circuits, or physical damage from mishandling or impact.

This OEM Whirlpool part is also compatible with some models from Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore.

Size: 6 - 20 x 1 1/16 inch.

This left-hand hinge assembly supports and pivots the appliance door or lid so it opens and closes smoothly and stays aligned for a proper seal. Replacing a worn hinge can correct sagging, rubbing, and hard-to-close doors. What it does:

• Provides the pivot point and support on the left side of the door or lid
• Maintains alignment to help ensure proper latch engagement and gasket contact
• Restores smooth opening/closing and reduces binding or scraping
• Common symptoms of a bad hinge: door droops, squeaks/grinds, rubs the cabinet, won't close flush, or shows visible play/damage

• 1 left-hand hinge assembly

• Disconnect power (and shut off water, if applicable) before servicing
• Support the door/lid while removing fasteners to prevent dropping or damage
• Transfer any original screws, bushings, or trim pieces as needed
• After installation, adjust mounting as needed for smooth operation

Heat-resistant fiberglass gasket seals your oven door perimeter to maintain consistent temperatures. Replace when worn, frayed, or flattened to restore efficiency. Verify fit by model number.

The Door Latch Kit is an OEM replacement part for Whirlpool washers. This component is responsible for securely locking the washer door during the wash cycle, preventing it from opening unexpectedly and ensuring a safe and efficient operation.

Symptoms of needing to replace the door latch kit include:

• Difficulty in closing or latching the washer door
• Door opening unexpectedly during the wash cycle
• Leaks or water seeping due to an improper door seal
• Excessive wear or damage to the latch components

Causes of a faulty door latch kit can include normal wear and tear over time, physical damage due to impact or mishandling, or issues with the door alignment or strike plate.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washer models.

The Door Latch Kit is an OEM replacement part for Whirlpool washers. This component is responsible for securely locking the washer door during the wash cycle, preventing it from opening unexpectedly and ensuring a safe and efficient operation.

Symptoms of needing to replace the door latch kit include:

• Difficulty in closing or latching the washer door
• Door opening unexpectedly during the wash cycle
• Leaks or water seeping due to an improper door seal
• Excessive wear or damage to the latch components

Causes of a faulty door latch kit can include normal wear and tear over time, physical damage due to impact or mishandling, or issues with the door alignment or strike plate.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washer models.

Screw: 8-16 x 3/8 inch.

Right side

This flat-head screw secures panels, brackets, or trim so they sit flush on your appliance. Replacing a worn or missing screw restores a tight fit and helps prevent vibration, rattling, or shifting components.

• Provides a countersunk, flush-mount fastener for panels, trim, brackets, or covers
• Helps maintain alignment and secure attachment during operation
• Replaces stripped, rusted, or missing hardware
• Symptoms can include loose panels or handles, rattling noises, or visible gaps/misalignment

• Disconnect power (and shut off gas, if applicable) before servicing
• Match screw length and thread to the original for proper fit
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Support the part being fastened to keep alignment while tightening
