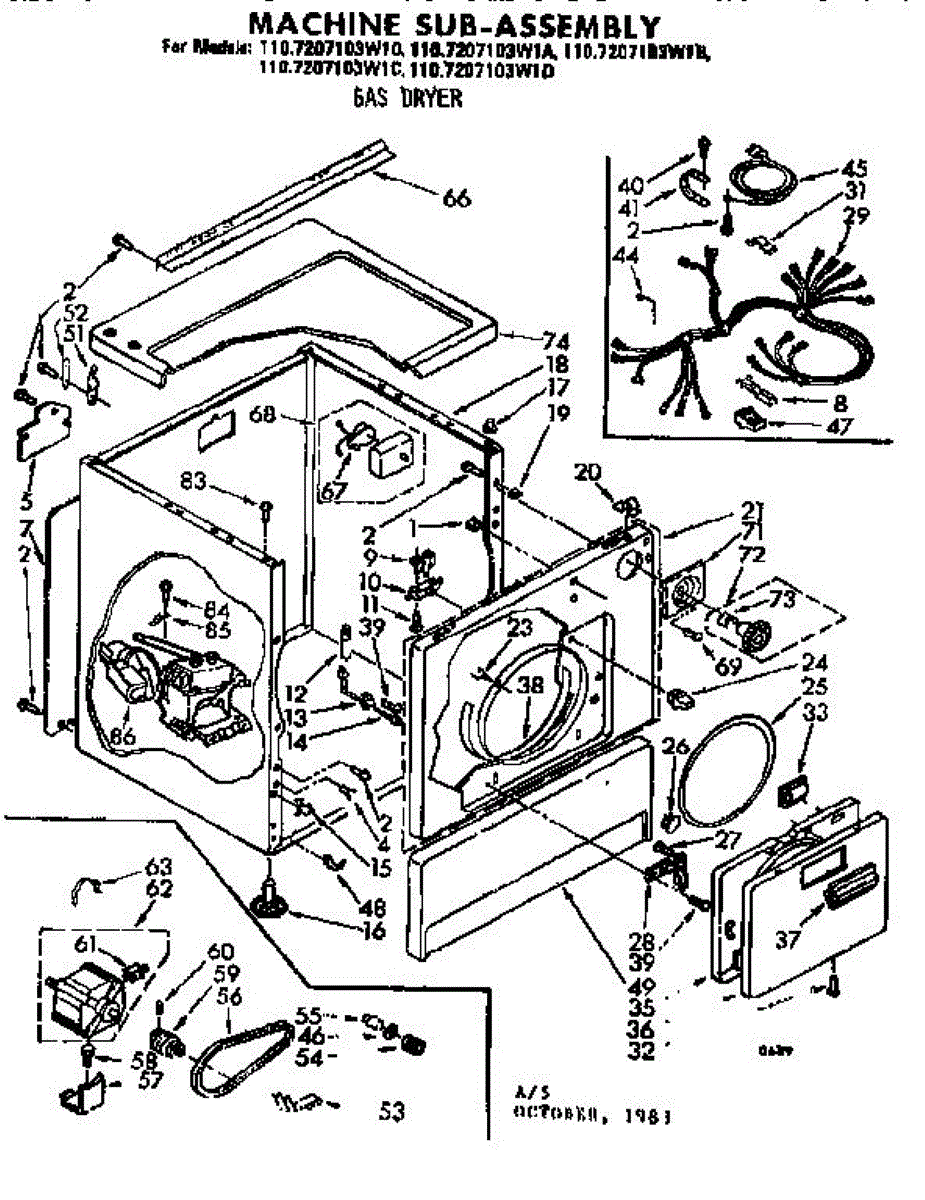

Parts for Sears 1107207103W10: Machine Sub-Assembly Parts

Rubber bumper. Color: Grey.

The Door Switch Lever is an OEM part for Whirlpool dryers. It plays a vital role in ensuring the dryer only operates when the door is securely closed by engaging with the door switch to signal the door's status.

Causes of a bad door switch lever can include normal wear and tear from repeated use, physical damage from accidental impact, or deformation from heat and humidity inside the dryer. A faulty lever can prevent the dryer from starting or stopping correctly.

Symptoms of a bad door switch lever include:

• Dryer not starting
• Dryer stopping mid-cycle
• Door not latching properly
• The dryer continuing to run with the door open

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Washer Door Switch is an OEM part for Whirlpool washing machines. This component is crucial for ensuring the washer operates safely by detecting whether the door is open or closed. The door switch prevents the washer from starting or continuing its cycle when the door is open, and it allows the machine to function only when the door is securely closed.

Symptoms of a failing Washer Door Switch include:

• The washer not starting or stopping unexpectedly during a cycle
• Error codes related to door closure issues displayed on the washer's control panel
• The washer door not locking properly or the lock mechanism not engaging
• The washer continuing to operate with the door open

Causes of a bad door switch can include wear and tear from frequent use, damage from repeated opening and closing of the door, electrical faults such as short circuits, or physical damage from mishandling or impact.

This OEM Whirlpool part is also compatible with some models from Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore.

Size: 6 - 20 x 1 1/16 inch.

This door spring restores the counterbalance on a dishwasher door so it opens smoothly and doesn't drop. Replacing a worn or broken spring brings back controlled door movement and helps protect the hinges and linkages. What it does:

• Provides tension to counterbalance the dishwasher door for smooth, controlled opening and closing
• Helps prevent the door from slamming open or feeling excessively heavy
• Common failure signs include a door that drops suddenly, won't stay partially open, or makes snapping/spring noises
• Visual signs may include a stretched, broken, or missing spring

• 1 door spring

• Disconnect power; if working on a built-in dishwasher, also shut off water and support the door
• Springs are under tension—use eye protection and gloves, and release/attach carefully
• Access is typically behind the lower/toe panel; note original spring routing and hole positions before removal
• Inspect related door linkage/cords and hinge brackets; replace any worn components to maintain proper balance

This left-side guide cable helps position and stabilize the appliance component it supports, restoring smooth movement and alignment for reliable operation. Designed to replace a worn or broken guide cable and reduce binding or misalignment. What it does:

• Guides and supports the component assembly on the left side to maintain correct travel and alignment
• Replaces damaged or frayed cable that can cause sticking, jerking, or uneven movement
• Helps restore smooth operation and consistent performance of the guided assembly
• Works as the matching left-side counterpart when paired with its right-side guide

• One left-side guide cable

• Follow the appliance manufacturer's service instructions and disconnect power before beginning work
• Handle cable ends and attachment points carefully to avoid fraying or damage during installation
• Verify routing and attachment points match the original cable for correct operation

This kit secures the lower toe/kick panel to the front of the appliance, keeping the panel tight and properly aligned. Replacing worn or missing clips restores a secure fit and makes access for service straightforward.

• Holds the toe/kick panel in place at the base of the cabinet
• Helps prevent panel rattling, gaps, or a loose/hinging lower panel
• Common fix when the lower panel won't stay secured after service
• Durable metal clip design for repeated panel removal and reattachment

• Unplug appliance before servicing; wear gloves to avoid sharp edges
• Support the toe panel while releasing old clips to prevent bending
• Install clips in the cabinet slots first, then engage the panel into the clips
• Verify the panel is fully seated on both sides before restoring power

Replacement adjustable leveling feet that stabilize your dryer and help keep it sitting level on uneven floors. Restores proper clearance and reduces rocking, vibration and movement for safer, quieter operation. What it does

• Replaces worn or damaged leveling feet to stabilize the appliance
• Allows height adjustment so the dryer sits level on uneven surfaces
• Helps reduce rocking, rattling or excessive vibration during cycles
• Can improve door alignment and reduce friction-related noise

• One set of replacement leveling feet

• Unplug the dryer and move it away from the wall before installing
• Adjust feet by turning them to raise or lower each corner; use a level for best results
• Use two people when tipping or sliding the dryer to prevent injury or damage
• Do not operate the dryer without all leveling feet installed and secured

Includes two bumpers and two locking clips. You will use one or the other depending on hole size.

The Door Latch Kit is an OEM replacement part for Whirlpool washers. This component is responsible for securely locking the washer door during the wash cycle, preventing it from opening unexpectedly and ensuring a safe and efficient operation.

Symptoms of needing to replace the door latch kit include:

• Difficulty in closing or latching the washer door
• Door opening unexpectedly during the wash cycle
• Leaks or water seeping due to an improper door seal
• Excessive wear or damage to the latch components

Causes of a faulty door latch kit can include normal wear and tear over time, physical damage due to impact or mishandling, or issues with the door alignment or strike plate.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washer models.

Heat-resistant fiberglass gasket seals your oven door perimeter to maintain consistent temperatures. Replace when worn, frayed, or flattened to restore efficiency. Verify fit by model number.

Snap-in plug button covers access holes and fastener openings in your dryer. Replace if cracked, broken, or missing to restore a finished look.

Right side

This left-hand hinge assembly supports and pivots the appliance door or lid so it opens and closes smoothly and stays aligned for a proper seal. Replacing a worn hinge can correct sagging, rubbing, and hard-to-close doors. What it does:

• Provides the pivot point and support on the left side of the door or lid
• Maintains alignment to help ensure proper latch engagement and gasket contact
• Restores smooth opening/closing and reduces binding or scraping
• Common symptoms of a bad hinge: door droops, squeaks/grinds, rubs the cabinet, won't close flush, or shows visible play/damage

• 1 left-hand hinge assembly

• Disconnect power (and shut off water, if applicable) before servicing
• Support the door/lid while removing fasteners to prevent dropping or damage
• Transfer any original screws, bushings, or trim pieces as needed
• After installation, adjust mounting as needed for smooth operation

The Door Latch Kit is an OEM replacement part for Whirlpool washers. This component is responsible for securely locking the washer door during the wash cycle, preventing it from opening unexpectedly and ensuring a safe and efficient operation.

Symptoms of needing to replace the door latch kit include:

• Difficulty in closing or latching the washer door
• Door opening unexpectedly during the wash cycle
• Leaks or water seeping due to an improper door seal
• Excessive wear or damage to the latch components

Causes of a faulty door latch kit can include normal wear and tear over time, physical damage due to impact or mishandling, or issues with the door alignment or strike plate.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washer models.

This part has been discontinued by the manufacturer and is no longer available.

The Dryer Door Handle is an OEM replacement part for Whirlpool dryers. A dryer door handle can deteriorate due to prolonged use, repeated force when opening or closing the door, or accidental impact that causes cracks or breakage. These factors may compromise the handle's structural integrity and make it less reliable.

Color: White

Symptoms of a bad Dryer Door Handle include:

• Loose or wobbly handle
• Cracks or visible damage to the handle
• Difficulty opening or closing the dryer door

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Replaces worn dryer front bearing and seal that cause squealing or scraping noise. Essential for smooth drum rotation. Confirm fit with your model.

Replacement 8-18 thread screw for securing panels, brackets, and trim on appliances. Replace worn, stripped, or missing screws to keep components aligned.

This power cord connects your appliance to household electricity, supplying safe, reliable power to its controls and components. Replace a damaged or overheated cord to restore dependable operation and reduce the risk of shorts.

• Supplies AC power from the wall outlet to the appliance's electrical system
• Helps resolve no power, intermittent power loss, or tripped breaker issues
• Replace if the cord is cut, frayed, melted, discolored, or feels hot at the plug
• Restores safe operation when the original plug or insulation is damaged

• Disconnect power at the outlet or circuit breaker before servicing
• Note wire routing and connection points; match the original orientation for hot, neutral, and ground
• Seat the cord properly and secure with the model's required strain relief or clamp to prevent tension on terminals
• Ensure the cord is not pinched and is clear of sharp edges, hot surfaces, and moving parts; test for proper operation

This small retaining clip secures the door hinge in place so the door opens and closes smoothly and stays properly aligned. Replacing a worn or missing clip helps restore reliable hinge support and consistent door operation.

• Retains the hinge/hinge pin to prevent shifting or separation
• Helps maintain door alignment to avoid rubbing, sagging, or binding
• Replaces a clip that is bent, cracked, corroded, or missing
• Common signs it's needed: loose or wobbly door, difficulty closing, misaligned door, visible damaged/missing clip

• Unplug the appliance and, if applicable, remove items from the door to reduce weight
• Support the door before working on the hinge
• Remove any hinge cover/fasteners, swap the clip, and ensure it seats fully
• Reassemble and check door alignment and smooth operation

This part has been discontinued and is no longer available.

Supports and pivots the hinged dryer top panel for service access. Replace if cracked, broken, or causing wobble, scraping, or alignment gaps.

Idler pulley maintains belt tension in your dryer drum assembly. Replace if the wheel is cracked, bracket is broken, or pulley has worn bearings.

Idler pulley maintains belt tension in your dryer drum assembly. Replace if the wheel is cracked, bracket is broken, or pulley has worn bearings.

Idler pulley maintains belt tension in your dryer drum assembly. Replace if the wheel is cracked, bracket is broken, or pulley has worn bearings.

Get your dryer spinning smoothly again - install the Whirlpool 341241 OEM Drum Belt in minutes.

Why this belt?

• Exact factory spec: 92 ¼-inch length × ¼-inch width, 4 ribs / 3 grooves - built to Whirlpool standards, not a generic copy.
• Broad compatibility: Fits most Whirlpool-made dryers - Kenmore 110-series, Roper, Estate, Maytag, KitchenAid, Admiral, Crosley, Amana & more.
• Quiet, durable rubber: Reinforced EPDM resists cracking and stretch for years of reliable tumbling.

Fixes these common dryer problems

DIY install — about 15 minutes

1. Unplug dryer; remove lint screen housing & front panel.
2. Release belt tension at idler pulley; lift drum slightly to slide old belt off.
3. Loop new belt around drum, idler pulley and motor pulley (ribbed side down).
4. Re-assemble, run test cycle - enjoy quiet, consistent tumbling.

This motor base is the replacement support that secures and positions the dryer motor assembly, helping restore stable alignment and minimize excess noise or vibration during operation. What it does:

• Supports and mounts the motor to the appliance chassis to keep the motor properly aligned
• Helps maintain correct spacing between the motor and drive components for smooth operation
• Reduces motor movement that can cause rubbing, vibration, or unusual noise
• Can address symptoms such as excessive vibration, banging, or misaligned motor movement

• Disconnect power to the appliance before starting any repair
• Follow the appliance's service manual or exploded parts diagram for correct removal and reassembly
• Use appropriate tools and take care with sharp sheet-metal edges
• Retain or transfer any original mounting hardware unless new fasteners are explicitly listed

Replacement machine bolt for securing panels, brackets, and components in dishwashers, dryers, washers, and laundry centers. Restores fit if missing.

Dryer drum won't turn or squeals? This motor pulley guides the drive belt for smooth drum rotation. Restores reliable operation when worn or damaged.

This split-phase motor assembly powers a dryer's drum and blower on qualifying 29" export 50Hz models, restoring rotation and airflow for normal drying performance. Designed as a direct-replacement motor assembly. What it does:

• Drives the dryer drum and blower fan to circulate air through the drum.
• Helps re-establish regular tumbling and airflow when the motor has failed.
• Commonly replaces motors that hum, do not start, or stop suddenly during cycles.

• Disconnect power before attempting service to avoid shock or injury.
• Handle the motor and wiring harness carefully to avoid pinched wires or damaged terminals.

This part has been discontinued by the manufacturer and is no longer available.

Dryer won't start or stops mid-cycle? A worn drive motor is often the cause. This motor turns the drum and circulates air. Moderate DIY repair.

Dryer won't start or stops mid-cycle? A worn drive motor is often the cause. This motor turns the drum and circulates air. Moderate DIY repair.

Dryer won't start or stops mid-cycle? A worn drive motor is often the cause. This motor turns the drum and circulates air. Moderate DIY repair.

This part is a motor clamp. This is a genuine OEM part and has been sourced directly from the manufacturer. This part is intended to replace a deteriorated, damaged, or broken motor clamp on certain makes of indoor appliance models. Motor clamps are essential for properly securing the drive motor on various types of indoor appliances such as washers, dryers, and refrigerators. Without the use of a motor clamp, the drive motor is free to move around or become detached. This can easily cause serious damage to the equipment and prevent proper functionality. Proper tools are needed to replace this part and appropriate safety measures should be adhered to when working on any type of equipment. For accurate information on how and where to install this replacement motor clamp, specific manufacturer diagrams should be referred to.As an authentic replacement part, this motor clamp can be used on multiple different models of washers, dryers, refrigerators, and washer/dryer combos manufactured by Kenmore, Maytag, Whirlpool, and Amana. Please note that this motor clamp is a genuine part made of high-quality materials and is sold individually.

This part has been discontinued and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

Self-drilling screw secures panels, brackets, and trim without pre-drilling. Replace missing or stripped screws during appliance repair or reassembly.

Complete burner assembly with gas valve, coils and igniter. Setup for natural gas.

This LP gas conversion orifice adjusts gas flow for compatible gas ranges and cooktops when converting from natural gas to liquid propane, helping the appliance run safely and correctly after conversion. What it does:

• Replaces the burner orifice to reduce gas flow for LP fuel pressure and correct flame size
• Helps restore consistent, stable burner flames after an authorized LP conversion
• Addresses symptoms like unusually large or yellow flames, poor ignition, or unstable burner performance after conversion
• Works with the appliance's existing valve and burner components as part of a proper conversion

• Follow the appliance manufacturer's LP conversion instructions and parts list exactly
• Turn off gas supply and disconnect power before servicing
• Use correct torque and fittings; do not force or cross-thread the orifice
• Always perform an approved gas leak test and check burner flames after installation

The Terminal Block Kit is an OEM part for Whirlpool dryers. This kit includes the terminal block, wires, wire connectors, screws, brackets and instructions.

Common causes of a bad terminal block include overheating due to loose connections, corrosion from moisture exposure, and physical damage from handling or installation errors.

Symptoms of a bad terminal block kit include:

• Dryer not starting or losing power during operation
• Burning smell or visible burn marks near the terminal block
• Loose or frayed wires connected to the terminal block
• Intermittent electrical issues or malfunctioning controls

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Terminal Block Kit is an OEM part for Whirlpool dryers. This kit includes the terminal block, wires, wire connectors, screws, brackets and instructions.

Common causes of a bad terminal block include overheating due to loose connections, corrosion from moisture exposure, and physical damage from handling or installation errors.

Symptoms of a bad terminal block kit include:

• Dryer not starting or losing power during operation
• Burning smell or visible burn marks near the terminal block
• Loose or frayed wires connected to the terminal block
• Intermittent electrical issues or malfunctioning controls

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
