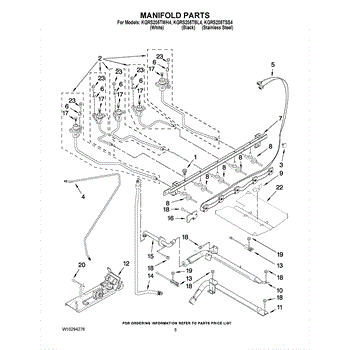

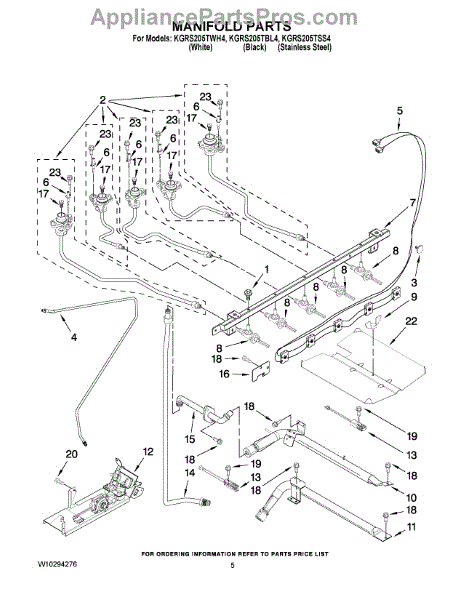

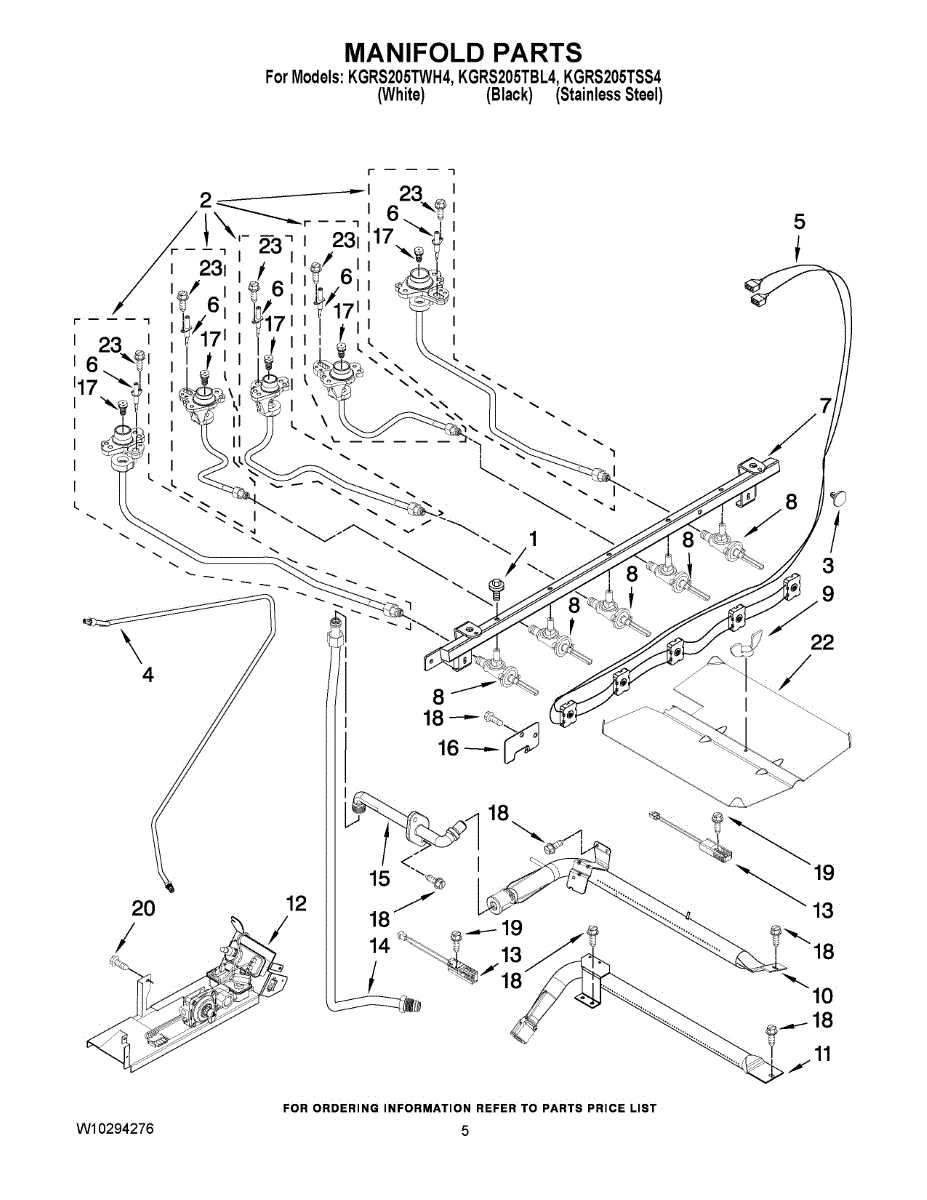

Parts for Kitchenaid KGRS205TBL4: 04 - Manifold Parts

The Torx Screw is an OEM replacement part for Whirlpool brand appliances. The Torx Screw is responsible for providing secure and stable connections between different components of washing machines, dryers, dishwashers, and more. These screws are characterized by their star-shaped drive design, which offers better torque transfer and reduces the risk of stripping or cam-out. Sold individually. 7-18 x 3/4"

Causes of a bad Torx screw can include stripping of the screw head, rust or corrosion from prolonged exposure to moisture, or damage from over-tightening or cross-threading. A compromised screw can lead to loose or insecure parts, which can affect the performance and safety of the appliance.

Symptoms of a bad Torx screw include:

• The screw head being stripped and difficult to turn
• Rust or corrosion visible on the screw
• The screw not holding components securely
• Loose or rattling parts within the appliance

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This switch harness links the five valve-mounted ignition switches to the spark system so the surface burners light when you turn a knob. Replacing a damaged harness restores consistent, reliable ignition across all burners.

• Provides the electrical path from the valve/knob-activated switches to the spark module to ignite the burners
• Failure can cause no click/spark on one or more surface burners
• Stuck or shorted switches may cause constant clicking even with knobs off
• Intermittent ignition or burners lighting only when the knob is positioned just right
• Visual clues include cracked switch bodies, brittle insulation, or burned/broken wires

• Disconnect power and shut off gas supply before servicing
• Remove grates and knobs; lift the cooktop or top panel to access the valve switches
• Note wire routing and valve order; seat each switch on its valve stem and connect leads securely away from heat
• Restore power and test each burner for proper spark before reassembly

This surface burner spark electrode creates the arc that lights the gas at the burner. Replacing a worn or cracked electrode restores quick, reliable ignition on your gas cooktop or range.

• Generates a high-voltage spark to ignite the surface burner gas
• Sits beside the burner head and fires when a control knob is turned
• Common symptoms: burner won't light, no/weak/intermittent spark at one burner, visible cracks in the ceramic, arcing to the cooktop
• Helps restore consistent ignition when the original electrode is damaged or contaminated

• Disconnect power and shut off gas; allow the appliance to cool completely
• Remove burner cap and head to access the electrode; access may be from the top or beneath the cooktop per your model's service information
• Transfer any mounting hardware from the old part; route the spark wire as originally and seat the tip at the same gap/position to the burner
• Avoid striking or overtightening the ceramic insulator; keep the tip clean and dry during installation

A direct-replacement manifold pipe that routes gas from the valve assembly to the burners, restoring proper fuel delivery for safe, consistent ignition and cooking performance. What it does

• Channels gas from the control valve to individual burners so they can ignite.
• Helps maintain steady burner flames for even heating.
• Failsafe symptoms: burners not lighting, weak/uneven flames, or persistent gas odor near the range.
• Works with the range's valve and burner assembly to support normal operation.

• One manifold pipe

• Turn off the gas supply and electrical power before starting work.
• Use appropriate fittings and thread sealant rated for gas; tighten to manufacturer torque specs.
• After installation, check all connections for leaks with a soap solution or a gas leak detector.

This wing nut is a hand-tightening fastener used to secure small appliance components for easy tool-free adjustment or removal. It offers a simple replacement when the original nut is lost, stripped, or broken. What it does:

• Secures panels, brackets, or components that require occasional removal or adjustment
• Allows tool-free tightening and loosening with built-in wings for finger grip
• Restores proper fit where a missing or damaged nut causes rattling, looseness, or instability
• Designed for repeated hand-operation without specialized tools

• Disconnect power to the appliance before performing any work to avoid shock or injury
• Thread by hand until snug; avoid overtightening to prevent stripping threads or cracking surrounding parts
• Inspect mating threads and replace if damaged to ensure secure fastening
• Use appropriate size and thread type—do not force a mismatched nut onto the stud

The Oven bake Igniter is an OEM part for Whirlpool ovens. It is a crucial component that ignites the gas to create the flame needed for baking and broiling. By heating up to the necessary temperature, it allows the gas valve to open and ignite the gas, ensuring the oven reaches and maintains the desired cooking temperature.

Causes of a bad igniter can include electrical failures, wear and tear over time, or damage due to repeated heating cycles. An igniter can also degrade if exposed to food spills or cleaning chemicals.

Symptoms of a bad igniter include:

• Oven not heating up
• Delayed ignition or no ignition at all
• Weak or intermittent flame
• The smell of gas without ignition

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Oven Igniter is an OEM part for Whirlpool ovens, designed to ignite the gas in the oven burner, allowing it to heat. This crucial component is responsible for creating the spark that starts the combustion process, enabling your oven to reach the desired temperature for baking or broiling.

Causes of a bad oven igniter include wear and tear from regular use, a buildup of residue that can inhibit the igniter's ability to heat properly, or electrical issues that prevent the igniter from drawing enough current.

Symptoms of a bad Oven Igniter include:

• Oven not heating up at all
• Oven takes longer than usual to heat up
• Gas smell when the oven is turned on, indicating gas is not igniting

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This orifice is a small gas flow fitting for a range or cooktop burner that helps regulate fuel delivery for proper flame performance. It restores correct burner operation when the existing orifice is clogged or damaged. What it does:

• Controls the amount of gas delivered to a specific burner for correct combustion
• Helps restore even, steady flame or consistent heat output
• Commonly replaced when burners sputter, produce weak flames, or will not light reliably
• Works as a direct-fit replacement for the matching OEM orifice on compatible gas ranges/cooktops

• One orifice

• Turn off the gas supply and unplug the appliance before beginning service
• Use correct-sized wrenches and avoid overtightening; follow OEM torque if available
• After installation, check all connections for leaks with a soap solution or approved gas leak detector

This natural-gas orifice spud is sized for the 5K burner position on compatible gas cooktops and ranges. It meters gas to the burner to set proper flame height, helping restore consistent heat when the original orifice is clogged, damaged, or incorrect. What it does:

• Regulates gas flow for the designated burner; calibrated for the 5K position on natural gas systems
• Can help resolve weak or oversized flames, yellow/lazy flames, uneven heating, or intermittent ignition
• Required when converting back to natural gas on applicable units; not for LP gas
• Installs in the orifice holder/manifold beneath the burner head

• Shut off gas supply and power; allow the cooktop/range to cool completely
• Remove burner cap and head to access the orifice
• Use the correct nut driver; hand-start threads and tighten snugly—do not overtighten
• Reassemble, leak-check connections with soapy water, and verify flame quality per the service instructions

Precision-machined orifice spud that meters natural gas to a range or cooktop burner. The #9 size restores correct fuel flow and flame characteristics when replacing a clogged or damaged orifice or when installing the model's specified natural-gas orifice.

• Regulates gas flow to the burner for proper flame size with natural gas
• Replaces a worn, blocked, or stripped orifice to improve flame quality
• Used during fuel conversion when the model calls for a #9 NG orifice
• Helps with symptoms: small/weak flame, uneven flame pattern, or a burner that won't stay lit

• Disconnect power and shut off the gas supply; allow the appliance to cool
• Hand-start threads, then snug gently—do not overtighten; keep the orifice and holder free of debris
• Restore gas, check all connections for leaks with a soapy-water solution, and verify proper flame

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Size: 10-24X5/16-NI

Size: 8-18 x 1/2 inch.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal
