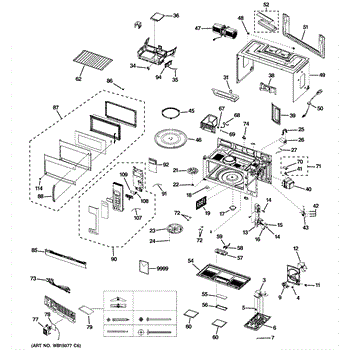

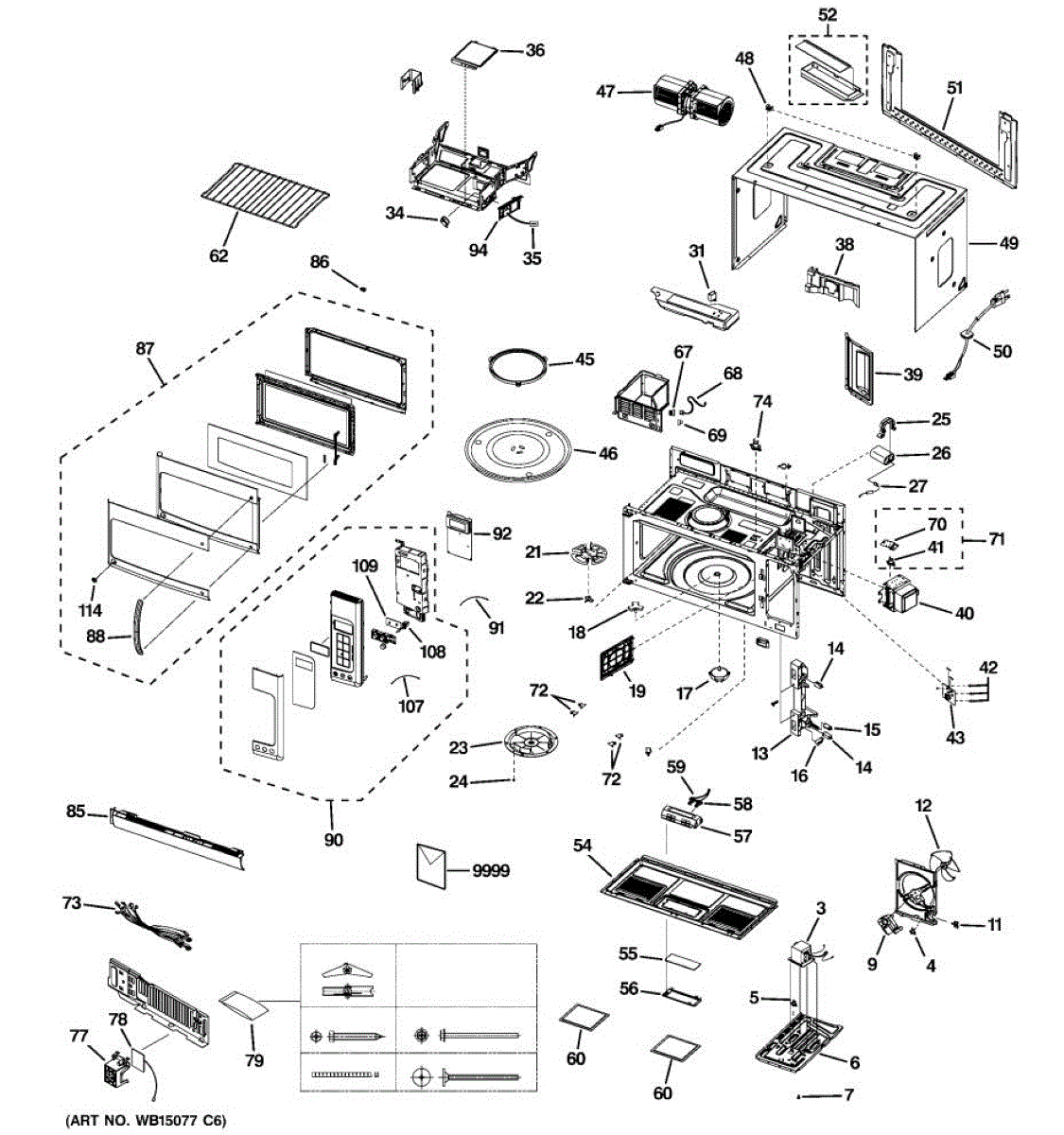

Parts for Ge DVM1950DR1BB: 01 - Microwave Parts

This thermostat switch is a temperature-sensitive safety device used in select appliances to open or close an electrical circuit at a set temperature. Replacing a failed switch helps restore proper temperature control and protects components from overheating.

• Monitors temperature and changes state (open/closed) at its calibration point
• Helps prevent overheating or incorrect temperature regulation
• Common failure signs: no heat/overheating, intermittent cycling, or unit shutting off prematurely
• May be mounted to a bracket or surface near the heated area, depending on the model

• Disconnect power before servicing; verify no voltage is present
• Note wire positions and orientation of the original switch before removal
• Transfer any mounting hardware from the old part if not reusable
• After installation, test operation and observe initial heating cycle for proper function

This temperature-control thermostat senses compartment heat with a capillary bulb and cycles the heating circuit to maintain your set temperature. Replacing a worn thermostat restores more consistent performance and helps correct underheating, overheating, and erratic temperature swings.

• Regulates heat to match the temperature you set
• Senses temperature via an integral capillary tube and sensor bulb
• Opens and closes contacts to control the heating element or burner
• Failure symptoms can include long warm-up, inaccurate temps, overheating, or uneven results

• Disconnect power and, if applicable, shut off gas; allow the unit to cool completely.
• Handle the capillary tube carefully—do not kink, crease, or cut it.
• Route the sensor bulb and tubing through original clips and path for accurate sensing.
• After installation, perform temperature calibration per service instructions if required.

This washered screw secures panels and internal components where a combined screw-and-washer fastener is required, restoring proper fit and stopping movement or rattling. Simple replacement with the correct fastener keeps assemblies aligned and stable. What it does

• Secures panels, brackets or components where a washered screw is specified
• Replaces missing, stripped or corroded fasteners that allow vibration or gaps
• Helps stop rattling, loose panels or misaligned parts caused by a failed screw
• Provides a sealed bearing surface to distribute load and prevent pull-through

• One washered screw

• Disconnect power and/or water to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid cam-out and fastener damage
• Align parts before tightening and snug; avoid over-tightening which can strip threads or crack plastic

This fan motor spins the oven/convection fan to circulate heat for even cooking and help exhaust hot air. Replaces a worn or noisy motor to restore proper airflow and temperature consistency in the appliance. What it does:

• Drives the convection/circulation fan blade to move air through the oven cavity
• Helps maintain even cooking and consistent oven temperatures
• Reduces buzzing, grinding, or failure-to-spin symptoms when the old motor is failing
• Works as the mechanical drive for air exhaust and internal circulation systems

• Disconnect power to the appliance before servicing to avoid electrical shock
• Handle the motor and wiring gently; match mounting orientation and connector type during install
• Verify blade and shroud clearance before powering the unit

This latch body is the plastic housing for the door interlock system. It holds the door switches in position and guides the door latch so the appliance can sense when the door is closed and operate safely.

• Holds and aligns the door interlock switches
• Guides the latch to properly engage/disengage when the door opens and closes
• Can help resolve issues like the unit not starting, running with the door open, or showing door error messages
• Restores proper, safe door sensing and operation

• Unplug the appliance to disconnect power before servicing
• Access is typically from the front; remove necessary panels to reach the latch body and switches
• Transfer switches and hardware from the old housing to the new one as configured
• Verify correct switch orientation and secure mounting before reassembly and testing

The Microwave Door Switch is an OEM part for GE microwaves, designed to prevent the microwave from operating when the door is open by interrupting the power whenever the door is not securely closed. The door switch is an essential safety feature.

Symptoms of a failing Microwave Door Switch include:

• The microwave not starting or heating
• Running when the door is opened
• Unusual noises when the door is closed

Causes of a bad Microwave Door Switch can result from repeated opening and closing of the door or slamming that can cause the switch to degrade or become misaligned, leading to intermittent or failure.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Monitor Switch is an OEM replacement part for GE microwave ovens. Located internally on the turntable control circuit board, this switch monitors rotation of the turntable during cooking cycles.

Causes of failure involve degradation of the electrical contacts from continuous arcing loads over years of use combined with vibration stresses.

Symptoms of a faulty monitor switch include:

• The turntable no longer rotates or spinning intermittently
• Cooking cycles aborting prematurely with error messages
• Screeching or grinding noises emanating from beneath cavity
• Visible burnt spots on turntable drive assembly

This genuine GE switch is also compatible with select Hotpoint and RCA models.

The Lower Lever Switch is an OEM replacement part for GE microwaves. This component activates the door interlock switch when the microwave door is closed. It ensures that the microwave only operates when the door is securely closed, preventing any operational hazards.

Symptoms of a bad Lower Lever Switch include:

• The microwave not starting, indicating the door isn't recognized as closed
• The appliance operating with the door open, a clear safety hazard
• Unusual sounds or issues when attempting to start the microwave
• The need to apply extra pressure to keep the door closed

Common causes for a malfunctioning Lower Lever Switch can be attributed to mechanical wear from frequent use, damage incurred during cleaning or use, or internal issues affecting the switch’s activation mechanism.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a turntable motor intended for use with microwave ovens. A turntable motor is required to rotate the turntable so that food is heated evenly. With time, because of misuse, or as a result of accidental damage, the turntable motor may malfunction or fail. To continue using the appliance efficiently, the turntable motor must be replaced.The primary indication that there is something wrong with the turntable motor is a tray that doesn't spin. When replacing the turntable motor, it is essential to disconnect the machine from the power source. Wear gloves for safety. The part can be replaced easily by removing screws from the back and side of the microwave, which allows the panel to swing open. Take the wires of the old motor and reconnect them to the new one.This turntable motor is an authentic OEM replacement part. It is sold as an individual unit. The turntable motor is made of high-quality, durable materials. The component comes sourced directly from the manufacturer. The replacement part can be installed in several models of microwaves. It is compatible with appliances produced by General Electric, RCA, and Hotpoint brand appliances.

This turntable coupler connects the microwave's turntable motor to the glass tray to drive smooth rotation during cooking. Replacing a worn coupler restores even heating and prevents the tray from slipping, stalling, or wobbling. What it does:

• Transfers rotation from the turntable motor to the glass tray
• Centers and supports the tray for stable, even spinning
• When worn or cracked, may cause the turntable not to turn, slip, wobble, or click/grind at the center hub
• Helps restore consistent heating by ensuring proper tray movement

• 1 turntable coupler

• Disconnect power by unplugging the microwave or switching off the breaker before service
• Remove the glass tray and roller ring; lift the old coupler straight up off the motor shaft
• Align the new coupler with the shaft and press firmly until fully seated

The Capacitor is an OEM part for GE microwaves. This component stores and releases electrical energy to help power the microwave's high-voltage circuits, essential for the proper functioning of the appliance.

Over time, capacitors can fail due to electrical surges, overheating, or degradation of the internal components. When a capacitor goes bad, it can affect the microwave's ability to generate heat and operate efficiently.

Symptoms of a bad Capacitor include:

• The microwave not heating food
• Unusual humming or buzzing noises
• The microwave shutting down or not starting

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The High Voltage Diode is an OEM part for GE microwaves. This high-voltage diode is crucial for converting alternating current (AC) to direct current (DC), enabling the magnetron to generate the microwave energy needed for cooking. Measuring approximately 3-1/2" in length, this diode features a banded side with a #8 ring terminal and a non-banded side with a 1/4" female quick connect.

You should replace the diode-H.V assembly if it becomes faulty due to electrical issues, wear and tear, or physical damage. Continuous exposure to high voltage can cause the diode to deteriorate over time, leading to malfunction.

Symptoms of a bad diode-H.V assembly include:

• The microwave not heating food
• A burning smell or unusual noises during operation
• The microwave shutting off unexpectedly
• Visible damage or burn marks on the diode

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This run capacitor helps the appliance motor start and run smoothly by storing and releasing electrical energy. Replacing a worn capacitor can restore reliable motor operation and reduce abnormal motor noise or cycling. What it does:

• Provides the brief power boost motors need to start and maintain RPM
• Helps stabilize motor voltage and improve run efficiency under load
• Commonly linked to symptoms such as motors that hum but won't start, slow or intermittent motor operation, or unusual motor noise
• Reduces stress on motor windings that can lead to premature failure when functioning properly

• One motor capacitor

• Always disconnect power at the breaker or unplug the appliance before servicing
• Capacitors can hold a charge; discharge safely
• Observe proper polarity and mounting location during installation; secure wiring and connectors

This 50-watt halogen lamp restores bright, reliable lighting in your appliance. Replace a burned-out bulb to see clearly while cooking and checking food progress, keeping the cavity or cooktop area illuminated as designed.

• Provides focused illumination for the interior cavity or cooktop/task lighting
• Restores light when the door opens or the light pad/switch is used
• Common symptoms: no light, dim or flickering light, or darkened/burned-out bulb
• Using the correct 50-watt halogen rating helps protect the socket and wiring

• Disconnect power (unplug or switch off the breaker) before replacing the lamp
• Allow the lamp and surrounding area to cool completely
• Do not touch the glass; handle with clean gloves or a tissue to avoid oil contamination

This lamp cover is the replacement light lens that protects and diffuses the appliance's interior lamp, restoring proper illumination and shielding the bulb from spills and debris. It helps keep the lamp visible and reduces hot-spot glare. What it does:

• Protects the interior lamp or bulb from food, moisture, and impacts
• Diffuses and directs light for more even interior illumination
• Prevents direct contact with the bulb for safer operation
• Replaces cracked, discolored, or missing lamp covers that cause poor lighting

• Disconnect power or unplug the appliance before starting any repair
• Handle carefully to avoid chipping or cracking the lens during installation
• Replace only with the correct cover to ensure proper fit and safe operation
• Do not operate the appliance with a damaged or loose lens in place

This magnetron assembly produces the microwave energy used to heat food and includes a built-in thermal cutoff for overheating protection. Replacing a failed magnetron restores heating performance and safe operation in microwave ovens. What it does:

• Generates high-frequency microwaves that cook and warm food.
• Thermal cutoff helps stop operation if the magnetron overheats.
• Commonly replaced when the oven stops heating, heats intermittently, or has weak heating.
• If the oven produces loud humming, arcing, or unusual burning smells.

• Disconnect power and unplug the appliance before service.
• High-voltage components (magnetron and capacitor) can retain lethal charge — discharge the capacitor and follow safety procedures.
• Handle the magnetron carefully; avoid touching terminals or the ceramic output window.

This noise filter assembly reduces electrical interference on the appliance's power line to help prevent control malfunctions and limit radio/TV interference. It replaces a damaged or noisy filter to restore proper, quieter operation. What it does:

• Filters EMI/RFI on the incoming power line to reduce electrical noise
• Helps prevent interference-related control/display glitches and resets
• Can stop buzzing or intermittent electrical noise caused by a failing filter
• Protects downstream control boards and sensitive electronics from transient noise

• Disconnect power at the breaker or unplug the appliance before servicing.
• Observe original wiring orientation and secure all connectors; replace only with identical part.
• Use basic hand tools; avoid shorting terminals or touching energized circuits.

The Cooking Tray is an OEM part for GE microwaves. This glass tray rotates to ensure even cooking and heating of food. It is designed to fit perfectly in the microwave, providing a stable platform for cookware and dishes.

Over time, the cooking tray can become damaged or worn out due to regular use, accidental drops, or exposure to extreme heat. Replacing a damaged cooking tray is essential to maintaining the microwave’s functionality and ensuring food is heated evenly.

Symptoms of a bad cooking tray include:

• Cracks or chips in the glass
• Difficulty in rotating or wobbling during operation
• Uneven cooking or heating of food
• The tray not fitting properly in the microwave

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This holder nut assembly secures a component to the appliance frame, restoring proper mounting and reducing vibration or movement. Replace a damaged or missing holder nut to keep connected parts stable and functioning. What it does:

• Secures a component or assembly to the appliance frame or mounting bracket
• Prevents looseness, rattling, and misalignment caused by worn or missing mounting hardware
• Restores a safe, stable connection that helps maintain normal operation
• Matches OEM mounting geometry for a direct replacement when the original nut is damaged

• Disconnect power to the appliance before servicing to avoid shock or injury
• Access the mounting area by removing the appropriate panel or cover per your model's service instructions
• Start threads by hand to avoid cross-threading, then tighten with the correct tool; do not overtighten
• If any fasteners or nearby components are damaged, replace them as needed for a secure installation

This mounting plate assembly is the rear wall bracket that supports and secures the microwave during installation. Replacing a bent or missing plate ensures a safe, level mount and stable operation without vibration or shifting.

• Acts as the rear-wall support the microwave hangs on and bolts to
• Maintains proper, level alignment of the unit and door
• Helps prevent vibration, rattling, or shifting during use
• Replace if the plate is bent, damaged, corroded, or missing

• Disconnect power and have a second person support the microwave before removal/installation
• Follow your model's installation template and manual for hole locations and hardware
• Fasten to wall studs or appropriate anchors; level the plate before tightening
• Verify clearances and door swing before fully tightening mounting hardware

This hood damper assembly opens to allow exhaust airflow and closes to help block outside drafts and odors when the fan is off. It restores proper venting and prevents back-drafts in over-the-range hoods and microwaves. What it does:

• Opens with the vent fan to let cooking smoke and steam exit the home.
• Closes when the fan is off to reduce backdrafts, outside air, and odors.
• A faulty or stuck damper can cause reduced airflow, rattling noises, or air blowing back into the kitchen.
• Works as the moving flap between the appliance exhaust and the ductwork to control airflow direction.

• Disconnect power to the appliance (unplug or shut off the circuit breaker) before servicing.
• Access typically requires removing the hood or microwave grille/cover; keep track of screws and mounting hardware.
• Basic hand tools (screwdrivers, possibly a nut driver) are usually sufficient; handle the damper flap gently to avoid bending.
• After installation, restore power and run the fan to ensure the damper opens and closes smoothly.

The Glass Light Lens is an OEM part for GE microwaves. It covers the light bulb inside the microwave, protecting it from food splatters and ensuring even illumination.The lenses measure approximately 7" x 3".

Causes of a bad glass light lens can include accidental impact, exposure to high heat, or general wear and tear.

Symptoms of a bad glass light lens include:

• Cracks or breaks in the glass
• Diminished visibility inside the microwave
• Light not being properly diffused
• Potential exposure of the light bulb to food splatters

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This glass light cover shields and diffuses the cooktop light, protecting the bulb from heat, grease, and splatter while maintaining clear, even illumination over your cooking surface.

• Covers and protects the cooktop light bulb
• Diffuses light for more even illumination and reduced glare
• Helps keep grease and debris out of the light cavity
• Replace if cracked, missing, discolored, or not staying secured

• Disconnect power to the appliance before servicing and allow the area to cool
• Support the cover while removing any retaining screw(s) or release tabs
• Reuse original hardware/clips as applicable and seat the cover fully
• Restore power and test the light for proper operation

This is the clear glass lens that covers the cooktop light on select GE over-the-range units. It shields the bulb from grease and splatters while allowing bright, even illumination of the cooking surface below.

• Protects the cooktop light bulb from grease, moisture, and debris
• Restores proper lighting if the original lens is missing, cracked, or stained
• Helps maintain safe, even illumination of the range area
• Common symptoms: broken or missing lens, dim or uneven light due to a damaged cover

• Disconnect power to the appliance before servicing
• Allow bulbs and surrounding area to cool completely
• Handle glass carefully to avoid chipping; wear cut-resistant gloves
• Ensure the lens seats fully and any retaining tabs/screws are secured per the product's service instructions

This replacement light socket restores safe, consistent power to the appliance light. If the original socket is heat-damaged, loose, or shorted, installing a new socket brings back reliable illumination and solid electrical contact.

• Provides the electrical connection and physical support for the light bulb
• Replaces cracked, scorched, or worn sockets that cause poor contact
• Helps resolve a light that won't turn on, flickers, or works intermittently with a known-good bulb
• Designed for a secure fit to maintain dependable lighting performance

• Disconnect power at the breaker before servicing.
• Allow the area to cool before working near any heated light cavity.
• Transfer wires one at a time (or take a quick photo) to ensure correct reconnection.
• Install a bulb type and wattage specified for your model; avoid touching bulb glass with bare hands if your model uses a halogen lamp.

The Halogen Light Bulb is an OEM part for GE microwaves and ovens. It provides interior lighting, allowing you to clearly see the contents inside the appliance during operation. This illumination is essential for monitoring cooking progress and ensuring safety.

You should replace the halogen light bulb if it burns out or becomes damaged. Causes of a bad halogen light bulb can include regular use over time, electrical surges, or physical impact that can cause the bulb to break.

Symptoms of a bad halogen light bulb include:

• The light not turning on when the microwave or oven door is opened
• Flickering or dim lighting inside the appliance
• A burnt-out appearance or visible breakage in the bulb

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Air Filter is an OEM part for GE microwaves. It is designed to filter out grease, smoke, and odors from the air that passes through the microwave's ventilation system, helping to keep your kitchen air clean and free from contaminants. This part measures approximately 7" by 7".

You should replace the air filter if it becomes clogged or saturated with grease and debris. Over time, the filter can lose its effectiveness, reducing the microwave's ventilation performance and potentially leading to unpleasant odors.

Symptoms of a bad air filter include:

• Reduced ventilation performance
• Lingering odors after cooking
• Visible grease buildup on the filter

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This wire oven rack provides a stable, heat-resistant surface for cookware and bakeware, restoring proper support and cooking alignment in your oven. Designed to slide into existing shelf tracks for everyday use. What it does

• Supports pots, pans and bakeware for even cooking and roasting
• Restores proper shelf height and prevents cookware from tipping
• Allows smooth sliding in and out of the oven on existing track guides
• Replaces bent, warped or missing oven shelving that interferes with cooking

• One wire oven rack

• Slide the rack into the oven's shelf guides until fully seated; no tools typically required
• Allow the oven to cool before handling and wear gloves to avoid sharp edges
• Verify correct orientation (flat side up) and that rack locks into track stops
• Check for bent guides or obstructions before forcing

This gas sensor monitors moisture levels during sensor-cook cycles so the control can adjust time and power for consistent results. Replacing a failed sensor restores reliable sensor-cook performance. What it does:

• Detects steam/vapor inside the cavity and sends feedback to the control board
• Helps the appliance automatically set or adjust cooking time on sensor settings
• Failure symptoms can include sensor-cook not starting, stopping early, or running too long
• May trigger "Sensor" or general error messages related to sensor-cook functions

• Disconnect power before servicing; if working on a microwave, discharge the high-voltage capacitor
• Access is typically behind the control panel or air channel; avoid touching/contaminating the sensing surface
• Transfer any mounting clips/brackets and ensure the wiring connector is fully seated
• After installation, run a simple sensor-cook test to confirm operation

This temperature control thermostat regulates refrigerator temperature to help keep food cold and maintain proper cooling cycles. Replaces a failing mechanical control to restore consistent compressor on/off operation. What it does:

• Senses cabinet temperature and signals the compressor to cycle on and off
• Helps correct symptoms like inconsistent temperature, fridge running constantly, or not cooling
• Works with mechanical capillary-style temperature control systems
• Restores user control over interior temperature settings

• Disconnect power to the appliance before starting any repair
• Handle the capillary tube and sensing bulb carefully—avoid kinks or sharp bends
• Verify proper routing and secure mounting of the bulb per the original layout

This hardware assembly secures designated components in your appliance, restoring a tight, rattle-free fit after service or wear. Replacing damaged or missing fasteners helps keep panels and parts aligned and operating as designed.

• Provides the correct fasteners/spacers for the specified location on the unit
• Replaces stripped, lost, or corroded hardware
• Helps eliminate looseness, vibration, or rattling noises
• Supports proper alignment and fit of the associated part or panel

• Disconnect power before servicing; allow hot surfaces to cool
• Support the part being fastened to prevent damage or misalignment
• Match each fastener one-for-one; note orientation and any washers/spacers
• Hand-start threads and do not overtighten; verify clearances and operation after install

Restore a solid, comfortable grip on your microwave door. This door handle assembly replaces a cracked or loose handle, making the door easy to open and refreshing the stainless look of your appliance.

• Provides the handhold used to open and close the microwave door
• Replaces broken, cracked, or wobbly handles
• Helps maintain smooth door operation and proper latching
• Matches the stainless steel finish on compatible models

• Unplug the microwave before servicing
• Carefully remove the inner door trim/bezel to access the handle mounting screws; protect the glass and support the door
• Reuse the original mounting screws and tighten evenly without overtightening
• After reassembly, verify the door opens/closes smoothly and latches properly
