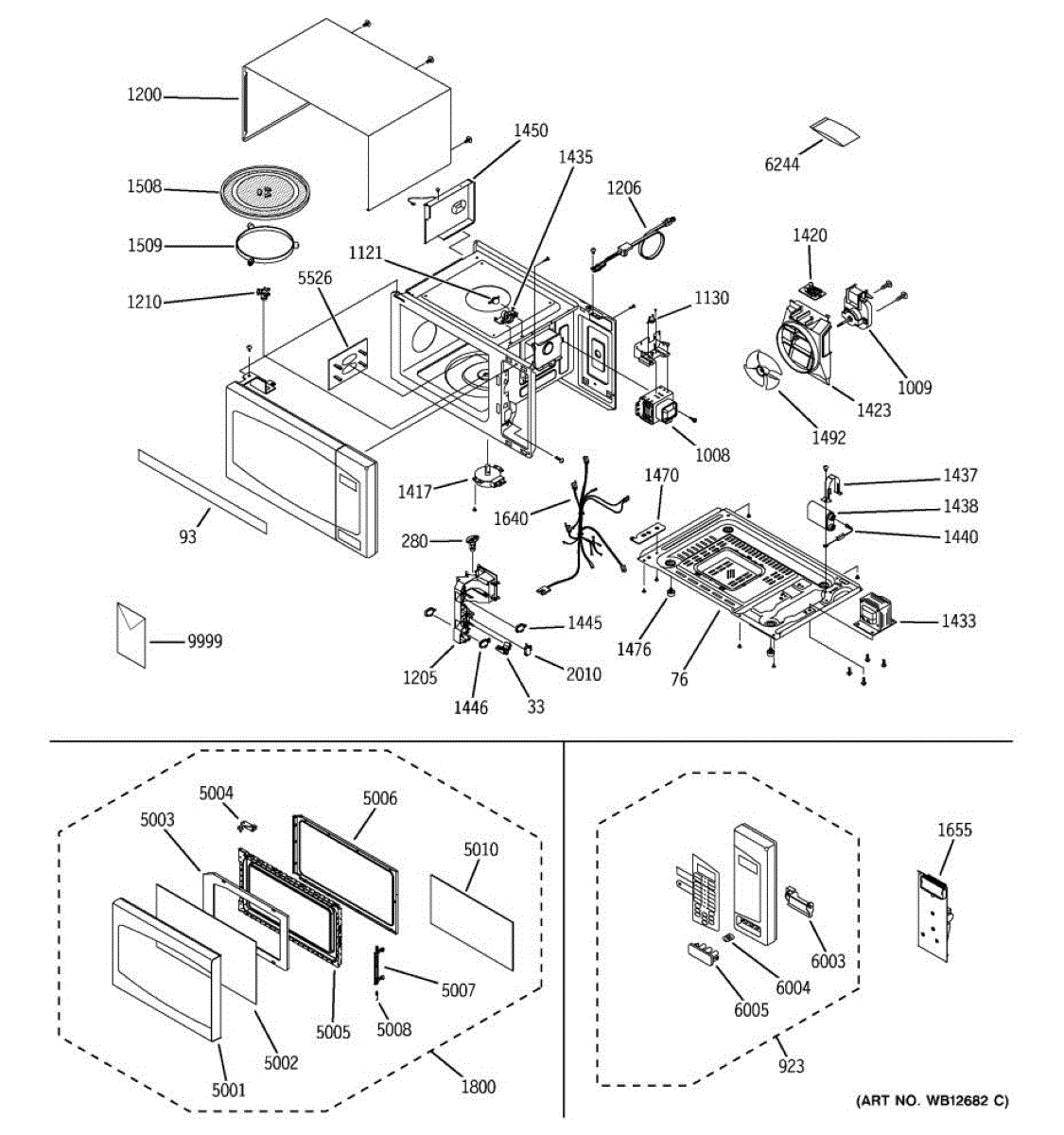

Parts for Ge JE2160BF02: 01 - Microwave Parts

This latch slider is the replacement sliding component used in the door latch assembly to help secure the appliance door and enable proper latching. Replaces a worn or broken slider to restore reliable door engagement. What it does

• Slides along the latch assembly to engage or release the door catch for secure closing
• Helps the door fully latch so the appliance can start and run normally
• Common symptom: door won't latch or stays ajar even when closed
• Common symptom: door latch feels loose, sticks, or makes noise when operated

• One latch slider

• Disconnect power (and water if applicable) before starting any repairs
• Removing the door or front panel may be required to access the latch assembly
• Use basic hand tools; handle trim and glass carefully to avoid damage
• Verify proper alignment of the slider and latch after installation before restoring power

This is a light bu, and it is made for microwaves. This is a genuine replacement part made by General Electric. This specific light bu has a voltage of 120 and a wattage of 25.A new light bu might be needed if the current one does not turn on when the microwave door is opened. The light bu should also be on when the microwave is in use so that the user may see the food during the heating cycle. It is common for light bu to burn out over time and they are very easy to replace when needed.This is an OEM part sourced directly from the manufacturer. It is sold individually and is compatible with microwaves made by General Electric.

The Magnetron is an OEM replacement part for GE microwaves. It is responsible for generating the microwave energy used for cooking and heating food. Over time, magnetrons can wear down and become less effective.

Symptoms of a bad Magnetron include:

• The microwave not heating food, even though it turns on and the timer counts down
• Unusual noises, such as a loud hum or buzz, during operation
• Burnt smells or smoke emanating from the microwave
• Error codes on the microwave’s display indicating a heating issue

Causes for a malfunctioning Magnetron can include a burnt-out magnetron, issues with the high-voltage diode that powers it, or problems with the control board that regulates its operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This microwave magnetron thermostat is an authentic OEM part sourced directly from the manufacturer. It is used in microwave ovens to prevent fires and extensive damage to the machine if the magnetron overheats. If the thermostat reaches an unsafe temperature, determined by the factory, it will stop the microwave from cooking. If this happens, the magnetron thermostat may be the culprit and should be replaced. A built-in safety feature will prevent the microwave from working until the thermostat is replaced. To start, disconnect the power from the microwave. Use a screwdriver to remove the trim kit. Use a safety drill bit to remove the microwave panels. Locate the thermostat that is connected to the magnetron. To start, disconnect the wires and remove the thermometer from the microwave. Install the new thermostat and connect the wires. Reassemble the microwave and reconnect the power. Test to make sure the power works with the new thermostat installed.This magnetron thermometer is an electrical part that is sold individually. It is designed for use in microwave ovens manufactured by General Electric and Hotpoint.

This door latch engages the microwave's interlock system when the door closes so the unit can operate only when sealed. Replacing a worn or broken latch restores proper door closure and reliable, safe startup.

• Engages the door interlock switches to allow operation only when closed
• Keeps the door secured and properly aligned
• Helps resolve issues like "Open/Close Door" messages or the unit not starting
• Typical symptoms include a door that won't latch, pops open, or requires pressure to start

What's included: 1 door latch Install notes:

• Disconnect power at the breaker or unplug before servicing; microwaves contain high-voltage components
• Access is typically through the door's inner trim; use non-marring tools to release clips and swap the latch
• If over-the-range, support the unit and avoid twisting the door to maintain alignment
• After replacement, verify the door closes smoothly and the oven recognizes the door as closed

This power cord assembly restores the main electrical connection to your appliance, providing a safe, routed supply line for consistent operation. Use it to replace a damaged, frayed, or non-functioning power cord and regain reliable power. What it does

• Replaces the appliance's main power cord to restore full electrical connection
• Fixes symptoms such as intermittent power, no power at the appliance, visible cord damage, or scorch marks at the cord connection
• Provides a factory-style replacement that routes and secures the cord where the OEM design intends
• Prevents unsafe operation caused by exposed or degraded wiring

• One factory-style power cord assembly

• Disconnect power at the breaker or unplug the appliance before beginning any work
• Route the cord through the strain relief and secure all terminal connections tightly
• If you see melting, corrosion, or damaged terminals, replace the mating parts.

This coupler connects two rotating shafts to transfer motor power to the driven assembly, restoring proper rotation and drive function. It's a direct-fit replacement that helps resolve drive interruptions and mechanical noise caused by a failed coupler. What it does:

• Joins the motor shaft to the driven shaft or gear assembly to transmit torque
• Restores rotation when a worn or broken coupler prevents the appliance from turning
• Reduces slipping and eliminates clunking or grinding noises caused by a damaged coupling
• Keeps shafts aligned to prevent premature wear of connected components

• Disconnect power before servicing to avoid electrical shock or injury
• Inspect mating shafts and fasteners for damage; replace damaged parts as needed
• Use basic hand tools; secure coupler per OEM torque/fastening recommendations

This replacement guide secures and positions a small component or harness inside the appliance to maintain proper alignment and prevent rubbing or binding. It restores correct routing where the original guide is cracked, broken, or missing. What it does:

• Routes and holds wiring or small components to prevent chafing and interference
• Keeps parts aligned for smooth operation and proper clearance
• Prevents vibration noise caused by loose or rubbing components
• Helps maintain factory fit where a damaged guide allows movement

• Disconnect power to the appliance before beginning any repair to avoid shock or injury
• Remove only the panels and fasteners necessary to access the damaged guide; keep hardware organized
• Plastic guides can be fragile—use gentle leverage with appropriate tools to avoid breaking mounting tabs

This high-voltage capacitor sits in the microwave's HV circuit, storing and releasing energy to power the magnetron. Replacing a weak or failed capacitor may restore heating performance and help reduce stress on other high-voltage components. What it does:

• Provides energy storage and filtering in the microwave's high-voltage circuit
• Works with the HV transformer and diode to supply power to the magnetron
• Common symptoms: runs but doesn't heat; loud hum/buzz during cook; blows the internal fuse or trips a breaker when cooking starts; visible bulging or leakage on the capacitor

• 1 high-voltage capacitor

• Unplug the microwave; for built-in/OTR units, switch off the circuit breaker as well
• The capacitor can retain a dangerous charge—use the proper discharge procedure
• Photograph wiring, transfer leads to the same terminals, and secure the capacitor in its bracket
• If no-heat persists, test the HV diode, transformer, and magnetron

This high-voltage diode assembly is part of the microwave's HV circuit. It converts the transformer's high-voltage AC to DC, enabling the magnetron to generate microwave energy so your unit can heat food properly.

• Rectifies high-voltage AC to DC in the microwave's high-voltage network
• Works with the HV transformer and capacitor to power the magnetron
• Failure may cause "runs but doesn't heat"
• Other possible signs include a loud hum during cook or a blown internal fuse at start-up

• Unplug the microwave; the HV capacitor can hold a dangerous charge—discharge it properly before servicing
• Observe diode polarity/orientation and install in the same direction as the original
• Ensure secure, insulated connections and proper routing away from sharp edges

The Primary and Secondary Door Switch is an OEM replacement part for GE microwaves. This part interrupts the power supply to the microwave when the door is opened.

Causes of bad door switches can include regular wear and tear, electrical malfunctions, or physical damage from slamming the door.

Symptoms of a bad Primary and Secondary Door Switch include:

• The microwave not starting or operating intermittently
• The appliance operating with the door open
• The interior light not turning on or off appropriately

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Microwave Door Switch is an OEM replacement part for GE microwaves. It is crucial for safety functionality as it detects when the door is properly closed and latched before initiating cooking cycles. The switch prevents operation if the door is ajar.

Causes of a bad door switch can include wear and grime accumulation over many years of use, impact damage, or failures in the plastic actuator or electrical components.

Symptoms of a bad door switch include:

• The microwave failing to start cooking even with the door closed and latched
• Error messages related to the door position being displayed
• Inability to lock or properly sense the closed door position

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement foot fits select GE microwaves. It provides a stable, cushioned contact point so the unit or its removable rack sits level, stays steady during operation, and helps protect surfaces from wear.

• Supports and cushions the microwave cabinet or a removable rack/accessory
• Helps keep the unit level to reduce wobble and vibration
• Protects interior and countertop surfaces from scuffs and marks
• Replaces missing, cracked, or flattened feet that cause rocking or rattling

• Disconnect power and allow the appliance to cool before servicing
• Remove the worn or missing foot and clean the mounting area
• Press or slide the new foot fully into place until secure
• The unit or rack sits level and stable before use

Color: clear. Measures about 16 inches in diameter.

The Guide Roller Assembly is an OEM part for GE microwaves. This assembly includes the rollers and support mechanism that enable the microwave turntable to rotate smoothly. It is crucial for ensuring even cooking and heating by allowing the turntable to spin steadily during operation. The roller glide is a circular plastic ring, approximately 11 inches in diameter. I

Causes of a bad guide roller assembly can include regular wear and tear, accumulation of food debris, or physical damage from heavy items placed on the turntable. These issues can hinder the turntable's rotation, leading to uneven cooking and potential damage to the microwave.

Symptoms of a bad guide roller assembly include:

• Turntable not rotating or rotating unevenly
• Grinding or squeaking noises during operation
• Visible damage or wear on the rollers
• Food heating unevenly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Interlock Switch is an OEM replacement part for GE microwaves. It acts as a safety device that prevents the microwave from operating unless the door is securely closed and latched. The switch monitors the door position and communicates with the main control board to allow or cancel cooking functions.

Causes of failure may include damage from excess heat over time or wear from repeated door openings and closings. Failures can compromise safety if the microwave operates unexpectedly while open.

Symptoms of a bad interlock switch include:

• Microwave can be turned on even when the door is open
• Error codes displayed related to door issues
• Inconsistent or faulty communication with the control board

This genuine OEM replacement part is also compatible with GE, Hotpoint, and select Kenmore microwave models.

This barrier screen is the molded door air baffle that helps direct and control refrigerator airflow to maintain proper cooling and protect interior components. It restores intended air circulation for more even temperatures. What it does:

• Directs cold air through the door to balance temperatures across compartments
• Prevents unwanted drafts and helps reduce hot/cold spots inside the refrigerator
• Helps keep vents and internal components protected from debris
• Reduces frost buildup caused by disrupted airflow

• Disconnect power before starting any repair to avoid electrical shock
• Remove the door bin or liner as needed to access the mounting clips
• Align the tabs and press until clips engage; do not force or pry on brittle tabs
• If mounting hardware is damaged, replace clips to ensure a secure fit

The Door Gasket is an OEM part for GE built-in microwaves. Installed around the inner edge of the microwave door, this rubber seal forms an important barrier and insulation component.

Symptoms of a defective door gasket include:

• Microwave leaking heat or emitting sounds/vibrations during operation
• Visible wear, cracks or shrinkage around the door sealing area
• Difficulty closing or locking the door securely
• Steam or condensation developing inside the cavity or door glass

Factors like age, heat deterioration or damage over time can compromise the pliable material.

This genuine OEM GE replacement is compatible with additional Hotpoint, RCA and Kenmore models.

This replacement hook fastens a mating part to your appliance, keeping the assembly properly retained and aligned. Replacing a worn or missing hook restores a snug fit, reduces rattles, and ensures components stay securely in place.

• Provides the retention point for a panel, grille, or assembly
• Maintains proper alignment and support during operation
• Helps prevent looseness, vibration, or rattling
• Symptoms include: part won't stay seated, difficulty latching, or a loose fit

• Disconnect power to the appliance before servicing
• Access the mounting area and note the hook's orientation and location
• Transfer and reuse any original screws/clips or hardware as required
• After installation, ensure the mating part engages fully and operates normally

This replacement spring hook secures a door/spring assembly to restore proper tension and alignment so the door closes and operates as intended. Fits the OEM spring mounting location and installs in minutes with basic hand tools. What it does:

• Latches and anchors a door or tension spring to maintain spring tension and proper door movement
• Helps stop door from sagging, not fully closing, or coming loose when the hook has worn or detached
• Durable stamped metal construction for reliable holding strength under normal use
• Works as the direct replacement piece for the corresponding OEM spring attachment point

• One spring hook replacement part

• Disconnect power (and gas or fuel if applicable) before starting repairs
• Relieve spring tension carefully; springs can be under high load—wear eye protection and gloves
• Use common hand tools (screwdriver, pliers) to remove and attach the hook; retain any clips or fasteners
