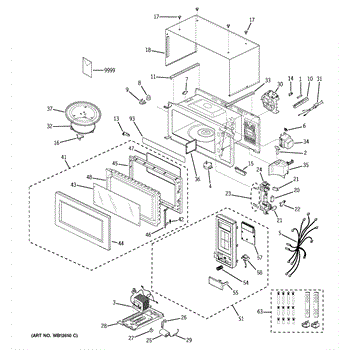

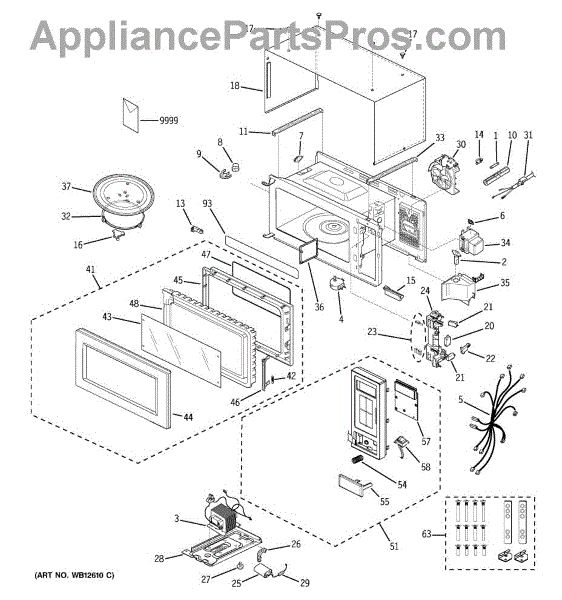

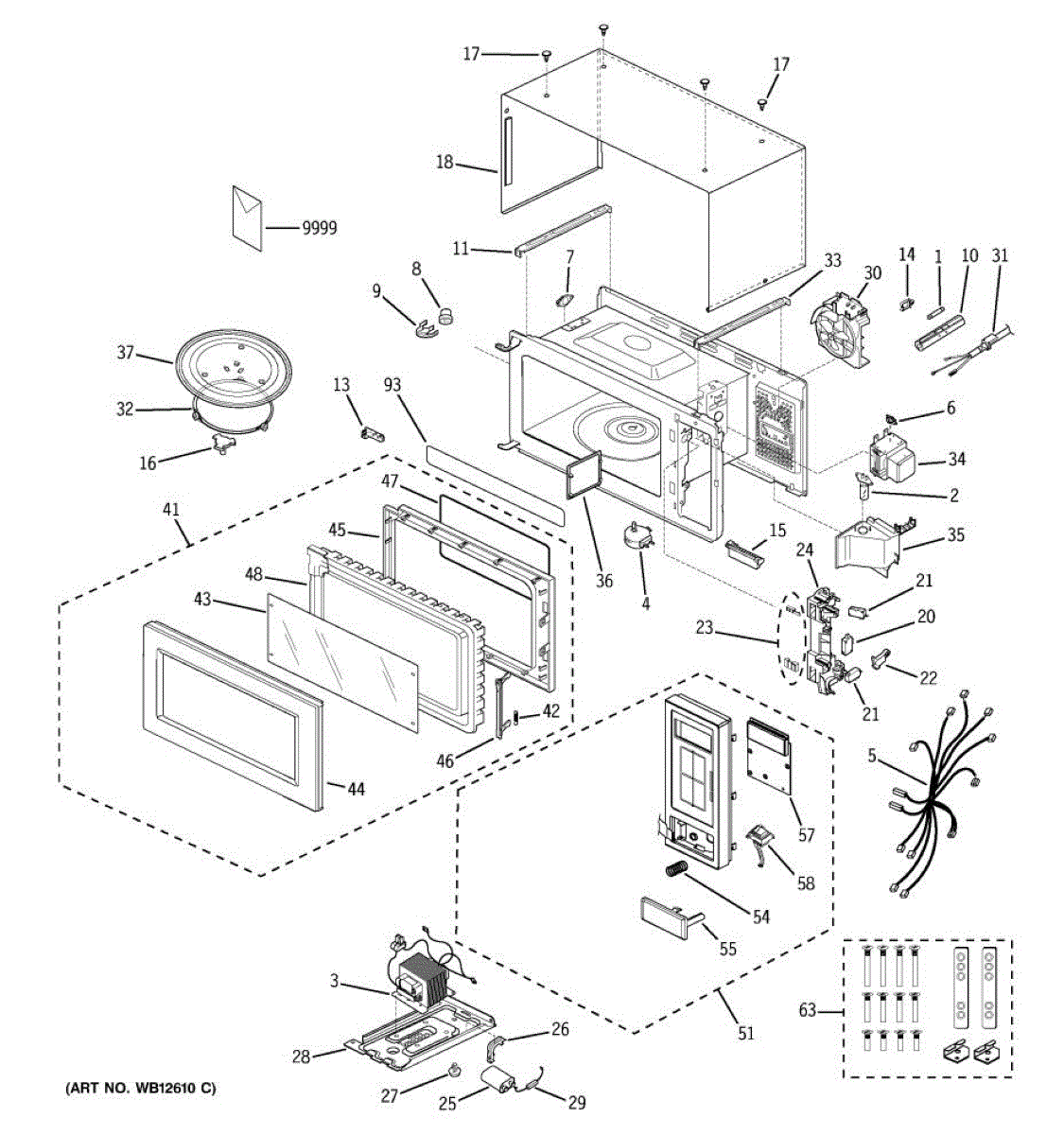

Parts for Ge JEM31WF001: 01 - Microwave Parts

This 250V 15A safety fuse protects the appliance's line circuit from overcurrent. When the original fuse has blown, replacing it can restore power and help safeguard internal components from further damage.

• Opens the circuit if excessive current or a short occurs, protecting internal parts
• Common symptom: unit completely dead—no display, lights, or response to controls
• Blown fuse will test open (no continuity) with a multimeter
• If a new fuse blows again, another component may be shorted and needs diagnosis

• Unplug the appliance before servicing; microwaves can retain a dangerous charge—discharge the high-voltage capacitor
• Access the fuse near the line filter/control area; note clip orientation
• Replace only with the same 250V 15A rating; never bypass or upsize the fuse
• If the replacement fuse blows immediately, stop and troubleshoot the root cause

Microwave turntable stopped spinning or rotating? This turntable motor drives the glass tray for even heating. DIY-friendly replacement restores rotation.

Microwave shuts down during use? This thermal cutoff thermostat prevents overheating by interrupting power when temperatures exceed safe limits.

This gas flame sensor detects whether a burner's flame is present so the range/oven's gas valve and ignition control can operate safely. It helps restore reliable ignition and prevents the valve from staying open when no flame is detected. What it does:

• Senses the presence of a gas flame and signals the control to keep the valve open
• Helps prevent gas flow if a flame is not detected
• Can stop ignition or cause the oven/range not to heat when failing
• Commonly replaced when burners won't stay lit or control shows ignition-related errors

• One gas flame sensor

• Turn off electrical power and shut off the gas supply before servicing
• Handle the sensor and its connector carefully to avoid damage
• Reinstall in the exact position and orientation; loose connections can cause false faults

Secures components inside the microwave frame to keep assemblies aligned and stable. Replace if your original bracket is bent, cracked, or missing.

Wire saddle secures and organizes internal wiring in your microwave. Replace if the clip is cracked, broken, or missing to properly route and hold wires.

Interior door lever mechanism that connects the push button to the door latch assembly. Replace if cracked, broken, or no longer engaging properly.

Replacement drive coupler for microwave turntable systems. Connects motor to turntable shaft. Replace if cracked, stripped, or broken to restore rotation.

White plastic clip plug for microwave interior. Installs to secure components or cover mounting holes. Order a replacement if original is cracked or missing.

The Monitor Switch is an OEM replacement part for GE microwave ovens. Located internally on the turntable control circuit board, this switch monitors rotation of the turntable during cooking cycles.

Causes of failure involve degradation of the electrical contacts from continuous arcing loads over years of use combined with vibration stresses.

Symptoms of a faulty monitor switch include:

• The turntable no longer rotates or spinning intermittently
• Cooking cycles aborting prematurely with error messages
• Screeching or grinding noises emanating from beneath cavity
• Visible burnt spots on turntable drive assembly

This genuine GE switch is also compatible with select Hotpoint and RCA models.

The Microwave Door Switch is an OEM part for GE microwaves, designed to prevent the microwave from operating when the door is open by interrupting the power whenever the door is not securely closed. The door switch is an essential safety feature.

Symptoms of a failing Microwave Door Switch include:

• The microwave not starting or heating
• Running when the door is opened
• Unusual noises when the door is closed

Causes of a bad Microwave Door Switch can result from repeated opening and closing of the door or slamming that can cause the switch to degrade or become misaligned, leading to intermittent or failure.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Fix a microwave that won't heat or hums but doesn't start. This capacitor stores energy for the high-voltage circuit. Moderate DIY repair, 30-60 minutes.

This Bracket HVC is the OEM mounting bracket that secures the HVC assembly in place, keeping related components aligned and reducing vibration or movement for reliable operation. What it does

• Secures the HVC assembly or housing to the appliance frame to prevent shifting or loosening
• Helps maintain proper alignment of adjacent components for consistent performance
• Reduces vibration and rattling that can occur when a bracket is missing or damaged
• Commonly replaced when the HVC housing is loose, noisy, or does not sit flush

• One Bracket HVC mounting bracket

• Disconnect power to the appliance before beginning any work to avoid electrical shock
• Basic hand tools are typically required; handle metal edges carefully to avoid cuts
• Inspect mounting screws or clips and replace if worn to ensure a secure fit

Black plastic foot that supports and stabilizes your microwave. Installs on the bottom corners. Replace if cracked, broken, or missing for proper leveling.

Base plate for microwave interior. Mounts beneath the turntable assembly to support components. Replace if cracked, warped, or broken. Direct fit part.

Microwave not heating but lights and timer work? The high voltage diode converts AC to DC for the magnetron. DIY repair in 1-2 hours with basic tools.

Fix a microwave that overheats or shuts off during use with this cooling fan motor assembly. Moderately difficult repair for experienced DIYers.

Replacement power cord assembly for your microwave. Connects the appliance to your wall outlet. Order a new cord if yours is frayed, damaged, or missing.

Color: brown. Measures about 8 inches in diameter.

Secures components inside the microwave frame to keep assemblies aligned and stable. Replace if your original bracket is bent, cracked, or missing.

Microwave not heating but lights and fan work? Buzzing noise when running? The magnetron generates microwaves to cook food. Moderate DIY repair difficulty.

Turntable glass tray. Color: clear. Size. 11-1/2 inches diameter.

Replacement screen for your microwave door. Installs behind the glass panel to protect internal components. Order a new screen if yours is damaged or missing.

This door outer frame replaces a damaged or dented outer door panel to restore proper fit and the appliance's finished appearance. It provides the structural edge and mounting surface for the door assembly. What it does:

• Replaces a cracked, dented, or bent outer door frame to improve door alignment and sealing
• Restores the appliance's finished look by covering cosmetic damage on the door perimeter
• Provides the mounting surface for trim, glass, and hardware so parts sit flush and secure
• Can reduce rattling or uneven gaps caused by a warped or damaged outer frame

• Disconnect power to the appliance before beginning any repair
• Handle panel edges and glass components carefully to avoid injury or damage
• Some models require removal of trim, screws, or door liner to replace the outer frame; keep fasteners organized

Fix a microwave door that won't close or latch properly with this door latch assembly. Solves issues with doors not staying shut or secure during operation.

This is a full main door assembly that replaces a worn, damaged or broken appliance door to restore a secure, sealed closure and normal operation. Fits as the complete door unit used on compatible GE appliances. What it does:

• Provides the full door structure including panels and internal components needed to close and seal the appliance
• Restores proper door alignment and secure latching when the existing door is bent, loose or won't stay closed
• Replaces doors with cracked or damaged exterior glass or frame that affect appearance and function
• Helps prevent heat/steam loss and improves safety when the original door is compromised

• Disconnect power and ensure appliance is cool before attempting replacement
• Door assemblies can be heavy or awkward; have a helper for alignment and installation
• Handle glass and trim carefully to avoid damage or injury
• Use factory fasteners and follow OEM instructions for proper fit and sealing

Single push button for microwave control panels. Replaces worn, stuck, or broken buttons to restore tactile control and responsive input on your appliance.

Translucent lens that covers and protects your microwave's control panel buttons and display. Replace if cracked, cloudy, yellowed, or missing.

Under-cabinet mounting kit for microwaves. Provides hardware and brackets to securely install your microwave beneath kitchen cabinets. Replacement kit.
