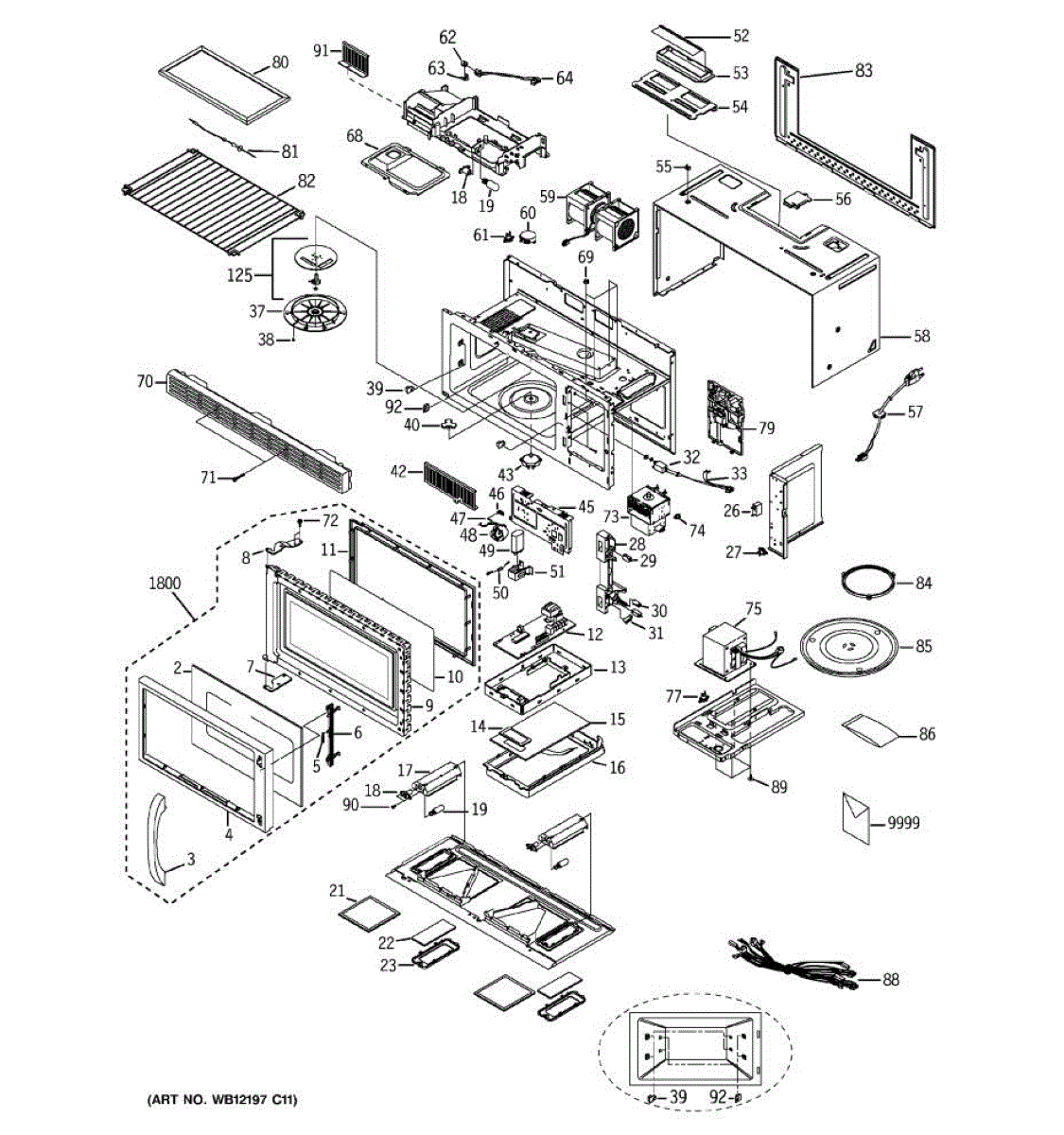

Parts for Ge JVM1651CB005: 01 - Microwave Parts

Color: Bisque. For black order WB15X10022. For white order WB15X10023.

Upper door hinge for microwaves. Secures the door at the top mounting point. Replace if cracked, broken, or worn to restore proper door alignment.

Holds the light bulb securely in your microwave for proper interior illumination. Replace if bulb won't stay in place, socket is burned or cracked.

Illuminates your microwave interior for monitoring food during cooking. Replace when bulb burns out or dims. Verify fit with your model number before ordering.

Captures grease particles during cooking to maintain air quality and microwave efficiency. Replace when clogged or discolored. Verify fit with your model.

This run capacitor helps the appliance motor start and run smoothly by storing and releasing electrical energy. Replacing a worn capacitor can restore reliable motor operation and reduce abnormal motor noise or cycling. What it does:

• Provides the brief power boost motors need to start and maintain RPM
• Helps stabilize motor voltage and improve run efficiency under load
• Commonly linked to symptoms such as motors that hum but won't start, slow or intermittent motor operation, or unusual motor noise
• Reduces stress on motor windings that can lead to premature failure when functioning properly

• One motor capacitor

• Always disconnect power at the breaker or unplug the appliance before servicing
• Capacitors can hold a charge; discharge safely
• Observe proper polarity and mounting location during installation; secure wiring and connectors

The Microwave Door Switch is an OEM part for GE microwaves, designed to prevent the microwave from operating when the door is open by interrupting the power whenever the door is not securely closed. The door switch is an essential safety feature.

Symptoms of a failing Microwave Door Switch include:

• The microwave not starting or heating
• Running when the door is opened
• Unusual noises when the door is closed

Causes of a bad Microwave Door Switch can result from repeated opening and closing of the door or slamming that can cause the switch to degrade or become misaligned, leading to intermittent or failure.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Monitor Switch is an OEM replacement part for GE microwave ovens. Located internally on the turntable control circuit board, this switch monitors rotation of the turntable during cooking cycles.

Causes of failure involve degradation of the electrical contacts from continuous arcing loads over years of use combined with vibration stresses.

Symptoms of a faulty monitor switch include:

• The turntable no longer rotates or spinning intermittently
• Cooking cycles aborting prematurely with error messages
• Screeching or grinding noises emanating from beneath cavity
• Visible burnt spots on turntable drive assembly

This genuine GE switch is also compatible with select Hotpoint and RCA models.

The Lower Lever Switch is an OEM replacement part for GE microwaves. This component activates the door interlock switch when the microwave door is closed. It ensures that the microwave only operates when the door is securely closed, preventing any operational hazards.

Symptoms of a bad Lower Lever Switch include:

• The microwave not starting, indicating the door isn't recognized as closed
• The appliance operating with the door open, a clear safety hazard
• Unusual sounds or issues when attempting to start the microwave
• The need to apply extra pressure to keep the door closed

Common causes for a malfunctioning Lower Lever Switch can be attributed to mechanical wear from frequent use, damage incurred during cleaning or use, or internal issues affecting the switch’s activation mechanism.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Turntable stopped turning or making grinding noise? This motor rotates the glass plate for even cooking. Easy 5-10 minute DIY fix with basic tools.

Secures the microwave air guide or duct in proper position. Replace if your bracket is cracked, broken, or missing to restore stable internal airflow.

The Fuse is an OEM part for GE microwaves. It serves as a safety device designed to protect the microwave from excessive current that can cause overheating and potential fire hazards. When the current flowing through the microwave circuit exceeds a certain level, the fuse blows or breaks, cutting off the power to prevent damage or fire.

Common causes for a fuse to blow include power surges, faulty wiring within the appliance, or the use of microwave inappropriate containers that cause sparks. It is essential to address these issues not only to replace the fuse but also to correct the underlying problems to prevent future failures.

Symptoms of a bad fuse include:

• The microwave suddenly stops working.
• No signs of power or response even when the microwave door is closed and the start button is pressed.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Fix a microwave that won't heat or hums but doesn't start. This capacitor stores energy for the high-voltage circuit. Moderate DIY repair, 30-60 minutes.

Microwave not heating or humming loudly? The high-voltage diode converts AC to DC for the magnetron. Repair takes 30-45 minutes with basic tools.

This mounting bracket secures the H.V.C. assembly or cover in place to keep high-voltage components stable and properly aligned. Replacing a damaged or bent bracket restores correct support and reduces movement-related issues. What it does:

• Secures the high-voltage cover/assembly to the appliance chassis to prevent shifting.
• Maintains correct clearance and alignment for high-voltage components.
• Helps reduce noise or arcing caused by a loose cover or bracket.
• Supports safe, reliable operation by keeping wiring and insulating parts in position.

• Disconnect power at the breaker or unplug the appliance before starting work.
• Handle high-voltage components and insulating parts carefully; avoid contact with charged parts.
• Use the OEM part number to fit and orientation before installation.

Controls exhaust airflow in over-the-range microwaves. Replaces bent, damaged, or missing damper assemblies for proper external venting installation.

Controls exhaust airflow in over-the-range microwaves. Replaces bent, damaged, or missing damper assemblies for proper external venting installation.

Secures microwave to wall cabinet mounting bracket. Replace if cracked, stripped, or missing to restore proper cabinet installation and stability.

Secures the power cord to your microwave's chassis. Replace this bracket if it's cracked, broken, or missing to properly mount and support the cord.

Fixes loud grinding or coffee grinder noise from microwave. Simple DIY repair with 2 screws and wire connectors. Located on top, typically takes under 30 minutes.

Microwave shuts down during use? This thermal cutoff thermostat prevents overheating by interrupting power when temperatures exceed safe limits.

This gas flame sensor detects whether a burner's flame is present so the range/oven's gas valve and ignition control can operate safely. It helps restore reliable ignition and prevents the valve from staying open when no flame is detected. What it does:

• Senses the presence of a gas flame and signals the control to keep the valve open
• Helps prevent gas flow if a flame is not detected
• Can stop ignition or cause the oven/range not to heat when failing
• Commonly replaced when burners won't stay lit or control shows ignition-related errors

• One gas flame sensor

• Turn off electrical power and shut off the gas supply before servicing
• Handle the sensor and its connector carefully to avoid damage
• Reinstall in the exact position and orientation; loose connections can cause false faults

Wire harness for microwaves. Connects electrical components inside the unit. Replace if wires are damaged, frayed, or connections are loose or broken.

Upper duct assembly for microwave ventilation systems. Mounts inside the cabinet to direct air flow. Replace if cracked, damaged, or missing components.

Microwave not heating? This magnetron generates microwave energy to cook food. Moderate DIY repair—requires disassembly and careful handling of parts.

Fix a microwave with no power or intermittent shutoffs. This thermostat monitors temperature and protects internal components. DIY repair in 20 minutes.

This evaporator fan motor assembly circulates cold air through the refrigerator compartment to help maintain even cooling and proper temperature control. Replacing a failed fan restores airflow and helps the appliance cool correctly. What it does:

• Moves air across the evaporator coil so the refrigerator/freezer can cool efficiently
• Commonly replaced when there is little or no airflow from the fresh-food or freezer section
• Can stop excessive frost build-up on the evaporator caused by poor circulation
• May reduce unusual noise if the original motor bearings have failed
• Helps prevent uneven temperatures that can cause food spoilage

• One evaporator fan motor assembly as shown

• Disconnect power to the appliance before starting any repair
• Access may require removing interior panels or the evaporator cover
• Handle the fan blades carefully to avoid bending or cracking; ensure proper blade seating on the motor shaft

Color: silver. Measures about 11-1/8" x 6-1/4". For matching aluminum filter, use: WB6X486.

Supports and guides the glass turntable in your microwave. Replace if the roller ring is cracked, broken, wheels are worn or missing, or the tray wobbles.

Replace your cracked, broken, or missing microwave glass cooking tray. This rotating turntable supports food for even heating in your microwave cavity.

Washered screw secures panels, brackets, and internal microwave components. Replace if screw is missing, stripped, or damaged to restore proper fit.

Replace your microwave's filter mounting bracket if it's cracked, broken, or missing. This bracket secures the grease filter in place during operation.

This stirrer assembly circulates microwave energy inside the cavity so food heats more evenly and prevents cold spots. It replaces a damaged or noisy stirrer that can cause uneven cooking or unusual microwave noise. What it does:

• Spins the microwave stirrer to help distribute microwave energy for more even heating
• Reduces hotspots and cold spots during cooking
• Stops or reduces rattling, grinding, or squealing noises when the original stirrer is worn
• Helps prevent arcing or sparking caused by a cracked or broken stirrer cover

• Disconnect power at the breaker or unplug the appliance before servicing to avoid electrical shock.
• Access may require removing the microwave's outer cabinet or control panel; follow OEM service manual steps.
• Handle the stirrer and cover carefully—plastic parts can crack if forced.
