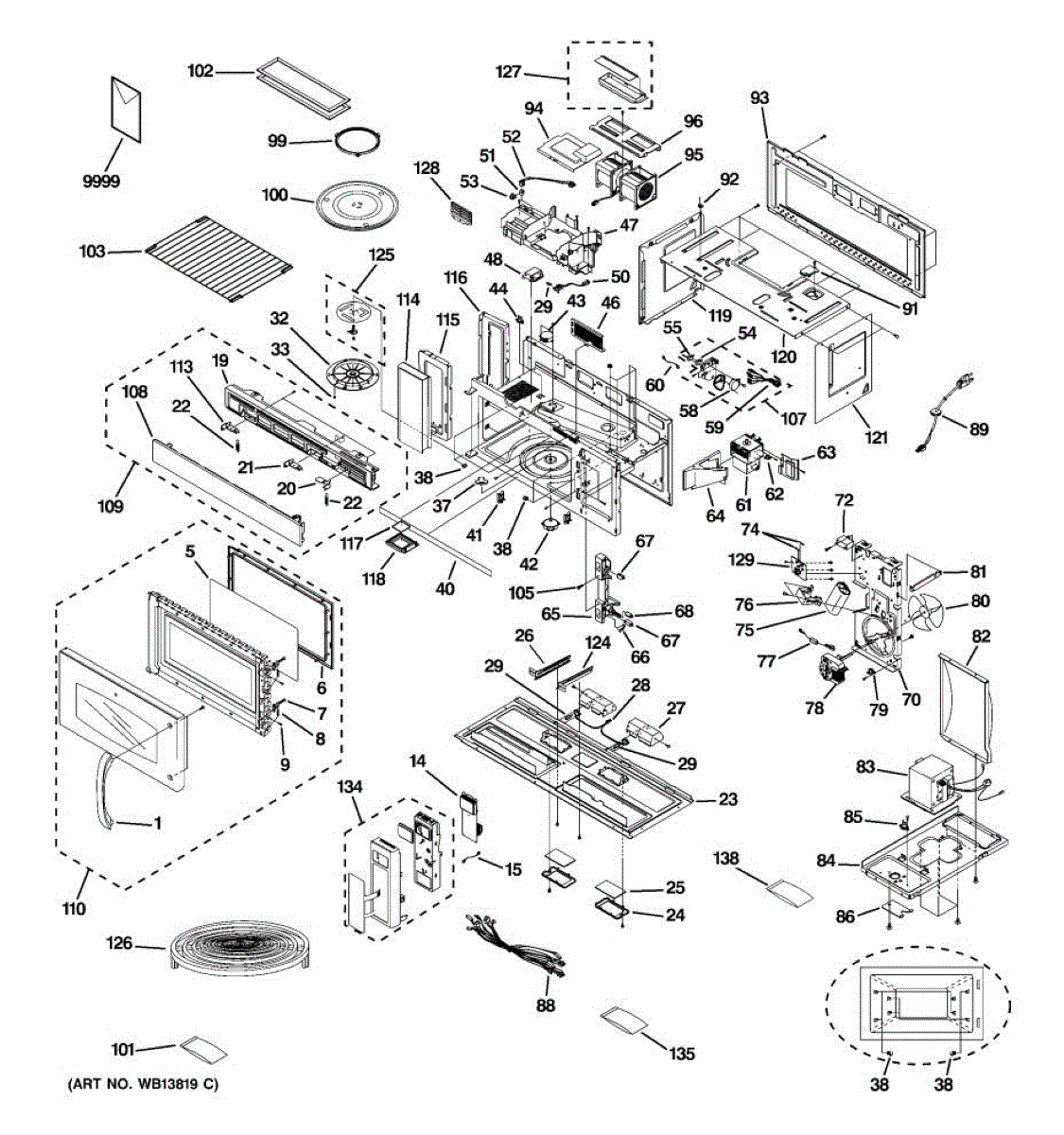

Parts for Ge JVM3670BF04: 01 - Microwave Parts

Color: Black

Color: Black

Color: Black

This base bottom sub-assembly replaces the lower cabinet support panel to restore a secure, finished underside and proper mounting for components at the refrigerator's base. It helps maintain cabinet alignment and protects internal parts from debris. What it does:

• Replaces a damaged or cracked lower cabinet panel that can cause gaps or misalignment
• Restores mounting surface for kickplate and other base-mounted components
• Helps stop rubbing, rattling, or sagging associated with a broken base panel
• Protects internal components from kicked-up debris and improves cabinet appearance

• One base bottom sub-assembly

• Disconnect power (and water supply for models with a water connection) before starting
• Access typically requires removing the kickplate and any lower trim panels; basic hand tools are usually sufficient
• Inspect fasteners and clips during install — replace missing hardware as needed
• Follow OEM instructions for reassembly and torque of mounting fasteners

The Halogen Light Bulb is an OEM part for GE microwaves and ovens. It provides interior lighting, allowing you to clearly see the contents inside the appliance during operation. This illumination is essential for monitoring cooking progress and ensuring safety.

You should replace the halogen light bulb if it burns out or becomes damaged. Causes of a bad halogen light bulb can include regular use over time, electrical surges, or physical impact that can cause the bulb to break.

Symptoms of a bad halogen light bulb include:

• The light not turning on when the microwave or oven door is opened
• Flickering or dim lighting inside the appliance
• A burnt-out appearance or visible breakage in the bulb

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Turntable Coupler is an OEM part for GE microwaves. It connects the microwave's turntable motor to the glass tray, enabling the tray to rotate during cooking. This rotation ensures even heating and cooking of food items placed on the tray.

Causes of a bad turntable coupler can include regular wear and tear, physical damage from heavy or improperly placed items, or overheating due to prolonged use.

Symptoms of a bad turntable coupler include:

• Turntable not rotating
• Uneven heating or cooking of food
• Grinding or clicking noises during operation
• The coupler being visibly damaged or worn

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement rack holder supports the removable wire rack inside your microwave, keeping it steady and level. Replace a cracked or missing holder to restore stable, reliable two-level cooking performance. What it does:

• Holds the interior wire rack securely against the cavity wall
• Maintains correct rack height and alignment for stable support
• Helps prevent rack wobbling, slipping, or rattling during use
• Common signs of failure: cracked/heat-damaged holder, rack tilts or falls, scorch/arcing marks near the support

• 1 rack holder

• Disconnect power by unplugging the microwave or switching off the circuit breaker
• Remove the wire rack and note the holder's orientation and location
• Remove the existing holder (release clip or remove screw) and transfer any original mounting hardware if needed
• Seat the new holder fully, reinstall the rack level, and test with a microwave-safe cup of water

The Turntable Motor is an OEM part for GE microwaves, designed to rotate the glass plate or turntable inside the microwave cavity. This rotation ensures the food is cooked evenly by exposing all parts of the food to the microwave energy.

The causes for these issues often stem from wear and tear over time, especially with frequent use. Other factors can include damage from food particles or spills that seep into the motor area or mechanical failure within the motor itself.

Symptoms of a failing Turntable Motor include:

• The turntable not rotating when the microwave is in use
• A grinding or buzzing noise indicating the motor is struggling to turn
• The microwave cooking food unevenly or taking longer to cook

This OEM GE  part is also compatible with Hotpoint, RCA, and some Kenmore models

Made by GE. This microwave stirrer motor comes with a square shaped shaft and is usually located in the upper part of the microwave. For a D shaped shaft turntable motor order WB26X10038.

This microwave thermostat is a temperature-sensitive safety switch that helps protect the unit from overheating. When the preset limit is reached, it interrupts power to the affected circuit to help prevent damage and erratic shutdowns.

• Monitors temperature at its mounting location and opens the circuit if overheating is detected
• Helps protect internal components from excessive heat
• Common symptoms of a failed thermostat include: unit shuts off during cooking, won't start until it cools down, or has no power/no heat due to an open safety
• Replace if the original tests open when it should be closed

• Disconnect power by unplugging the unit or switching off the circuit breaker before servicing
• Microwaves contain a high-voltage capacitor that can retain a dangerous charge; only qualified persons should service and discharge the capacitor
• Note wire locations before removal and transfer connections firmly to the new thermostat
• Mount the thermostat securely and in the same position to ensure proper temperature sensing

This gas flame sensor detects whether a burner's flame is present so the range/oven's gas valve and ignition control can operate safely. It helps restore reliable ignition and prevents the valve from staying open when no flame is detected. What it does:

• Senses the presence of a gas flame and signals the control to keep the valve open
• Helps prevent gas flow if a flame is not detected
• Can stop ignition or cause the oven/range not to heat when failing
• Commonly replaced when burners won't stay lit or control shows ignition-related errors

• One gas flame sensor

• Turn off electrical power and shut off the gas supply before servicing
• Handle the sensor and its connector carefully to avoid damage
• Reinstall in the exact position and orientation; loose connections can cause false faults

A replacement magnetron assembly that generates the microwave energy used for cooking and reheating. Installs in countertop and over-the-range microwave ovens to restore normal heating performance when the magnetron fails. What it does:

• Produces high-frequency microwave energy that heats food inside the oven cavity.
• Commonly replaces a unit when the microwave stops heating or heats very weakly.
• Can address symptoms like no/poor heating, intermittent heating, or loud humming from the oven during operation.
• Not a control or capacitor—this part is the microwave-generating tube and works with the oven's HV system.

• Always disconnect power and unplug the appliance before starting service.
• The high-voltage capacitor can retain a dangerous charge; discharge properly.
• Handle the magnetron carefully; avoid touching terminals or the antenna.
• Follow OEM instructions and safety guidelines for reassembly and testing.

The Lower Lever Switch is an OEM replacement part for GE microwaves. This component activates the door interlock switch when the microwave door is closed. It ensures that the microwave only operates when the door is securely closed, preventing any operational hazards.

Symptoms of a bad Lower Lever Switch include:

• The microwave not starting, indicating the door isn't recognized as closed
• The appliance operating with the door open, a clear safety hazard
• Unusual sounds or issues when attempting to start the microwave
• The need to apply extra pressure to keep the door closed

Common causes for a malfunctioning Lower Lever Switch can be attributed to mechanical wear from frequent use, damage incurred during cleaning or use, or internal issues affecting the switch’s activation mechanism.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Microwave Door Switch is an OEM part for GE microwaves, designed to prevent the microwave from operating when the door is open by interrupting the power whenever the door is not securely closed. The door switch is an essential safety feature.

Symptoms of a failing Microwave Door Switch include:

• The microwave not starting or heating
• Running when the door is opened
• Unusual noises when the door is closed

Causes of a bad Microwave Door Switch can result from repeated opening and closing of the door or slamming that can cause the switch to degrade or become misaligned, leading to intermittent or failure.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Monitor Switch is an OEM replacement part for GE microwave ovens. Located internally on the turntable control circuit board, this switch monitors rotation of the turntable during cooking cycles.

Causes of failure involve degradation of the electrical contacts from continuous arcing loads over years of use combined with vibration stresses.

Symptoms of a faulty monitor switch include:

• The turntable no longer rotates or spinning intermittently
• Cooking cycles aborting prematurely with error messages
• Screeching or grinding noises emanating from beneath cavity
• Visible burnt spots on turntable drive assembly

This genuine GE switch is also compatible with select Hotpoint and RCA models.

This run capacitor helps the appliance motor start and run smoothly by storing and releasing electrical energy. Replacing a worn capacitor can restore reliable motor operation and reduce abnormal motor noise or cycling. What it does:

• Provides the brief power boost motors need to start and maintain RPM
• Helps stabilize motor voltage and improve run efficiency under load
• Commonly linked to symptoms such as motors that hum but won't start, slow or intermittent motor operation, or unusual motor noise
• Reduces stress on motor windings that can lead to premature failure when functioning properly

• One motor capacitor

• Always disconnect power at the breaker or unplug the appliance before servicing
• Capacitors can hold a charge; discharge safely
• Observe proper polarity and mounting location during installation; secure wiring and connectors

The Fuse is an OEM part for GE microwaves. It serves as a safety device designed to protect the microwave from excessive current that can cause overheating and potential fire hazards. When the current flowing through the microwave circuit exceeds a certain level, the fuse blows or breaks, cutting off the power to prevent damage or fire.

Common causes for a fuse to blow include power surges, faulty wiring within the appliance, or the use of microwave inappropriate containers that cause sparks. It is essential to address these issues not only to replace the fuse but also to correct the underlying problems to prevent future failures.

Symptoms of a bad fuse include:

• The microwave suddenly stops working.
• No signs of power or response even when the microwave door is closed and the start button is pressed.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Capacitor is an OEM part for GE microwaves. This component stores and releases electrical energy to help power the microwave's high-voltage circuits, essential for the proper functioning of the appliance.

Over time, capacitors can fail due to electrical surges, overheating, or degradation of the internal components. When a capacitor goes bad, it can affect the microwave's ability to generate heat and operate efficiently.

Symptoms of a bad Capacitor include:

• The microwave not heating food
• Unusual humming or buzzing noises
• The microwave shutting down or not starting

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This high-voltage rectifier diode is used in the microwave's high-voltage circuit. It converts AC to DC so the magnetron can produce heat. A failed diode can cause no heat, loud humming, or a blown fuse when starting. What it does:

• Rectifies high-voltage AC to DC to power the magnetron
• Blocks reverse voltage in the HV circuit
• Common failure symptoms can include: runs but doesn't heat; loud hum then shutdown; line fuse blows at startup

• 1 high-voltage diode

• Unplug the microwave and properly discharge the high-voltage capacitor before servicing—dangerous voltage can remain even when unplugged
• Match diode orientation/polarity to the original and ensure a solid chassis ground connection where used
• Route leads and reinstall any clamps/insulators exactly as found; keep wiring clear of sharp edges and hot components
• If the original diode failed, inspect the HV capacitor and transformer for related issues before reassembly

This thermostat is a temperature-sensing safety switch used in microwave ovens. It monitors heat and opens the circuit during an over-temperature condition to protect internal components and help prevent damage. What it does:

• Monitors temperature at a specific location inside the microwave
• Interrupts power if overheating is detected to protect components
• Helps safeguard the magnetron and wiring from thermal damage
• Presents as: shuts off mid-cycle, won't restart until cooled, no power, or runs but doesn't heat

• 1 thermostat

• Disconnect power before service; microwaves contain a high-voltage capacitor that can hold a dangerous charge—discharge it properly
• Note wire locations and transfer connections one at a time to the new thermostat
• Mount in the original location with firm, flush contact to the surface for accurate sensing
• Reinstall all covers and safety shields before restoring power and testing

This wire harness (A) connects control and power circuits to restore proper electrical routing in your appliance. It replaces a damaged or frayed harness to help re-establish reliable wiring and signal paths. What it does:

• Routes power and signals between control boards, switches, and components
• Replaces broken, burned, or shorted wires that can cause intermittent failures
• Helps stop symptoms like no power to components, erratic controls, or blown fuses
• Matches OEM connector types and wire colors for a direct fit

• Always disconnect power before servicing electrical components
• Inspect connectors and mounting points; secure harness away from heat and moving parts
• Use OEM mounting clips or tapes to prevent chafing; replace any damaged clips

This holder nut assembly secures a component to the appliance frame, restoring proper mounting and reducing vibration or movement. Replace a damaged or missing holder nut to keep connected parts stable and functioning. What it does:

• Secures a component or assembly to the appliance frame or mounting bracket
• Prevents looseness, rattling, and misalignment caused by worn or missing mounting hardware
• Restores a safe, stable connection that helps maintain normal operation
• Matches OEM mounting geometry for a direct replacement when the original nut is damaged

• Disconnect power to the appliance before servicing to avoid shock or injury
• Access the mounting area by removing the appropriate panel or cover per your model's service instructions
• Start threads by hand to avoid cross-threading, then tighten with the correct tool; do not overtighten
• If any fasteners or nearby components are damaged, replace them as needed for a secure installation

Color: brown. Measures about 9 inches in diameter.

The Cooking Tray is an OEM part for GE microwaves. This glass tray rotates to ensure even cooking and heating of food. It is designed to fit perfectly in the microwave, providing a stable platform for cookware and dishes.

Over time, the cooking tray can become damaged or worn out due to regular use, accidental drops, or exposure to extreme heat. Replacing a damaged cooking tray is essential to maintaining the microwave’s functionality and ensuring food is heated evenly.

Symptoms of a bad cooking tray include:

• Cracks or chips in the glass
• Difficulty in rotating or wobbling during operation
• Uneven cooking or heating of food
• The tray not fitting properly in the microwave

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This hardware assembly is a factory-style replacement kit that restores secure mounting and smooth operation of the affected appliance component. It replaces worn or damaged mounting hardware so panels, doors, or trim fit and function correctly. What it does

• Replaces the original mounting and fastening hardware to secure panels, doors, or trim.
• Restores proper alignment and reduces rattling or loose fit.
• Helps resolve symptoms like loose or sagging doors, misaligned panels, or noisy operation.
• Designed to match OEM form and function for a direct-fit replacement when this exact part is required.

• High-level DIY-friendly replacement; basic hand tools typically required.
• Disconnect power (and water, if applicable) before starting work to reduce risk of shock or injury.
• Keep small parts organized during removal to ensure correct reassembly.

The Grease Filter is an OEM part for GE microwaves. It is responsible for trapping grease and other particles from the air as it circulates through the microwave's ventilation system.

You should replace this grease filter if it becomes clogged, damaged, or worn out. Causes of a bad grease filter include prolonged use without cleaning, accumulation of grease and food particles, or physical damage to the filter mesh.

Symptoms of a bad grease filter include:

• Reduced ventilation efficiency
• Lingering cooking odors
• Excessive grease buildup on surrounding surfaces

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This wire rack assembly provides a sturdy, removable shelf for your oven, giving stable support for cookware and bakeware and restoring proper shelf placement and clearance. What it does

• Replaces a bent, damaged, or missing oven shelf so pots and pans sit level during baking and roasting
• Restores smooth sliding and correct clearance for consistent cooking results
• Helps prevent cookware from tipping or shifting on weakened racks
• Fits into existing rack supports or side rails for secure positioning

• Remove power to the appliance and allow it to cool completely before installing
• Slide the rack into the oven rails or supports until fully seated; it rests level
• Wear gloves to avoid pinches or sharp edges while handling the rack
• No special tools usually required; refer to your owner's manual for model-specific guidance

This side front supporter is a direct replacement support piece that helps hold and align the appliance's front panel or door assembly, restoring proper fit and reducing movement or sag. It fits where the front edge needs steady support. What it does:

• Provides structural support for the front/side edge of the appliance panel or door
• Restores proper alignment to reduce gaps, rubbing, or uneven movement
• Helps eliminate rattling, vibration, or shifting during use
• Maintains correct panel positioning for seals and latches to engage

• Disconnect power (and water supply, if applicable) before starting any repair
• Installation may require basic hand tools; follow OEM instructions for correct placement
• Inspect surrounding clips and fasteners and replace any worn hardware for best results

This glass-halogen lamp replaces a failed interior oven/range light, restoring bright, clear illumination so you can see food and interior surfaces while cooking. Designed to match the OEM fit and function for compatible models. What it does:

• Provides bright halogen illumination for oven and range interiors
• Replaces lamps that are dim, flickering, or completely out
• Helps you monitor cooking progress and interior condition without opening the door
• Fits the OEM lamp socket and housing for a correct replacement

• Disconnect power to the appliance before replacing the lamp to avoid shock
• Allow the oven and old lamp to cool completely before handling
• Handle the new lamp with a clean cloth or gloves to avoid skin oils that can shorten bulb life

The Hood Damper Assembly is an OEM part for GE microwave ovens. This part controls the flow of exhaust air to minimize odors and smoke from cooking. This damper opens to allow air to vent outside during microwave operation and closes to prevent outside air from entering when the microwave is not in use.

Causes of a bad hood damper assembly can include mechanical failure such as a stuck or broken damper, deterioration of the linkage or springs that operate the damper, and blockage caused by grease or debris accumulation, which can impair its functionality.

Symptoms of a bad Hood Damper Assembly include:

• Ineffective venting of smoke or cooking odors
• External air leakage into the microwave system
• Unusual noises during operation indicating a damper misalignment or obstruction

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: Black
