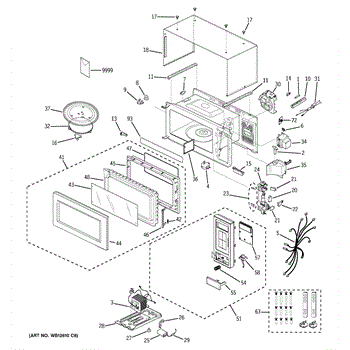

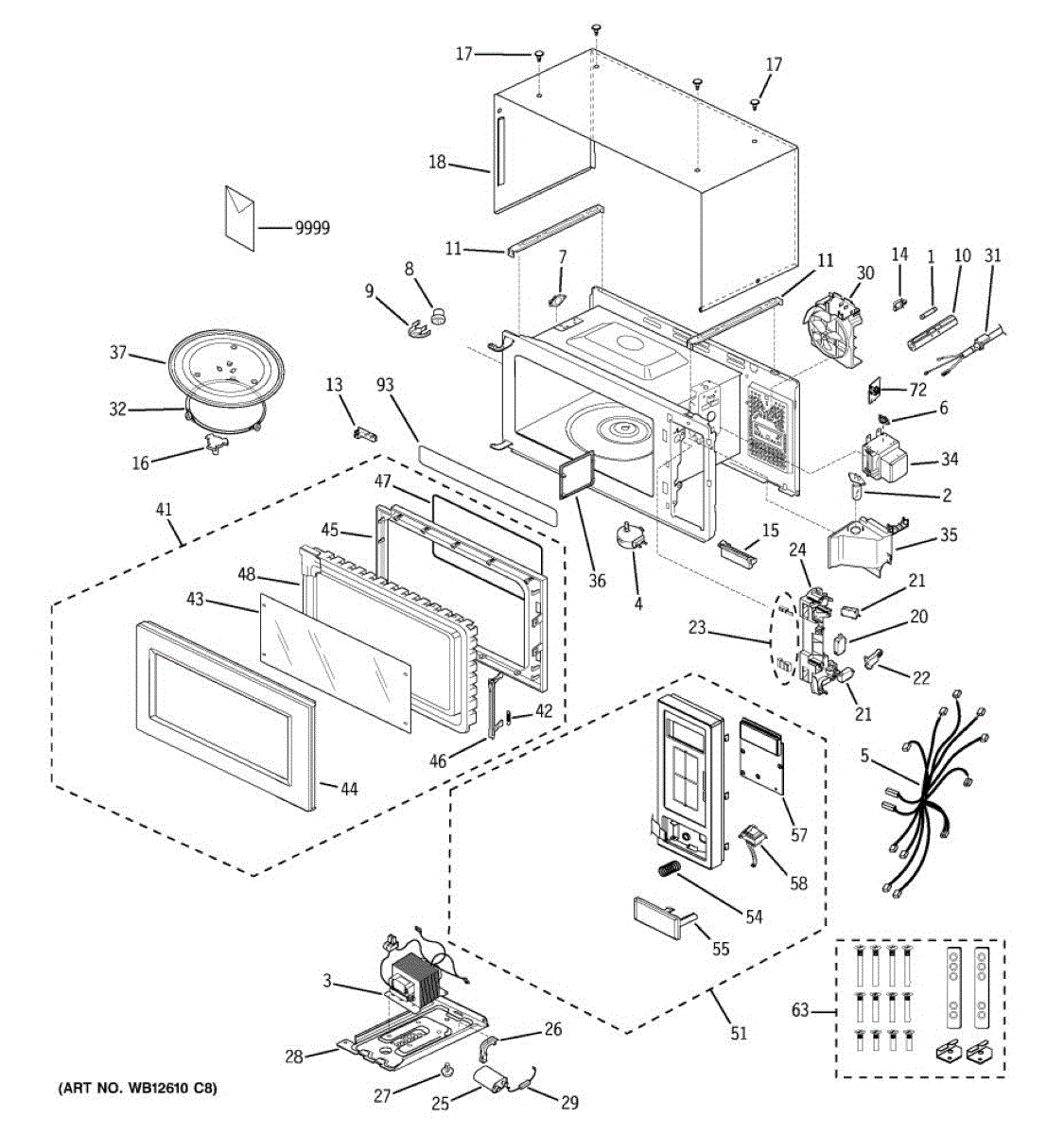

Parts for Ge PEM1050DM1BB: 01 - Microwave Parts

This 250V 15A safety fuse protects the appliance's line circuit from overcurrent. When the original fuse has blown, replacing it can restore power and help safeguard internal components from further damage.

• Opens the circuit if excessive current

This interior oven lamp provides bright, direct lighting inside the oven cavity so you can monitor cooking without opening the door. Direct replacement designed for compatible GE ovens and ranges. What it does:

• Lights the oven interior so you ca

Microwave turntable stopped spinning or rotating? This turntable motor drives the glass tray for even heating. DIY-friendly replacement restores rotation.

This is a replacement wire harness A assembly that routes power and signals between controls and components to restore reliable electrical connections and proper operation. Designed to replace a damaged or worn wiring harness. What it does:

• Provides the factory wiring connections between the control, switches and key components.
• Restores power/signal continuity when a damaged harness causes intermittent operation or non-responsive controls.
• Helps eliminate arcing, shorts or burning smell caused by frayed or broken wires.
• Maintains correct connector fit and routing to prevent strain on terminals.

• Disconnect power before starting any repair to avoid shock or injury.
• Inspect connectors and mating terminals for damage; replace if corroded or burned.
• Route and secure the harness to match the original routing; avoid sharp edges and pinch points.

Replacement thermostat that senses and controls the appliance heating system to restore accurate heating and stable temperature cycles, helping the appliance reach and maintain the set temperature. What it does:

• Senses temperature and signals th

This gas flame sensor detects whether a burner's flame is present so the range/oven's gas valve and ignition control can operate safely. It helps restore reliable ignition and prevents the valve from staying open when no flame is detected. What it does:

Secures components inside the microwave frame to keep assemblies aligned and stable. Replace if your original bracket is bent, cracked, or missing.

Wire saddle secures and organizes internal wiring in your microwave. Replace if the clip is cracked, broken, or missing to properly route and hold wires.

Interior door lever mechanism that connects the push button to the door latch assembly. Replace if cracked, broken, or no longer engaging properly.

Replacement drive coupler for microwave turntable systems. Connects motor to turntable shaft. Replace if cracked, stripped, or broken to restore rotation.

The Monitor Switch is an OEM replacement part for GE microwave ovens. Located internally on the turntable control circuit board, this switch monitors rotation of the turntable during cooking cycles.

Causes of failure involve degradation

The Microwave Door Switch is an OEM part for GE microwaves, designed to prevent the microwave from operating when the door is open by interrupting the power whenever the door is not securely closed. The door switch is an essential safety feature.

Fix a microwave that won't heat or hums but doesn't start. This capacitor stores energy for the high-voltage circuit. Moderate DIY repair, 30-60 minutes.

This Bracket HVC is the OEM mounting bracket that secures the HVC assembly in place, keeping related components aligned and reducing vibration or movement for reliable operation. What it does

• Secures the HVC assembly or housing to the appliance frame to prevent shifting or loosening
• Helps maintain proper alignment of adjacent components for consistent performance
• Reduces vibration and rattling that can occur when a bracket is missing or damaged
• Commonly replaced when the HVC housing is loose, noisy, or does not sit flush

• One Bracket HVC mounting bracket

• Disconnect power to the appliance before beginning any work to avoid electrical shock
• Basic hand tools are typically required; handle metal edges carefully to avoid cuts
• Inspect mounting screws or clips and replace if worn to ensure a secure fit

Black plastic foot that supports and stabilizes your microwave. Installs on the bottom corners. Replace if cracked, broken, or missing for proper leveling.

Base plate for microwave interior. Mounts beneath the turntable assembly to support components. Replace if cracked, warped, or broken. Direct fit part.

Microwave not heating but lights and timer work? The high voltage diode converts AC to DC for the magnetron. DIY repair in 1-2 hours with basic tools.

Replace your microwave's power cord assembly if the original is damaged, frayed, or missing. Plugs into the back of the unit for electrical connection.

Color: brown. Measures about 8 inches in diameter.

Microwave not heating but lights and fan work? Buzzing noise when running? The magnetron generates microwaves to cook food. Moderate DIY repair difficulty.

Turntable glass tray. Color: clear. Size. 11-1/2 inches diameter.

Complete door assembly for your microwave. Replaces a cracked, damaged, or broken door unit. Includes handle and mounting components for installation.

Complete microwave door assembly that attaches to the front of your microwave. Replace if your door is cracked, damaged, warped, or the seal is compromised.

Color: Black

Translucent lens that covers and protects your microwave's control panel buttons and display. Replace if cracked, cloudy, yellowed, or missing.

Under-cabinet mounting kit for microwaves. Provides hardware and brackets to securely install your microwave beneath kitchen cabinets. Replacement kit.
