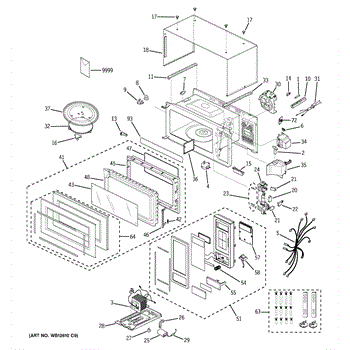

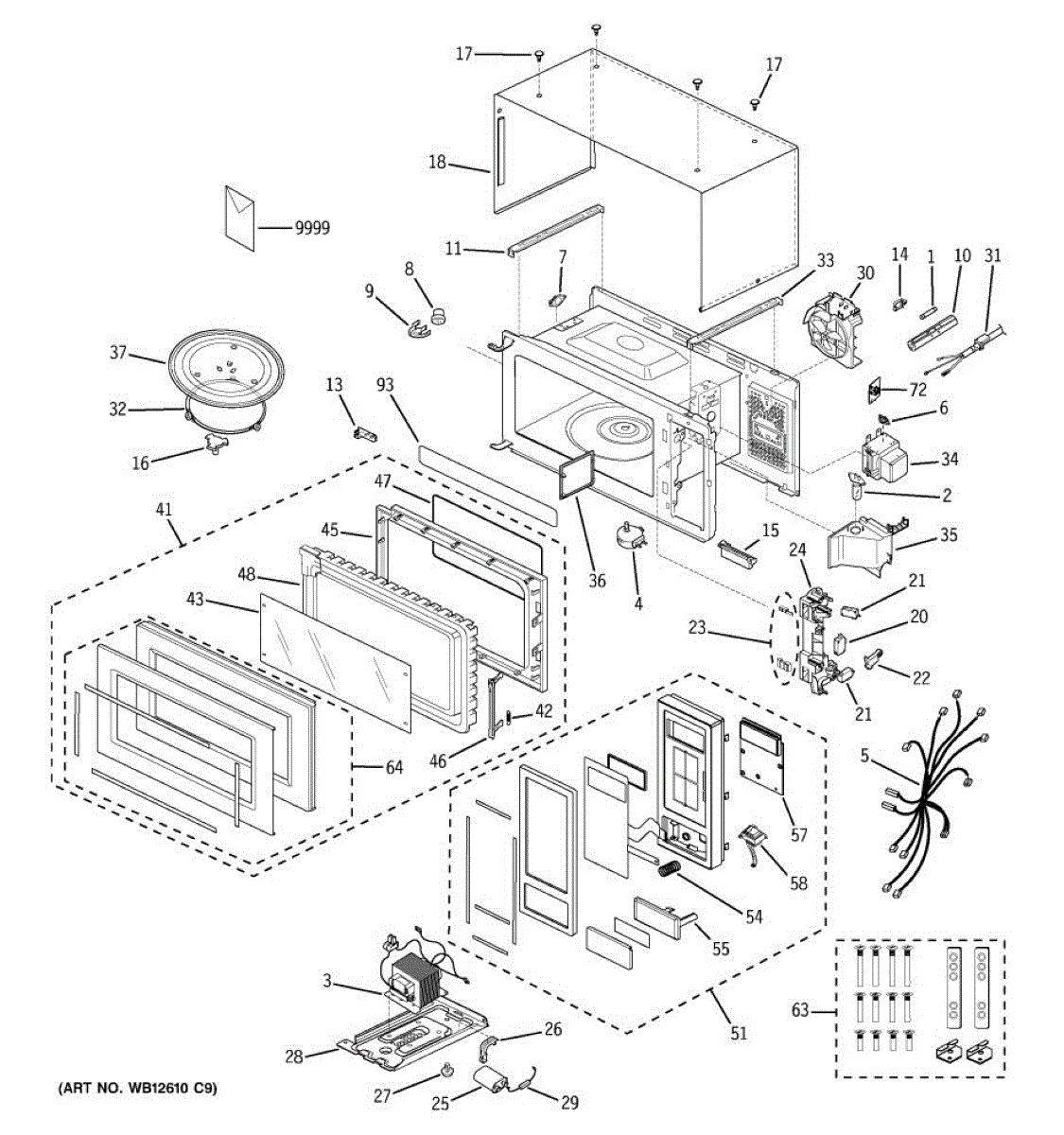

Parts for Ge PEM1050SM1SS: 01 - Microwave Parts

This 250V 15A safety fuse protects the appliance's line circuit from overcurrent. When the original fuse has blown, replacing it can restore power and help safeguard internal components from further damage.

• Opens the circuit if excessive current or a short occurs, protecting internal parts
• Common symptom: unit completely dead—no display, lights, or response to controls
• Blown fuse will test open (no continuity) with a multimeter
• If a new fuse blows again, another component may be shorted and needs diagnosis

• Unplug the appliance before servicing; microwaves can retain a dangerous charge—discharge the high-voltage capacitor
• Access the fuse near the line filter/control area; note clip orientation
• Replace only with the same 250V 15A rating; never bypass or upsize the fuse
• If the replacement fuse blows immediately, stop and troubleshoot the root cause

This interior oven lamp provides bright, direct lighting inside the oven cavity so you can monitor cooking without opening the door. Direct replacement designed for compatible GE ovens and ranges. What it does:

• Lights the oven interior so you can check food without releasing heat
• Replaces a dim, flickering, or burned-out oven light
• Restores safe visibility when checking racks, pans, and broiling items
• Fits standard oven lamp sockets used in many GE appliances

• Always disconnect power to the appliance before replacing the lamp
• Allow the oven to cool completely to avoid burns
• Remove protective cover or lens per your owner's manual before swapping the bulb
• Hand-tighten the lamp; do not overtighten.

Microwave turntable stopped spinning or rotating? This turntable motor drives the glass tray for even heating. DIY-friendly replacement restores rotation.

This is a replacement wire harness A assembly that routes power and signals between controls and components to restore reliable electrical connections and proper operation. Designed to replace a damaged or worn wiring harness. What it does:

• Provides the factory wiring connections between the control, switches and key components.
• Restores power/signal continuity when a damaged harness causes intermittent operation or non-responsive controls.
• Helps eliminate arcing, shorts or burning smell caused by frayed or broken wires.
• Maintains correct connector fit and routing to prevent strain on terminals.

• Disconnect power before starting any repair to avoid shock or injury.
• Inspect connectors and mating terminals for damage; replace if corroded or burned.
• Route and secure the harness to match the original routing; avoid sharp edges and pinch points.

Microwave shuts down during use? This thermal cutoff thermostat prevents overheating by interrupting power when temperatures exceed safe limits.

This is a humidity sensor mounted inside the microwave that detects moisture levels in the cooking cavity. It enables auto-cook and auto-reheat functions by signaling the control board when food has released enough steam. Replace this sensor if auto-cook cycles consistently overcook or undercook food, or if the microwave displays a sensor error code.

Secures components inside the microwave frame to keep assemblies aligned and stable. Replace if your original bracket is bent, cracked, or missing.

Wire saddle secures and organizes internal wiring in your microwave. Replace if the clip is cracked, broken, or missing to properly route and hold wires.

The microwave switch lever is a small plastic arm inside the door latch assembly that activates the door interlock switches when the door is closed. These switches signal the microwave that the door is securely shut before allowing it to operate. Replace this part if the microwave won't start, runs with the door open, or the door doesn't latch and release properly.

Replacement drive coupler for microwave turntable systems. Connects motor to turntable shaft. Replace if cracked, stripped, or broken to restore rotation.

Outer mounting clip secures microwave components in place. Replace if broken, cracked, or missing to restore proper fit. Verify compatibility with your model.

This is a monitor or interlock switch that detects whether the microwave door is properly closed before allowing the unit to operate. It is a safety device that shuts off microwave power if the door is open or if other door switches malfunction. Replace this switch if the microwave does not start, runs with the door open, or blows a fuse when the door is closed.

The Microwave Door Switch is an OEM part for GE microwaves, designed to prevent the microwave from operating when the door is open by interrupting the power whenever the door is not securely closed. The door switch is an essential safety feature.

Symptoms of a failing Microwave Door Switch include:

• The microwave not starting or heating
• Running when the door is opened
• Unusual noises when the door is closed

Causes of a bad Microwave Door Switch can result from repeated opening and closing of the door or slamming that can cause the switch to degrade or become misaligned, leading to intermittent or failure.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Fix a microwave that won't heat or hums but doesn't start. This capacitor stores energy for the high-voltage circuit. Moderate DIY repair, 30-60 minutes.

This Bracket HVC is the OEM mounting bracket that secures the HVC assembly in place, keeping related components aligned and reducing vibration or movement for reliable operation. What it does

• Secures the HVC assembly or housing to the appliance frame to prevent shifting or loosening
• Helps maintain proper alignment of adjacent components for consistent performance
• Reduces vibration and rattling that can occur when a bracket is missing or damaged
• Commonly replaced when the HVC housing is loose, noisy, or does not sit flush

• One Bracket HVC mounting bracket

• Disconnect power to the appliance before beginning any work to avoid electrical shock
• Basic hand tools are typically required; handle metal edges carefully to avoid cuts
• Inspect mounting screws or clips and replace if worn to ensure a secure fit

Black plastic foot that supports and stabilizes your microwave. Installs on the bottom corners. Replace if cracked, broken, or missing for proper leveling.

Base plate for microwave interior. Mounts beneath the turntable assembly to support components. Replace if cracked, warped, or broken. Direct fit part.

Microwave not heating but lights and timer work? The high voltage diode converts AC to DC for the magnetron. DIY repair in 1-2 hours with basic tools.

Replace your microwave's power cord assembly if the original is damaged, frayed, or missing. Plugs into the back of the unit for electrical connection.

Color: brown. Measures about 8 inches in diameter.

Secures components inside the microwave frame to keep assemblies aligned and stable. Replace if your original bracket is bent, cracked, or missing.

Microwave not heating but lights and fan work? Buzzing noise when running? The magnetron generates microwaves to cook food. Moderate DIY repair difficulty.

Turntable glass tray. Color: clear. Size. 11-1/2 inches diameter.

Replace your microwave's door screen if it's damaged, cracked, or missing. This protective mesh installs behind the door glass to shield the viewing window.

Complete microwave door assembly that attaches to the front of your microwave. Replace if your door is cracked, damaged, warped, or the seal is compromised.

Color: Stainless

This is a low-voltage transformer used in cooking appliances to step down electrical voltage for control board components and displays. It supplies the correct voltage to low-power circuits such as control panels and igniters. Replace this transformer if your oven or range display is not functioning, controls are unresponsive, or the unit fails to power on properly.

Under-cabinet mounting kit for microwaves. Provides hardware and brackets to securely install your microwave beneath kitchen cabinets. Replacement kit.

Replace your broken or cracked microwave door cover assembly. This structural component protects internal door mechanisms and provides a finished appearance.
