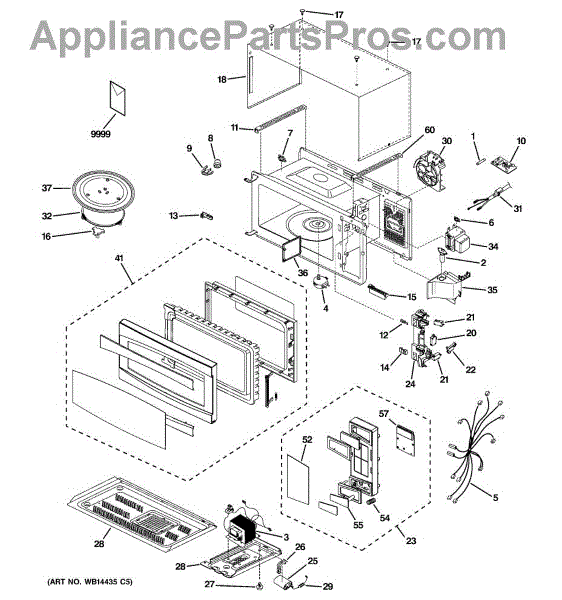

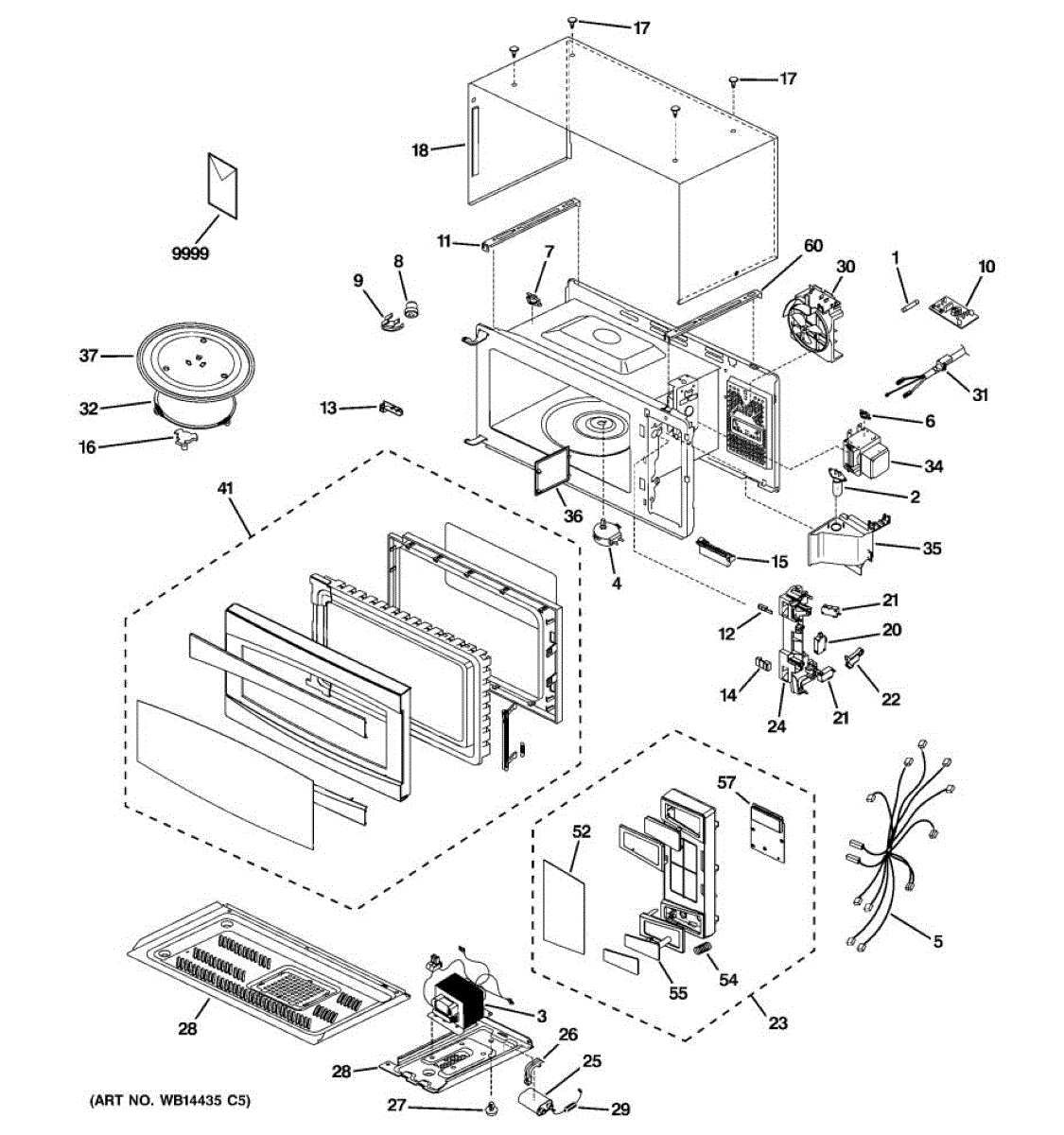

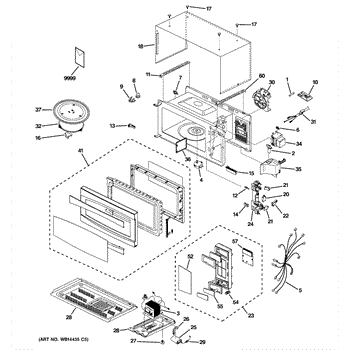

Parts for Ge PEM31DM2WW: 01 - Microwave Parts

This 250V 15A safety fuse protects the appliance's line circuit from overcurrent. When the original fuse has blown, replacing it can restore power and help safeguard internal components from further damage.

• Opens the circuit if excessive current or a short occurs, protecting internal parts
• Common symptom: unit completely dead—no display, lights, or response to controls
• Blown fuse will test open (no continuity) with a multimeter
• If a new fuse blows again, another component may be shorted and needs diagnosis

• Unplug the appliance before servicing; microwaves can retain a dangerous charge—discharge the high-voltage capacitor
• Access the fuse near the line filter/control area; note clip orientation
• Replace only with the same 250V 15A rating; never bypass or upsize the fuse
• If the replacement fuse blows immediately, stop and troubleshoot the root cause

Fix a microwave that won't heat with this high voltage transformer. Powers the magnetron tube to generate cooking heat. Technical repair for experienced DIYers.

Microwave turntable stopped spinning or rotating? This turntable motor drives the glass tray for even heating. DIY-friendly replacement restores rotation.

This is a replacement wire harness A assembly that routes power and signals between controls and components to restore reliable electrical connections and proper operation. Designed to replace a damaged or worn wiring harness. What it does:

• Provides the factory wiring connections between the control, switches and key components.
• Restores power/signal continuity when a damaged harness causes intermittent operation or non-responsive controls.
• Helps eliminate arcing, shorts or burning smell caused by frayed or broken wires.
• Maintains correct connector fit and routing to prevent strain on terminals.

• Disconnect power before starting any repair to avoid shock or injury.
• Inspect connectors and mating terminals for damage; replace if corroded or burned.
• Route and secure the harness to match the original routing; avoid sharp edges and pinch points.

Replacement thermostat that senses and controls the appliance heating system to restore accurate heating and stable temperature cycles, helping the appliance reach and maintain the set temperature. What it does:

• Senses temperature and signals the heating element or valve to turn on/off to maintain set temperature.
• Commonly linked to symptoms such as failure to reach set temperature, temperature fluctuating or cycling erratically, or continuous heating.
• Works as the temperature-regulation component in the appliance's control pathway to stabilize performance.
• Matches the OEM function for temperature control; use when thermostat diagnostics indicate a failed or inaccurate sensor.

• Disconnect power to the appliance before attempting removal or installation to avoid shock or ignition hazards.
• Handle the sensing element and terminals carefully to avoid damage; ensure secure electrical connections and proper routing of any capillary or sensor lead.
• After installation, test the appliance through a full heat cycle to confirm correct operation.

Fix sensor cook cycles that won't adjust properly or show sensor errors. This humidity sensor monitors moisture levels for automatic cooking adjustments.

Secures components inside the microwave frame to keep assemblies aligned and stable. Replace if your original bracket is bent, cracked, or missing.

Door lever for microwave ovens. Installs on the door latch assembly to operate the release mechanism. Replace if broken, cracked, or missing.

Replacement drive coupler for microwave turntable systems. Connects motor to turntable shaft. Replace if cracked, stripped, or broken to restore rotation.

White plastic clip plug for microwave interior. Installs to secure components or cover mounting holes. Order a replacement if original is cracked or missing.

Outer mounting clip secures microwave components in place. Replace if broken, cracked, or missing to restore proper fit. Verify compatibility with your model.

Plastic clip plug that secures the outer case panel on your microwave. Replaces broken, cracked, or missing clips to properly fasten cabinet panels.

The Monitor Switch is an OEM replacement part for GE microwave ovens. Located internally on the turntable control circuit board, this switch monitors rotation of the turntable during cooking cycles.

Causes of failure involve degradation of the electrical contacts from continuous arcing loads over years of use combined with vibration stresses.

Symptoms of a faulty monitor switch include:

• The turntable no longer rotates or spinning intermittently
• Cooking cycles aborting prematurely with error messages
• Screeching or grinding noises emanating from beneath cavity
• Visible burnt spots on turntable drive assembly

This genuine GE switch is also compatible with select Hotpoint and RCA models.

The Microwave Door Switch is an OEM part for GE microwaves, designed to prevent the microwave from operating when the door is open by interrupting the power whenever the door is not securely closed. The door switch is an essential safety feature.

Symptoms of a failing Microwave Door Switch include:

• The microwave not starting or heating
• Running when the door is opened
• Unusual noises when the door is closed

Causes of a bad Microwave Door Switch can result from repeated opening and closing of the door or slamming that can cause the switch to degrade or become misaligned, leading to intermittent or failure.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Fix a microwave that won't heat or hums but doesn't start. This capacitor stores energy for the high-voltage circuit. Moderate DIY repair, 30-60 minutes.

This Bracket HVC is the OEM mounting bracket that secures the HVC assembly in place, keeping related components aligned and reducing vibration or movement for reliable operation. What it does

• Secures the HVC assembly or housing to the appliance frame to prevent shifting or loosening
• Helps maintain proper alignment of adjacent components for consistent performance
• Reduces vibration and rattling that can occur when a bracket is missing or damaged
• Commonly replaced when the HVC housing is loose, noisy, or does not sit flush

• One Bracket HVC mounting bracket

• Disconnect power to the appliance before beginning any work to avoid electrical shock
• Basic hand tools are typically required; handle metal edges carefully to avoid cuts
• Inspect mounting screws or clips and replace if worn to ensure a secure fit

Black plastic foot that supports and stabilizes your microwave. Installs on the bottom corners. Replace if cracked, broken, or missing for proper leveling.

Base plate assembly for microwaves. Installs at the bottom to support internal components. Replace if cracked, broken, or damaged during service.

Microwave not heating but lights and timer work? The high voltage diode converts AC to DC for the magnetron. DIY repair in 1-2 hours with basic tools.

Replace your microwave's power cord assembly if the original is damaged, frayed, or missing. Plugs into the back of the unit for electrical connection.

Color: brown. Measures about 8 inches in diameter.

Protects and directs airflow for proper ventilation and cooling. Replace if cracked, damaged, or missing to restore sealed airflow paths. Confirm fit with your model.

Turntable glass tray. Color: clear. Size. 11-1/2 inches diameter.

Complete microwave door assembly that includes the outer panel, inner liner, window, and handle. Replace this part if your door is cracked, broken, or worn.

Complete door assembly for your microwave. Replaces a cracked, damaged, or broken door unit. Includes handle and mounting components for installation.

White microwave door assembly that replaces damaged, cracked, or broken doors. Includes outer panel and window. Direct replacement for worn units.

Replacement touch pad for your microwave control panel. Install this membrane switch when the original is cracked, worn, unresponsive, or missing buttons.

Color: Bisque

Color: Black

White push button for microwave control panel. Replace this button if yours is cracked, broken, stuck, or missing to restore full control panel functionality.

Color: Stainless

Mounting bracket for microwave installation. Secures microwave to wall or cabinet. Replace if bent, broken, cracked, or missing for proper support.
