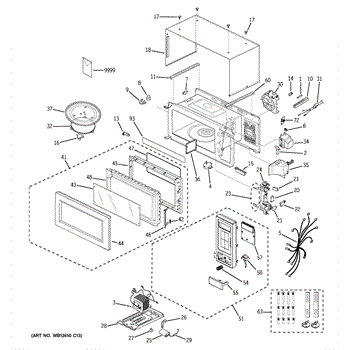

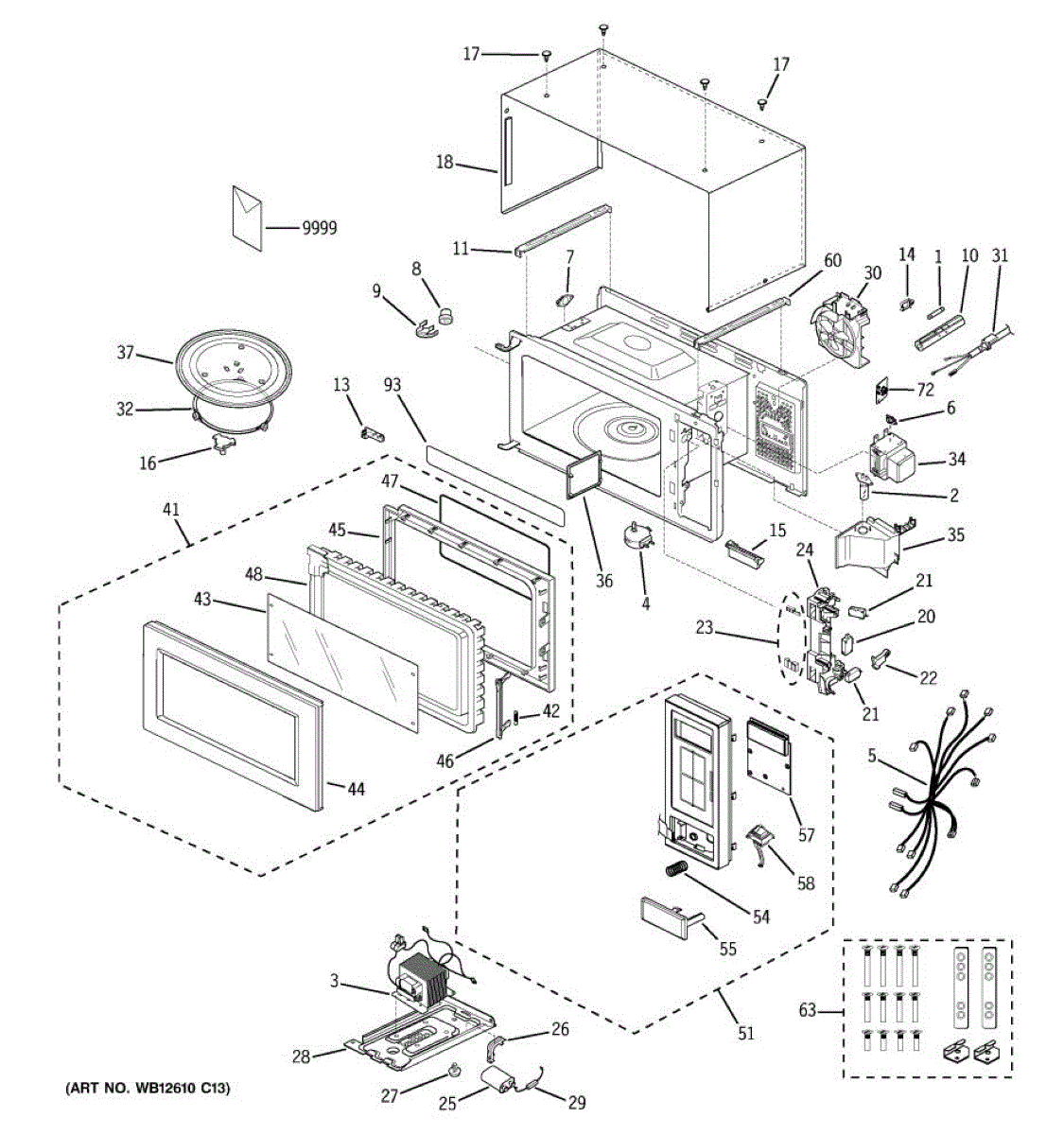

Parts for Ge ZEM200BF02: 01 - Microwave Parts

This 250V 15A safety fuse protects the appliance's line circuit from overcurrent. When the original fuse has blown, replacing it can restore power and help safeguard internal components from further damage.

• Opens the circuit if excessive current or a short occurs, protecting internal parts
• Common symptom: unit completely dead—no display, lights, or response to controls
• Blown fuse will test open (no continuity) with a multimeter
• If a new fuse blows again, another component may be shorted and needs diagnosis

• Unplug the appliance before servicing; microwaves can retain a dangerous charge—discharge the high-voltage capacitor
• Access the fuse near the line filter/control area; note clip orientation
• Replace only with the same 250V 15A rating; never bypass or upsize the fuse
• If the replacement fuse blows immediately, stop and troubleshoot the root cause

This interior oven lamp provides bright, direct lighting inside the oven cavity so you can monitor cooking without opening the door. Direct replacement designed for compatible GE ovens and ranges. What it does:

• Lights the oven interior so you can check food without releasing heat
• Replaces a dim, flickering, or burned-out oven light
• Restores safe visibility when checking racks, pans, and broiling items
• Fits standard oven lamp sockets used in many GE appliances

• Always disconnect power to the appliance before replacing the lamp
• Allow the oven to cool completely to avoid burns
• Remove protective cover or lens per your owner's manual before swapping the bulb
• Hand-tighten the lamp; do not overtighten.

Microwave turntable stopped spinning or rotating? This turntable motor drives the glass tray for even heating. DIY-friendly replacement restores rotation.

This is a replacement wire harness A assembly that routes power and signals between controls and components to restore reliable electrical connections and proper operation. Designed to replace a damaged or worn wiring harness. What it does:

• Provides the factory wiring connections between the control, switches and key components.
• Restores power/signal continuity when a damaged harness causes intermittent operation or non-responsive controls.
• Helps eliminate arcing, shorts or burning smell caused by frayed or broken wires.
• Maintains correct connector fit and routing to prevent strain on terminals.

• Disconnect power before starting any repair to avoid shock or injury.
• Inspect connectors and mating terminals for damage; replace if corroded or burned.
• Route and secure the harness to match the original routing; avoid sharp edges and pinch points.

Replacement thermostat that senses and controls the appliance heating system to restore accurate heating and stable temperature cycles, helping the appliance reach and maintain the set temperature. What it does:

• Senses temperature and signals the heating element or valve to turn on/off to maintain set temperature.
• Commonly linked to symptoms such as failure to reach set temperature, temperature fluctuating or cycling erratically, or continuous heating.
• Works as the temperature-regulation component in the appliance's control pathway to stabilize performance.
• Matches the OEM function for temperature control; use when thermostat diagnostics indicate a failed or inaccurate sensor.

• Disconnect power to the appliance before attempting removal or installation to avoid shock or ignition hazards.
• Handle the sensing element and terminals carefully to avoid damage; ensure secure electrical connections and proper routing of any capillary or sensor lead.
• After installation, test the appliance through a full heat cycle to confirm correct operation.

This gas flame sensor detects whether a burner's flame is present so the range/oven's gas valve and ignition control can operate safely. It helps restore reliable ignition and prevents the valve from staying open when no flame is detected. What it does:

• Senses the presence of a gas flame and signals the control to keep the valve open
• Helps prevent gas flow if a flame is not detected
• Can stop ignition or cause the oven/range not to heat when failing
• Commonly replaced when burners won't stay lit or control shows ignition-related errors

• One gas flame sensor

• Turn off electrical power and shut off the gas supply before servicing
• Handle the sensor and its connector carefully to avoid damage
• Reinstall in the exact position and orientation; loose connections can cause false faults

Secures components inside the microwave frame to keep assemblies aligned and stable. Replace if your original bracket is bent, cracked, or missing.

Wire saddle secures and organizes internal wiring in your microwave. Replace if the clip is cracked, broken, or missing to properly route and hold wires.

Interior door lever mechanism that connects the push button to the door latch assembly. Replace if cracked, broken, or no longer engaging properly.

Replacement drive coupler for microwave turntable systems. Connects motor to turntable shaft. Replace if cracked, stripped, or broken to restore rotation.

White plastic clip plug for microwave interior. Installs to secure components or cover mounting holes. Order a replacement if original is cracked or missing.

The Monitor Switch is an OEM replacement part for GE microwave ovens. Located internally on the turntable control circuit board, this switch monitors rotation of the turntable during cooking cycles.

Causes of failure involve degradation of the electrical contacts from continuous arcing loads over years of use combined with vibration stresses.

Symptoms of a faulty monitor switch include:

• The turntable no longer rotates or spinning intermittently
• Cooking cycles aborting prematurely with error messages
• Screeching or grinding noises emanating from beneath cavity
• Visible burnt spots on turntable drive assembly

This genuine GE switch is also compatible with select Hotpoint and RCA models.

The Microwave Door Switch is an OEM part for GE microwaves, designed to prevent the microwave from operating when the door is open by interrupting the power whenever the door is not securely closed. The door switch is an essential safety feature.

Symptoms of a failing Microwave Door Switch include:

• The microwave not starting or heating
• Running when the door is opened
• Unusual noises when the door is closed

Causes of a bad Microwave Door Switch can result from repeated opening and closing of the door or slamming that can cause the switch to degrade or become misaligned, leading to intermittent or failure.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Fix a microwave that won't heat or hums but doesn't start. This capacitor stores energy for the high-voltage circuit. Moderate DIY repair, 30-60 minutes.

This Bracket HVC is the OEM mounting bracket that secures the HVC assembly in place, keeping related components aligned and reducing vibration or movement for reliable operation. What it does

• Secures the HVC assembly or housing to the appliance frame to prevent shifting or loosening
• Helps maintain proper alignment of adjacent components for consistent performance
• Reduces vibration and rattling that can occur when a bracket is missing or damaged
• Commonly replaced when the HVC housing is loose, noisy, or does not sit flush

• One Bracket HVC mounting bracket

• Disconnect power to the appliance before beginning any work to avoid electrical shock
• Basic hand tools are typically required; handle metal edges carefully to avoid cuts
• Inspect mounting screws or clips and replace if worn to ensure a secure fit

Black plastic foot that supports and stabilizes your microwave. Installs on the bottom corners. Replace if cracked, broken, or missing for proper leveling.

Base plate for microwave interior. Mounts beneath the turntable assembly to support components. Replace if cracked, warped, or broken. Direct fit part.

Microwave not heating but lights and timer work? The high voltage diode converts AC to DC for the magnetron. DIY repair in 1-2 hours with basic tools.

Replace your microwave's power cord assembly if the original is damaged, frayed, or missing. Plugs into the back of the unit for electrical connection.

Color: brown. Measures about 8 inches in diameter.

Microwave not heating but lights and fan work? Buzzing noise when running? The magnetron generates microwaves to cook food. Moderate DIY repair difficulty.

Turntable glass tray. Color: clear. Size. 11-1/2 inches diameter.

Complete microwave door assembly that installs on the front cabinet. Replace if your door is cracked, damaged, or the hinges are broken or worn out.

Replacement screen for your microwave door. Installs behind the glass panel to protect internal components. Order a new screen if yours is damaged or missing.

Replacement choke cover for microwave doors. Installs around the door perimeter to shield internal components. Order when original is cracked or missing.

Fix a microwave door that won't close or latch properly with this door latch assembly. Solves issues with doors not staying shut or secure during operation.

This is a full main door assembly that replaces a worn, damaged or broken appliance door to restore a secure, sealed closure and normal operation. Fits as the complete door unit used on compatible GE appliances. What it does:

• Provides the full door structure including panels and internal components needed to close and seal the appliance
• Restores proper door alignment and secure latching when the existing door is bent, loose or won't stay closed
• Replaces doors with cracked or damaged exterior glass or frame that affect appearance and function
• Helps prevent heat/steam loss and improves safety when the original door is compromised

• Disconnect power and ensure appliance is cool before attempting replacement
• Door assemblies can be heavy or awkward; have a helper for alignment and installation
• Handle glass and trim carefully to avoid damage or injury
• Use factory fasteners and follow OEM instructions for proper fit and sealing

Complete microwave door assembly that installs as the main door unit. Replace your cracked, broken, or damaged door to restore proper closure and appearance.

Single push button for microwave control panels. Replaces worn, stuck, or broken buttons to restore tactile control and responsive input on your appliance.

Replace your microwave's control panel button if the original is cracked, broken, missing, or worn. This push button installs on the front panel.

Translucent lens that covers and protects your microwave's control panel buttons and display. Replace if cracked, cloudy, yellowed, or missing.

Mounting bracket for microwave installation. Secures microwave to wall or cabinet. Replace if bent, broken, cracked, or missing for proper support.

Under-cabinet mounting kit for microwaves. Provides hardware and brackets to securely install your microwave beneath kitchen cabinets. Replacement kit.
