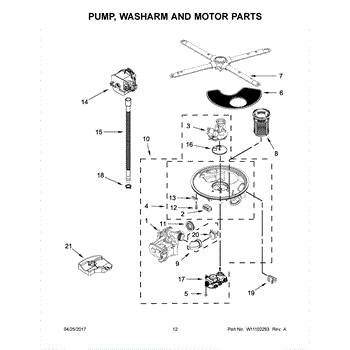

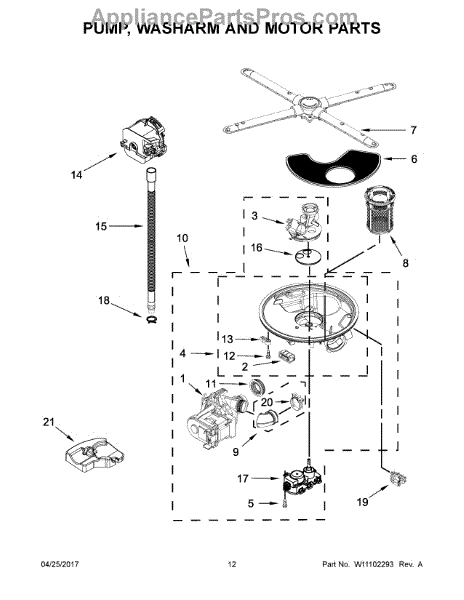

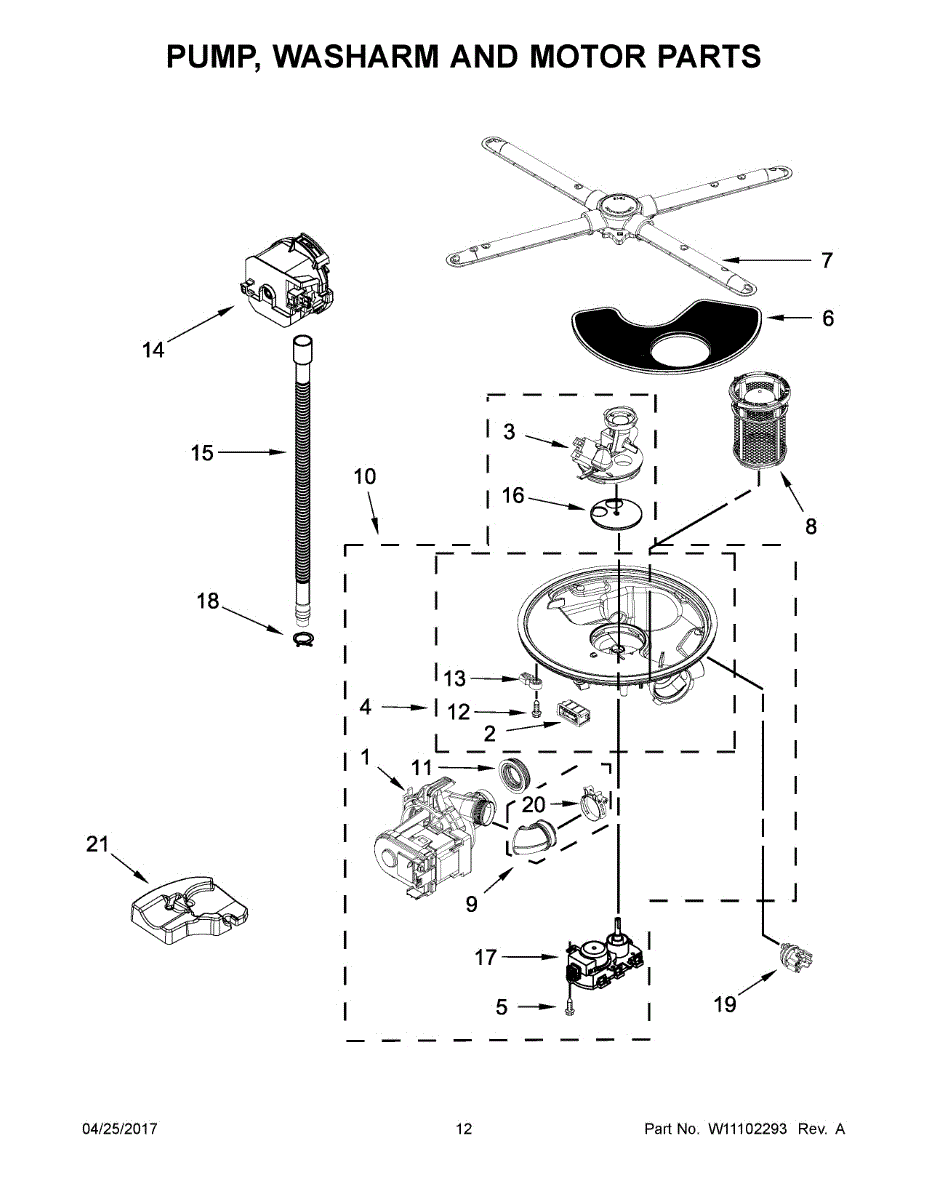

Parts for Kitchenaid KDFE204EBL4: 07 - Pump, Washarm And Motor Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Replacement bracket that secures and supports internal dishwasher components. Install this support plate if your original is cracked, broken, or missing to restore alignment.

This is a cap or cover that fits over the sump area near the pump outlet at the bottom of the dishwasher. It helps seal and direct water flow within the sump and pump assembly during wash and drain cycles. Replace this cover if it is cracked, warped, or missing, which can cause water leaks or reduced wash performance.

Fix dishwasher leaking water from underneath. The sump assembly houses the pump, filters, and seals that commonly fail causing floor leaks. DIY repair.

Quantity of ONE. Size: 8-18 x 5/8 inch. (#8 screw, 18 threads per inch, 5/8 inch long)

Traps food particles and debris during wash cycles to keep water clean. Replace if clogged, cracked, or dishwasher performance declines. Verify fit.

Flexible tube connecting the drain pump motor to the sump in your dishwasher. Replace if cracked, leaking, or damaged to restore proper water drainage.

Fix dishwasher leaking from the motor area with this motor to sump seal. Creates a watertight connection between pump and sump. Takes 10-20 minutes.

Factory #10-16 screw secures dishwasher panels, brackets, and covers. Replace worn, stripped, or missing screws to restore tight assembly.

This tab-sump mounting secures the dishwasher sump/dispenser area so detergent tabs and related components stay properly aligned. Replacing a worn or broken mounting restores correct dispenser positioning and helps prevent tabs from falling loose during cycles. What it does:

• Holds the tab/sump assembly in place to maintain proper detergent tab positioning
• Prevents the dispenser or sump from shifting or sagging during operation
• Helps reduce incidents of tabs dislodging or failing to stay seated
• Supports correct alignment of adjacent dispenser components

• Disconnect power and water supply before starting any repair
• Remove the door panel or access cover to reach the sump area
• Inspect surrounding clips and seals; replace any damaged fasteners for a secure fit

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Fix a dishwasher that won't drain with a new drain pump. Common cause when water stays in the tub after cycles. DIY-friendly repair, no special tools needed.

Flexible drain hose carries wastewater from your dishwasher to the kitchen drain. Replace if cracked, leaking, burst, or damaged by wear or pests.

Dishes not cleaning evenly or spray arms not working? The diverter disc routes water to spray zones. Common issue, straightforward 5-10 minute fix.

This hose clamp secures dishwasher hoses to fittings and ports to maintain a tight, leak-resistant seal. Replacing a worn clamp helps prevent drips and loose connections that can cause water under the unit.

• Secures drain or circulation hose to the pump, sump, or other dishwasher fittings
• Helps maintain a watertight seal at hose connection points
• Can help resolve water dripping from a hose joint or a loose hose
• Replace if corroded, deformed, cracked, or no longer holds tension

• Disconnect power and turn off the water supply before servicing
• Place a towel or shallow pan to catch residual water when removing hoses
• Fully seat the hose on the fitting, position the clamp over the barb/connection, and secure firmly
• After reassembly, run a brief fill/drain and check all connections for leaks

Dishwasher won't advance to dry cycle or runs too long? The turbidity sensor monitors water clarity to control cycle length. Accessed from underneath.

Secures hoses and connections in your dishwasher to prevent leaks. Replace if corroded, loose, or worn. Verify fit with your model number before ordering.

This air inlet damper controls cold-air flow from the freezer into the refrigerator compartment to help maintain proper fresh-food temperatures. Replacing a faulty damper restores balanced airflow and more consistent cooling. What it does:

• Regulates the amount of cold air entering the fresh-food section from the freezer.
• Opens and closes as the fridge cycles to maintain set temperatures.
• Commonly replaces stuck, broken, or noisy dampers that cause uneven cooling.
• Often used when the refrigerator is warm while the freezer remains cold or when temperatures fluctuate.

• Disconnect power to the appliance before starting any repair.
• Remove interior panels or grille per your model's service instructions to access the damper; keep screws and clips organized.
• Handle plastic fins and actuator gently to avoid damage; do not force the damper into position.
• Reconnect power and verify damper operation and temperature regulation after installation.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.
