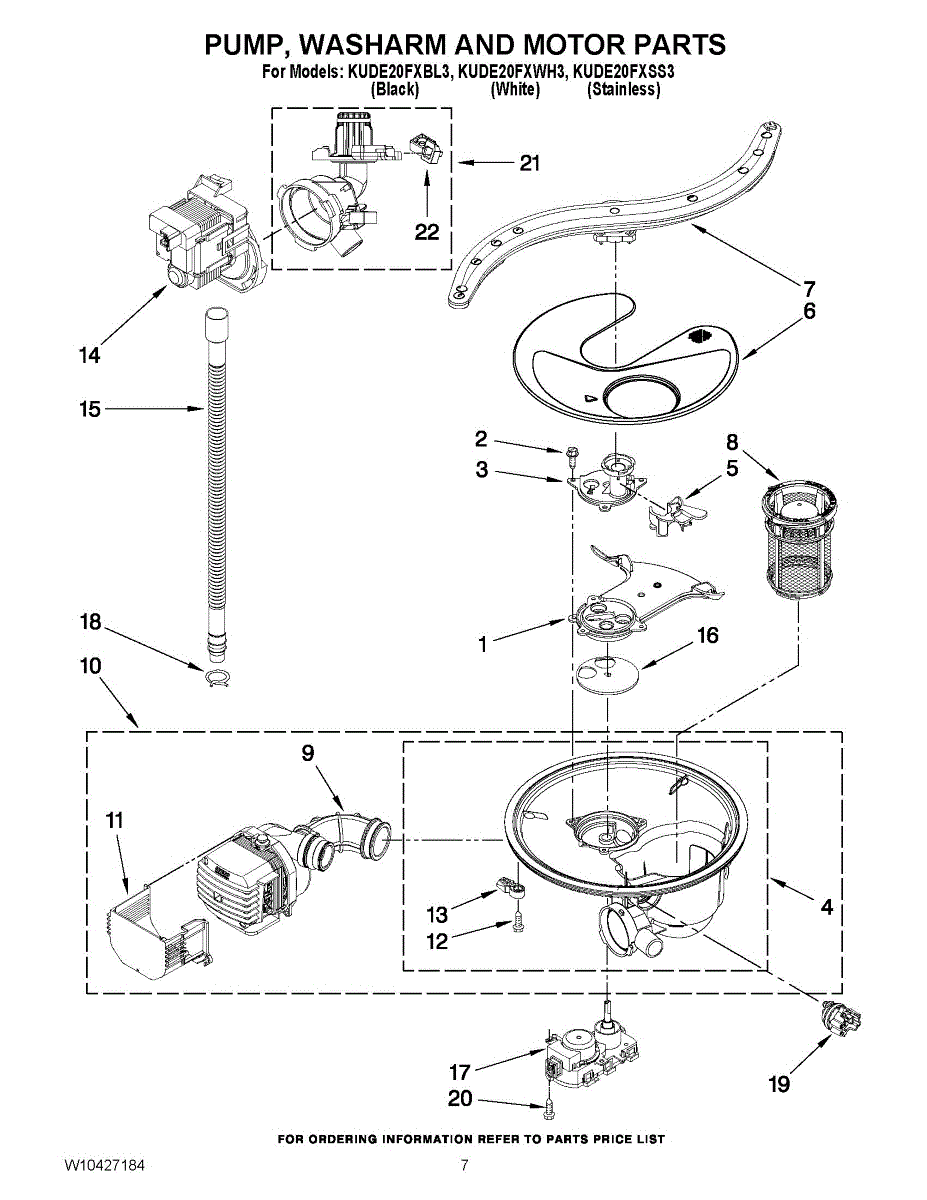

Parts for Kitchenaid KUDE20FXSS3: 06 - Pump, Washarm And Motor Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

Shaft seal included.

This fine screen is the small mesh filter that sits in the dishwasher sump to catch food particles and help protect the pump and wash system. It keeps debris from circulating so dishes rinse more effectively. What it does:

• Traps food and debris in the sump to prevent clogging and pump damage
• Helps maintain proper water flow for consistent wash and drain performance
• Reduces risk of food redepositing on dishes during cycles
• Commonly replaced when torn, heavily clogged, or missing

• One fine mesh sump screen

• Turn off power and disconnect the dishwasher before servicing
• Remove the lower dish rack and access the sump area to replace the screen
• Inspect surrounding seals and housing for damage while servicing
• No special tools typically required; handle mesh gently to avoid deformation

The Spray Arm is an OEM replacement part for Whirlpool dishwashers. It is a component responsible for distributing water through an array of small spray openings during the cleaning cycle. The spray arm rotates and evenly disperses water and spray over the dishes.

Causes of a bad spray arm can include mineral scale buildup obstructing water flow through the spray holes, damage or cracking weakening the plastic construction, or worn bearings preventing proper rotation.

Symptoms of a bad spray arm include:

• Inadequate or uneven cleaning even on lightly soiled dishes
• Dirt and food particles left behind after washing
• Clogged or inoperable spray holes.

This OEM Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

The pump filter is an OEM part for Whirlpool dishwashers. It is responsible for trapping large particles, preventing them from entering the pump and potentially causing blockages or malfunctions.

A bad filter can occur due to regular use, accumulation of debris, or wear and tear over time.

Symptoms of a bad pump filter include:

• Dirty or cloudy dishes after a cycle.
• Noisy operation, such as grinding or rattling sounds.
• Water pooling at the bottom of the dishwasher.
• Foul odors in the dishwasher.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This dishwasher sump & motor assembly restores strong wash circulation and seals the tub floor. It moves water through the spray arms for reliable cleaning and replaces a cracked sump or failed wash motor in one step.

• Circulates wash water through spray arms; helps when dishes aren't getting clean or spray is weak
• Seals and channels water at the tub bottom to help stop leaks from the center area
• Restores correct wash flow when the motor hums, grinds, or won't run
• One-piece assembly replaces a damaged sump and failed circulation pump in a single repair

• Disconnect power at the breaker and turn off the water supply before servicing
• Remove lower rack and spray arm; pull the dishwasher out as needed to access the bottom
• Disconnect wiring and hoses, release the sump locking mechanism, and seat the new gasket evenly before locking in place
• Reconnect, restore power/water, and run a short cycle to check for leaks and proper operation

This factory fastener is a #10-16 screw used to secure appliance panels and components. Replacing worn or missing hardware restores a tight fit, helps prevent rattles, and keeps parts properly aligned for dependable operation.

• Secures brackets, panels, and covers to the cabinet or frame
• Replaces missing, stripped, or corroded mounting hardware
• Helps reduce vibration and rattling from loose mounts
• Correct 10-16 thread to match designated OEM mounting points

• Disconnect power and shut off water or gas supply before servicing
• Match the screw to the original location using your model's diagram
• Start threads by hand to avoid cross-threading; tighten snugly—do not overtighten
• If replacing multiple screws, swap one at a time to maintain alignment

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This tab-sump mounting secures the dishwasher sump/dispenser area so detergent tabs and related components stay properly aligned. Replacing a worn or broken mounting restores correct dispenser positioning and helps prevent tabs from falling loose during cycles. What it does:

• Holds the tab/sump assembly in place to maintain proper detergent tab positioning
• Prevents the dispenser or sump from shifting or sagging during operation
• Helps reduce incidents of tabs dislodging or failing to stay seated
• Supports correct alignment of adjacent dispenser components

• Disconnect power and water supply before starting any repair
• Remove the door panel or access cover to reach the sump area
• Inspect surrounding clips and seals; replace any damaged fasteners for a secure fit

The Drain Pump is an OEM part for Whirlpool dishwashers. It is responsible for removing wastewater from the dishwasher tub during the drain cycle, ensuring that the dishwasher operates efficiently and effectively.

Causes of a bad drain pump can include clogging from food particles and debris, damage to the pump impeller, or electrical failures within the pump motor. Over time, regular use can lead to wear and tear that affects the pump's performance.

Symptoms of a bad drain pump include:

• Water not draining from the dishwasher
• Standing water at the bottom of the dishwasher after a cycle
• Unusual noises during the drain cycle
• Error codes related to drainage issues

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Drain Hose is an OEM part for Whirlpool dishwashers. This flexible hose is designed to carry waste water from the dishwasher to the kitchen drain system or garbage disposal, ensuring that the dishwasher drains properly after each wash cycle.

Causes of damage to the Drain Hose often involve regular wear and tear, bending or kinking of the hose during installation or maintenance activities, or deterioration over time due to exposure to hot water and detergents.

Symptoms of a bad Drain Hose include:

• Water remaining in the bottom of the dishwasher after a cycle
• Leaks found under or behind the dishwasher, which could be due to holes, cracks, or loose connections in the drain hose.
• Unpleasant odors emanating from the dishwasher, potentially caused by food particles or debris caught in a hose that is not draining correctly.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This disk valve diverter directs wash water flow between spray arms and wash zones to restore proper circulation and cleaning performance. It replaces a worn or damaged diverter to help return consistent spray pressure and distribution. What it does:

• Routes pump water to the correct spray arm or wash zone during the wash cycle
• Helps maintain even spray pressure for effective cleaning
• Worn or broken diverter can cause poor cleaning, reduced water to a spray arm, or unusual pump noise
• Prevents bypass flow that can reduce wash performance

• One disk valve diverter as shown

• Disconnect power to the appliance and shut off the water supply before starting
• Access may require removing the tub access panel or disassembling spray arm/tub components
• Inspect surrounding seals and gaskets; replace any damaged parts to prevent leaks
• After installation, run a short cycle and check for proper water routing and leaks

The Diverter Motor is an OEM part for Whirlpool dishwashers. It controls the movement of the diverter disc, which directs water flow to different spray arms during the wash cycle. This ensures that all areas of the dishwasher receive adequate water pressure for effective cleaning.

Causes of a bad diverter motor can include electrical malfunctions, wear and tear from frequent use, or damage from water exposure. A faulty diverter motor can prevent the proper distribution of water, leading to poor cleaning performance.

Symptoms of a bad diverter motor include:

• Dishes not being cleaned properly
• Unusual noises coming from the dishwasher during operation
• The dishwasher not advancing through cycles correctly
• Water not reaching all areas of the dishwasher

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: Includes wire harness WPW10083167, Drain cap part number WPW10193605, and the shaft seal has been incorporated into sump housing, not available separately.

The Hose Clamp is an OEM part for Whirlpool washing machines. This clamp secures the hose in place, ensuring a tight connection and preventing leaks during operation. It is essential for maintaining the integrity of the washing machine's water system, securing hoses that carry water to and from the washer.

Common causes of a bad hose clamp include rust, physical damage, or loosening from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Water leaks around the hose connection points
• The hose slipping off the fitting
• Visible rust or wear on the clamp
• Difficulty in tightening the clamp to secure the hose

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

The Turbidity Sensor is an OEM part for Whirlpool dishwashers. It detects the level of particles in the water during the wash cycle, allowing the dishwasher to adjust the cycle duration and water usage for optimal cleaning performance. This sensor ensures that dishes are thoroughly cleaned by monitoring water clarity.

You should replace the turbidity sensor if it becomes faulty or damaged. Causes of a bad turbidity sensor can include regular wear and tear, exposure to hard water minerals, or electrical malfunctions. A malfunctioning sensor can lead to inefficient cleaning cycles and poor wash results.

Symptoms of a bad turbidity sensor include:

• Dishes not being cleaned properly
• Dishwasher running longer than usual or shorter cycles
• Error codes related to the sensor
• Inconsistent wash performance

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Quantity of ONE. Size: 8-18 x 5/8 inch. (#8 screw, 18 threads per inch, 5/8 inch long)

This de-coupled drain housing creates a sealed, vibration-isolated connection in the appliance's drain path. Replacing a cracked or leaking housing restores reliable draining performance and helps prevent water leaks and rattling during the drain cycle.

• Forms the rigid, sealed connection between the drain path and mating components
• Isolates pump vibration from the chassis to reduce noise during drain
• Directs wastewater efficiently out of the unit during the drain cycle
• Common symptoms of a failed housing include standing water, leaks under the unit, loud vibration/buzzing while draining, or visible cracks/broken tabs

• Disconnect power and water supply before servicing; allow any hot water to cool
• Access the drain area and place a towel or pan to catch residual water
• Move clamps/hoses, then transfer any reusable seals or grommets; replace worn seals as needed
• Secure all connections and clamps; run a short test and check carefully for leaks

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
