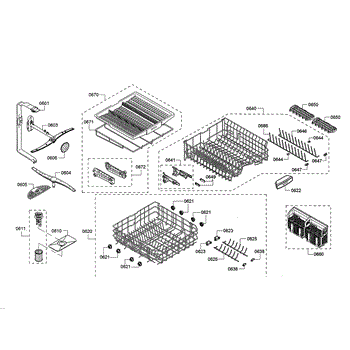

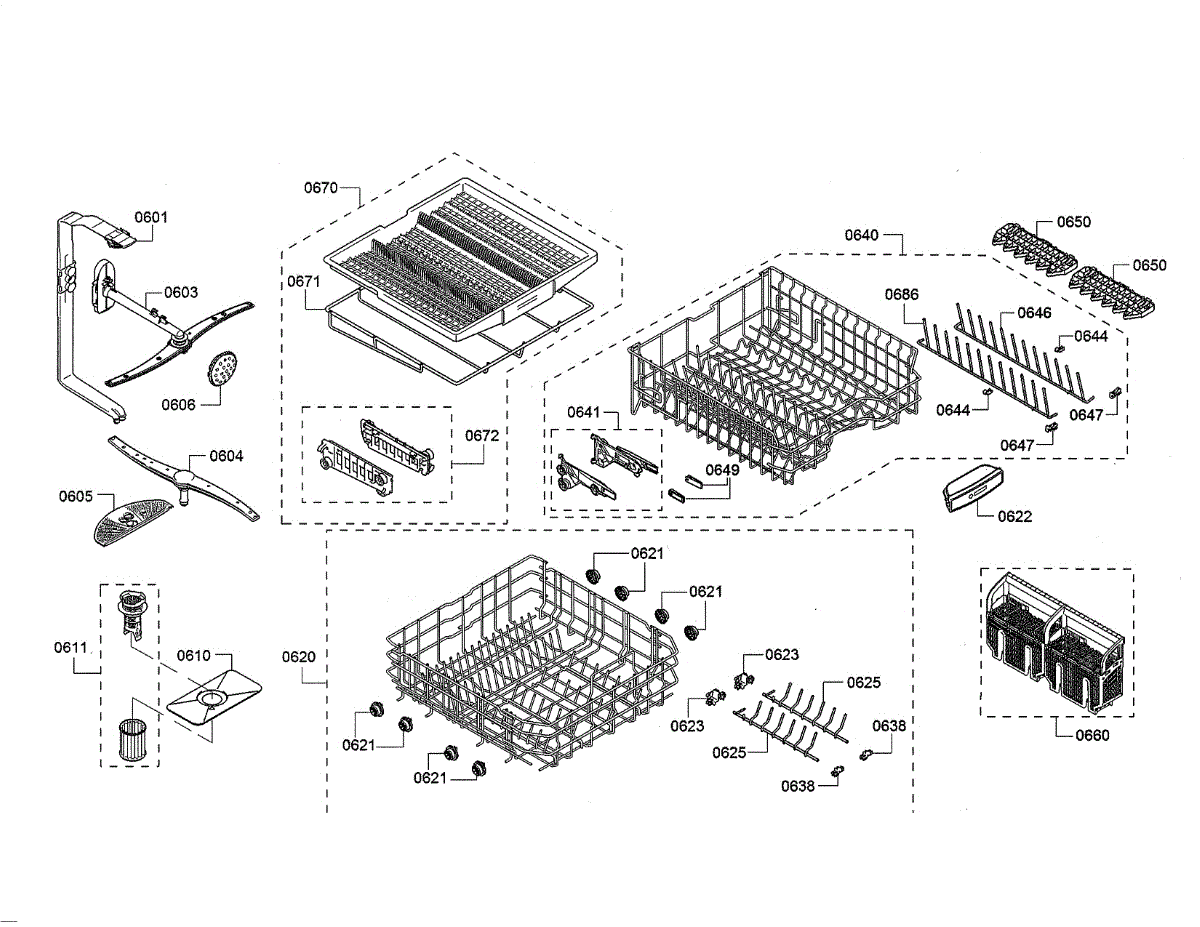

Parts for Bosch SHE863WF2N/01: Racks / Spray Arm Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Fix poor cleaning on top rack dishes with this dishwasher spray arm water supply tube. Directs water to spray arms. DIY install in 10-15 minutes.

Replacement spray arm for dishwashers. Snaps into the rack to distribute water through multiple jets. Replace if broken, cracked, or missing clips.

Dishes coming out grimy or glasses gritty? A clogged or worn lower spray arm prevents proper cleaning. Simple 10-minute fix with no tools required.

The Cover is an OEM part for Bosch dishwashers. It provides a protective barrier that shields internal components from damage and extends the life of the appliance.

The cover is exposed to heat, humidity, and debris during each wash cycle. Over time and repeated use, these conditions can cause cracks, warping or breakdown of the protective plastic material.

Causes of a bad cover include normal wear and tear, accidental dents or punctures, and exposure to excess heat or chemicals.

Symptoms of a cover needing replacement include:

• Visible cracks or holes that compromise the barrier
• Loose or sagging fit that allows internals to be exposed
• Warping or melting of the protective plastic shield

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Spray Head is an OEM replacement part for Bosch dishwashers. It directs pressurized water along the dish racks, targeting every inch of dishware and cookware. Consistent coverage cleans thoroughly without waste.

Symptoms of a bad spray head can include clogged nozzles, inconsistent patterns, or spray heads that do not oscillate and rotate properly through cycles. Mineral deposits pose blockage risks over time.

Causes of a bad spray head include:

• Uneven or skipped areas of spray coverage inside the machine
• Rotating/oscillating mechanisms that jam or continuously stick
• Nozzles fully or partially blocked reducing water pressure
• Head assembly detaching from water tub wall or bracket

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

Screens out small food particles from wash water to prevent debris recirculation. Replace when clogged or mineral-crusted. Confirm fit by model number.

Captures debris before it enters the pump system. Replace when clogged, calcified, or damaged to prevent E22 errors and ensure clean dishes. Verify fit.

This dishwasher crockery basket holds and organizes flatware and small items during the wash cycle. Replacing a damaged basket helps keep pieces upright, prevents items from slipping through, and supports consistent cleaning results.

• Organizes and separates silverware so wash spray reaches all surfaces
• Helps keep small items from falling into the tub, sump, or spray arm area
• Restores stable storage when the original basket is cracked, warped, or missing
• Common symptoms: broken grid walls, missing sections, sharp edges, or utensils tipping over

NOTE: This item does not include the cutlery basket. When ordering, you must also purchase Part # 11026683 (Cutlery Basket) separately.

Install notes:

• Turn the dishwasher off and allow any hot surfaces to cool before reaching inside
• Lift out the old basket from the lower rack and set the new basket in the same location or hooks
• Ensure the lower spray arm spins freely with the basket in place
• Load utensils per your owner's manual to avoid blocking spray or causing damage

Replace cracked, broken, or missing dishwasher rack roller wheels. Snaps onto bottom or top rack to restore smooth gliding. Easy DIY installation.

Replace your dishwasher's broken or missing rack handle. This handle clips to the front of the dish rack for easy gripping when sliding racks in and out.

This is a small plastic holder that secures the tine clips on the dishwasher rack, keeping the fold-down tines locked in their upright or lowered positions. It snaps onto the rack wire and holds the tine row clips firmly in place. Replace this holder if your rack tines are loose, won't stay folded down, or if the original clip holder is cracked or missing.

This is a small clip or holder that secures the tine rows in the dishwasher's upper or lower dishrack. It keeps the fold-down tines locked in their upright or flat position so dishes remain stable during the wash cycle. Replace this holder if tine rows are loose, won't stay up, or if the clip is cracked or broken.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Replace your dishwasher's upper rack pull-out rail assembly. Installs on top rack to enable smooth sliding. Needed when rails are cracked, broken, or wheels are worn. Includes left and right sides.

Secures tines within your dishwasher rack for proper dish organization. Replace if cracked, broken, or clips have failed causing tine rows to fall down.

This Bosch Dishwasher Insert is an OEM part for Bosch dishwashers, specifically designed to enhance the interior functionality of your appliance. The insert is a vital component that aids in the organization and secure placement of dishes, utensils, and other items during the wash cycle.

Common causes of damage to a dishwasher insert include physical strain from overloading, exposure to high temperatures and harsh detergents, and general wear and tear. These factors can lead to warping, cracking, or the breakdown of the insert's structure.

Symptoms of a bad insert include:

• Difficulty in fitting dishes and utensils properly.
• Reduced cleaning effectiveness due to improper loading.
• Noticeable cracks, warps, or breakage in the insert structure.
• Loose or unstable compartments within the insert.
• Difficulty in sliding or securing the insert inside the dishwasher.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.


Secures tine rows to your dishwasher rack. Replace if broken, cracked, or missing to keep tines upright for proper dish spacing. Clips onto rack.

Replacement cup rack for dishwashers. Installs inside the tub to hold cups and mugs during wash cycles. Replace if prongs are broken or plastic is cracked.

Removable cutlery basket holds silverware in your dishwasher's lower rack. Replace if cracked, broken, or missing to keep utensils organized.

This is a cutlery drawer basket designed to hold silverware and utensils during the wash cycle. It sits inside the dishwasher tub or slides into the lower rack, keeping smaller items organized and properly positioned for thorough cleaning. Replace this basket if it is cracked, warped, has broken tines, or no longer holds utensils securely in place.

Cutlery basket frame for Bosch dishwashers. Organizes and supports forks, knives, and spoons. Replace if cracked, broken, or damaged from wear.

Replace worn cutlery drawer roller assembly when drawer sticks or doesn't glide smoothly. Restores easy utensil access. Verify fit with your model number.

The Insert is an OEM component specifically designed for select Bosch dishwashers. Located inside the tub basin, the tines provide the necessary friction to help clean dishes.

Causes of a bad insert can include mineral buildup that prevents proper movement or damage from dropped utensils that have bent the tines out of place.

Symptoms of a bad insert include:

• Dishes still feeling dirty after the wash cycle
• Rust or mineral deposits visible on the tines
• Tines that are bent or missing which reduces cleaning surface area

Replacing the insert with this OEM Bosch part restores optimal cleaning performance. Compatible with 300 series models, it features stainless steel construction that withstands corrosion from detergents. This replacement insert is warranted to perform as the original Bosch design for reliable dish cleaning.


This micro filter is a fine-mesh replacement filter that traps food particles and debris in the dishwasher sump, helping maintain wash performance and protect the pump and drain from clogs. What it does:

• Captures small food particles to prevent recirculation and reduce spotting
• Helps keep the dishwasher drain and pump from clogging
• Supports consistent water flow for better cleaning results
• Can reduce odors caused by trapped debris in the filter area

• Disconnect power and turn off water supply before servicing
• Remove the lower rack to access the sump area; follow your owner's manual for filter removal
• Ensure the filter is properly seated and locked before running a cycle
• Clean surrounding areas and inspect for additional debris while replacing the filter

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.
