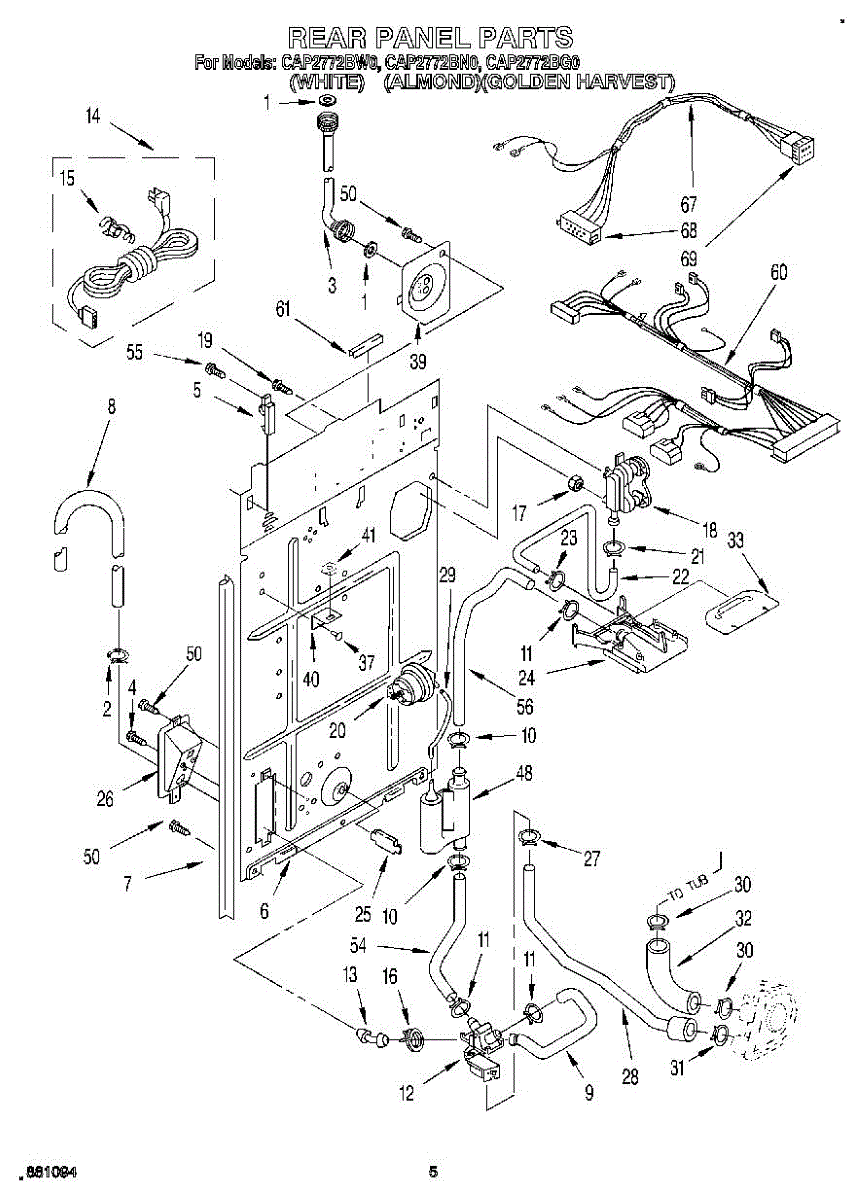

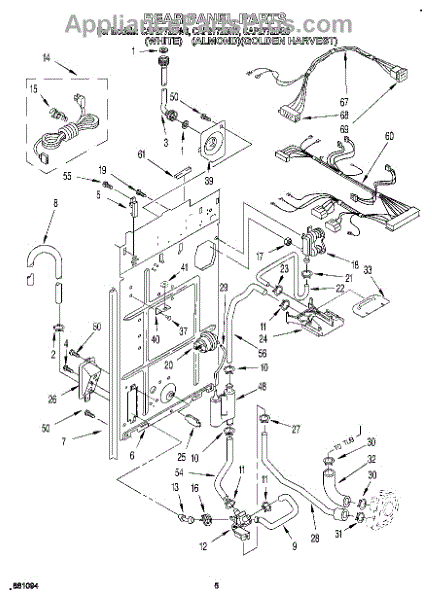

Parts for Whirlpool CAP2772BN0: 04 - Rear Panel Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

Rubber washer gasket for washer fill hose connections. Replace if worn or leaking at coupler adapter. Measures 1-1/16 x 5/8 inch. Verify fit with model.

Leaking washer during drain cycle? This drain hose clamp secures the connection to prevent water leaks and hose pull-off from vibration or pressure.

Size: 5 foot long. Rubber fill hose used on most automatic washing machines. Two hoses used per machine.

Used for control panel.

Rear panel pad cushions and insulates the appliance's rear cabinet to reduce vibration, noise and rubbing against the back panel. Replacing a damaged pad helps stop rattles and protects internal components from wear. What it does:

• Provides rear-cabinet cushioning and thermal/abrasion protection for the back panel.
• Dampens vibration and reduces operational noise.
• Prevents direct metal-to-metal contact that can cause rubbing or wear.
• Common symptom fix: reduces rattling or vibrating noises from the appliance rear.

• Always disconnect power (and gas, if applicable) before starting any repair.
• Remove the rear access panel to access the pad; replace using the original mounting points, adhesive or clips.
• Inspect surrounding insulation and mounting hardware; replace any damaged fasteners.

Washer won't drain or leaking water? This gooseneck drain hose channels wastewater from pump to household drain. Fixes clogs and damaged tubing.

This clamp secures a flexible appliance hose to a fitting to help prevent leaks and keep connections tight. It's a small but essential part that restores a proper seal on water or drain lines. What it does:

• Holds a hose firmly to a tailpiece, barb or connector to reduce leaks and hose slippage
• Helps stop intermittent dripping or pooling caused by loose hose connections
• Restores a proper seal after hose replacement or maintenance
• Works on common appliance water/drain lines where this clamp style is used

• One hose clamp

• Disconnect power and shut off water to the appliance before starting any work
• Allow the appliance and hoses to cool if recently used; use gloves and eye protection
• Use appropriate pliers or a screwdriver (depending on clamp style) to remove and install the clamp; avoid over-tightening
• Inspect the hose and fitting for damage; replace the hose if cracked or worn

This clamp secures a flexible appliance hose to a fitting to help prevent leaks and keep connections tight. It's a small but essential part that restores a proper seal on water or drain lines. What it does:

• Holds a hose firmly to a tailpiece, barb or connector to reduce leaks and hose slippage
• Helps stop intermittent dripping or pooling caused by loose hose connections
• Restores a proper seal after hose replacement or maintenance
• Works on common appliance water/drain lines where this clamp style is used

• One hose clamp

• Disconnect power and shut off water to the appliance before starting any work
• Allow the appliance and hoses to cool if recently used; use gloves and eye protection
• Use appropriate pliers or a screwdriver (depending on clamp style) to remove and install the clamp; avoid over-tightening
• Inspect the hose and fitting for damage; replace the hose if cracked or worn

This connector hose links appliance plumbing components to restore a sealed water path and proper flow. It replaces a damaged or leaking hose section so the appliance can refill and drain as intended. What it does:

• Re-establishes a sealed hose connection between intake/drain plumbing points
• Prevents leaks caused by cracked, split, or worn hose fittings
• Helps restore normal water fill or drain behavior when the original connector fails
• Compatible with the factory connection points shown in the OEM parts diagram

• Turn off power and shut off the water supply before starting work
• Inspect adjacent clamps and fittings; replace any damaged hardware for a secure seal
• Use proper hose clamps and ensure connections are tight but not over-torqued

Replacement power cord for washers. Connects your washer to the wall outlet. Replace if your cord is damaged, frayed, cracked, or missing.

The Hose Clamp is an OEM part for Whirlpool washing machines. This clamp secures the hose in place, ensuring a tight connection and preventing leaks during operation. It is essential for maintaining the integrity of the washing machine's water system, securing hoses that carry water to and from the washer.

Common causes of a bad hose clamp include rust, physical damage, or loosening from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Water leaks around the hose connection points
• The hose slipping off the fitting
• Visible rust or wear on the clamp
• Difficulty in tightening the clamp to secure the hose

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

This adapter tube assembly connects sections of the appliance's water line to create a secure, leak-resistant path for water flow. Replace it if the tube is cracked or the connection no longer seals properly to prevent leaks and restore flow.

• Connects water tubing between components within the appliance's water system
• Helps maintain a tight, leak-resistant seal at the joint
• Restores proper water flow when a tube or connector is damaged
• Typical symptoms: water leaking at the connection, reduced or no water flow, visible cracks/kinks, loose fit

• Disconnect power and shut off the water supply before servicing
• Relieve line pressure and place a towel or pan to catch any residual water
• Note routing and orientation before removal to ensure correct reassembly
• After installation, restore water and check all connections for leaks

Washer won't fill or drips water after cycle? The water inlet valve controls hot and cold water flow. DIY-friendly repair with video guide included.

10 - 16 x 1/2

The Hose Clamp is an OEM part for Whirlpool appliances. It secures hoses in place, ensuring a tight connection and preventing leaks in various systems such as washing machines, dishwashers, and refrigerators. This clamp is crucial for maintaining the integrity of the water or air lines it secures.

Causes of a bad hose clamp include wear and tear over time, exposure to water and detergents, or mechanical stress from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Leaks at the hose connection points
• Hoses slipping off the connections
• Visible rust or damage on the clamp
• Reduced appliance efficiency due to leaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Replaces the vacuum break inlet hose connecting the water inlet to your washer tub. Needed when original hose is cracked, burst, leaking, or damaged.

The Hose Clamp is an OEM part for Whirlpool appliances. It secures hoses in place, ensuring a tight connection and preventing leaks in various systems such as washing machines, dishwashers, and refrigerators. This clamp is crucial for maintaining the integrity of the water or air lines it secures.

Causes of a bad hose clamp include wear and tear over time, exposure to water and detergents, or mechanical stress from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Leaks at the hose connection points
• Hoses slipping off the connections
• Visible rust or damage on the clamp
• Reduced appliance efficiency due to leaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

Structural bracket that secures the rear panel to the washer chassis. Replace if cracked, broken, or missing to restore proper alignment and cabinet stability.

The Spring Tension Hose Clamp is an OEM part for Whirlpool washing machines. It is designed to secure hoses in place, preventing leaks by maintaining consistent tension on the hose connections.

Over time, spring tension hose clamps can lose their effectiveness due to metal fatigue, corrosion, or damage from frequent tightening and loosening. This can lead to leaks and improper hose connections.

Symptoms of a bad spring tension hose clamp include:

• Water leaks around hose connections
• Loose or disconnected hoses
• Unusual noises or vibrations during operation
• Water pressure issues within the washing machine

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Washer overfilling or not filling properly? A damaged pressure switch hose prevents accurate water level sensing. Easy 15-minute DIY fix with video.

Fix water leaks from loose hose connections with this spring hose clamp. Secures washer hoses to fittings and restores tight seals. Quick DIY repair.

The Hose Clamp is an OEM part for Whirlpool washing machines. This clamp secures the hose in place, ensuring a tight connection and preventing leaks during operation. It is essential for maintaining the integrity of the washing machine's water system, securing hoses that carry water to and from the washer.

Common causes of a bad hose clamp include rust, physical damage, or loosening from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Water leaks around the hose connection points
• The hose slipping off the fitting
• Visible rust or wear on the clamp
• Difficulty in tightening the clamp to secure the hose

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

Replacement drain hose connecting washer tub to pump assembly. Replace if cracked, split, leaking, or worn. Carries water from tub during drain cycle.

Cage nut clips into panel openings to create a threaded anchor point for secure mounting. Replace if broken, stripped, or missing to restore hardware.

10 - 16 x 1/2

Screw secures appliance panels and access covers. Replace missing, stripped, or corroded screws to restore tight fit and eliminate rattles or gaps.

Wire connector block for washers. Transfers electrical connections between wiring harnesses. Replace if connector housing is cracked or melted.
