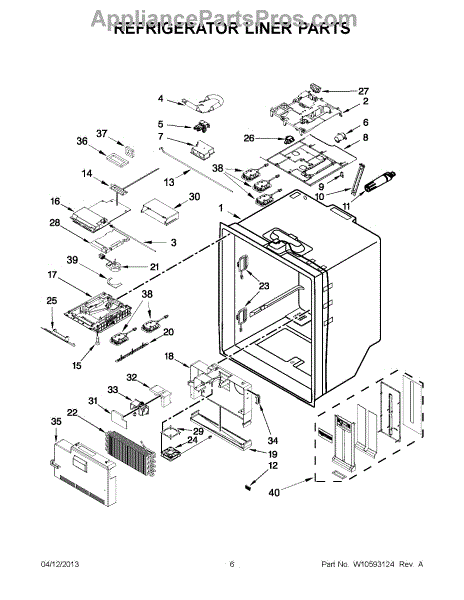

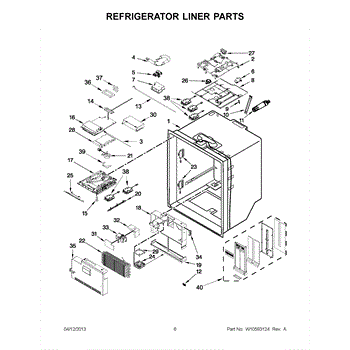

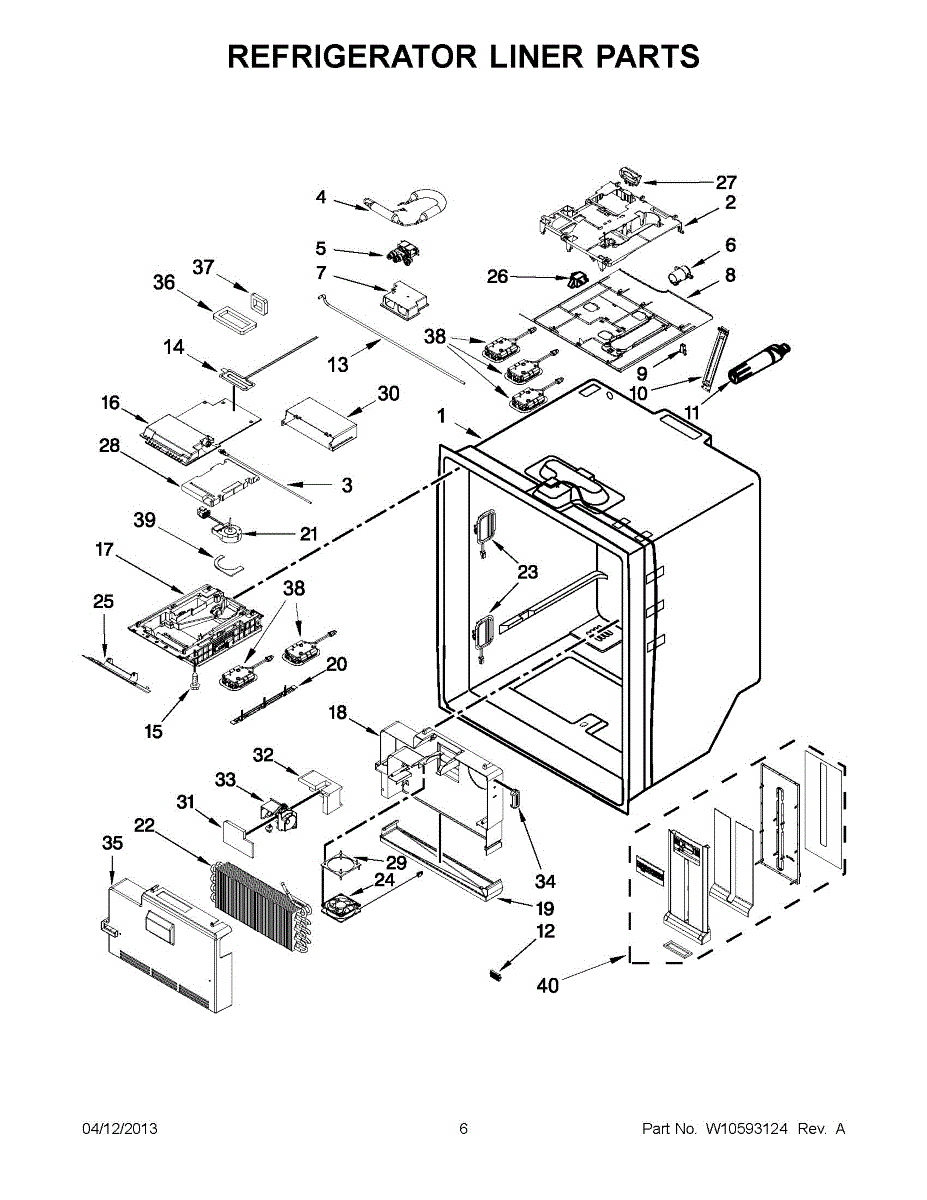

Parts for Kitchenaid KFIV29PCMS00: 03 - Refrigerator Liner Parts

Fix refrigerator water or ice dispenser issues with this dispenser housing. Solves leaking, cracking, or broken housing problems. Moderate DIY repair.

Fix leaking water lines or no water flow to your dispenser or ice maker. This water tube routes water from the inlet valve to the filter manifold.

The Reservoir is an OEM part for Whirlpool refrigerators. It is designed to store and dispense water within the refrigerator, typically connecting to the water dispenser and ice maker. This reservoir ensures a consistent supply of water, facilitating the production of ice and providing chilled water for consumption.

Causes of a bad reservoir can include mineral buildup from hard water, cracks or leaks due to wear and tear, or contamination from foreign particles.

Symptoms of a bad reservoir include:

• Water leaks inside the refrigerator
• Reduced or no water flow to the dispenser or ice maker
• Odd tastes or odors in the water
• Ice production issues

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Fix no ice or water dispenser issues with this refrigerator water inlet valve. Controls water flow to ice maker and dispenser. Moderate DIY repair.

Holds the water filter and routes water to the dispenser and ice maker. Replace if cracked, leaking, or won't engage the filter. Confirm fit by model.

Access panel cover that shields internal components and restores a clean finish. Replace if cracked, broken, or missing to protect wiring and parts.

This cover panel installs on your refrigerator to conceal internal components and provide a finished appearance. Replace if cracked, broken, or missing.

Flip-down door won't stay closed or open smoothly? This push latch secures compartment doors with a spring-action catch. Simple DIY fix in minutes.

Fix ice maker not filling or freezing issues with this fill tube heater. Prevents ice blockages in the water inlet so your ice maker works reliably.

Replacement fastening screw for securing trim, panels, and brackets inside appliances. Use when original screw is missing, stripped, or damaged.

Refrigerator cover panel that conceals internal components. Replace if cracked, broken, discolored, or missing to restore the clean appearance of your unit.

Replacement housing assembly for your refrigerator. Installs to enclose internal components. Order a new one if your original is cracked or damaged.

This is a plastic or metal pan located beneath the evaporator coils that collects condensation and defrost water. It channels water toward the drain system to prevent moisture from accumulating inside the refrigerator compartment. Replace this pan if you notice water leaking onto shelves, pooling at the bottom of the refrigerator, or if the existing pan is cracked or warped.

Fix warm fridge temps or excessive frost with a new evaporator fan motor. Restores proper airflow across coils for consistent cooling. DIY-friendly.

Refrigerator not cooling properly or freezing up? The dual evaporator assembly absorbs heat to maintain cold temperatures. Advanced repair, 2-3 hours.

Refrigerator not cooling but freezer works? A failed evaporator fan motor stops cold air circulation. Moderate difficulty repair requires panel removal.

Fixes ice buildup in freezer or refrigerator not cooling properly. This heater assembly melts frost during defrost cycles to maintain proper temperatures.

Refrigerator light won't turn off or on? The door switch detects when the door opens and closes. Easy 5-minute DIY repair with a pick tool or scraper.

Insulation foam panel for refrigerator. Installs inside cabinet walls to maintain temperature efficiency. Replace if cracked, compressed, or missing.

This is a mounting support bracket that holds the fresh food compartment fan motor in place inside the refrigerator. The fan circulates cold air throughout the fresh food section to maintain even temperatures. Replace this support if the fan motor is loose, vibrating excessively, or making rattling noises due to a cracked or broken bracket.

Adapter fitting for refrigerator water line connections. Installs between water supply and inlet valve. Replace if cracked, leaking, or corroded.

Refrigerator warm but freezer cold? This damper control regulates airflow between compartments. Moderate DIY repair with video guidance available.

Replacement access panel cover for refrigerators. Shields internal components from dust and damage. Needed when original panel is cracked, broken, or missing.

Fix uneven cooling or frost buildup in your freezer with a new evaporator cover. This housing protects the coil and restores proper airflow routing.

Seals the freezer/icebox compartment to maintain proper temperature and reduce frost buildup. Replace if seal is torn, loose, or causing moisture intrusion.

A replacement icebox rear gasket that seals the freezer compartment to help keep cold air in and reduce moisture intrusion. Restores the door seal to help maintain proper temperature and reduce frost buildup. What it does

• Seals the icebox/freezer door edge to maintain cold compartment temperature.
• Helps prevent warm air and moisture from entering, reducing frost and ice buildup.
• Can improve cooling consistency and help reduce excessive run time caused by a poor seal.
• Common symptom fix: visible gaps, torn or deformed seal, or recurring frost around the door.

• One icebox rear gasket.

• Disconnect power to the appliance before replacing the gasket.
• Remove the old gasket, clean the door/frame sealing surface, and align the new gasket evenly.
• Press the gasket into the channel firmly; some models may require gentle warming or minor adjustment for a snug fit.

Seals the fan housing to direct airflow and maintain proper cooling. Replace if worn or damaged to reduce air bypass and improve temperature consistency.

Fix intermittent power loss or non-functioning components with this refrigerator wire harness. Restores electrical connections between controls and motors.

This refrigerator compartment wire harness restores reliable electrical connections to components in the fresh-food section. Replacing a damaged or heat-stressed harness helps resolve intermittent outages and ensures power and signals reach RC components as designed. What it does:

• Distributes power and control signals between the main wiring and refrigerator-compartment components
• Helps address issues like RC lights not working or intermittent/no power to fresh-food section components
• Replaces harnesses with broken conductors, overheated/browned insulation, corroded, or loose connectors
• Maintains correct routing to prevent pinched, shorted, or chafed wires

• 1 refrigerator compartment wire harness assembly

• Disconnect power before servicing; do not work on live circuits
• Note the original routing and take photos to match clip locations and connector paths
• Seat keyed connectors fully; do not force—verify pin alignment and locking tabs
• Avoid pinching the harness when reinstalling panels and covers; restore power and test operation
