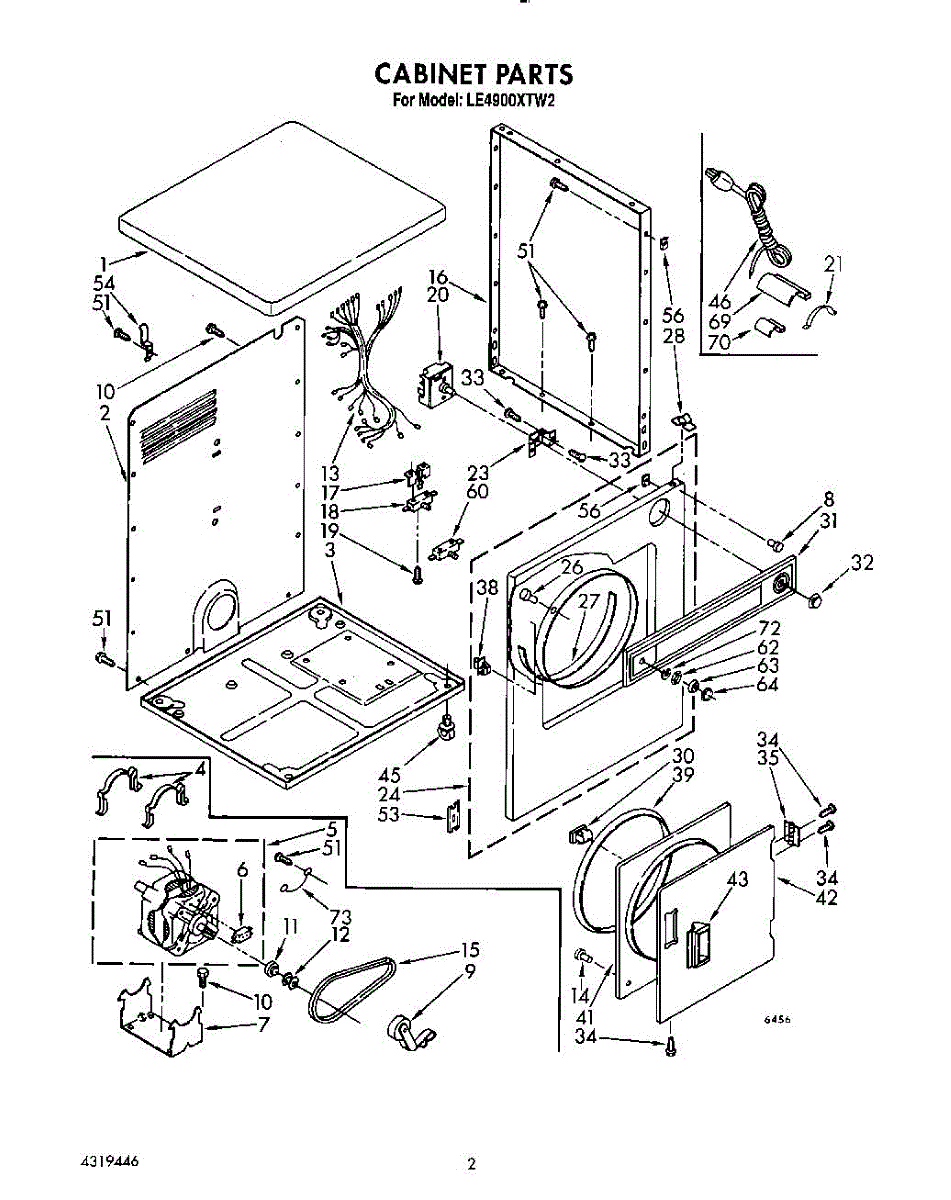

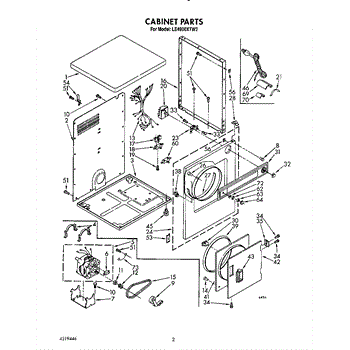

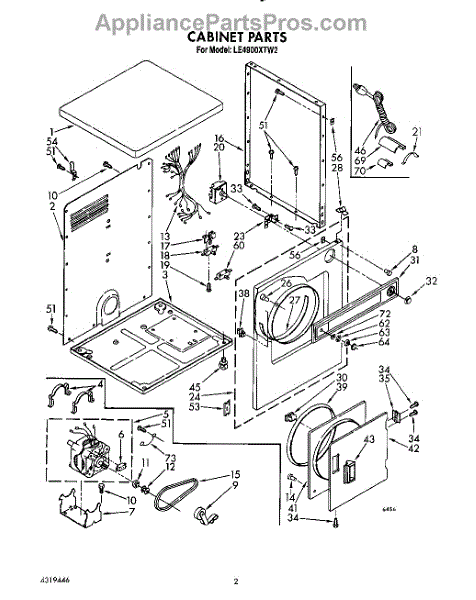

Parts for Whirlpool LE4900XTN2: 02 - Section Parts

This part is a motor clamp. This is a genuine OEM part and has been sourced directly from the manufacturer. This part is intended to replace a deteriorated, damaged, or broken motor clamp on certain makes of indoor appliance models. Motor clamps are essential for properly securing the drive motor on various types of indoor appliances such as washers, dryers, and refrigerators. Without the use of a motor clamp, the drive motor is free to move around or become detached. This can easily cause serious damage to the equipment and prevent proper functionality. Proper tools are needed to replace this part and appropriate safety measures should be adhered to when working on any type of equipment. For accurate information on how and where to install this replacement motor clamp, specific manufacturer diagrams should be referred to.As an authentic replacement part, this motor clamp can be used on multiple different models of washers, dryers, refrigerators, and washer/dryer combos manufactured by Kenmore, Maytag, Whirlpool, and Amana. Please note that this motor clamp is a genuine part made of high-quality materials and is sold individually.

The Dryer Drive Motor is an OEM part for Whirlpool dryers. This motor is the heart of the dryer, responsible for turning the drum and enabling the air to circulate properly throughout the machine.

Over time, dryer motors can suffer from wear and tear due to continuous use, accumulation of lint and debris, or overload from heavy laundry loads. These factors can lead to the motor overheating, losing power, or failing to start altogether.

Symptoms of a bad Dryer Drive Motor include:

• The dryer not starting when the start button is pressed
• Unusual noises, such as humming or buzzing
• The dryer stopping unexpectedly during cycles
• A burning smell coming from the dryer

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Dryer Drive Motor is an OEM part for Whirlpool dryers. This motor is the heart of the dryer, responsible for turning the drum and enabling the air to circulate properly throughout the machine.

Over time, dryer motors can suffer from wear and tear due to continuous use, accumulation of lint and debris, or overload from heavy laundry loads. These factors can lead to the motor overheating, losing power, or failing to start altogether.

Symptoms of a bad Dryer Drive Motor include:

• The dryer not starting when the start button is pressed
• Unusual noises, such as humming or buzzing
• The dryer stopping unexpectedly during cycles
• A burning smell coming from the dryer

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Idler Pulley is an OEM part for Whirlpool dryers, responsible for maintaining the correct tension on the drive belt, allowing it to remain tight and aligned, preventing slipping and contributing to the consistent rotation of the drum during cycles.

Symptoms of a bad Idler Pulley include:

• Squealing or squeaking noises
• The dryer drum failing to turn
• Excessive vibration or unusual sounds

Causes of failure can range from normal wear and tear, which can lead to the pulley's bearing wearing out, to the accumulation of lint and debris causing the pulley to seize or function improperly. Additionally, a cracked or damaged pulley can lead to belt misalignment and slippage.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Fits all Whirlpool-made dryers (Whirlpool, Kenmore with prefix 110, Roper, KitchenAid, and Estate). Matching belt 341241 and rear support rollers 349241T. Whirlpool dryer repair manual 677818L.

10 - 16 x 1/2

This belt restrainer is the small guide that keeps the dryer's drive belt on the motor pulley. It prevents the belt from walking off during operation, supporting consistent drum rotation and reducing premature belt wear. What it does:

• Guides and retains the drive belt on the motor pulley
• Helps maintain proper belt tracking with the idler assembly
• Can help with symptoms like drum not turning, belt repeatedly slipping off, burning rubber smell, or frayed belt edges

• 1 belt restrainer

• Disconnect power; for gas dryers, also shut off the gas supply
• Access the motor area per your model (remove front or lower access panel)
• Position the restrainer adjacent to the motor pulley with slight clearance to the belt; route the belt correctly around drum, idler, and motor
• Hand-rotate the drum to confirm alignment before reassembly and testing

The Whirlpool Motor Pulley is an OEM part for Whirlpool clothes dryers. It is the component located on the dryer drum motor that transmits power to spin the dryer cylinder and tumble clothes during operation. It allows the belt to grip effectively for transmission of torque from the motor.

Symptoms of a bad Motor Pulley include:

• The dryer drum failing to spin and tumble clothes during cycles
• Abnormal squealing, grinding or belt slipping noises from inside the dryer
• Minimal air flow and prolonged drying times

Causes of failure can include cracks or deterioration of the pulley edge from prolonged use, the belt wearing grooves into the pulley, or loose mounting bolts allowing wobbling.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Rubber bumper. Color: Grey.

The Dryer Belt (length 79-1/8 inches) is an OEM part for Whirlpool dryers. This belt wraps around the drum, the motor pulley, and the idler pulley to enable the drum to rotate during the drying cycle. It ensures that clothes are tumbled and dried evenly. Also available in repair kit AP3109603

Over time, the dryer belt can become worn or snap due to the constant tension and friction it endures. When the belt fails, the drum will no longer spin, and the dryer will be unable to dry clothes effectively.

Symptoms of a bad dryer belt include:

• The dryer drum not turning
• A burning smell from the dryer
• Unusual noises during operation
• The dryer running but not tumbling clothes

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Switch Lever is an OEM part for Whirlpool dryers. It plays a vital role in ensuring the dryer only operates when the door is securely closed by engaging with the door switch to signal the door's status.

Causes of a bad door switch lever can include normal wear and tear from repeated use, physical damage from accidental impact, or deformation from heat and humidity inside the dryer. A faulty lever can prevent the dryer from starting or stopping correctly.

Symptoms of a bad door switch lever include:

• Dryer not starting
• Dryer stopping mid-cycle
• Door not latching properly
• The dryer continuing to run with the door open

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Washer Door Switch is an OEM part for Whirlpool washing machines. This component is crucial for ensuring the washer operates safely by detecting whether the door is open or closed. The door switch prevents the washer from starting or continuing its cycle when the door is open, and it allows the machine to function only when the door is securely closed.

Symptoms of a failing Washer Door Switch include:

• The washer not starting or stopping unexpectedly during a cycle
• Error codes related to door closure issues displayed on the washer's control panel
• The washer door not locking properly or the lock mechanism not engaging
• The washer continuing to operate with the door open

Causes of a bad door switch can include wear and tear from frequent use, damage from repeated opening and closing of the door, electrical faults such as short circuits, or physical damage from mishandling or impact.

This OEM Whirlpool part is also compatible with some models from Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore.

Size: 6 - 20 x 1 1/16 inch.

This control panel is the front user interface that holds the appliance's buttons, displays and trim, restoring a clean, functional console and the unit's finished appearance. What it does

• Replaces cracked, bent or cosmetically damaged front panels
• Houses the touchpads, buttons and display area so controls are accessible
• Helps stop loose or rattling components in the console area
• Restores a factory look when the original panel is dented or scratched

• One control panel

• Disconnect power to the appliance before starting any work
• Handle edges and clips carefully to avoid cuts or damage to adjacent parts
• Keep track of screws and mounting clips for reassembly; test controls before finishing

Includes two bumpers and two locking clips. You will use one or the other depending on hole size.

The Front Bearing and Seal Kit is an OEM replacement part for Whirlpool dryers. This kit includes the front bearing and seal for the dryer drum, which work together to provide smooth operation and prevent premature wear.

Causes of a bad front bearing and seal can include regular wear and tear from normal use, heavy loads that place extra strain on the bearings, or debris accumulation causing increased friction.

Symptoms of issues include:

• Noisy or grinding sounds coming from the drum area
• Vibration noticed during the operation
• Difficulty turning or rotating the dryer drum by hand
• Reduced efficiency and longer drying times

This OEM replacement kit is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This top front lock secures the front edge of a lift-up range cooktop to the cabinet frame. Replacing a worn lock restores a flush, stable fit so the cooktop stays closed during everyday cooking and cleaning.

• Locks the cooktop down to prevent unintended lifting during use or cleaning
• Maintains alignment so the front edge sits flush and stable
• Reduces vibration and rattling from a loose or misaligned top
• Common symptoms: cooktop won't latch or stay down, front gap, rattling or movement

• Disconnect power and allow the appliance to cool; shut off gas supply if applicable
• Lift the cooktop to access the front frame, remove the old lock, and install the new lock in the same orientation
• Secure with the original fasteners and verify the lock fully engages the mating catch
• Close the cooktop and confirm a flush, stable fit

The Female Dryer Door Catch is an OEM part for Whirlpool dryers. It secures the dryer door in the closed position during operation, ensuring that the door remains firmly shut while the dryer is running. This catch works with the male door strike to provide a reliable latching mechanism.

Common causes of a bad door catch include repeated use leading to wear and tear, physical damage, or misalignment. A faulty door catch can prevent the dryer from operating correctly and may pose a safety hazard.

Symptoms of a bad female dryer door catch include:

• The dryer door not staying closed
• The dryer not starting due to the door not latching properly
• Difficulty in opening or closing the dryer door
• Visible damage to the door catch

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a replacement side trim screw that secures the refrigerator side trim/finish panel, restoring a snug fit and finished appearance. Designed to match the original factory fit and finish on compatible Whirlpool units. What it does:

• Fastens the side trim/finish panel so the exterior trim sits flush and secure
• Helps stop rattling, shifting, or gaps caused by loose or missing trim screws
• Matches factory color and head style to keep a consistent exterior look
• Small hardware piece used in multiple trim/assembly locations

• One side trim screw (black)

• Use the matching screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can crack trim or strip threads
• Turn power off and remove any nearby panels if needed for safe access
• Replace all to ensure even fit

This hinge pin assembly secures and guides a refrigerator or freezer door, restoring proper alignment and smooth opening. It replaces worn or bent pins so the door closes evenly and reduces rubbing or sagging. What it does:

• Acts as the pivot point for the appliance door, supporting door weight and movement
• Restores correct door alignment to improve sealing and reduce gaps
• Reduces rubbing, scraping, or uneven closing caused by a worn or bent hinge pin
• Helps prevent accelerated wear to door seals and hinge components when functioning properly

• One hinge pin assembly

• Disconnect power and remove food/contents from the door area before starting
• Support the door while removing or installing the hinge to prevent dropping or injury
• Typical installation uses basic hand tools; do not force parts—inspect mating hinge surfaces for damage

The Door Latch Kit is an OEM replacement part for Whirlpool washers. This component is responsible for securely locking the washer door during the wash cycle, preventing it from opening unexpectedly and ensuring a safe and efficient operation.

Symptoms of needing to replace the door latch kit include:

• Difficulty in closing or latching the washer door
• Door opening unexpectedly during the wash cycle
• Leaks or water seeping due to an improper door seal
• Excessive wear or damage to the latch components

Causes of a faulty door latch kit can include normal wear and tear over time, physical damage due to impact or mishandling, or issues with the door alignment or strike plate.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washer models.

This heat-resistant fiberglass oven door gasket seals the oven cavity perimeter, helping keep heat inside for consistent temperatures and efficient cooking. Replace a worn, frayed, or flattened seal to restore proper door sealing performance. What it does

• Forms a heat-resistant seal around the oven opening to minimize heat loss
• Helps maintain set temperature and overall cooking performance
• Can help address long preheat times, uneven baking, and hot air leaking around the door
• Replace if the gasket is frayed, brittle, compressed, or falling out of its channel

• Includes: 1 fiberglass door gasket

• Disconnect power and allow the oven to cool completely before service
• Remove the old gasket from its mounting slots or clips; clean the channel of debris
• Install the new gasket without stretching; seat it evenly around the perimeter with ends routed as originally positioned
• Close the door and check for uniform contact all around; adjust seating if needed

The Door Handle is an OEM component for Whirlpool dryers. It provides convenient access to load and unload clothes through the dryer door opening.

Causes of a bad door handle can include normal wear and tear over extended use. Repeated clutching and releasing of the handle leads to fatigue of rubberized grip areas and loosening of mechanical connections. Accidental falls or impacts when transporting dry loads of clothes could also damage the handle structure or mounting.

Symptoms of a bad dryer door handle include:

• Increased play, wobble, or looseness when grasped
• Detachment or separation from the door assembly
• Cracks, splitting, or broken areas compromising the grip surface
• Inability to smoothly open or close the dryer door

Compatible models also include Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore dryers.

This caster kit includes one caster and washers. Replaces older style casters.

A replacement mounting screw to secure appliance panels and components so parts stay properly fastened during normal use. Small but essential hardware for stable, rattle-free operation and reliable repairs. What it does:

• Fastens panels, brackets or components to the appliance chassis
• Prevents loose panels, vibration noise, or parts shifting during operation
• Used when original screw is lost, damaged, or stripped
• Restores proper fit and alignment after disassembly for service

• Disconnect power and water before starting any repair
• Use the correct screw type and length; do not force or substitute oversized fasteners
• Tighten until snug—avoid overtightening to prevent stripped threads or cracked parts
• Keep small parts away from children and pets

The Dryer Clip is an OEM component for Whirlpool electric and gas dryers. It securely fastens critical ductwork attached to the dryer cabinet. Over extended periods, the constant vibrations produced during tumbling cycles cause microscopic fractures or loosening within the clip material where it grips duct joints.

Causes relate to ordinary fatigue from long-term resonance vibrations concentrated at anchoring points.

Symptoms involve:

• Loose or detached venting/ductwork affecting airflow
• Noticeable leaks emerging at separation interfaces
• Reduced drying effectiveness due to compromised ventilation

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This U-type nut clips over a sheet-metal edge to create a durable threaded anchor for a screw. It helps secure panels, trim, and brackets so fasteners hold tight and components stay aligned and rattle-free. What it does:

• Clips onto thin sheet metal to provide captive threads where a standard nut cannot be used
• Holds screws securely to fasten panels, trim pieces, or mounting brackets
• Addresses issues like loose panels, missing/broken clips, or screws that will not tighten
• Helps reduce vibration and rattling from unsecured components

• 1 U-type nut

• Disconnect power and shut off gas/water before servicing
• Position the U-nut over the panel edge with the threaded side aligned to the hole
• Start the screw by hand to avoid cross-threading; tighten snugly without overtightening
• Replace any damaged or corroded hardware to ensure a secure hold
