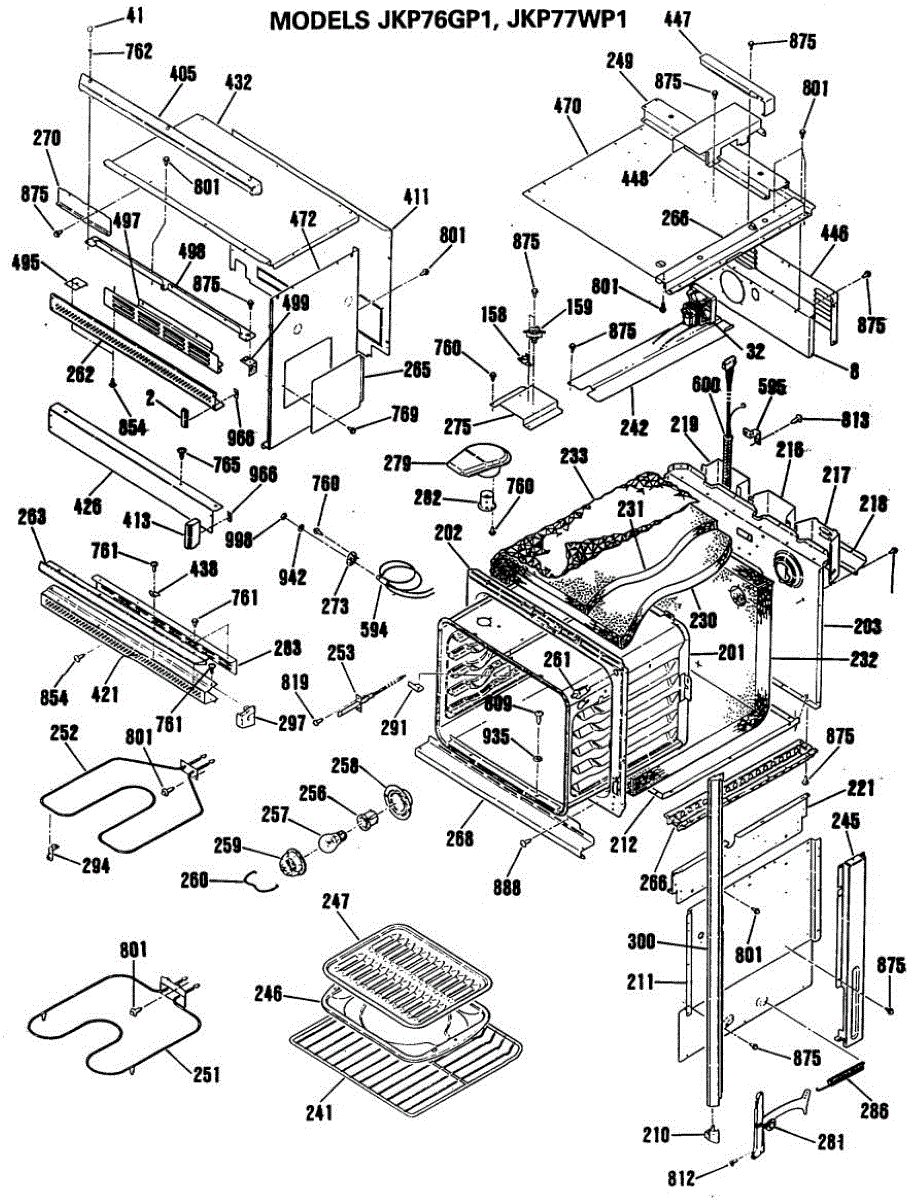

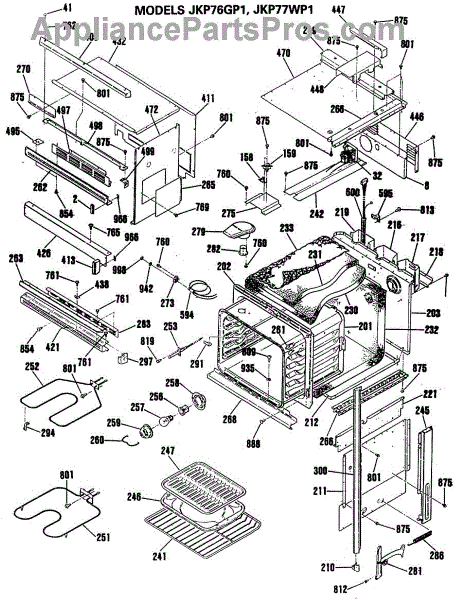

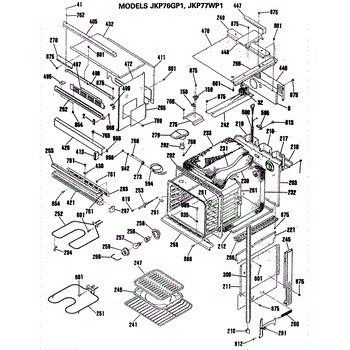

Parts for Ge JKP77WP1: 04 - Section4 Parts

Color: White

Oven won't heat after self-clean cycle? A faulty limit switch prevents operation when stuck open. Tests quickly with a multimeter for continuity.

This full oven cavity wrapper assembly replaces the metal liner that surrounds and supports the oven interior, restoring structural integrity and proper heat enclosure for baking and broiling. Fits as the oven's inner/outer cavity wrapper. What it does:

• Replaces a damaged, warped, or corroded oven cavity wrapper that can affect heat distribution and door alignment
• Restores the oven's sealed cooking cavity to help maintain even temperatures during use
• Provides the mounting surface for insulation and internal components that attach to the oven shell
• Helps prevent heat and grease from reaching external cabinet surfaces

• 1 oven wrapper cavity assembly

• Disconnect power (and gas if applicable) before starting any repair
• Handle the wrapper carefully — edges may be sharp and insulation may shift during removal
• Verify fastener locations and panel alignment during reassembly to ensure proper door fit and seal

Color: White. Left hand side. For right hand use WB7K5160

Color: White. Right hand side. For left hand us WB7K5161

Replacement bottom panel for oven cabinets. Restores structural integrity when original is damaged, rusted, or missing. Direct fit for select models.

Insulation panel that installs on the bottom or back of your oven cavity. Replace if cracked, torn, compressed, or missing to maintain proper heat retention.

Metal oven rack installs inside your oven cavity to hold cookware during baking and roasting. Replace if cracked, warped, rusted, or missing.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Oven won't heat or bakes unevenly? The bake element generates heat at the bottom of your oven cavity. DIY-friendly repair, typically 30-40 minutes.

Broiler stopped heating or burned through? This top heating element replacement takes 10-30 minutes with basic tools. Disconnect power, remove brackets, and swap wires.

Heat-resistant socket that secures and powers your oven's interior light bulb. Replace if light fails or socket shows burn marks or bare wires. Verify fit.

Clear glass lens that protects your oven light bulb. Replace if cracked, broken, or cloudy to safely view cooking progress. Confirm fit with model number.

Rail base support plate for ovens and ranges. Mounts underneath oven racks to provide stable support. Replace if cracked, broken, or missing.

Color: White. Left hand side. For right hand use WB7K5160

Right hand side. For left hand use WB14K5007

Left hand side. For right hand use WB14K5006

The Support Bracket is an OEM part for GE ovens, designed to provide stability and support for the broiling element. This bracket is essential for ensuring the broiling element is securely positioned at the top of the oven, allowing for even heat distr

Color: White. Left hand side. For right hand use WB36K5108

Color: White. Right hand side. For left hand use WB36K5107

Hook spacer for electric ranges, ovens, and microwaves. Replaces worn, cracked, or missing spacers. Maintains proper spacing and alignment.

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it co

Replacement mounting screw secures panels, brackets, and trim on ranges and cooktops. Install to replace missing, stripped, or rusted fasteners.

These GE screws are a 12-pack of OEM replacement parts responsible for securing and fastening various components and panels in a GE range or oven. These screws are designed with a hexagonal head, which allows for the use of a compatible wrench or socke

ST10-16 X 7/16"

Replacement screw for securing panels, brackets, and internal components in ranges, ovens, and cooktops. Replace missing, stripped, or damaged screws.

Flat-head 10-32 zinc screw secures panels and components on cooktops, ranges, and ovens. Replace stripped, missing, or corroded screws for proper fit.

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

Nickel

Replace a cracked, worn, or missing washer in your oven or range. This small metal component ensures secure fastening of internal parts and panels.

Replacement washer for ranges and ovens. Used to secure components and provide even fastening. Replace if cracked, worn, or missing during repairs.
