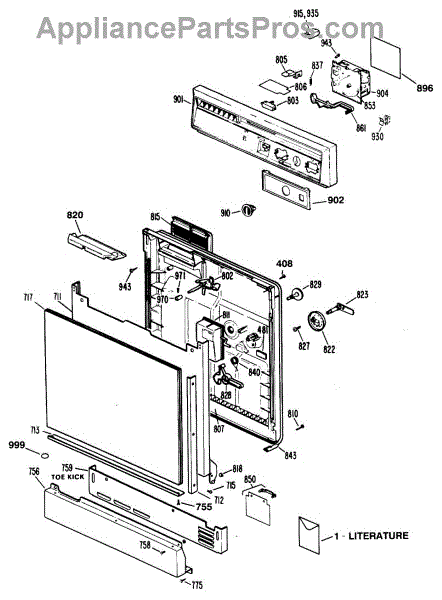

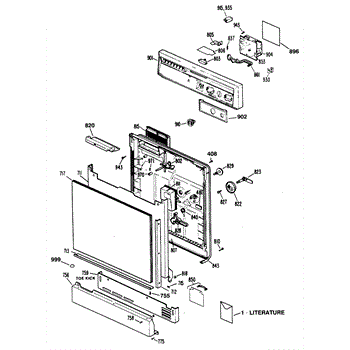

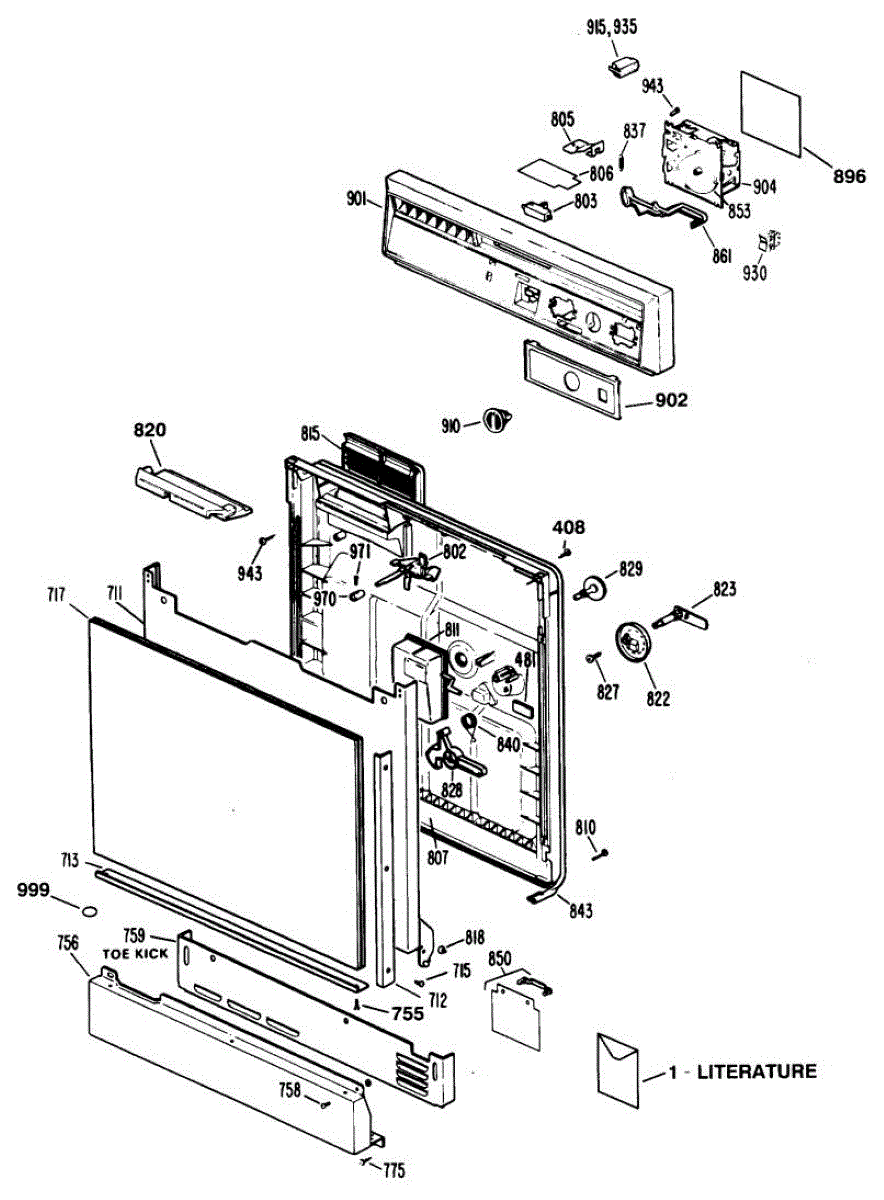

Parts for Ge HDA150V-60AW: 01 - Section1 Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This PM sheet mini manual is a printed service document that provides short preventive-maintenance guidance and basic service notes for use during appliance inspection or routine maintenance. Keeps key maintenance steps handy. What it does:

• Summarizes routine preventive maintenance tasks and checks
• Helps verify common service points during inspections
• Provides compact, portable reference for basic service procedures
• Can be used to record quick notes during maintenance

• Not an installed part—store with service tools or kit
• Keep document dry and free of grease to remain legible
• Replace if torn, smudged, or missing essential information
• For detailed repair instructions, refer to the full service manual or OEM documentation

Size: 8-32 x 5/8 inch.

Reversible panel - white on one side, almond on the other.

Package of 12

Size: 10-16 ab.

The Interlock Switch is an OEM replacement part for GE electric and gas dryers. This safety component monitors the door closure, preventing operation if the door is not securely closed and latched. The switch measures 2 inches long and 1/2 inch wide.

Symptoms of a faulty interlock switch include:

• Dryer failing to start or running with the door open
• Timer display not illuminated when start button is pressed
• Inability to open the dryer door during operation
• Dryer suddenly stopping mid-cycle before fully drying clothes

Causes relate to the internal component contacting the door frame over 50,000 open/close cycles potentially exposing wiring to wear. Regular cleaning the external switch area prevents dust or lint buildup skewing performance.

This genuine GE switch is compatible with Hotpoint and RCA dryers as well.

Note: Can be used as a dishwasher door switch on specific models. Check your model number for the most accurate results.

This replacement switch leaf is the small metal contact that completes a switch circuit when actuated, restoring reliable electrical contact and helping return normal operation to the affected control or component. Easy-to-replace individual contact for switch assemblies. What it does:

• Serves as the conductive contact inside a switch assembly to open and close an electrical circuit
• Engages with the switch actuator to make or break power to a component
• Common symptom link: intermittent or failed operation of the circuit the switch controls (flickering, no power, or inconsistent response)
• Small, replaceable part used when the original contact is worn, bent, or corroded

• Disconnect power to the appliance before beginning any repair
• Handle the contact by the edges; avoid bending or contaminating the mating surfaces
• Inspect the surrounding switch housing; replace the full switch assembly if the housing or actuator is damaged
• Reassemble and test the switch operation after installation

This shield is a protective heat shield that helps protect internal components from heat and debris, extending appliance life and preventing premature damage. It's a direct-fit replacement for the damaged or missing shield. What it does:

• Protects wiring, insulation and nearby parts from excessive heat
• Prevents debris and grease from contacting sensitive components
• Helps stop heat-related odors or smoke caused by contact with hot surfaces
• Reduces risk of component failure due to heat exposure

• One protective shield

• Disconnect power (unplug or switch off circuit breaker) before starting any repair
• Allow appliance to cool completely to avoid burns
• Handle carefully—edges may be sharp; use gloves and proper tools
• Follow OEM disassembly steps and torque recommendations;

Size: 8-18 x 7/8 inch.

This rinse aid tank is the reservoir inside the dishwasher dispenser that holds liquid rinse agent and releases it during the final rinse. Replacing a damaged tank helps restore proper dispensing, reduce spotting, and prevent leaks at the dispenser.

• Stores rinse aid within the dispenser assembly
• Works with the dispenser to release a measured dose during the rinse cycle
• Failure signs: rinse aid not dispensing, dishes with spots/poor drying, rinse aid level dropping rapidly, or leaks near the dispenser area
• Visible cracks or damage to the reservoir indicate replacement is needed

• Disconnect power at the breaker and shut off water before servicing
• Remove the inner door panel to access the dispenser
• Transfer any reusable seals or clips from the original tank; seat and secure the tank per service instructions
• Reassemble, refill the reservoir with rinse aid, and run a test cycle to check for leaks

This replacement door vent directs humid air out of the dishwasher during the dry cycle. Restoring a damaged or missing vent helps maintain proper airflow and reduce unwanted moisture around the door area. What it does:

• Vents steam from the tub to help manage moisture during drying
• Routes airflow away from the door and control area
• Helps limit condensation and odor buildup inside the door
• Common signs of failure: visible cracks or broken louvers, steam/moisture escaping at the door top, water spots near the vent, or a loose/rattling vent

• 1 door vent

• Disconnect power at the breaker before servicing
• Open the door; remove screws or release tabs to remove the old vent (varies by model)
• Note orientation, seat the new vent fully, and secure without overtightening
• Reassemble and run a short cycle to check for proper sealing and airflow

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This vent pad cushions and seals the dishwasher's door vent, helping route steam out of the tub while protecting the inner door and control area from moisture. Replacing a worn pad can help stop vent leaks and rattling.

• Creates a seal between the vent assembly and inner door liner to contain moisture
• Helps channel humid air during drying and reduces steam escaping at the vent opening
• Cushions the vent assembly to minimize vibration and noise
• Typical symptoms of a failed pad: steam or water at the top of the door near the vent, moisture inside the console, or a rattling vent

• Disconnect power at the breaker and shut off water before servicing
• Open the door and remove inner-door screws to access the vent assembly
• Note pad placement; install the new pad in the same location with clean, dry mating surfaces
• Reassemble and run a short cycle to check the vent area for leaks

The Detergent cup cover is an OEM component for GE dishwashers. It serves to protect the detergent cup assembly while allowing for easy access. Made of durable plastic, the cover clicks securely into place during operation to prevent accidental opening.

Causes of a bad detergent cup cover include cracks or breaks from heavy use over time.

Symptoms of a bad detergent cup cover can include:

• Difficulty opening or closing the detergent cup cover properly
• Portions of the cover assembly no longer intact or missing
• Leaks developing around the perimeter of the cover

This genuine GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Soap Dispenser Lever is an OEM part for GE dishwashers. It operates the soap dispenser door, releasing detergent into the dishwasher at the appropriate time during the wash cycle. This lever ensures that detergent is dispensed efficiently for optimal cleaning performance.

Causes of a bad soap dispenser lever can include wear and tear over time, accumulation of detergent residue, or damage due to accidental mishandling or impact. When the lever malfunctions, the detergent might not be released properly, leading to poor cleaning results.

Symptoms of a bad soap dispenser lever include:

• The detergent not being dispensed during the wash cycle
• The dispenser door not opening or closing correctly
• Residual detergent left in the dispenser after the cycle

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Size: 10-12 x 1/2 inch.

The Detergent Cup Latch is an OEM part for GE dishwashers, specifically designed for certain models. It is located on the detergent dispenser assembly. When the detergent cup is loaded with detergent, the latch holds it in place and prevents it from accidentally opening or spilling during the wash cycle.

Causes of a faulty or damaged detergent cup latch can include regular wear and tear, misalignment, or breakage. These factors can result in issues such as the detergent cup not staying closed, detergent not being dispensed properly, or leaks from the detergent compartment.

Symptoms of a bad detergent cup latch may include:

• The detergent cup not staying closed during the wash cycle
• Detergent not being released or dispensed into the dishwasher
• Leaks or spills from the detergent cup area

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Fill Cap Assembly is an OEM part for GE dishwashers. This assembly includes the cap that covers the opening where rinse aid or other additives are poured into the dishwasher. It ensures that the additives are securely contained and properly dispensed during the wash cycles, contributing to effective cleaning and drying.

Over time, the fill cap assembly can become damaged due to regular use, exposure to cleaning agents, or accidental mishandling. A compromised fill cap can lead to leaks or improper dispensing of rinse aid, affecting the dishwasher's performance.

Symptoms of a bad fill cap assembly include:

• Rinse aid or additives leaking from the dispenser
• The cap not securing properly or coming off easily
• Improper dispensing of rinse aid
• Visible cracks or damage to the cap

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Detergent cup spring is an OEM component for GE dishwashers. As part of the detergent cup assembly, this spring ensures the detergent cup door remains securely closed during the wash cycle. It provides just the right amount of pressure to keep dishes clean while preventing leaks or spills.

Causes of a bad detergent cup spring include general wear and tear, repeated use breaking down the coils of the spring, or damage from forceful handling.

Symptoms of a bad detergent cup spring are:

• Detergent residue building up outside the detergent cup area
• Signs of liquid detergent leaks underneath the detergent cup door
• The detergent cup door remains slightly ajar during the cycle

This genuine GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Door Gasket is an OEM part for GE dishwashers. It forms a seal between the dishwasher door and tub which is critical for proper operation. The gasket ensures excess water and moisture do not leak from the dishwasher during active wash and rinse cycles. It also helps keep noise levels low by providing sound insulation. This gasket measures 3/8 x 89 inches.

Common causes of a bad door gasket include regular wear and tear, exposure to high temperatures and detergents, or physical damage. These factors can cause the gasket to lose its flexibility and sealing capability.

Symptoms of a bad Door Gasket include:

• Water leaking from the dishwasher door
• Visible cracks, tears, or deformation in the gasket
• The door not closing properly or securely
• Increased moisture around the dishwasher during or after cycles

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This lever connects to the dishwasher detergent dispenser mechanism and actuates the cup lid. A worn or damaged lever can prevent the dispenser from opening at the right time, reducing wash performance.

• Transfers motion from the timer/actuator to release the detergent cup lid
• Common symptoms: detergent remains in cup, soap door won't open, poor cleaning results
• Restores reliable dispenser operation during the wash cycle

• Disconnect power and turn off water before servicing
• Access typically requires removing the inner door panel to reach the dispenser linkage
• Note linkage orientation before removal; transfer any springs or clips
• Test dispenser door movement by hand before reassembling

This timer cover is the replacement trim that surrounds and protects the dryer or washer control timer on the control panel, restoring a finished look and shielding the timer mechanism from dust and debris. What it does:

• Replaces a cracked, faded, or damaged timer trim to improve appearance and protect the underlying timer assembly
• Helps keep lint, dust, and moisture away from the timer control area
• Restores correct alignment and mounting for the timer knob and control components
• Useful when the existing cover is loose, broken, or missing

• One timer cover

• Disconnect power (unplug or switch off breaker) before starting any repair
• Remove the control panel or access bezel per your model's service instructions to reach the timer cover
• Use appropriate hand tools (screwdriver) and avoid forcing plastic tabs to prevent breakage

This replacement timer is a genuine OEM part for a dishwasher. The timer works to regulate a dishwasher's cycles by controlling how long power is supplied to the internal components. This allows the dishwasher to have multiple wash modes and shut on or off automatically once set by the operator. The timer assembly can be located behind the kickplate in the door or at the top of the control panel. Dishwasher timers are often misdiagnosed as the problem in a faulty appliance, so be sure to test the timer before immediately replacing it. Using a multimeter, test the timer for a range of roughly 2,000 to 3,500 ohms. If the part does not give a reading within this range, it should be replaced. Disconnect the two attached wires and mark them so that they can be properly reattached during reassembly. Needle-nosed pliers are recommended for this job, as they can provide a more delicate touch than just yanking out the wires. This replacement timer is compatible with Kohler washers and comes sourced from its original manufacturer. This part does not include any additional hardware so be sure not to lose any of the screws removed during disassembly.

Color: Black.

Includes 12 terminals.

Includes 12 screws.

This knob latch secures a control knob to the appliance control shaft so knobs stay engaged and turn smoothly. It replaces a worn or broken latch to restore proper knob fit and reliable control operation. What it does:

• Holds the control knob onto the control shaft so knobs don't wobble or fall off
• Ensures consistent engagement for accurate temperature and function selection
• Commonly used to address loose or slipping knobs and intermittent control contact
• Works as a direct-fit replacement when the original latch is damaged or worn

• Disconnect power to the appliance before starting any repair.
• Typically installed from the front of the control panel after removing the knob; basic hand tools may be required.
• Inspect the control shaft and knob for wear and replace damaged components together for best fit.

Includes 12 screws.
