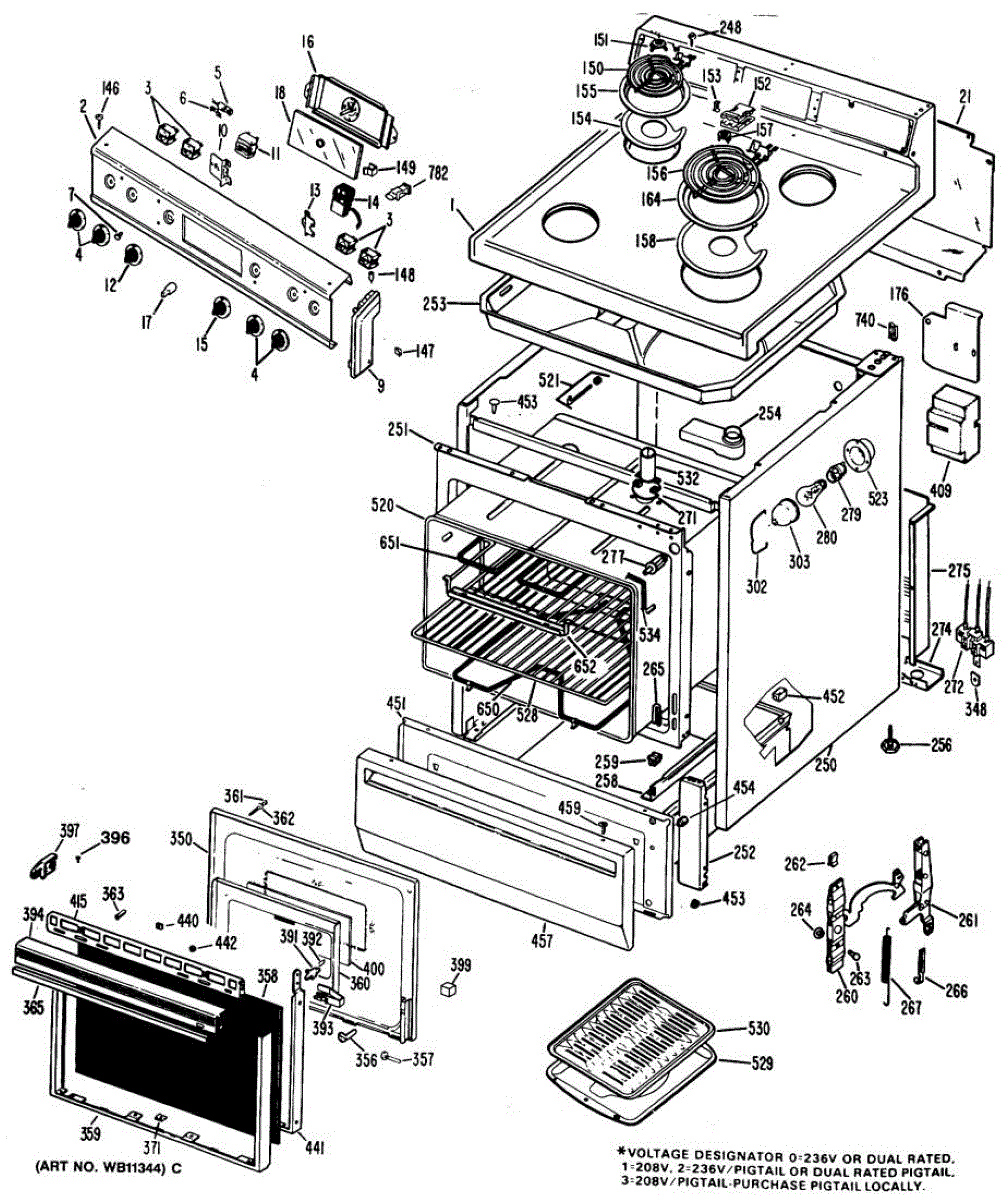

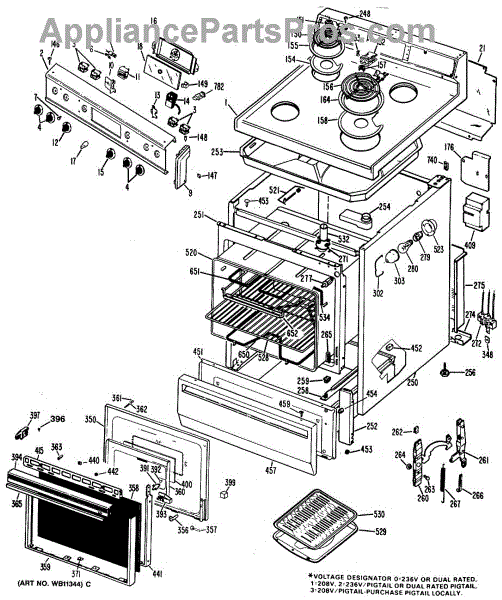

Parts for Ge JBC16GXP2: 01 - Section1 Parts

Burner stuck on high or won't heat? This infinite heat switch kit controls surface element temperature. Most DIYers complete in under 30 minutes.

Decorative lens cover for range control panel indicator lights. Replace when cracked, faded, or missing to restore appearance. Verify fit by model.

Fix a buzzing timer or non-functioning clock with this range clock timer control. Moderate DIY installation, wiring instructions included. Fits electric ranges.

Replace cracked, broken, or missing clock and timer control knobs on your range. This kit includes three small black knobs for the timer control panel.

Replace a non-heating or broken 6-inch cooktop burner element. This plug-in surface element fixes uneven heating. DIY-friendly, 30-minute repair.

Range won't power on or heats intermittently? A faulty terminal block disrupts electrical connections. This double terminal block restores power flow.

This 6-inch drip pan installs under your electric range coil burner to catch spills and boil-overs. Replace when cracked, warped, or excessively worn.

This 6-inch trim ring installs around your range burner for a finished look. Replace if yours is chipped, discolored, warped, or missing to restore appearance.

Range burner not heating? This 8 inch surface element restores full heating power. DIY-friendly installation takes 10-15 minutes with basic tools.

Molded trim bezel for range control panel. Covers exposed edges and restores a finished look. Replace if cracked, broken, or missing for protection.

Replace cracked, rusted, or stained 8-inch drip pans under coil burners on electric ranges and cooktops. Catches spills and protects cooktop surface.

This 8-inch trim ring installs around the burner element on your range or cooktop. Replace if cracked, discolored, rusty, or misaligned for a clean look.

Hex head screws for securing panels and components in ranges and ovens. Replace missing, stripped, or corroded fasteners during repairs or reassembly.

Almond

Right hand side

Left hand side

Clip for door hinge.

Range won't heat or power cord overheated? A faulty terminal block disrupts power to elements. Common DIY fix with basic tools in under an hour.

Replace your range's light receptacle socket when the oven light flickers or won't turn on. Easy DIY fix restores proper bulb connection. Confirm fit by model.

Replaces dim, flickering, or burnt-out bulbs in refrigerators, ovens, and microwaves. Restores interior lighting for visibility. Verify fit with model.

Clear glass lens that protects your oven light bulb. Replace if cracked, broken, or cloudy to safely view cooking progress. Confirm fit with model number.

Mounting screw kit for ranges and ovens. Includes 12 screws for securing panels, brackets, or components. Replace missing or stripped screws.

Replacement mounting screws for ranges and ovens. Secures panels, brackets, and components. Includes 12 screws. Order when original screws are missing.

Hardware washer kit for various appliances. Includes 12 washers for securing components during installation or repair. Replace worn or missing washers.

This mounting spacer keeps exterior panels and components properly separated for correct alignment and fit, helping prevent rubbing and vibration. It's a small, durable replacement used where original spacers have worn or been lost. What it does:

• Maintains correct gap and alignment between panels or assembly parts
• Prevents rubbing, noise, and premature wear from metal-to-metal contact
• Helps secure components in the intended position during operation
• Restores factory spacing after repair or disassembly

• Disconnect power or unplug appliance before servicing
• Replace only with the same spacer location and orientation as the original
• Require removal of trim or panels; keep fasteners and note placement
• If damaged hardware or fasteners are found, replace them to ensure secure fit

Replace the screw end cap for your electric range door handle. Essential when the original cap is missing, cracked, or damaged. Secures handle assembly.

Range oven door handle end cap kit includes left and right side caps. Replace cracked, broken, or missing end caps that secure your door handle to the trim.

Mounting bracket secures the cooktop or range top to the cabinet frame. Replace if bracket is bent, cracked, or missing to properly support the appliance.

Single speed nut fastener that provides threads for screws on appliances. Secures sheet-metal panels, brackets, or trim. Replace if missing or worn.

Right side mounting bracket for ranges and ovens. Secures the appliance body to the chassis. Replace if bent, cracked, or missing during installation.

Side mounting bracket for cooktop installation. Replaces broken, bent, or missing brackets. Secures cooktop to range frame. Structural part only.

Includes 12 speed nuts.

Rubber bumper for cooktop installation. Prevents vibration and provides cushioning between cooktop and cabinet. Replace if worn, cracked, or missing for stability.

Mounting screw for range installation and assembly. Replace missing, stripped, or damaged screws to secure panels, brackets, or components properly.

Mounting screw secures panels, trim, and internal components in ranges and ovens. Replace if missing, stripped, or damaged to restore proper fit.

Replacement mounting screw for appliances. Secures components and reduces vibration. Needed when original screws are missing, stripped, or damaged.

Metal oven rack provides stable support for cookware inside your range oven. Replace cracked, rusted, bent, or missing racks to restore proper function.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Replace your oven door gasket when it becomes brittle, cracked, or no longer seals properly. Restores heat containment and energy efficiency. Confirm fit.

Oven door gasket seal creates an airtight barrier to maintain consistent cooking temperature. Replace when worn, cracked, or heat escapes. Verify fit.

Oven not heating or baking unevenly? This lower bake element restores proper oven temperature. DIY-friendly repair takes about 20 minutes to install.

Broiler won't heat or sparked out? This broil element restores high-heat broiling. DIY-friendly repair takes 20-30 minutes with basic tools.

Fix a range that shuts off unexpectedly or won't power on with this terminal block kit. Connects power supply wiring to your appliance's main components.

Wall-mounted safety bracket that prevents range tip-over. Includes bracket, screws, and instructions. Replace missing or broken brackets required by code.
