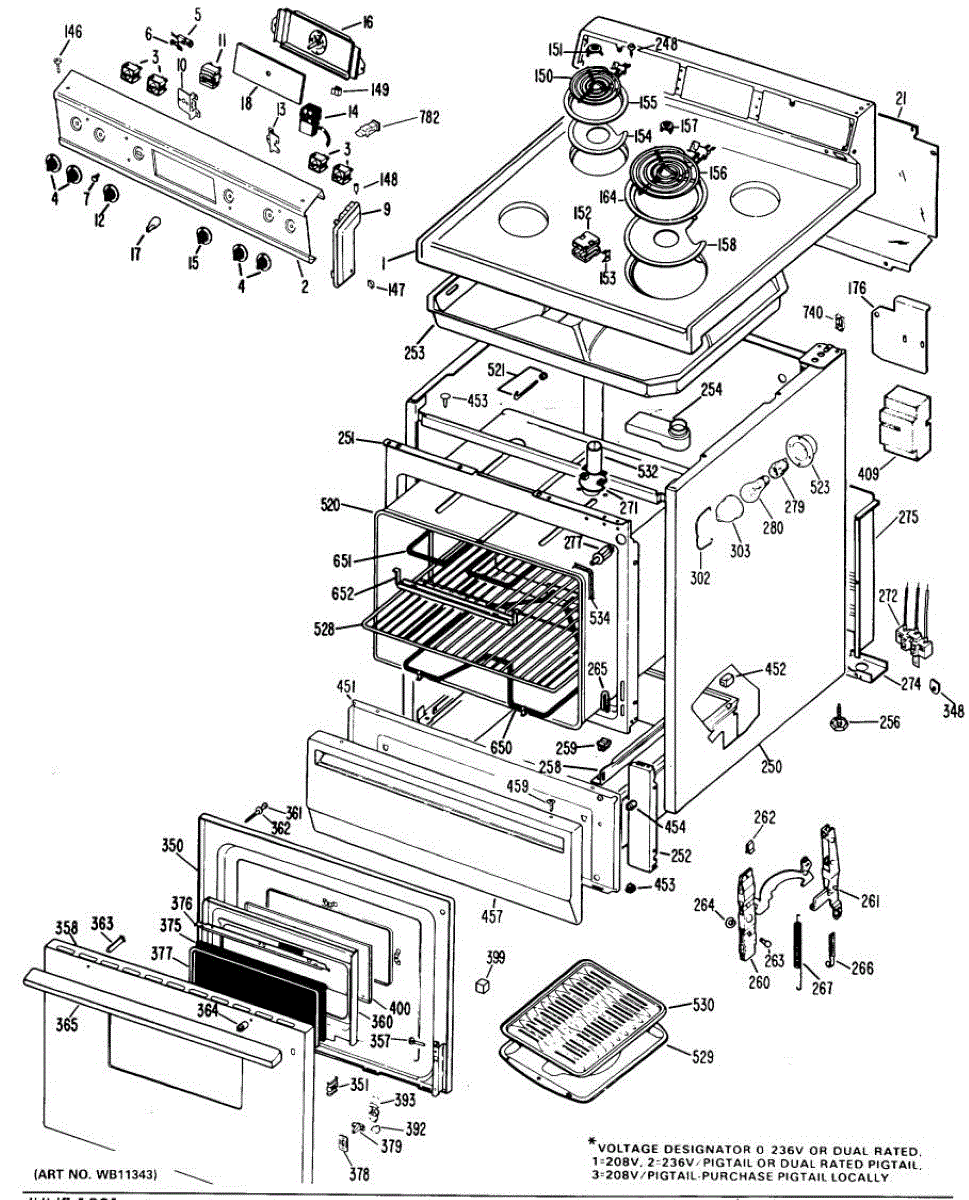

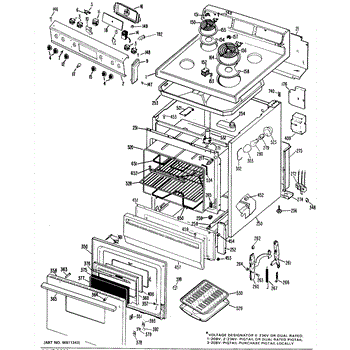

Parts for Ge JBS16XP1: 01 - Section1 Parts

The Infinite Heat Switch Kit is an OEM part for GE ranges and cooktops. This kit is essential for controlling the temperature of the burners on your range or cooktop, allowing you to adjust the heat level from low to high.

Causes of damage to the infinite heat switch can include normal wear and tear from frequent use, electrical issues such as short circuits or power surges, and physical damage from cleaning or impact.

Symptoms of a bad Infinite Heat Switch include:

• Burners not heating to the desired temperature, either staying too hot or not getting hot enough.
• The burner not turning on at all, indicating a possible failure in the switch's electrical contacts or circuit.
• Inconsistent cooking temperatures, where the burner cycles on and off too frequently or not often enough, affecting cooking performance.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Decorative lens cover for range control panel indicator lights. Replace when cracked, faded, or missing to restore appearance. Verify fit by model.

Fix a buzzing timer or non-functioning clock with this range clock timer control. Moderate DIY installation, wiring instructions included. Fits electric ranges.

The Clock Knob Kit is an OEM replacement part for GE ranges. It contains the necessary knobs to control clock and timer functions from the control panel. This 3 pack of range clock knobs is all you need to cover one timer control. Color: Black. Each knob measures about 1/2 an inch in diameter, and 1 inch deep

Symptoms of faulty knobs include:

• Knobs no longer stay securely attached to shafts
• Issues selecting timer options or adjusting clock settings
• Incorrect rotation feel or knobs difficult to turn
• Display issues arising from loose or faulty internal connections

This GE replacement kit is also compatible with Hotpoint, RCA and some Kenmore ranges for convenient cooking.

NOTE: For chrome order WB3X459.

Replace a non-heating or broken 6-inch cooktop burner element. This plug-in surface element fixes uneven heating. DIY-friendly, 30-minute repair.

Range won't power on or heats intermittently? A faulty terminal block disrupts electrical connections. This double terminal block restores power flow.

This 6-inch drip pan installs under your electric range coil burner to catch spills and boil-overs. Replace when cracked, warped, or excessively worn.

The 6 Inch Trim Ring is an OEM part for GE ranges and cooktops. It fits around the stove's burner, enhancing the appliance's aesthetic while also serving a functional purpose by catching spills and drips. This component helps keep the cooking surface clean and reduces the risk of burns or stains by containing minor spills.

Causes of a bad 6 Inch Trim Ring can include exposure to high temperatures leading to warping or discoloration, accidental damage such as dents or bending from cookware impact, and corrosion from frequent exposure to moisture and cleaning chemicals.

Symptoms of a bad 6 Inch Trim Ring include:

• Loose fit around the burner
• Noticeable rust or corrosion
• Discoloration or uneven surface
• Difficulty cleaning or removing debris from under the ring

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Compatible 6-inch drip pan: WB32X10012. Matching 8-inch drip pan: WB32X10013 and ring: WB31X5014.

Range burner not heating? This 8 inch surface element restores full heating power. DIY-friendly installation takes 10-15 minutes with basic tools.

This center trim is the molded bezel that fits the front center of the cooktop/oven control area, restoring a finished look and protecting the control panel edges from heat and grime. What it does:

• Covers and protects the exposed edge of the control panel for a clean appearance
• Hides gaps, chips or discolored trim that make the console look worn
• Helps prevent dirt and grease from getting behind the control assembly
• Restores proper alignment and fit where the original trim is cracked or broken

• Disconnect power to the appliance before starting any repair.
• Typically secures with clips or screws—retain hardware and note orientation when removing old trim.
• Handle edges carefully; replacement may require gentle prying with a trim tool.
• If mounting hardware or support brackets are damaged, replace them separately.

Replace cracked, rusted, or stained 8-inch drip pans under coil burners on electric ranges and cooktops. Catches spills and protects cooktop surface.

The 8 Inch Trim Ring is an OEM part for GE ranges and cooktops. It fits around the 8-inch burner elements, providing a clean, finished look while also helping to contain spills and crumbs on the stovetop.

Symptoms of a bad 8 Inch Trim Ring include:

• Misalignment or improper fit around the burner, which can affect cooking performance and cleaning.
• Visible rusting, warping, or deterioration, which can detract from the appearance of the cooktop.
• Loose fitting that may cause the ring to move or rattle during use.

Causes of a bad trim ring can include frequent exposure to high temperatures, spills of acidic or sugary substances that cause corrosion or damage, and general wear and tear from cleaning and use.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

If you’re looking to replace all of the trim rings and drip pans:

• 8” Drip Pan - WB32X10013
• 6” Drip Pan - WB32X10012
• 6” Trim Ring - WB31X5013

These GE screws are a 12-pack of OEM replacement parts responsible for securing and fastening various components and panels in a GE range or oven. These screws are designed with a hexagonal head, which allows for the use of a compatible wrench or socket for tightening. They are commonly used to attach sheet metal panels, brackets, and other parts within the appliance, ensuring that these components remain securely in place during operation.

This part fixes the following symptoms:

• Loose or wobbly parts or panels within the appliance's interior or exterior
• Panels or components falling out of place, creating gaps or exposing internal parts
• Unusual noises or rattling sounds during the appliance's operation

The GE screws can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Almond

Right hand side

Left hand side

This retainer secures the oven door hinges in place and is located at the bottom corners of the oven door frame. Replace if the oven door sags, won't stay closed properly, or if the hinges appear loose or misaligned.

The Terminal Block is an OEM part for GE electric ranges. It serves as a critical junction point where the range's wiring connects to the heating elements, ensuring proper electrical flow and operation of the oven and cooktop. This component is essential for the safe and efficient functioning of your appliance.

Causes of a bad terminal block can include overheating due to electrical surges, corrosion from prolonged exposure to heat and moisture, or physical damage from improper installation or handling.

Symptoms of a bad terminal block include:

• The oven or burners not heating properly
• Visible signs of burn marks or corrosion on the block
• Electrical arcing or sparking
• Intermittent or no power to the heating elements

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Replace your range's light receptacle socket when the oven light flickers or won't turn on. Easy DIY fix restores proper bulb connection. Confirm fit by model.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

Clear glass lens that protects your oven light bulb. Replace if cracked, broken, or cloudy to safely view cooking progress. Confirm fit with model number.

Includes 12 screws.

Includes 12 washers.

Replacement door spacer bushing for electric and gas ranges, ovens, and microwaves. Installs between door and frame to maintain proper alignment.

This small plastic button covers the electrical connection point where the range plugs into the wall outlet, located on the back of the unit. Replace if the button is cracked, missing, or doesn't properly cover the plug connection.

Rubber bumper for cooktop installation. Prevents vibration and provides cushioning between cooktop and cabinet. Replace if worn, cracked, or missing for stability.

Package of 12

Mounting screw secures panels, trim, and internal components in ranges and ovens. Replace if missing, stripped, or damaged to restore proper fit.

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

Metal oven rack provides stable support for cookware inside your range oven. Replace cracked, rusted, bent, or missing racks to restore proper function.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Replace your oven door gasket when it becomes brittle, cracked, or no longer seals properly. Restores heat containment and energy efficiency. Confirm fit.

Oven not heating or baking unevenly? This lower bake element restores proper oven temperature. DIY-friendly repair takes about 20 minutes to install.

Broiler won't heat or sparked out? This broil element restores high-heat broiling. DIY-friendly repair takes 20-30 minutes with basic tools.

Wall-mounted safety bracket that prevents range tip-over. Includes bracket, screws, and instructions. Replace missing or broken brackets required by code.
