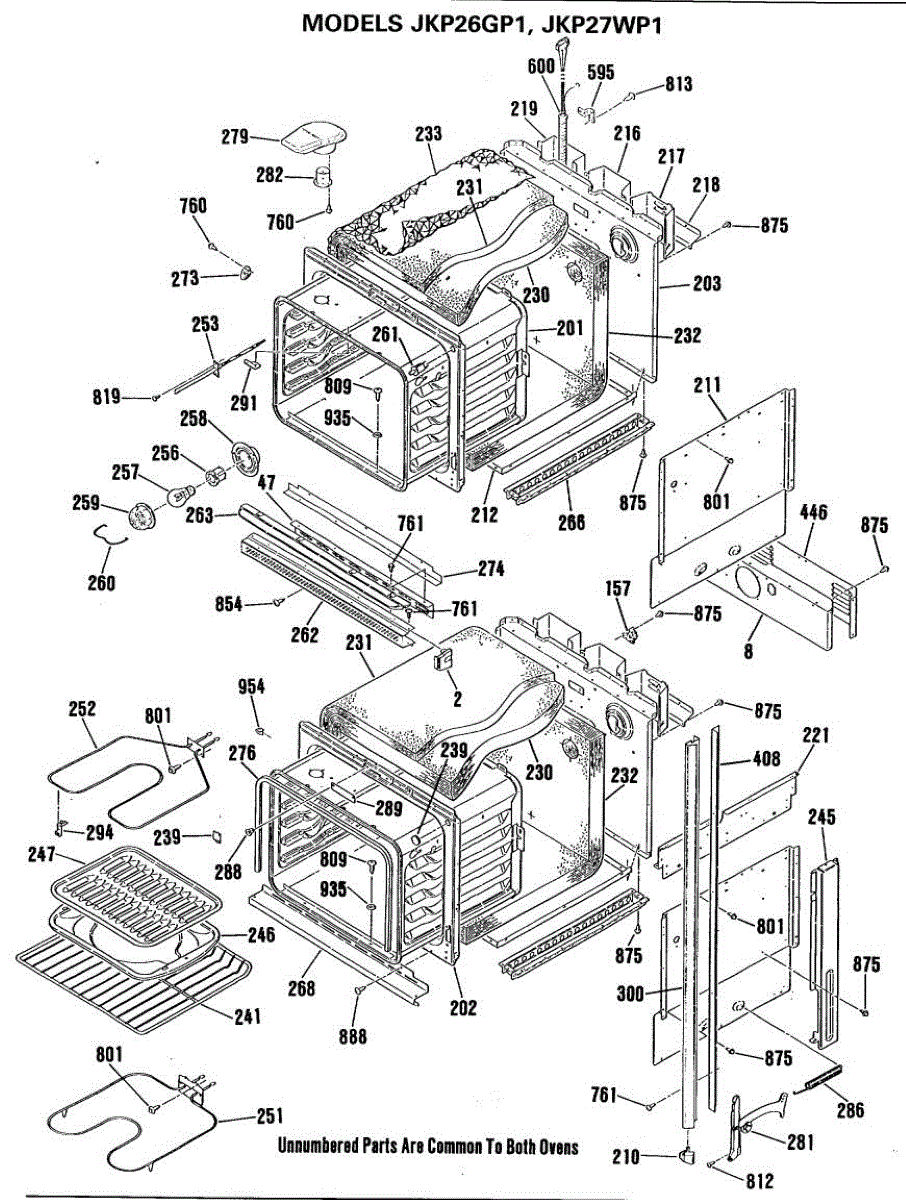

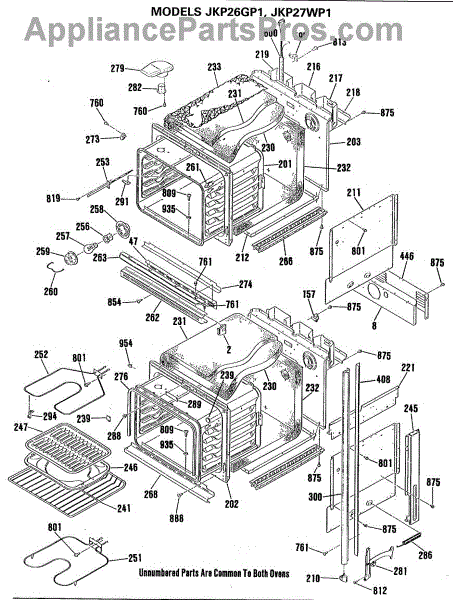

Parts for Ge JKP27WP1: 01 - Section1 Parts

Color: White. Left hand side. For right hand use WB36K5108

Color: White. Right hand side. For left hand use WB36K5107

Replacement wire cover for oven meat probe. Protects and conceals probe wiring. Order a new cover if yours is cracked, broken, or missing.

This fan bracket is the mounting support that secures a range/vent/evaporator blower assembly so the fan stays aligned and operates quietly. It restores proper fan placement to reduce wobble and intermittent contact. What it does

• Holds the fan or blower motor assembly in the correct position to maintain stable rotation.
• Prevents the fan from rubbing or vibrating against the housing, which can cause noise.
• Helps restore airflow path when a damaged bracket allows the fan to shift.
• Addresses symptoms such as noisy or rubbing fan operation, intermittent fan contact, or reduced airflow due to misalignment.

• One fan bracket as shown.

• Disconnect power to the appliance before starting any work.
• Access typically requires removing panels or the blower housing—keep fasteners organized.
• Inspect surrounding mounting points and replace any damaged screws or clips for a secure fit.

Lower back

This full oven cavity wrapper assembly replaces the metal liner that surrounds and supports the oven interior, restoring structural integrity and proper heat enclosure for baking and broiling. Fits as the oven's inner/outer cavity wrapper. What it does:

• Replaces a damaged, warped, or corroded oven cavity wrapper that can affect heat distribution and door alignment
• Restores the oven's sealed cooking cavity to help maintain even temperatures during use
• Provides the mounting surface for insulation and internal components that attach to the oven shell
• Helps prevent heat and grease from reaching external cabinet surfaces

• 1 oven wrapper cavity assembly

• Disconnect power (and gas if applicable) before starting any repair
• Handle the wrapper carefully — edges may be sharp and insulation may shift during removal
• Verify fastener locations and panel alignment during reassembly to ensure proper door fit and seal

Color: White. Left hand side. For right hand use WB7K5160

Color: White. Right hand side. For left hand us WB7K5161

Replacement bottom panel for oven cabinets. Restores structural integrity when original is damaged, rusted, or missing. Direct fit for select models.

Right hand side

Left hand side

Inner door insulation wrap for ovens and ranges. Replaces worn, damaged, or missing insulation between door panels. Maintains heat efficiency.

Insulation panel that installs on the bottom or back of your oven cavity. Replace if cracked, torn, compressed, or missing to maintain proper heat retention.

Metal oven rack installs inside your oven cavity to hold cookware during baking and roasting. Replace if cracked, warped, rusted, or missing.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Oven won't heat or bakes unevenly? The bake element generates heat at the bottom of your oven cavity. DIY-friendly repair, typically 30-40 minutes.

Broiler stopped heating or burned through? This top heating element replacement takes 10-30 minutes with basic tools. Disconnect power, remove brackets, and swap wires.

Fix oven not reaching set temperature or F2/F3 error codes. This temperature sensor monitors internal heat for accurate cooking. Easy DIY repair.

Heat-resistant socket that secures and powers your oven's interior light bulb. Replace if light fails or socket shows burn marks or bare wires. Verify fit.

Clear glass lens that protects your oven light bulb. Replace if cracked, broken, or cloudy to safely view cooking progress. Confirm fit with model number.

A V-shaped decorative trim kit that restores the finished edge and appearance of a range or cooktop opening. Replaces damaged or missing trim to improve fit and finish and hide exposed gaps. What it does:

• Replaces worn, cracked or missing V-style trim along a cooktop or range opening
• Covers exposed edges for a cleaner, finished appearance
• Helps stabilize and align adjoining trim pieces for proper fit
• Restores the appliance's original look after repair or part replacement

• Disconnect power to the appliance and ensure the cooktop is cool before servicing
• Use common hand tools; handle trim edges carefully to avoid cuts or scratches
• Retain original fasteners when possible; replace any damaged clips or screws
• Follow OEM instructions for alignment and secure attachment

Rail base support plate for ovens and ranges. Mounts underneath oven racks to provide stable support. Replace if cracked, broken, or missing.

Color: White. Left hand side. For right hand use WB7K5160

This decorative trim piece replaces a damaged or missing exterior trim to restore your appliance's finished appearance. It visually covers edges and openings for a clean, factory look. What it does:

• Restores the appliance's exterior by covering chipped, bent, scratched, or missing trim areas
• Conceals gaps between panels for a neater appearance
• Helps maintain a flush, finished edge around the opening or control area
• Replaces cosmetically worn or damaged trim without requiring panel replacement

• Disconnect power to the appliance before beginning any work
• Installation typically requires removing nearby screws or clips; keep fasteners for reassembly
• Handle trim carefully to avoid scratching the finish; wear gloves if needed
• For exact mounting location and instructions

Replace your range's jack cover plate if it's cracked, broken, or missing. This cover plate protects the electrical jack connection on your appliance.

Oven meat probe not working or wire exposed? This thermistor monitors interior temperature for accurate cooking. Common DIY fix, installs in minutes.

Right hand side. For left hand use WB14K5007

Replace your oven's broken or worn door hinge with this left-hand side hinge. Fixes a sagging, misaligned, or damaged oven door that won't close properly.

Control panel overlay for electric and gas ranges. Replaces worn, faded, or damaged overlay labels. Adheres over existing control panel surface.

Secures the broiler element at the top of your oven for proper heat distribution. Replace if broken, missing, or failing to hold element in place.

Color: White. Left hand side. For right hand use WB7K5205

Color: White. Right hand side. For left hand use WB7K5204

Right hand side. For left hand use WB2K5300

Left hand side. For right hand use WB2K5299

Replaces damaged or worn oven temperature probe receptacle housing. Installs in the oven cavity wall to secure the probe connection. Order when cracked or broken.

Wire harness assembly that routes and protects electrical wiring inside your wall oven. Replace if cracked, damaged, or connections are loose or worn.

Replacement mounting screw for appliances. Secures components and reduces vibration. Needed when original screws are missing, stripped, or damaged.

Replacement screw for securing oven components, panels, and brackets. Restores tight mounting when original screws are missing, stripped, or lost.

Hex head mounting screw for ranges and ovens. Secures elements, panels, and internal components. Replace if stripped, missing, or damaged during repairs.

Replacement screw for securing panels, brackets, and internal components in ranges, ovens, and cooktops. Replace missing, stripped, or damaged screws.

Flat-head 10-32 zinc screw secures panels and components on cooktops, ranges, and ovens. Replace stripped, missing, or corroded screws for proper fit.

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

Mounting screw for securing oven components and panels. Replace if stripped, corroded, or missing during appliance repair or maintenance work.

Mounting screw for ranges and ovens. Secures internal components and panels. Replace if screw is stripped, missing, or no longer holds parts firmly in place.

Wood screw for securing range components and panels. Replaces lost, stripped, or damaged screws during repairs or reassembly of your oven or range.

Replace a cracked, worn, or missing washer in your oven or range. This small metal component ensures secure fastening of internal parts and panels.

Replacement washer for ranges and ovens. Used to secure components and provide even fastening. Replace if cracked, worn, or missing during repairs.

Replacement mounting nut for ovens and ranges. Secures internal components and panels. Order a new nut if yours is stripped, missing, or damaged.

This wire harness connects the oven door lock motor to the appliance wiring, restoring electrical continuity for reliable door latch operation. It's a direct-fit replacement that helps resolve intermittent or failed lock motor function. What it does:

• Routes power and signal between the control board and the door lock motor so the latch can engage and release.
• Commonly used when a door won't lock, unlock, or shows intermittent lock operation.
• Replaces damaged, frayed, or burned wiring that can interrupt lock motor function.
• Helps restore proper oven or range door locking during self-clean or cook cycles.

• One lock motor wire harness

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Inspect connector ends and routing; replace only if the harness matches the original and connectors seat fully.
• Some models require partial disassembly of the door or console to access the lock motor; follow the OEM service instructions.
