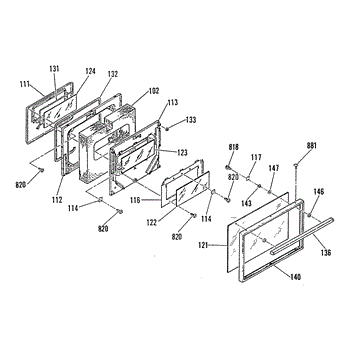

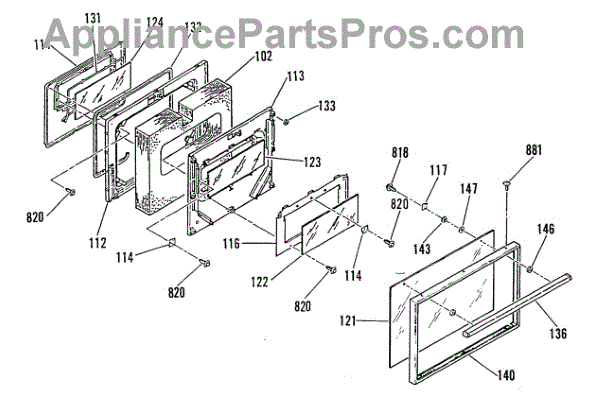

Parts for Ge L3S340GL4: 01 - Section1 Parts

This inner oven door glass seal cushions and seals the inner glass pane inside the door, helping contain heat and keep the glass stable and quiet. Replace a cracked or flattened seal to maintain safe, consistent oven performance.

• Seats and cushions the inner door glass panel
• Seals the perimeter of the pane to limit heat and air leaks
• Helps prevent debris and moisture between glass layers
• Can reduce rattling or shifting of the inner glass
• When worn, contribute to longer preheat times or temperature inconsistency

• Disconnect power; for gas ranges, also shut off the gas supply. Allow the oven to cool completely.
• Remove the door and separate the inner panel per your service instructions.
• Note the seal's routing and orientation; install the new seal without stretching or twisting.
• Wear cut-resistant gloves and handle glass carefully during reassembly.

This replacement refrigerator door gasket creates an airtight seal on the door to help maintain correct cooling and reduce frost buildup. Restores sealing performance to keep food colder and prevent moisture intrusion. What it does:

• Seals the door edge to maintain a cold interior and efficient operation
• Helps prevent warm air leaks that can cause temperature fluctuation
• Reduces frost and ice buildup in the fresh-food or freezer compartment
• Can improve cooling consistency and help avoid compressor overwork

• Disconnect power to the appliance before starting any repair.
• Remove food and any door-mounted items; support the door during gasket removal/installation.
• Replace the gasket by loosening/removing the door inner panel or pulling out the old gasket per OEM instructions; avoid sharp tools that might damage the door finish.
• After installation, check for even seating and close the door repeatedly to help the gasket form a proper seal; some gaskets may require gentle heating or a short break-in period per OEM guidance.

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges

The Oven Bake Element is an OEM part for GE ovens. This element is located at the bottom of the oven and is primarily responsible for providing the heat necessary for baking. When the oven is turned on, electricity flows through the element, causing it to heat up and glow red-hot. This bake element has ¼” push-on wire terminals. If you are unable to use your old wire connectors, order TJMA02875-1.

Symptoms of a failing oven bake element include:

• Oven not heating up properly or taking longer to heat
• Uneven cooking or baking
• Element not glowing or only partially glowing during operation
• Visible signs of blistering, cracks, or holes on the element

Causes of oven bake element failure typically include general wear and tear from regular use, exposure to high temperatures which can weaken the element over time, or electrical issues such as short circuits.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Broil Element is an OEM part for GE ovens. It provides the necessary heat for broiling by producing high-intensity radiant heat from the top of the oven, allowing for cooking and browning foods.

Causes of a bad broil element can include repeated high-heat exposure, physical damage from cleaning or food spills, and electrical surges.

Symptoms of a bad broil element include:

• Inconsistent or no heat during the broiling cycle
• Visible signs of damage, such as blisters or breaks in the element
• Sparking or unusual noises when the broil function is engaged
• Uneven cooking or browning of food

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Oven Sensor Assembly is an OEM part for GE ovens. This part monitors the oven's internal temperature, ensuring it matches the set temperature on the oven's controls. By accurately measuring the heat inside the oven, the sensor assembly communicates with the oven's control system to adjust the temperature accordingly.

Over time, the oven sensor can become faulty due to wear or damage, leading to inaccurate temperature readings. This can manifest as unevenly cooked food, longer cooking times, or an oven that fails to reach the desired temperature setting.

Symptoms of a bad Oven Sensor Assembly include:

• The oven temperature is inconsistent with the setting
• Food is not cooking evenly or as expected
• The oven fails to heat to the set temperature
• Error codes appearing on the oven display related to temperature regulation

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Terminal Block is an OEM part for GE electric ranges. It serves as a critical junction point where the range's wiring connects to the heating elements, ensuring proper electrical flow and operation of the oven and cooktop. This component is essential for the safe and efficient functioning of your appliance.

Causes of a bad terminal block can include overheating due to electrical surges, corrosion from prolonged exposure to heat and moisture, or physical damage from improper installation or handling.

Symptoms of a bad terminal block include:

• The oven or burners not heating properly
• Visible signs of burn marks or corrosion on the block
• Electrical arcing or sparking
• Intermittent or no power to the heating elements

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

NOTICE: Part has been redesigned. Wire terminals are no longer straight off the the back they are from the side. Depending on your model you may have to make changes to make it fit.

This high-amp SPDT switch routes power between circuits in cooking appliances to control items such as locks, element relays, or fans. Replacing a worn switch restores dependable operation and helps eliminate intermittent on/off issues. What it does:

• Single-pole, double-throw action directs power between NO/NC circuits based on actuator position
• Used to signal or control a component per the model's design (e.g., latch/lock, relay, fan)
• Failure symptoms can include no activation, stuck-on/off behavior, intermittent operation, or heat-damaged terminals
• Electrical tests may show incorrect continuity between COM–NO/NC when pressed or released

• Includes: 1 SPDT high-amp switch

• Disconnect power at the breaker or unplug the appliance before servicing
• Label or photograph wiring; move leads to matching COM/NO/NC terminals on the new switch
• Mount with the correct actuator orientation and secure any bracket or screws
• Inspect connectors for heat damage; ensure tight spade fits, restore power, and test operation

Chain from floor to range design

The Hinge, Left Side is an OEM part for GE ovens. It provides support and allows for the smooth operation of the oven door, ensuring it opens and closes properly.

Causes of a bad hinge can include wear and tear over time, rust or corrosion due to exposure to heat and moisture, and damage from accidental impact or improper handling.

Symptoms of a bad hinge, left side include:

• Difficulty in opening or closing the oven door
• Oven door not staying securely closed
• Door misalignment
• Squeaking or creaking noises when moving the door

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Right Door Hinge is an OEM part for GE ovens and allows the oven door opens and closes smoothly and securely. The hinge facilitates easy access to the oven's interior, contributing to a user-friendly cooking experience.

Over time, the right door hinge can wear out or become damaged due to frequent use and the constant stress of holding the door's weight. Causes of a bad hinge include metal fatigue, rust, and physical impact.

Symptoms of a malfunctioning Right Door Hinge include:

• The oven door feels loose or wobbly when opened or closed.
• Difficulty in fully closing the oven door, which may affect the oven's ability to maintain temperature.
• A noticeable squeaking or grinding noise during the door's operation.
• Visible wear or damage to the hinge itself.

This OEM GE  part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Support Bracket is an OEM part for GE ovens, designed to provide stability and support for the broiling element. This bracket is essential for ensuring the broiling element is securely positioned at the top of the oven, allowing for even heat distribution and optimal cooking performance when broiling foods.

Causes of damage to the support bracket often involve high heat exposure, accidental impacts during cleaning or cooking, or general wear and tear over time.

Symptoms of a bad Support Bracket include:

• The broiling element hanging lower than usual or touching the oven cavity, which can affect cooking performance and potentially damage the oven's interior.
• Unstable or loose broiling element, leading to uneven cooking or broiling.
• Visible signs of wear, damage, or corrosion on the bracket itself, indicating it may no longer provide adequate support.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

A sturdy blower plate used to secure and align the dryer blower assembly, helping channel airflow for proper venting and heating performance. Restores correct blower positioning to reduce noise and improve air movement. What it does:

• Mounts and supports the blower wheel and motor assembly inside the dryer housing
• Directs airflow from the blower into the vent path for consistent drying
• Helps reduce rattling or scraping noises caused by a loose or misaligned blower
• Addresses poor drying or overheated cycles when blower alignment is compromised

• One blower plate

• Disconnect power before starting work to avoid shock risk
• Access may require removing the dryer front panel or cabinet per model service manual
• Inspect blower wheel and motor mount for wear when replacing this plate
• Tighten fasteners to OEM torque; reuse only manufacturer-recommended hardware

ST10-16 X 7/16"

This replacement screw secures panels and small components on your appliance to restore proper fit and help prevent rattling or loose parts. Use it wherever the original fastener has been lost or damaged. What it does:

• Secures trim, panels, or mounting brackets to keep components aligned
• Prevents vibration and rattling caused by loose fasteners
• Replaces missing or stripped screws that compromise panel fit
• Restores reliable fastening so doors and controls sit correctly

• Disconnect power before accessing internal panels or components
• Use the correct driver to avoid stripping the screw head
• Thread carefully and do not overtighten to prevent damage
• Keep small parts away from children and pets

This replacement screw secures appliance panels and components to restore proper fit and prevent rattling or movement. Use it to replace a missing or stripped fastener for a snug, durable connection. What it does:

• Secures trim, panels, brackets, or internal components in place
• Restores proper alignment and reduces vibration or noise
• Replaces missing, worn, or damaged screws that cause loose parts
• Compatible with the original mounting point and fastening method

• Turn off power and unplug the appliance before starting any repair
• Use the correct driver to avoid stripping the head; match thread engagement fully
• If threads are damaged, inspect the mating part and replace or repair as needed

Package of 12
