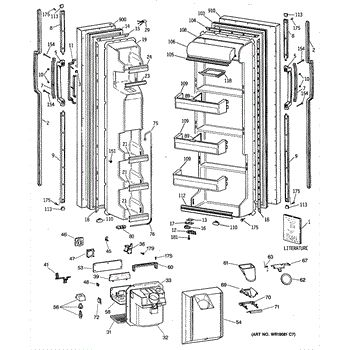

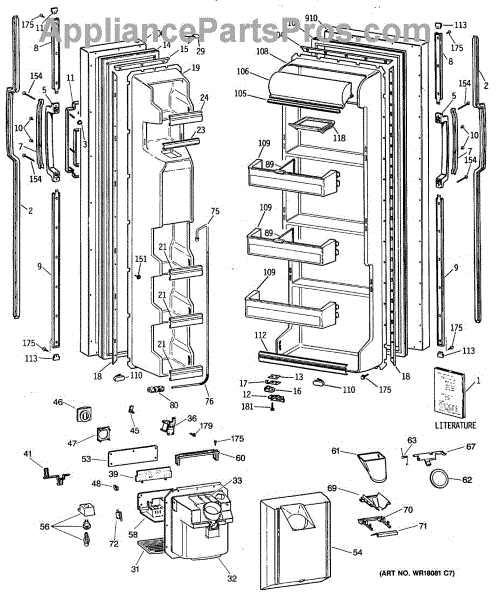

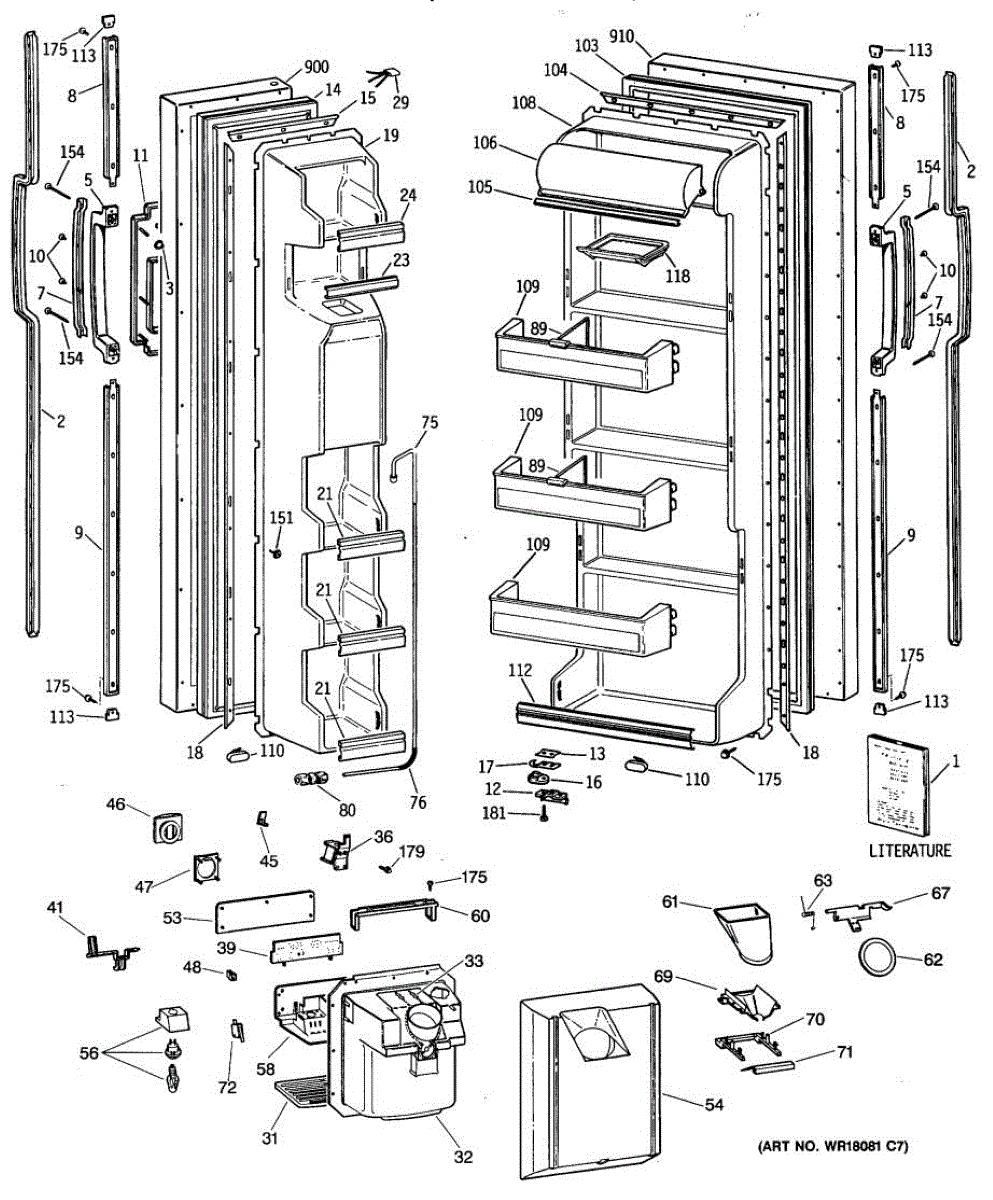

Parts for Ge TFX20JRSMAD: 01 - Section1 Parts

Tubular fastener bushing for refrigerators. Secures and stabilizes internal components. Replace if cracked, broken, or missing to restore proper fit.

Replace your cracked or broken refrigerator door handle channel. This structural component secures the handle assembly to the door for smooth operation.

Mounting screw for refrigerator internal components. Replaces lost, stripped, or damaged screws used to secure panels, brackets, and parts inside your unit.

Color: Black.

This replacement part is a door hinge, and it is intended for use in different types of appliances. This is a genuine replacement part made by General Electric. This door hinge is typically found in refrigerators or freezers. The hinge is stationed so that the door and the main parts of the appliance are connected and in working order. The door hinge allows the doors to be opened and closed easily and smoothly. There is typically more than one hinge on each door so be sure to purchase the correct amount. A new door hinge might be needed if the current appliance doors are not properly opening and closing. Another way to tell if the hinges are damaged is if the doors are drooping and require a slight lift to be shut. This usually means the hinges are becoming loose and either need to be tightened or replaced altogether. Note that the doors will have to be completely removed to replace this part so the food inside the fridge may go bad during the repair if it takes too long. This is a genuine OEM replacement part and is sold individually.

Plastic cam riser that lifts and aligns the refrigerator door as it opens and closes. Replace if cracked, broken, or missing to restore smooth operation.

This small shim adjusts the alignment and gap spacing of your refrigerator door hinges. It ensures proper door alignment and helps maintain an even seal around the door perimeter. Use this part if your refrigerator door doesn't close properly, has uneven gaps, or if the door appears misaligned.

This replacement front door shelf restores lost refrigerator door storage so bottles, jars and condiments stay organized and secure. Durable molded plastic keeps items visible and contained for everyday use. What it does:

• Replaces a cracked, chipped or broken door shelf to regain door storage capacity
• Secures bottles, jars and small containers on the refrigerator door
• Helps prevent spills and shifting during door opening and closing
• Restores a finished interior appearance and proper fit for stored items

• Remove all items from the door and support the shelf while releasing the retaining tabs
• Align hooks or tabs with door slots and snap shelf into place until it seats securely
• Do not force; inspect door mounting points for damage and replace any broken clips as needed
• Clean with mild soap and water; avoid abrasive pads or harsh chemicals

Replace your refrigerator's front door shelf rail if it's cracked, broken, or missing. This rail secures door bins and keeps stored items in place.

Color: Black.

Door solenoid with plunger.

This control board comes with 2 slide switches and is mounted in the dispenser area.

The recess door retainer secures the dispenser's ice chute flapper in the refrigerator door. Replacing a cracked or missing retainer restores proper flapper pivot and sealing to help reduce frost buildup and air leaks around the dispenser.

• Holds the recess/ice door on its pivot within the dispenser assembly
• Helps the flapper close fully to seal the ice chute
• Restores smooth open/close action of the dispenser door
• Common symptoms: loose or fallen flapper, poor chute seal, frost or condensation in the dispenser area, and ice clumping near the chute

• Unplug the refrigerator before servicing the dispenser
• Carefully remove the dispenser bezel/control panel to access the ice chute door assembly
• Note spring orientation and retainer position; transfer components to the new retainer
• Verify flapper movement and seal before reassembly and restoring power

Color: Black.

Color: clear. It's 7 watts 130 volts.

Color: Black.

Plastic cover cap for refrigerator electrical components. Replaces cracked, broken, or missing covers. Protects wiring connections and terminals.

Ice dispenser door assembly seals the ice chute opening on your refrigerator. Replace if cracked, warped, or the rubber gasket is damaged and leaking air.

The Ice Door Spring is an OEM part compatible with GE refrigerators. It is responsible for providing tension and support to the ice chute door, allowing it to open and close smoothly. When you activate the ice dispenser, the spring helps to release the door and allow the ice to pass through. After dispensing, the spring assists in closing the door to prevent cold air leakage and maintain the desired temperature inside the refrigerator.

You should replace the ice door spring if it loses tension or breaks, which can happen due to regular wear and tear, frequent use, or accidental damage. A faulty spring can lead to issues with the ice dispenser's operation and overall efficiency.

Symptoms of a bad ice door spring may include:

• Difficulty in opening or closing the ice chute door
• Ice dispensing issues, such as the door not opening when the dispenser is activated
• Cold air leakage from the ice chute area
• Ice buildup on the front of the icemaker

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Replace missing or stripped mounting screws in your washer dryer combo. This 12-pack secures panels, components, and internal parts during assembly or repair.

Links the dispenser solenoid to the ice chute door in your refrigerator. Replace if the crank is broken, cracked, or worn, preventing proper closure.

Color: Black.

Color: Black.

Secures wire harnesses in your refrigerator. Replace if broken, cracked, or wires are loose. Confirm fit with your model number before ordering.

Connects water supply tubing sections in your refrigerator. Replace this plastic compression union if it's cracked, leaking, or broken. Installs inline.

Size: 8-32 TT FL 1/2 S.

Includes 12 screws. Size: 8-18 ab.

Replace the end cap trim on your refrigerator door handle. This decorative trim piece covers the handle end and may need replacement if cracked or missing.

Replacement 8-18 x 9/16 machine screw for securing panels, brackets, and internal components. Needed when fasteners are stripped, missing, or worn.

Includes 12 screws.

Refrigerator mounting screw used to secure internal components and panels. Replace if stripped, missing, or damaged during appliance maintenance or repair.

8 - 18 x .375

2 wire insulator.

Size: 10-16 ab.

Size: 8-32 t. Includes 12 screws.

Replacement mounting screw for securing panels, trim, and internal brackets. Needed when original fasteners are missing, stripped, or damaged.

Secures water tube to cabinet, preventing kinks and flow issues. Replace if tube is loose, vibrating, or causing noise. Confirm fit with your model number.

Black. 8-18 AB HXW 3/8
