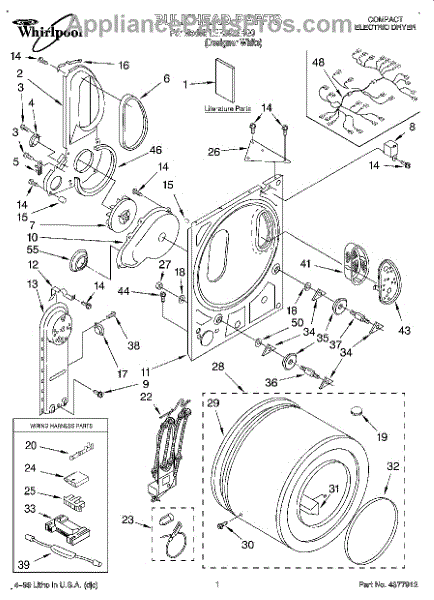

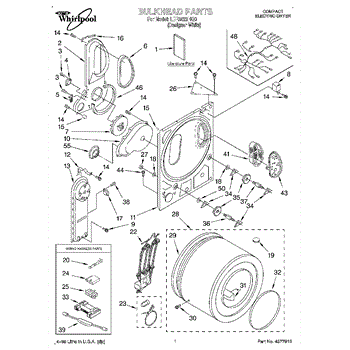

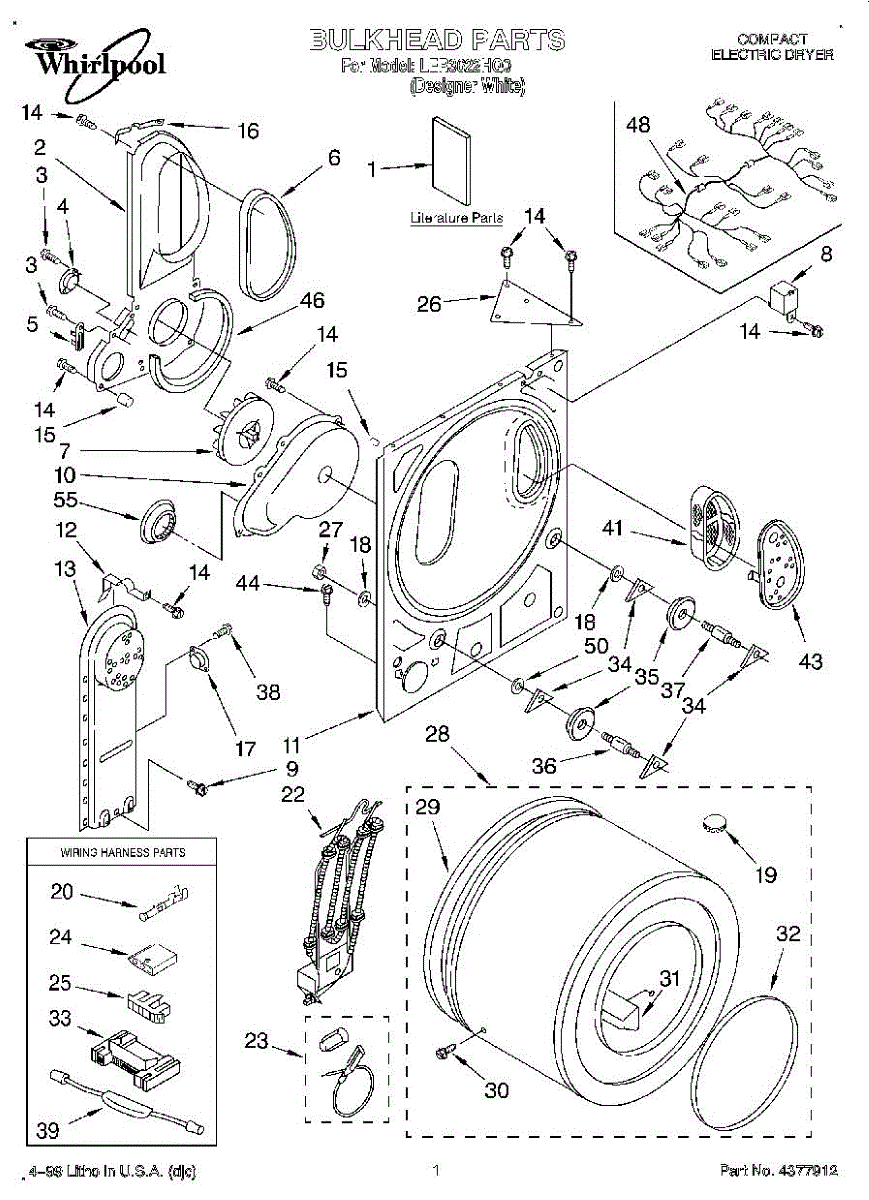

Parts for Whirlpool LER3622HQ0: 01 - Section Parts

This air duct assembly directs dryer exhaust airflow to the vent path, restoring proper air movement for efficient drying and safer operation. Replaces a damaged, cracked, or restricted duct to help reduce long dry times and airflow problems. What it does

• Channels heated air from the blower housing toward the exhaust vent.
• Restores proper airflow to reduce extended dry cycles and improve lint evacuation.
• Helps prevent overheating caused by a blocked or broken duct.
• Can reduce abnormal noises from air leaks or rattling duct sections.

• One air duct assembly.

• Disconnect power (and gas supply for gas models) before starting any repairs.
• Inspect adjoining seals and clamps; replace if worn to ensure a secure, leak-free fit.
• Wear gloves to protect hands from sharp edges and lint.

This is a replacement machine screw sized 8-18 x 3/8 that secures panels and components on compatible appliances. It restores proper fastening where a worn, stripped, or missing screw causes loose parts or rattling. What it does

• Fastens control panels, trim pieces, or brackets to the appliance chassis
• Replaces stripped, corroded, or missing screws that cause loose panels or vibrating noise
• Provides correct thread engagement for a secure hold in tapped holes
• Small hardware solution often used during door, console, or interior repairs

• One 8-18 x 3/8 machine screw (quantity: 1)

• Use the correct screw size and thread; do not force a different-size fastener into tapped holes
• Hand-start the screw to avoid cross-threading, then tighten with the appropriate screwdriver
• Disconnect power before accessing internal components or panels on electrical appliances
• If metal threads are damaged, repair with a helicoil or replace the damaged component rather than over-torquing

The Thermostat is an OEM part for Whirlpool dryers. It plays a critical role in regulating the temperature inside the dryer by cycling the heating element on and off to maintain the desired level of heat. This ensures that clothes are dried efficiently and safely.

Common causes of a bad thermostat include electrical malfunctions, overheating, or wear and tear over time. These issues can prevent the thermostat from accurately controlling the temperature, leading to drying inefficiencies or potential safety hazards.

Symptoms of a bad Thermostat include:

• The dryer not heating up
• Overheating or extremely high temperatures
• Clothes taking too long to dry
• The dryer shutting off prematurely

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Thermal Fuse is an OEM component for Whirlpool dryers. As a one-time-use safety component, the thermal fuse monitors heat levels and acts as an overload protector. This is a one-time use fuse that cannot be reset.

Causes of a bad thermal fuse include exposure to excessively high temperatures from a failure or blockage of another component like the venting system.

Symptoms of a bad thermal fuse are:

• The dryer fails to heat at all
• Randomly cutting out during cycles
• Visible damage or melting of the fuse housing

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Lint Screen Housing Foam Seal is an OEM part for Whirlpool dryers. This seal is placed around the lint screen housing to prevent air leaks and ensure that the dryer operates efficiently by directing airflow properly through the lint screen. By maintaining a tight seal, this foam helps to optimize the dryer’s performance, reduce drying times, and prevent lint from escaping into the internal parts of the dryer, which can lead to potential maintenance issues and decreased efficiency.

Symptoms of a failing lint screen housing foam seal include:

• Increased lint buildup inside the dryer beyond the lint screen
• Longer drying times due to inefficient air circulation
• Excessive heat and humidity within the dryer

Causes of foam seal deterioration typically involve normal wear and tear, exposure to high heat which can degrade the material, or improper maintenance that can tear or dislodge the foam.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement blower wheel restores proper airflow by moving air through the appliance's blower housing and out the exhaust. A worn or stripped wheel can cause weak ventilation, vibration, and noisy operation.

• Attaches to the motor shaft and spins to move air through the blower housing and ducting
• Maintains steady airflow for efficient appliance performance and ventilation
• Typical failure signs: reduced airflow at the exhaust, rattling/scraping noises, wobble on the shaft, or cracked/missing fins
• Helps resolve vibration from an out-of-balance or damaged wheel

• Disconnect power; turn off gas supply before servicing
• Access the blower housing; remove debris and inspect seals before installation
• Transfer any reusable retainer, nut, clip, or set screw from the old wheel as required by your model
• Seat the wheel fully and secure per your model design (e.g., reverse-thread, retainer, or set screw); verify free rotation and clearance before reassembly

This adjustable buzzer kit replaces a failed or noisy mini buzzer to restore audible alerts for cycles, timers and notifications. Compact design lets the appliance signal you reliably when cycles finish or need attention. What it does:

• Produces audible tones for cycle end, timers and other appliance notifications
• Replaces buzzers that are silent, intermittent, weak or emitting erratic beeps
• Helps you hear and identify completed cycles and timed alerts
• Small, mountable unit that fits behind the control panel and connects to the control board

• One adjustable buzzer kit

• Disconnect power before servicing to avoid shock risk
• Access may require removing the control panel; keep fasteners organized for reassembly
• Disconnect the buzzer wiring harness or connector before removing the old unit; connect the new buzzer the same way
• Test buzzer function with power restored before fully reassembling

This factory fastener secures appliance components and panels, helping keep assemblies properly aligned and tight. Replace worn, stripped, or missing hardware to eliminate looseness and vibration and maintain safe, reliable operation.

• Fastens brackets, panels, trim, and internal assemblies to the cabinet/frame
• Helps maintain alignment of doors, consoles, or covers
• Restores a tight fit to reduce rattling, vibration, or shifting
• Common symptoms: missing screw, stripped head/threads, loose panel or handle, recurring vibration/noise

• Disconnect power (and shut off gas/water if applicable) before servicing
• Match thread and length to the original fastener for proper fit
• Start threading by hand to avoid cross-threading; use the correct driver
• Do not overtighten into plastic or thin sheet metal

This retainer clip secures a component in place to prevent movement and maintain proper alignment during appliance operation. Replacing a damaged or missing clip helps restore safe, reliable performance.

• Holds the mating part firmly to reduce vibration and noise
• Helps prevent intermittent operation caused by loose fitment
• Common fix when a component feels loose, rattles, or won't stay seated

• Disconnect power and shut off gas/water before servicing
• Note original clip orientation and location before removal
• Use needle-nose pliers to carefully release and install the clip
• Do not over-bend the clip; replace if deformed or fatigued

This Heater Housing is the metal enclosure that supports the heating element and thermostats and channels airflow through the heater. Replacing a warped, burned-through, or corroded housing helps restore safe, consistent dryer heat and airflow.

• Holds the heating element securely and isolates it from the cabinet
• Directs air across the element for efficient, even heating
• Provides mounting points for high-limit/cycling thermostats and thermal cut-off
• Helps with symptoms such as weak/no heat, scorching in the heater area, repeated element shorts, or visible damage/rust to the housing

• Disconnect power and pull the dryer forward for access
• Remove the rear panel and exhaust duct to reach the heater assembly
• Note wiring; transfer the heating element and thermostats from the old housing to the new one using existing hardware
• Ensure the element is centered and not touching the housing before reassembly; reconnect and test for proper heat and airflow

Specs: 10-16 x 1/2 inch.

The Thermostat is an OEM replacement part for Whirlpool dryers. The thermostat monitors the air temperature in the dryer drum and signals to the control system when to activate or deactivate heating elements.

Causes of a failing thermostat can include normal wear and tear over time. As the thermostat undergoes frequent temperature fluctuations with each use, components may gradually degrade. Physical damage from accidental impact is another potential cause.

Symptoms of a bad thermostat include:

• Inability to increase air temperature above a certain point
• Overheating errors
• Slow or incomplete drying even on high heat settings
• Socks ending up damp after an entire cycle

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This support washer is a flat spacer used within the mechanism to support and separate mating parts, maintaining alignment and smoother movement. Replacing a worn washer helps reduce friction and wear so components operate properly. What it does:

• Maintains proper spacing and support between adjoining parts
• Helps prevent metal-to-metal contact, reducing scraping or grinding noises
• Addresses wobble or excess play when the original washer is worn, deformed, or missing
• Restores smoother movement and alignment in the assembly

• One support washer

• Disconnect power and water supply before servicing; for gas combos, also shut off gas
• Refer to your model's parts diagram for location and orientation
• Track the order of any shims/spacers during disassembly and reinstall in the same sequence
• Tighten fasteners to manufacturer guidance to avoid deforming the washer or binding parts

This drum hole plug seals an unused or service access hole in the dryer drum to help prevent clothing snags and reduce interior airflow leaks. Simple replacement restores the drum surface and helps keep items from catching. What it does:

• Covers a drum access/service hole to provide a smooth interior surface
• Prevents fabric from catching or tearing on open drum holes
• Reduces unwanted air leakage through the drum
• Helps maintain normal drum rotation contact points by keeping openings closed

• One drum hole plug

• Disconnect power to the appliance before starting any repairs
• Inspect the drum area and remove any debris before installing the plug
• Press or snap the plug into the hole until fully seated; replace if damaged or deformed

For mating terminal use [AP31136300].

The Heating Element is an OEM component specifically designed for Whirlpool brand electric dryers. It contains coils that produce hot air used throughout drying cycles.

Symptoms of a failing heating element include:

• Slow drying times as clothing takes longer than usual to dry fully
• Excess condensation inside the dryer drum
• Damp items after an entire cycle

Potential causes involve typical coil wear from repeated heating and cooling over many years. Mineral scale buildup or poor ventilation can diminish heating efficiency as well.

Compatible models include some brands produced by KitchenAid, Maytag, Amana, and Kenmore.

The Heating Element Connecting Wire is an OEM part for Whirlpool dryers, designed to provide a secure electrical connection to the dryer's heating element. This critical component ensures that the heating element receives the power it needs to generate heat for drying clothes.

Causes of a bad heating element connecting wire can include overheating, physical damage, or wear and tear over time. These issues can lead to a loss of connectivity, resulting in the heating element failing to heat up.

Symptoms of a bad Heating Element Connecting Wire include:

• The dryer not heating up despite having power
• Intermittent heating, suggesting a loose or faulty connection
• Unusual smells or signs of burning, indicating overheating or damage to the wire

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This locking nut is used for many purposes on a range of machines including household appliances. This nut is often used for leg leveling for machines. It will help with vibrations from washers and dryers. If the nut is used for this purpose and goes missing or becomes damaged, it could cause the machine to vibrate more and seem louder.Nuts are made from metal and are built to last a long time. However, there can still be issues that arise. In some cases, the nuts might go missing if they become loose and the machine is moved. They could also corrode over time and need to be replaced. The replacement of the nut is typically a fast and simple repair.The nut is a genuine OEM replacement part sourced from the manufacturer. It can work with washers, dryers, and combo machines, and is compatible with models from Whirlpool, Kenmore, Maytag, and Roper. The part is sold individually. Owners may want to have several on hand.

This felt kit seals the gap between the dryer drum and bulkhead to maintain proper airflow and smooth, quiet rotation. Replacing a worn seal can reduce noise, help prevent snags, and restore consistent drying performance.

• Forms a drum-to-bulkhead seal to keep heated air in the proper airflow path
• Cushions drum movement to minimize scraping or squealing sounds
• Helps prevent clothing from catching at the drum edge
• Common signs of wear: frayed or missing felt, visible gaps, unusual noise, longer dry times

• Disconnect power; turn off gas supply if applicable
• Access the drum and bulkhead; support the drum during service
• Remove the old seal and any residue; install the new felt evenly around the circumference
• After reassembly, rotate the drum by hand to ensure smooth contact and proper alignment

This drum baffle restores the internal lift inside the dryer drum to help separate clothes and promote even tumbling. Replacing a cracked or missing baffle can reduce banging noises and help restore consistent drying performance. What it does:

• Lifts and moves clothes for more even tumbling and airflow inside the drum.
• Helps prevent garments from bunching or wrapping around the drum during a cycle.
• A damaged or missing baffle can cause loud thumping, scraping noises, or uneven drying; replacing it addresses these common symptoms.
• Designed to match the OEM drum mounting points for proper fit and function.

• Disconnect power (and gas, if applicable) before servicing the dryer.
• Access typically requires removing the dryer front or drum; keep track of fasteners and take photos for reassembly.
• Use basic hand tools and avoid forcing parts; inspect mounting hardware and drum condition while replacing the baffle.

This front bearing ring sits on the dryer's front bulkhead to provide a smooth, low-friction surface for the drum lip. Replacing a worn ring helps restore quiet, steady drum rotation and prevents scraping against the front panel. What it does:

• Supports the front of the drum and keeps it centered
• Provides a low-friction surface between the drum and front bulkhead
• Helps eliminate squealing, scraping, or grinding noises from the front
• Can address drum drag or rough, uneven rotation

• 1 bearing ring

• Disconnect power; shut off gas supply for gas models before servicing
• Remove the top and front panel to access the front bulkhead and drum
• Support the drum while replacing the ring; install in the same orientation as the original
• Spin the drum by hand to ensure smooth, quiet rotation before reassembly; inspect the belt, idler pulley, rollers, and felt seals while open

This motor connector housing is the molded body that holds the motor's wire terminals for a secure, insulated connection. Replacing a cracked or heat-damaged housing helps restore reliable motor operation and prevent intermittent power issues.

• Organizes and insulates the motor's wiring terminals
• Locks the harness to the motor for a firm electrical connection
• Helps reduce loose contacts, arcing, and heat damage at the plug
• If the housing is failing, you may see intermittent or no motor operation, the machine stopping mid-cycle, or visible melting/discoloration at the motor connector

• Disconnect power; also shut off gas supply
• Note wire positions; transfer terminals into the new housing one at a time to maintain orientation
• Inspect terminals and wiring; replace any burnt or loose terminals before reassembly
• Ensure the connector seats fully on the motor and the harness is secure; restore power and test

The Drum Support Wheel Retainer is an OEM part for Whirlpool dryers. This part secures the drum support wheels in place, ensuring that the dryer drum rotates smoothly and quietly during operation. The retainer is designed to fit precisely, preventing the support wheels from loosening or wobbling, which can lead to inefficient drying and increased wear on other components.

Over time, retainers can wear out or become damaged, potentially leading to a loose drum support wheel. This can cause the dryer to operate noisily, vibrate excessively, or even damage the drum itself if not addressed promptly.

Symptoms of a bad Drum Support Wheel Retainer include:

• Unusual noises, such as squeaking or thumping, coming from the dryer
• Excessive vibration during operation
• The dryer drum may feel unstable or wobble when turned by hand

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Dryer Rear Drum Support Roller Kit is an OEM replacement part for  Whirlpool dryers, as well as Kenmore, Samsung and other brands. This kit includes the rear support rollers that are crucial for maintaining proper drum alignment and smooth rotation during the drying cycle. Matching belt 341241 and idler pulley WP691366.

Symptoms of a faulty Rear Drum Support Roller Kit include:

• Excessive vibration or shaking during drying cycles
• Loud grinding or squeaking noises from the rear of the dryer
• Uneven wear or visible damage to the rollers
• Potential drum misalignment, rubbing against the drum casing, or leaks

Causes of a bad Rear Drum Support Roller Kit can include wear and tear over time, excessive load imbalances, or physical damage from impact or mishandling.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dryer models.

The Drum Support Roller Shaft - Left is an OEM part for Whirlpool dryers. It is specifically designed to support the drum roller, ensuring smooth rotation of the dryer drum during operation. This shaft is essential for maintaining the drum's alignment and stability, allowing for effective and efficient drying of clothes.

Causes of a bad drum support roller shaft can include wear and tear from regular use, accumulation of lint and debris, or damage from overloading the dryer. These factors can lead to the shaft becoming worn out or bent, impairing the dryer’s performance.

Symptoms of a bad drum support roller shaft include:

• Squeaking or grinding noises during the drying cycle
• The dryer drum not rotating smoothly or being off-balance
• Increased drying times or incomplete drying of clothes

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Drum Support Roller Shaft - Right is an OEM part for Whirlpool dryers. This shaft provides support for the drum roller, allowing the dryer drum to rotate smoothly and efficiently during drying cycles.

You should replace the drum support roller shaft if it becomes worn, bent, or damaged. Causes of a bad drum support roller shaft can include regular wear and tear, overloading the dryer, or exposure to high temperatures, which can affect its structural integrity.

Symptoms of a bad drum support roller shaft include:

• Unusual noises such as squeaking or grinding during operation
• The dryer drum not rotating smoothly or becoming stuck
• Excessive vibration or wobbling of the dryer drum
• Visible wear or damage on the roller shaft

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This fixed-value resistor is an electrical component used in select dryers to limit current in a specific control circuit. It helps the timer or electronic control operate correctly by dropping voltage to safe, design-intended levels.

• Provides precise resistance to reduce voltage/current in the designated dryer circuit
• Supports proper operation of the timer, control board, or end-of-cycle signal (varies by model)
• Failure may present as a timer that won't advance, an inoperative signal/buzzer, or irregular cycle behavior
• Replace if visibly burned/damaged or if testing shows an open or shorted condition

• Disconnect power to the appliance before servicing
• Access the console/wiring harness and note original wire routing
• Make secure, insulated connections and route the resistor/leads exactly as original to avoid heat or chafing
• After installation, run a test cycle to ensure proper operation of the affected function

The Lint Screen Cover and Filter is an OEM part for Whirlpool dryers. It serves a dual purpose: the lint screen traps lint and debris from clothes during the drying process, preventing them from clogging the dryer vent, while the cover ensures the lint screen is securely positioned and contributes to optimal airflow within the dryer.
Causes of a bad part include tears or holes in the lint screen that allow lint to pass through and clog the vent, a cracked or broken cover that fails to secure the lint screen properly, or buildup of fabric softener and lint that reduces the effectiveness of the filter.

Symptoms of a bad Lint Screen Cover and Filter include:

• Increased drying times
• Excessive lint buildup around the dryer
• The dryer may run hotter than normal

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Lint Screen Cover and Filter is an OEM part for Whirlpool dryers. It serves a dual purpose: the lint screen traps lint and debris from clothes during the drying process, preventing them from clogging the dryer vent, while the cover ensures the lint screen is securely positioned and contributes to optimal airflow within the dryer.
Causes of a bad part include tears or holes in the lint screen that allow lint to pass through and clog the vent, a cracked or broken cover that fails to secure the lint screen properly, or buildup of fabric softener and lint that reduces the effectiveness of the filter.

Symptoms of a bad Lint Screen Cover and Filter include:

• Increased drying times
• Excessive lint buildup around the dryer
• The dryer may run hotter than normal

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

10 - 16 x 1/2

This flat support washer provides a stable bearing surface under a fastener. Its 1-1/2-in diameter helps distribute load, maintain spacing, and keep components aligned so hardware stays tight and assemblies operate smoothly. What it does:

• Distributes clamping force to prevent pull-through and gouging
• Maintains proper spacing and alignment between mating parts
• Helps reduce vibration, rubbing, or wobble from a loose assembly
• Replaces a cracked, deformed, or missing support washer

• One support washer

• Disconnect power and shut off water/gas before servicing.
• Note the order and orientation of any washers/spacers during disassembly.
• Inspect mating hardware and surfaces; replace any worn or damaged parts.
• Tighten fasteners to manufacturer specifications—do not over-tighten.

Touch-up paint. Color: Almond. Size: 1 qt. can. (Uncut)

Color: White. Size: 1 qt. can. Acrylic appliance paint.

Color: Gray. Size: 13 oz. can. Used for coating the dryer drum interior. Acrylic appliance paint.

Color: Almond

Almond. Size: 13 oz. can. Acrylic appliance paint.

This factory shield is a protective panel used within the appliance assembly. It helps guard nearby components and maintain proper operation by directing heat, air, or moisture as designed. Replacing a damaged or missing shield restores correct fit and protection.

• Provides a protective barrier for internal components in the specified area
• Helps manage airflow/heat/moisture path as engineered for the system
• Replace if cracked, warped, missing, or not securing firmly
• Typical signs include visible damage, rubbing/rattling, or evidence of heat/moisture exposure near the shield

• Disconnect power; shut off gas/water if applicable before servicing
• Access the location per your model's service information
• Transfer and reuse original clips/fasteners as needed; do not overtighten
• Verify alignment and clearances before reassembly and testing

The Appliance Touchup Paint is an OEM product for Whirlpool appliances. This touchup paint is used to cover scratches, chips, and minor blemishes on the surface of various appliances, helping to maintain their appearance and protect them from rust and other damage. It is specifically formulated to match the original color and finish of Whirlpool appliances, ensuring a seamless repair.

Causes of needing touchup paint include everyday wear and tear, accidental impacts that cause chipping or scratching, and exposure to harsh cleaning chemicals that can damage the finish. Regular use of touchup paint can help keep appliances looking new and extend their lifespan.

Symptoms indicating the need for Appliance Touchup Paint include:

• Visible scratches or chips on the appliance surface
• Areas of exposed metal prone to rust
• Blemishes that affect the overall aesthetic of the appliance

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
