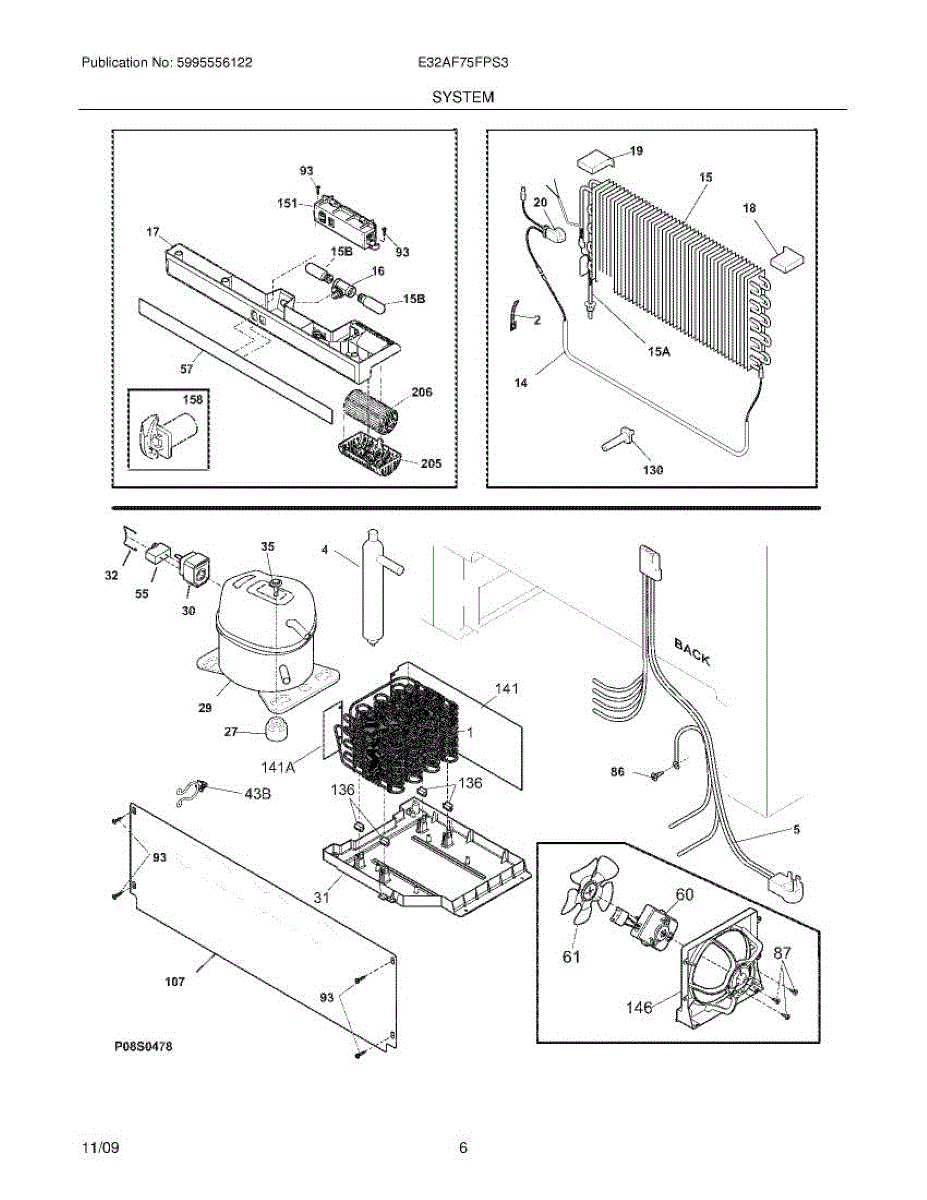

Parts for Electrolux E32AF75FPS3: 07 - System Parts

Frigidaire PureAir® Refrigerator Air Filter combines activated carbon, Zeolite and real baking soda to reduce odors from foods such as onions, garlic, fish, stale milk and over-ripe fruits and vegetables. Recommended air filter replacement is every six months. Dimensions: 4-1/2" x 2-1/2"

This condenser coil assembly removes heat from the refrigerant so the refrigerator can cool efficiently. Replacing a damaged or clogged condenser restores proper heat transfer and helps the unit run more reliably. What it does:

• Condenses refrigerant from a gas to a liquid by releasing heat to the surrounding air
• Helps maintain correct system pressures so the compressor cycles normally
• Commonly fixes symptoms like the fridge running constantly, higher-than-normal interior temperatures, or overheating at the rear/bottom of the cabinet
• Improves cooling efficiency when the original condenser is bent, crushed, or clogged with debris

• Disconnect power to the appliance before servicing.
• Inspect mounting brackets, lines, and electrical connections during replacement; replace any damaged fasteners or clips.
• Avoid bending fins; straighten with a fin comb if minor damage is present, and ensure adequate ventilation around the condenser after reinstalling.

This aluminum strap secures the defrost heater firmly against the evaporator coil to maintain proper contact during defrost. Correct contact improves heat transfer so frost melts evenly and helps prevent recurring ice buildup on the evaporator.

• Secures the defrost heater to the evaporator for proper contact and heat transfer
• Promotes complete, even defrosting across the evaporator coil
• Helps reduce repeat frost/ice accumulation caused by a shifted or loose heater
• Typical clues include a loose heater, uneven frost pattern, or rattling near the evaporator

• Disconnect power and allow ice to melt before accessing the evaporator
• Use care around sharp fins and fragile refrigerant tubing; do not puncture or deform the coil
• Position the heater per your model's parts diagram and tighten the strap for firm, even contact
• Verify wiring is routed clear of the fan and moving parts before reassembly

Includes service line.

The Defrost Heater is an OEM part for Frigidaire refrigerators, playing a critical role in the appliance's defrost system. This component is designed to melt away frost and ice that accumulate on the evaporator coils, ensuring that air can flow freely and the appliance maintains optimal cooling efficiency.

Causes of failure might include a burnt-out heating element, damage to the heater's electrical connections, or a malfunction in the control system that fails to activate the heater during the defrost cycle.

Symptoms of a bad Defrost Heater include:

• Frost build-up on the evaporator coils, leading to reduced cooling efficiency.
• The freezer or refrigerator compartment is too warm.
• The appliance is constantly running in an attempt to maintain the set temperature.
• Pools of water or ice on the floor of the freezer compartment due to incomplete defrosting.

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The LED Light Bulb is an OEM part for Frigidaire refrigerators. It provides illumination inside the refrigerator, making it easier to see and access food items.

Causes of a bad LED light bulb can include burnout from prolonged use, electrical surges, or damage from physical impact. Additionally, issues with the bulb's connection or internal circuitry can result in malfunction.

Symptoms of a bad LED light bulb include:

• The refrigerator interior remaining dark when the door is opened
• Flickering or dim light
• Intermittent lighting
• Complete failure to light up

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This receptacle is the mating socket for a plug-in refrigerator component, providing a secure connection for reliable operation. Replacing a worn or heat-damaged socket restores solid contact and helps prevent intermittent performance.

• Serves as the socket/interface for a plug-in component inside the appliance
• Maintains tight contact for consistent operation and safe connectivity
• Replaces loose, burned, or broken sockets that can cause heat or arcing
• Common symptoms: connected part won't run or is intermittent; loose fit; visible discoloration or melting at the socket

• Disconnect power to the appliance before servicing
• Access the socket location and note/photograph wire orientation
• Transfer wires/terminals one at a time to the new receptacle; ensure full seating
• Inspect the mating plug/harness for heat damage and replace if necessary

The Defrost Thermostat is an OEM replacement part for Frigidaire refrigerators. This component plays a crucial role in the defrost system, monitoring and regulating the temperature to ensure proper defrosting of the evaporator coils.

Causes of a faulty defrost thermostat can include normal wear and tear over time, exposure to excessive temperature fluctuations or moisture, or electrical malfunctions.

Symptoms of needing to replace the defrost thermostat include:

• Improper defrosting or lack of defrosting
• Frost buildup on the evaporator coils
• The refrigerator running constantly or cycling frequently

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models.

This compressor grommet is a rubber mounting isolator that cushions and secures the compressor to the appliance chassis, helping reduce vibration and noise while preventing metal-to-metal contact and premature wear. What it does:

• Cushions compressor movement to reduce vibration transmitted to the cabinet
• Dampens noise and rattling caused by compressor operation
• Prevents direct metal-to-metal contact that can wear mounting points
• Helps keep the compressor positioned and secured under load

• Disconnect power to the appliance before accessing the compressor or base pan
• Replace grommets while supporting the compressor to avoid strain on lines and connections
• Inspect remaining mounting grommets; replace all worn isolators for best performance

This compressor kit is made to be used with freezers and refrigerators by several manufacturers. It includes the compressor as well as all small parts associated with it. The compressor is a component that helps move the refrigerant throughout the appliance's system. Temperature sensors indicate when the compressor should run. If the compressor is damaged, it may make strange noises, no longer cool properly, or could begin to overheat.If any of these issues are present, the compressor should be replaced. First, make sure the refrigerator is not connected to a power source. Remove perishable items from the appliance and place them in an icebox, cooler with ice, or another refrigerator. Locate the compressor on the back of the appliance by removing the metal guard. Remove the wire between the compressor and the capacitor before taking off the compressor. Replace this part with the new one by connecting it to the wire and reassembling the appliance.This is a compressor kit for use with refrigerators and freezers made by Crosley, Electrolux, Westinghouse, Frigidaire, Kelvinator, Tappan, and Gibson. It is sourced directly from the manufacturer and sold as a single part. This is a genuine OEM replacement part.

The Compressor Start Relay is an OEM part for Frigidaire refrigerators. This essential component is responsible for initiating the compressor's start-up process by supplying power to the compressor motor. It helps kickstart the compressor, allowing it to begin the cooling cycle.

A faulty start relay or overload can occur due to wear and tear over time, electrical issues, or component failure.

Signs of a bad start relay may include:

• The refrigerator not cooling properly or not cooling at all
• Unusual noises coming from the compressor area
• The compressor fails to start or repeatedly cycles on and off

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This drain pan collects and channels defrost water from the evaporator to the refrigerator's drain system, preventing water buildup and keeping the cabinet dry. It restores normal drainage and helps avoid interior leaks and ice buildup. What it does:

• Catches defrost melt and funnels condensate to the drain line
• Prevents water pooling under or inside the refrigerator cabinet
• Helps reduce ice formation around the evaporator area when drainage is restored
• Limits odors caused by trapped standing water

• One drain pan

• Disconnect power before starting and remove food from affected compartments
• Remove access panels to reach the evaporator area; some models require partial disassembly
• Clear any clogged drain lines and verify pan is seated and aligned before reassembly

Capacitor-run,220 vac ,12 microfarad

The Condenser Fan Motor is an OEM replacement part for Frigidaire refrigerators. It is a component responsible for drawing heat away from the refrigerator's cooling system. By rapidly spinning the condenser fan blades, the motor works to dissipate heat buildup and ensure optimal cooling performance.

Causes of a bad condenser fan motor include bearing wear over time, damage from moisture or dirt infiltration, or failure of electronic motor components.

Symptoms of a bad condenser fan motor include:

• Inadequate or inconsistent cooling within the refrigerator
• Loud buzzing or rattling noises emanating from the rear
• Slow or failed rotation of the condenser fan blades

This OEM Frigidaire replacement condenser fan motor is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore-branded refrigerators.

The Condenser Fan Motor Blade is an OEM replacement part for Frigidaire refrigerators. This part attaches to the condenser fan motor and works by drawing air through the condenser coils and over the compressor, dissipating heat and allowing the refrigerant to cool effectively.

Causes of damage to the Condenser Fan Motor Blade can include physical damage from moving or cleaning the refrigerator, obstruction from debris that impedes the blade's rotation, or wear and tear over time that can lead to cracks or the blade becoming loose.

Symptoms of a bad Condenser Fan Motor Blade include:

• The refrigerator running hotter than usual
• Unusual noises coming from the back of the refrigerator where the condenser fan is located
• The refrigerator compressor running for longer periods than normal or cycling on and off more frequently

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This replacement screw secures appliance components so brackets, shelves, trim, or panels stay firmly in place. Install a new screw when the original is missing, stripped, or corroded to restore a tight, rattle-free fit.

• Fastens brackets, panels, trim, or covers to the cabinet or liner
• Helps maintain alignment and reduce vibration and noise
• Direct replacement for a missing, rusted, or stripped fastener
• Use wherever your model's parts diagram specifies this screw

• Disconnect power before servicing; shut off water if working near water lines
• Match thread and length to the original location as shown in your model's parts diagram
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening (especially into plastic)
• Retain and transfer any original spacers or clips used with this fastener

This replacement screw secures appliance components so brackets, shelves, trim, or panels stay firmly in place. Install a new screw when the original is missing, stripped, or corroded to restore a tight, rattle-free fit.

• Fastens brackets, panels, trim, or covers to the cabinet or liner
• Helps maintain alignment and reduce vibration and noise
• Direct replacement for a missing, rusted, or stripped fastener
• Use wherever your model's parts diagram specifies this screw

• Disconnect power before servicing; shut off water if working near water lines
• Match thread and length to the original location as shown in your model's parts diagram
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening (especially into plastic)
• Retain and transfer any original spacers or clips used with this fastener

This support is a small mounting bracket used inside the appliance to hold an interior component, such as a shelf or basket. Replacing a cracked or missing support restores a secure, level fit and helps prevent wobbling or dropping.

• Provides a stable mounting point for a shelf, basket, rail, or panel
• Keeps interior components aligned and level
• Common symptoms: shelf/basket tilts, won't seat, or falls; visible cracks or missing support
• Replace if broken, deformed, or worn to restore proper fit

• Disconnect power and clear the work area before starting
• Remove the affected shelf/basket/panel to access the mounting point
• Release the damaged support (snap tabs or remove screw), align, and install the new support
• Reinstall the component and verify it sits level and secure

Color: Black. Rubber. Holds tube/wire

This air filter cap secures and protects the refrigerator's air filter housing, helping keep the filter in place and directing airflow for proper odor and particulate capture. It's a simple replacement when the original cap is cracked or missing. What it does:

• Covers and holds the air filter housing so the filter stays seated and sealed
• Protects the filter from accidental dislodging, dust, and contact
• Helps maintain intended airflow through the filter for odor/particle control
• Addresses symptoms such as a loose/missing filter cover, rattling near the filter area, or visible cracks in the cap

• Turn off and unplug the appliance or disable power to the unit before servicing
• Remove the old cap by hand or with basic tools as needed; align the replacement so the filter seats fully
• Inspect the filter and housing for damage while replacing the cap; replace filter if heavily soiled

Frigidaire PureAir® Refrigerator Air Filter combines activated carbon, Zeolite and real baking soda to reduce odors from foods such as onions, garlic, fish, stale milk and over-ripe fruits and vegetables. Recommended air filter replacement is every six months. Dimensions: 4-1/2" x 2-1/2"

This #8-32 x 3/8 screw secures appliance panels, brackets, and assemblies. Replace a missing or stripped fastener to keep parts tight and aligned, reduce vibration, and restore proper fit in compatible refrigerators and freezers.

• Machine-thread fastener sized #8-32, 3/8-inch length
• Secures control housings, trims, covers, and support brackets per model design
• Replaces missing, worn, or corroded screws that cause loose or rattling parts
• Helps maintain alignment and stability after service

• Unplug the appliance; shut off water if applicable
• Match thread size to the original and start by hand to avoid cross-threading
• Use the correct driver; do not overtighten, especially into plastic
• Verify component alignment and operation after fastening

• Thread size: #8-32
• Length: 3/8 inch

This replacement power cord delivers household electricity from the outlet to your appliance. Installing a new cord restores safe, reliable power when the original is damaged, worn, or causing intermittent operation.

• Supplies AC power from a household outlet to the unit
• Common fix for no power, flickering lights, or power loss when the cord is moved
• Replaces cords with cuts, cracks, burn marks, or melted areas
• Restores a secure electrical connection for safe, consistent operation

• Unplug the appliance and verify the wall outlet is working before replacing parts
• Access the cord routing and internal connections; note wire positions and routing before removal
• Transfer and secure any strain relief/clamp; keep wiring clear of sharp edges and hot surfaces
• After installation, ensure the cord isn't pinched and the plug seats fully in the outlet

The Thermistor is an OEM replacement part for Frigidaire refrigerators. It senses and monitors interior temperatures, which allows the compressor and evaporator fan to operate efficiently based on temperature conditions. Proper thermistor function maintains consistent cooling and humidity levels. At room temperature, it should measure 5k ohms of resistance when testing with a multimeter.

Causes of a bad thermistor can include failure over time due to constant exposure to changes in temperature. Physical damage to the thermistor head or wiring connectors can lead to breakdowns in communication.

Symptoms of a bad thermistor include:

• Fluctuating or unregulated interior temperatures
• The refrigerator or freezer running constantly
• Error codes or blinking lights denoting temperature control issues

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.
