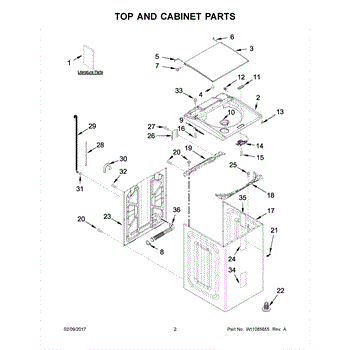

Parts for Whirlpool WTW8500DC3: 02 - Top And Cabinet Parts

Color: Chrome Shadow

The Top Panel is an OEM component specifically designed for Whirlpool washing machines. It is the decorative outer panel that forms the top surface of the washer. The panel serves an important protective role, shielding internal components from dust, moisture exposure and physical impact.

Symptoms of a damaged top panel include:

• Cracks, gouges or breaks in the panel material
• Loose or misaligned fit over internal structures
• Discoloration from household element exposure

Causes of failure could be normal wear over time from daily use, as well as direct impact or pressure damage. Protecting the life of this panel ensures an attractive appliance exterior.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: White

The Top is an OEM part for Whirlpool washing machines. It forms the outer top shell of the washer, providing structure and housing for internal components. The top protects suspension rods, drive motor, controls and other parts while maintaining an attractive aesthetic appearance. It is constructed from durable materials designed to withstand the mechanical stresses of the wash cycle.

Causes of a bad top can include wear and tear from years of operation, damage due to excessive shock or impact, or stresses from overloading the washer drum.

Symptoms of a bad top include:

• Cracking or splitting of the durable plastic material
• Loosening or coming detached from the washer cabinet over time
• Warping, bending or denting that compromises the structural integrity

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Lid is an OEM part for Whirlpool washing machines. This part ensures the safety of the user by preventing access to the washing drum during operation but also plays a significant role in maintaining the efficiency of the washing cycle. The lid is engineered to seal the washing machine's top, preventing water spillage and supporting the proper operation of the washer's sensors and switches.

Causes of a bad lid can range from physical damage, such as cracks or warping that prevent a proper seal, to wear and tear on hinges or locking mechanisms that affect its operation.

Symptoms of a malfunctioning Lid include:

• The washing machine not starting or pausing mid-cycle
• Water leakage around the lid area
• Difficulty in closing the lid properly, indicating a potential misalignment or damage

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Lid is an OEM part for Whirlpool washing machines. This part ensures the safety of the user by preventing access to the washing drum during operation but also plays a significant role in maintaining the efficiency of the washing cycle. The lid is engineered to seal the washing machine's top, preventing water spillage and supporting the proper operation of the washer's sensors and switches.

Causes of a bad lid can range from physical damage, such as cracks or warping that prevent a proper seal, to wear and tear on hinges or locking mechanisms that affect its operation.

Symptoms of a malfunctioning Lid include:

• The washing machine not starting or pausing mid-cycle
• Water leakage around the lid area
• Difficulty in closing the lid properly, indicating a potential misalignment or damage

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This lid bumper cushions the top-load washer lid as it closes, reducing noise and preventing direct contact between the lid and cabinet. Replace a missing or worn bumper to help protect the lid finish and ensure a smoother close.

• Provides a soft stop at the lid's contact point to absorb impact
• Helps reduce closing noise and lid rattle
• Helps prevent scuffs or chips on the lid edge or cabinet top
• Common signs of failure: bumper missing, flattened, cracked, or louder slam when closing

• Disconnect power before servicing the appliance
• Open the lid and locate the factory bumper position(s) per your parts diagram
• Remove the old bumper and any debris; seat the new bumper firmly in the designated location
• Close the lid gently to verify proper contact and alignment

The Lid Hinge is an OEM part for Whirlpool washing machines. It connects the lid to the washing machine body, allowing the lid to open and close smoothly. This hinge ensures the lid remains securely attached while providing the necessary movement for easy access to the washer drum.

Common causes of a bad lid hinge include repeated use over time, accidental impact, or corrosion from exposure to moisture. These factors can cause the hinge to become loose, stiff, or broken.

Symptoms of a bad Lid Hinge include:

• Difficulty opening or closing the lid
• The lid not staying open or falling shut unexpectedly
• Unusual noises when moving the lid
• Visible damage or rust on the hinge

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Hinge is an OEM part for Whirlpool washing machines. This component is essential for the proper function of the washing machine door, allowing it to open and close smoothly. The hinge ensures that the door stays aligned and securely closed during the wash cycle, preventing leaks and maintaining the safety of the machine's operation.

Causes of a bad hinge can include repeated use over time, accidental force or impact, or corrosion from exposure to moisture.

Symptoms of a bad hinge include:

• Difficulty opening or closing the washing machine door
• A door that does not stay closed properly
• Unusual noises when the door is moved
• Visible damage or misalignment of the hinge

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Whirlpool screw is an OEM replacement part responsible for fastening and securing different components in the washer. This screw is used in various locations throughout the appliance, such as attaching panels, brackets, and other parts together. Its main function is to provide a tight and reliable connection, preventing any loose or unstable components that could disrupt the washer's operation.

This part fixes the following symptoms:

• Loose or unstable components in the washer
• Visible signs of wear, rust, or damage on the screw
• Unusual noises or rattling sounds during washer operation

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Hose Clamp is an OEM part for Whirlpool washing machines. This clamp secures the hose in place, ensuring a tight connection and preventing leaks during operation. It is essential for maintaining the integrity of the washing machine's water system, securing hoses that carry water to and from the washer.

Common causes of a bad hose clamp include rust, physical damage, or loosening from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Water leaks around the hose connection points
• The hose slipping off the fitting
• Visible rust or wear on the clamp
• Difficulty in tightening the clamp to secure the hose

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

Right Side

The Lid Hinge is an OEM part for Whirlpool washers. This hinge connects the washer lid to the cabinet and allows it to safely and securely open and close during operation.

The hinge is responsible for providing a smooth, controlled movement as well as properly securing the lid in place when closed. It ensures proper operation and functionality of the washer by facilitating easy access for loading and unloading clothes.

Causes of a bad hinge can include wear and tear over time, unbalanced loads that put excessive strain on the hinge components, or damage from impact or overextending the lid.

Symptoms of a bad hinge include:

• Difficulty opening or closing the washer lid
• The lid not staying securely closed or popping open during cycles
• Noises or squeaks coming from the hinge area
• The hinge hanging loose or off-track

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Lid Hinge (left) is an OEM replacement part for Whirlpool brand top-load washing machines. It is the hinge mechanism attached to the left side of the washer door assembly.

Symptoms of a bad hinge include:

• Looseness, wobbling, or inability to securely support the weight of the washer door
• Strange noises or difficulty smoothly operating the door
• Failure to keep the door fully open or closed
• Potential safety hazards if the door cannot be properly positioned

Causes involve wear and tear from repeated opening and closing of the washer door over many cycles, as well as damage from excessive weight loads placed on the door over time.

This Whirlpool replacement part is also compatible with Maytag, KitchenAid, and select Kenmore models.

This bezel is a trim piece that finishes and protects the opening around a control or feature on the appliance's panel. Replacing a cracked or missing bezel restores a clean look and helps the mating control sit securely and operate properly.

• Frames the control or opening and covers raw edges for a finished appearance
• Helps keep the associated knob/button or trim aligned and seated
• Shields internal components from dust, splashes, and minor impacts
• Replace if cracked, warped, loose, or missing; symptoms can include a wobbly control, visible gaps, or cosmetic damage

• Disconnect power at the breaker before servicing; allow any hot surfaces to cool
• If applicable, pull off the knob or remove adjacent trim to access the bezel
• Release locking tabs or remove mounting screws carefully to avoid scratching the panel
• Align the new bezel with tabs/orientation marks and snap or fasten into place; reinstall parts and test

The Lid Latch Bezel is an OEM part for Whirlpool washing machines. The bezel ensures that the latch is properly aligned and secured, allowing the lid to close smoothly and securely. This is crucial for the safety and efficiency of the washing machine, as it prevents the washer from operating when the lid is open.

Causes of a malfunctioning Lid Latch Bezel can vary from physical damage, such as impacts or excessive force when closing the lid, to wear and tear from regular use.

Symptoms of a bad Lid Latch Bezel include:

• The lid not closing or latching correctly.
• Visible cracks or damage to the bezel, which can compromise the latch's alignment or security.
• Difficulty in engaging or disengaging the lid latch, which could be due to misalignment caused by a faulty bezel.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This bearing supports a rotating component inside the appliance so it turns smoothly with minimal friction. Replacing a worn bearing helps quiet operation, improves alignment, and prevents premature wear of related parts. What it does:

• Provides a low-friction surface for a shaft or hub to rotate smoothly
• Helps maintain alignment to reduce wobble and uneven wear
• Contributes to quieter, more reliable operation
• Common signs of failure: grinding or squealing noises, rough/stiff rotation, noticeable play/wobble, or visible wear/damage on the old bearing

• 1 bearing

• Disconnect power to the appliance before servicing
• Access the bearing location and remove any retaining screws, clips, or fasteners; note the original orientation
• Clean mating surfaces; transfer any spacers/washers from the old part if present, and seat the new bearing fully
• Spin-test the component by hand to ensure smooth, wobble-free movement before reassembly and test

The Lid Hinge Bearing is an OEM component for Whirlpool front-loading washing machines. Mounted to the wash tub, this bearing houses plastic rollers that support the smooth, balanced movement of the machine lid.

Symptoms of degraded or worn-out hinge bearings include:

• Excessive noise or grinding sounds from the lid area
• Difficulty opening and closing the lid
• Binding that damages mounting brackets over time

Causes involve bearing fatigue from repeated opening/closing cycles as well as mineral oil breakdown within the rollers.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Used from harness to top.

The Latch is an OEM part for Whirlpool dishwashers. It secures the dishwasher door during operation, ensuring it remains closed to prevent water leaks and maintain optimal washing performance.

Causes of a bad latch can include wear and tear from regular use, physical damage from forceful closing, or corrosion from exposure to moisture. A faulty latch can compromise the dishwasher's ability to seal properly, leading to potential leaks and operational issues.

Symptoms of a bad latch include:

• The dishwasher door not closing or latching properly
• Water leaking from the door during cycles
• The dishwasher not starting or stopping mid-cycle
•  A loose or misaligned door

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This factory screw secures panels, brackets, and other components in your appliance. Replace a missing, stripped, or corroded fastener to restore a tight fit and keep parts properly aligned and rattle-free.

• Secures appliance components and panels in their mounting points
• Replaces damaged, stripped, or missing hardware
• Helps reduce rattling or vibration from loose parts

• Disconnect power; shut off water or gas supplies if applicable
• Match location with the original screw; start threads by hand to avoid cross-threading
• Tighten until snug; do not over-torque, especially into plastic or thin metal
• Reinstall any covers or panels and test for secure fit

This 8-18 x 5/8-inch screw secures appliance panels, brackets, and covers. Replacing a missing or stripped fastener restores a tight fit and helps prevent vibration or loosening where this exact size is specified.

• Fastens sheet-metal or plastic components where a #8-18 x 5/8 screw is called for
• Helps maintain alignment and reduce rattling or vibration
• Replaces stripped, corroded, or missing screws of the same size
• Common symptoms: loose panels, gaps/poor fit, rattling noises, or visible missing hardware

• Disconnect power and shut off gas/water (as applicable) before service
• Match thread and length to the original; replace screws one at a time to keep parts aligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving threads are damaged, additional repair (clip, insert, or new nut) may be needed

Color: White

Color: Grey (Chrome Shadow)

This replacement brace reinforces appliance cabinet structure to restore proper alignment and reduce vibration. It helps maintain secure mounting of adjacent panels so doors and controls operate smoothly. What it does:

• Provides structural support for the appliance cabinet and connected panels
• Reduces rattling or vibration caused by loose or bent cabinet components
• Helps realign panels that are pulling away or not closing flush
• Useful when visible damage, bending, or missing support causes fitment issues

• Disconnect power and, if applicable, gas supply before starting any repair
• Remove outer cabinet panels or access panels to reach the brace mounting points
• Retain original fasteners when possible; replace damaged screws or clips as needed

This replacement brace reinforces appliance cabinet structure to restore proper alignment and reduce vibration. It helps maintain secure mounting of adjacent panels so doors and controls operate smoothly. What it does:

• Provides structural support for the appliance cabinet and connected panels
• Reduces rattling or vibration caused by loose or bent cabinet components
• Helps realign panels that are pulling away or not closing flush
• Useful when visible damage, bending, or missing support causes fitment issues

• Disconnect power and, if applicable, gas supply before starting any repair
• Remove outer cabinet panels or access panels to reach the brace mounting points
• Retain original fasteners when possible; replace damaged screws or clips as needed

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

This name plate is the decorative centennial badge that restores the appliance's exterior appearance and branding. It replaces a missing, damaged, or faded badge to keep the unit looking factory-finished. What it does

• Restores the appliance's exterior badge for a like-new appearance
• Replaces badges that are cracked, scratched, peeling, or discolored
• Helps identify the appliance style when the original emblem is missing
• Cosmetic part only — does not affect appliance operation

• One name plate

• For best results, clean the mounting area and remove dirt or wax before installation
• Handle carefully to avoid scratching the finish; use non-marring tools as needed
• If access behind trim is required, unplug the appliance or disconnect power before removing panels
• Follow OEM instructions for removal and reinstallation to avoid damaging clips or surrounding trim

Color: Grey

This leveling foot threads into the base of your appliance to support and stabilize it. Adjusting the foot helps level the cabinet, reduce wobble and vibration, and keep doors aligned for smooth, reliable operation. Also called a leveling leg. What it does:

• Provides an adjustable contact point to stabilize the unit on the floor
• Helps level the cabinet so doors align and seal properly
• Reduces rocking, rattling, or excessive vibration on uneven surfaces
• Replaces a cracked, stripped, or missing leveling leg

• 1 leveling foot

• Unplug the appliance and turn off water supply if applicable
• Use a helper to carefully move or tilt the unit; support it securely
• Unthread the damaged foot; thread in the new foot by hand, then fine-adjust with a wrench
• Level side-to-side and front-to-back; ensure all feet make firm floor contact

This sound absorber is an OEM-style insulation pad designed to reduce washer cabinet noise and rattling for a quieter cycle. It mounts inside the appliance cabinet to help dampen vibration and airborne sound. What it does:

• Dampens vibration and reduces cabinet noise during spin and agitation
• Helps minimize rattling from internal components for a quieter operation
• Supports stable operation by providing a cushioned barrier between parts and the cabinet
• Commonly replaced when padding is torn, missing, or compressed

• One sound absorber insulation pad

• Disconnect power and water supply before starting any repair
• Access may require removing outer cabinet or panels; follow your model's service manual
• Use proper fasteners and placement as shown in OEM diagram; avoid altering material

This screw is a genuine replacement fastener used to secure appliance panels and components for a reliable fit. It restores proper fastening where original screws are missing, stripped, or damaged. What it does:

• Fastens panels, trim, brackets or small components to keep parts aligned and secure
• Replaces missing or damaged screws that can cause loose panels or rattling
• Restores proper clamping force to prevent movement and wear on adjacent parts
• Matches OEM function and fit when the correct part number is used

• Disconnect power and water before servicing the appliance
• Use the correct driver to engage the head cleanly and avoid stripping
• Tighten until snug; avoid over-tightening which can strip threads or crack plastic

This wire shield is a molded protective cover that helps keep wiring routed and protected from heat, abrasion and moving parts. It prevents chafing and reduces the risk of shorts for a safer appliance operation. What it does:

• Covers and routes wiring to protect insulation from heat and friction
• Prevents wires from contacting sharp edges or moving components
• Helps stop intermittent shorts, arcing, or wiring damage that can cause odor or failures
• Maintains proper wire position to support consistent electrical connections

• One wire shield

• Disconnect power to the appliance before beginning any work
• Secure with existing clips or fasteners; do not force or modify the part
• If wiring insulation is melted or damaged, replace wiring/harness before reassembly

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Hose is an OEM replacement part for Whirlpool washing machines. It is a flexible tube responsible for draining and expelling the used water from the washer tub after each wash cycle.

Symptoms of a faulty drain hose include:

• Water leaks around the hose connections or along its length
• Slow draining or improper drainage of the tub
• Visible cracks, bulges, or damage to the hose material

Causes of a bad washer drain hose can include normal wear and tear over time, exposure to high water pressure or temperatures, physical damage from kinks or pinches, or improper installation or connections.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washing machine models.

A U-bend retainer designed to secure a U-shaped heating element or tubing in place, preventing movement and vibration for reliable operation. Fits as the replacement hold-down clip used on compatible Whirlpool HVAC and appliance assemblies. What it does:

• Secures U-shaped element or tubing to the appliance frame or mounting bracket
• Prevents rubbing or vibration that can lead to wear or noisy operation
• Helps maintain proper spacing and alignment of the element for consistent performance
• Used where a compact, U-shaped clamp is required to hold components safely

• One U-bend retainer clip as shown

• Inspect the surrounding area and replaced part for damage before installing
• Use basic hand tools; align clip over the U-bend and fasten to the designated mounting point
• Disconnect power and allow components to cool before attempting repair
• Replace with the exact OEM fasteners

The Spring Tension Hose Clamp is an OEM part for Whirlpool washing machines. It is designed to secure hoses in place, preventing leaks by maintaining consistent tension on the hose connections.

Over time, spring tension hose clamps can lose their effectiveness due to metal fatigue, corrosion, or damage from frequent tightening and loosening. This can lead to leaks and improper hose connections.

Symptoms of a bad spring tension hose clamp include:

• Water leaks around hose connections
• Loose or disconnected hoses
• Unusual noises or vibrations during operation
• Water pressure issues within the washing machine

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Switch Mounting Screw is an OEM part compatible with Whirlpool washing machines. This screw securely mounts the cycle selector switch within the control console assembly. Proper fastening ensures dependable operation of control functions.

Causes of a bad mounting screw can stem from stress cracks developing over multiple years of operation. Vibrations accumulate, slowly loosening connections housed in a wet environment.

Symptoms of a bad mounting screw include:

• Loose or rattling switch within the console face
• Difficulty selecting cycles as buttons wobble out of place
• Water intrusion hastening corrosion of electrical terminals
• Potential shock hazards if live connections are exposed

This Whirlpool replacement screw restores a tight mounting point. It is compatible with brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 6-32 x 9/32 inch.

The Sound Shield is an OEM replacement part for Whirlpool washers. It is a sheet metal panel installed behind the tub that helps reduce noise and vibration during spin cycles. With absorptive insulation, the sound shield dampens noise produced internally.

Symptoms of a damaged sound shield include:

• Excessively loud operation, especially during high-speed spins
• Rattles, clanks, or resonant noises from inside the washer
• Potentially weakened structure allowing tub movement
• Causes of a damaged sound shield can include tears or dents sustained over many high-speed spin cycles. Constant vibration may cause stress cracks or loose rivets.

 It is also compatible with some  Whirlpool, Maytag, Amana, and Kenmore brands.

The Absorber is an OEM part for Whirlpool washing machines. It plays a role in minimizing vibrations and noise during operation by damping the mechanical movements within the machine.

Causes of a bad Absorber can include the natural wear and tear from continuous use, degradation due to exposure to harsh chemicals or extreme temperatures, and mechanical failure from excessive loads or unbalanced cycles.

Symptoms of a bad Absorber include:

• Increased vibration or shaking during operation.
• Unusual noises like thumping or banging during the spin cycle.
• The washing machine moving excessively or "walking" across the floor.
• Uneven wear and tear on other washing machine components.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Hose is an OEM part for Whirlpool washing machines. This hose connects the drain pump to the outer drain hose, allowing water to empty from the washer.

Flexible yet durable, the drain hose withstands pressure during spin cycles without risk of bursting or kinking. Consistent drainage is vital for fully removing water after each cycle.

Causes of a bad hose can include cracks from extended use, mineral or soap buildup restricting flow, or stressed connections that have weakened over time.

Symptoms of a bad drain hose include:

• Incomplete drainage of water at the end of cycles
• Puddles or leaks near the pump or drain area
• Sloshing sounds of retained water inside the machine
• Enlarged hose diameter from constant pressure

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
