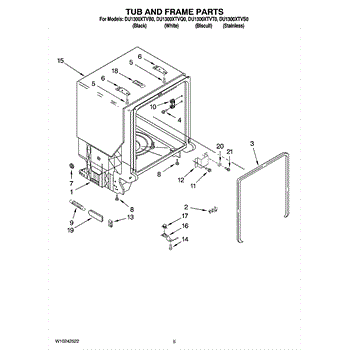

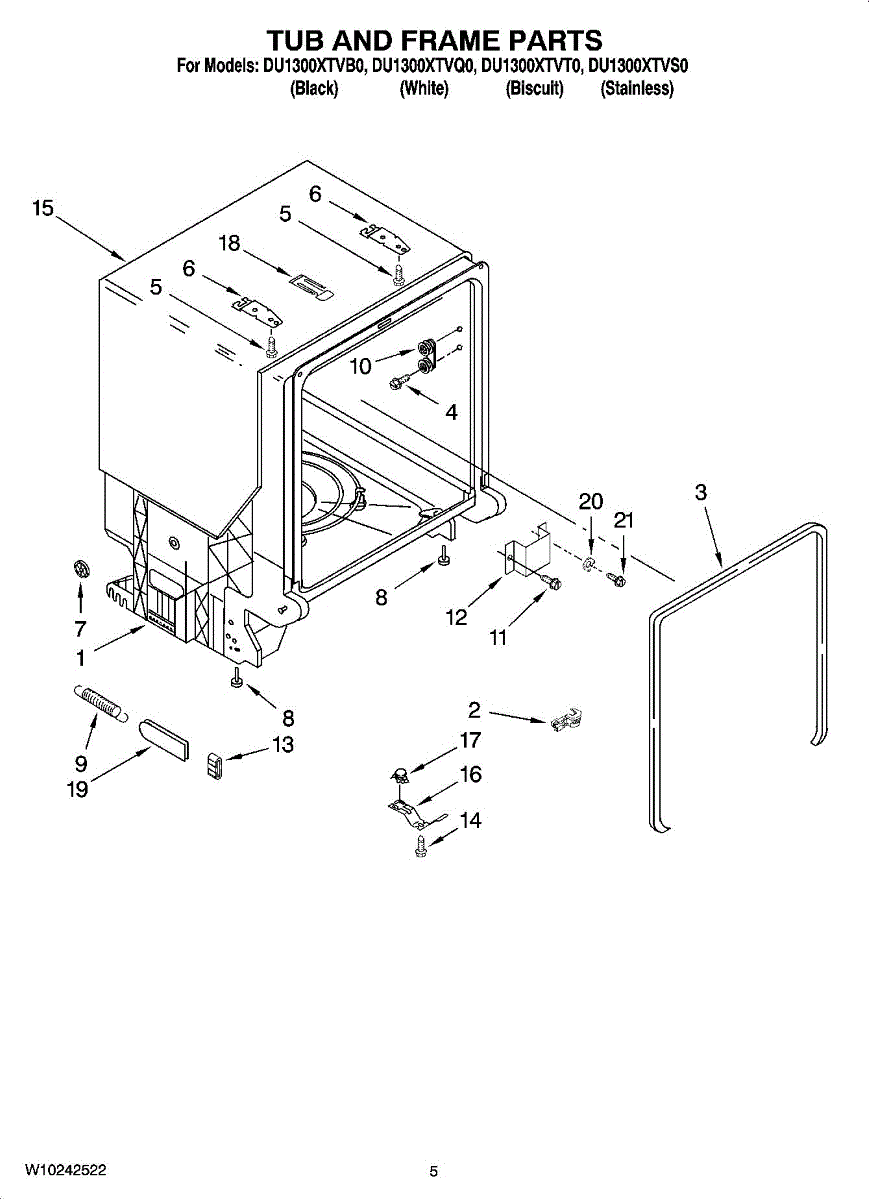

Parts for Whirlpool DU1300XTVB0: 05 - Tub And Frame Parts

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Complete dishwasher tub assembly. Replaces cracked, leaking, or damaged tubs that cannot be reliably repaired due to heat and detergent exposure.

Cable retainer link for dishwashers. Secures and holds cables in proper position inside the appliance. Replace if cracked, broken, or missing.

Fix dishwasher leaks on the floor with this door gasket and strike kit. Easy 15-minute repair—gasket presses into groove, no glue needed. Video included.

Carries wastewater from your dishwasher to the household drain. Replace if cracked, punctured, or leaking. Installs at pump outlet and drain connection.

Screw secures appliance panels and access covers. Replace missing, stripped, or corroded screws to restore tight fit and eliminate rattles or gaps.

Secures your dishwasher to the underside of the counter. Replace if bracket is broken, cracked, or missing to prevent the unit from shifting forward.

Replacement wheel leg assembly for dishwashers. Restores mobility and stable support when original leg is cracked, broken, or worn. Snaps into groove.

This adjustable leveling leg threads into the appliance base to set height and stabilize the cabinet. Replacing a worn or missing leg helps stop rocking and vibration and helps maintain proper alignment for reliable operation.

• Provides adjustable support at one corner of the appliance
• Helps level the unit for correct alignment with floor or cabinetry
• Reduces rocking, vibration, and rattling noises
• Replaces stripped, bent, cracked, or missing leg

• Disconnect power and, if applicable, shut off water before servicing
• Carefully support or brace the appliance to access the base safely
• Start the new leg by hand to avoid cross-threading; adjust height gradually
• Use a level to check side-to-side and front-to-back, then recheck after positioning

Replacement door spring for dishwashers. Balances and supports the door during opening and closing. Replace if broken, fatigued, or door drops too fast.

Upper rack wheel and mount assembly for dishwashers. Mounts to the upper dishrack to allow smooth rolling. Replace if cracked, broken, or worn.

Replacement 8-32-thread screw used to secure panels, brackets and small components in compatible household appliances. Restores missing or stripped fasteners so panels and parts stay firmly attached during normal use. What it does:

• Secures trim, panels, brackets and control housings to maintain proper assembly.
• Replaces missing or damaged screws that can cause rattling, loose panels or misaligned components.
• Fits locations that require an 8-32 threaded fastener; correct length and head style for your application.
• Helps restore stable, vibration-free operation when worn or stripped fasteners are replaced.

• Disconnect power and water before servicing; wear eye protection and gloves.
• Use the correct screwdriver or driver bit to avoid stripping the screw head.
• Do not overtighten—turn until snug and secure to avoid damaging threads or surrounding parts.
• If the original used a washer or nut, reuse or replace as needed and the screw length and head type match the original.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Covers the dishwasher's electrical junction box under the unit. Replace if cracked, loose, or missing to restore safe wire enclosure and containment.

Friction pad for dishwasher door hinge assembly. Reduces friction for smooth door operation. Replace if cracked, broken, worn, or missing from spring bushing.

Size: 8-18 x 1/2 inch.

The Insulation is an OEM part for Whirlpool dishwashers, specifically engineered to enhance the appliance's efficiency by reducing heat loss and minimizing noise. This insulation wraps around the dishwasher, acting as a barrier that keeps heat within the appliance during cycles and dampens the sound of its operation, making for a quieter kitchen environment.

Causes of a bad insulation part can include wear and tear over time, moisture damage leading to mold or mildew buildup, or physical damage from pests or mishandling during installation or repairs.

Symptoms of inadequate insulation include:

• Noticeable increase in the dishwasher's noise level
• Exterior surfaces of the dishwasher feeling warmer than usual
• Longer wash cycles due to inefficient temperature maintenance

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Thermostat Clip is an OEM part for Whirlpool dishwashers. It plays an important supporting role by securely fastening the thermostat sensor inside the wash chamber.

Symptoms of a faulty Thermostat Clip can include:

• Fluctuating or inconsistent water temperatures between cycles
• Inability to properly detect temperature for desired heat levels
• Longer cycle times needed for reaching required temperatures
• Strange sounds or condensation around thermostat connection

Causes could arise from typical wear and tear stresses weakening plastic retaining clips. Exposure to harsh detergents may also erode clip material integrity over time.

This OEM replacement part is compatible with KitchenAid, Jenn-Air, Kenmore, and select Hotpoint and Roper dishwasher models as well.

Thermostat has 1/4 inch terminals.

The High Limit Thermostat is an OEM part for Whirlpool dishwashers. This safety feature is designed to prevent the dishwasher from overheating by shutting off the power if the internal temperature exceeds a certain limit. It acts as a safeguard against potential hazards, such as fires, and ensures the dishwasher operates within safe temperature ranges.

Over time, the high limit thermostat can become defective due to normal wear or electrical issues within the dishwasher. A malfunctioning thermostat may not accurately respond to temperature changes, which can lead to overheating or the dishwasher not reaching the necessary temperature for optimal cleaning.

Symptoms of a bad High Limit Thermostat include:

• Dishwasher not starting or completing a cycle
• The dishwasher stops heating water, affecting cleaning performance
• Overheating, which could potentially damage dishes or the dishwasher itself

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Door won't latch or close properly? The door latch strike secures your dishwasher door for a watertight seal. Simple 5-minute snap-in repair with video.

Replace worn or cracked door spring bushings that secure the tension springs on your dishwasher door hinge assembly. Essential for smooth door operation.

Pronged cup washer secures and cushions components in dishwashers and microwaves. Replace when worn to restore stable fit and reduce wobble.

Size: 8-32 x 1/2 inch.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.
