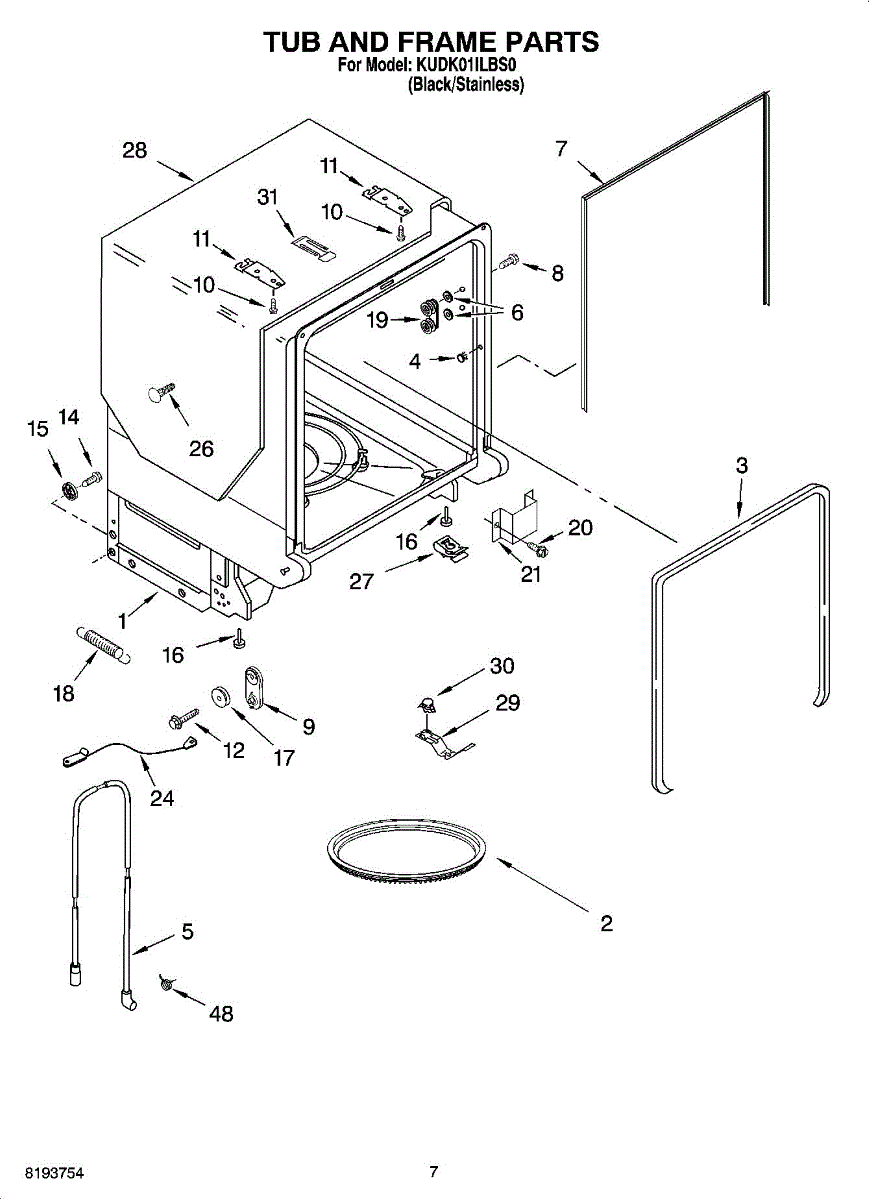

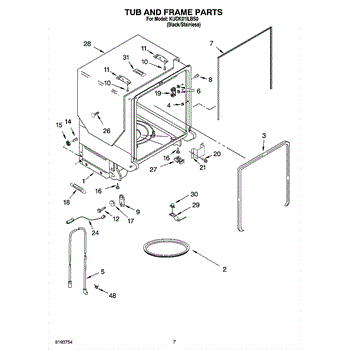

Parts for Kitchenaid KUDK01ILBS0: 07 - Tub And Frame Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Gasket is an OEM part for Whirlpool dishwashers. This gasket seals the gap between the dishwasher door and the main tub, preventing water from leaking out during the wash cycle. It ensures a watertight seal that helps maintain the efficiency and performance of the dishwasher.

 Over time, the gasket can deteriorate due to regular use, exposure to heat, and contact with detergents. A faulty gasket can lead to water leaks, which may cause damage to surrounding cabinetry and flooring.

Symptoms of a bad dishwasher gasket include:

• Water leaking from the bottom or sides of the dishwasher door
• Visible cracks or tears in the gasket
• The dishwasher door not closing properly
• Increased noise levels during operation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Screw Hole Cap is an OEM part for Whirlpool dishwashers. It covers the screw holes, providing a clean and finished appearance while preventing moisture and debris from entering the screw openings. This helps maintain the dishwasher's aesthetic and ensures that screws remain protected from rust and corrosion.

Causes of a bad screw hole cap can include regular wear and tear, accidental impacts, or misplacement during maintenance.

Symptoms of a bad screw hole cap include:

• Missing or loose caps
• Moisture or debris accumulating in screw holes
• Visible wear or damage to the caps

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Goes from pump to exterior drain hose.

Gasket for upper wheel.

The Cabinet Seal is an OEM part for Whirlpool dishwashers. This seal is crucial for preventing water leaks by creating a watertight barrier between the dishwasher tub and the door. It ensures that water stays inside the dishwasher during the wash cycle, maintaining the appliance's efficiency and protecting your kitchen from water damage.

You should replace this cabinet seal if it becomes damaged, worn out, or loses its elasticity. Causes of a bad cabinet seal can include regular wear and tear, exposure to high temperatures, or buildup of detergent and mineral deposits, which can degrade the seal material over time.

Symptoms of a bad cabinet seal include:

• Water leaking from the bottom or sides of the dishwasher door
• Visible cracks or tears in the seal
• Increased moisture or puddles around the dishwasher
• A loose or improperly seated seal

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This factory fastener is a #10-16 screw used to secure appliance panels and components. Replacing worn or missing hardware restores a tight fit, helps prevent rattles, and keeps parts properly aligned for dependable operation.

• Secures brackets, panels, and covers to the cabinet or frame
• Replaces missing, stripped, or corroded mounting hardware
• Helps reduce vibration and rattling from loose mounts
• Correct 10-16 thread to match designated OEM mounting points

• Disconnect power and shut off water or gas supply before servicing
• Match the screw to the original location using your model's diagram
• Start threads by hand to avoid cross-threading; tighten snugly—do not overtighten
• If replacing multiple screws, swap one at a time to maintain alignment

The Door Balance Link Kit is an OEM replacement part for Whirlpool dishwashers. This kit includes the necessary components to ensure proper balancing and operation of the dishwasher door.

Causes of needing to replace the door balance link kit include wear and tear over time, damage due to mishandling or impact, or issues with the door hinges or springs.

Symptoms that may indicate the need for a new door balance link kit include:

• The dishwasher door feeling loose or unstable
• Difficulty in opening or closing the door smoothly
• The door failing to stay in the desired position when opened

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dishwasher models.

This cover screw secures appliance panels and covers, keeping components protected and aligned. Replace missing, stripped, or corroded screws to restore a tight fit and help eliminate rattles, gaps, or panels that won't stay in place.

• Attaches an access cover or panel to the appliance frame
• Helps maintain proper alignment to protect internal components
• Replaces missing, stripped, or rusted hardware
• Typical signs: loose or rattling panel, cover won't stay secure, damaged or rounded screw head

• Disconnect power before servicing
• Support the panel while removing and installing screws to prevent misalignment
• Start threads by hand to avoid cross-threading; do not overtighten
• Use a matching driver bit to avoid damaging the screw head

The Undercounter Bracket is an OEM replacement part for Whirlpool dishwashers. It is a sturdy mounting component that secures the dishwasher in place under the kitchen counter, ensuring a stable and secure installation.

Symptoms of a damaged or missing undercounter bracket include:

• The dishwasher shifting or moving during operation
• Difficulty in opening or closing the dishwasher door
• Potential for leaks or water damage due to an unstable installation

Causes of a faulty undercounter bracket can include improper installation, physical damage from impact or mishandling, or wear and tear over time.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This 10-24 threaded screw secures appliance components that use a #10 machine screw. It provides reliable fastening for panels, brackets, and assemblies so parts stay aligned and stable during normal use and service. What it does:

• Fastens panels, brackets, or assemblies that accept a 10-24 machine screw
• Maintains alignment and structural connection under normal operating loads
• Replaces worn, stripped, or missing screws to restore secure mounting
• Works with sheet-metal and component mating nuts or threaded inserts commonly used in appliances

• One 10-24 threaded screw

• Power tools can be used; avoid overtightening to prevent stripped threads or damaged components
• Disconnect power and follow all safety steps for your appliance before servicing
• Ensure proper engagement and torque to avoid damage

Size: 10-32 x 15/16 inch.

This is the rear wheel support for a dishwasher rack. It helps guide and support the rack as it slides in and out, restoring smooth movement and preventing the rack from binding or derailing.

• Supports and guides the rack at the rear during opening/closing
• Helps correct issues like a wobbly, sticking, or misaligned rack
• Can address noisy, rough rack travel caused by a worn support
• Maintains proper rack tracking to reduce derailment

• Disconnect power and water before servicing
• Pull rack forward to access the rear support area
• Depress locking tabs/retainer to remove the old support; press-fit the new support until secure
• Verify smooth rack travel before returning the appliance to service

This adjustable leveling leg threads into the appliance base to set height and stabilize the cabinet. Replacing a worn or missing leg helps stop rocking and vibration and helps maintain proper alignment for reliable operation.

• Provides adjustable support at one corner of the appliance
• Helps level the unit for correct alignment with floor or cabinetry
• Reduces rocking, vibration, and rattling noises
• Replaces stripped, bent, cracked, or missing leg

• Disconnect power and, if applicable, shut off water before servicing
• Carefully support or brace the appliance to access the base safely
• Start the new leg by hand to avoid cross-threading; adjust height gradually
• Use a level to check side-to-side and front-to-back, then recheck after positioning

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Door Balance Link Kit is an OEM replacement part for Whirlpool dishwashers. This kit includes the necessary components to ensure proper balancing and operation of the dishwasher door.

Causes of needing to replace the door balance link kit include wear and tear over time, damage due to mishandling or impact, or issues with the door hinges or springs.

Symptoms that may indicate the need for a new door balance link kit include:

• The dishwasher door feeling loose or unstable
• Difficulty in opening or closing the door smoothly
• The door failing to stay in the desired position when opened

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dishwasher models.

The Door Balance Spring is an OEM part for Whirlpool dishwashers. This part provides tension and balance to the dishwasher door, ensuring it opens and closes smoothly and stays in the desired position when loading or unloading dishes.

Causes of damage to the door balance spring can include normal wear and tear from frequent use, corrosion due to moisture and detergent exposure, or mechanical failure from excessive force being applied to the door.

Symptoms of a bad Door Balance Spring include:

• The dishwasher door falling open too quickly or with too much force
• Difficulty in keeping the door open or having it snap shut unexpectedly
• A noticeable difference in the effort required to open or close the dishwasher door

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Dishrack Roller is an OEM part for Whirlpool dishwashers. This component allows the dishrack to glide smoothly in and out of the dishwasher, providing easy access for loading and unloading dishes.

Over time, the dishrack roller can wear out or become damaged due to regular use, heavy loads, or accidental impacts. Causes of a bad dishrack roller include wear and tear, cracking, or detachment from the dishrack.

Symptoms of a bad dishrack roller include:

• Difficulty moving the dishrack in and out
• Uneven or jerky motion when pulling out or pushing in the dishrack
• The dishrack falling off the tracks
• Visible damage or missing rollers

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Replacement 8-32-thread screw used to secure panels, brackets and small components in compatible household appliances. Restores missing or stripped fasteners so panels and parts stay firmly attached during normal use. What it does:

• Secures trim, panels, brackets and control housings to maintain proper assembly.
• Replaces missing or damaged screws that can cause rattling, loose panels or misaligned components.
• Fits locations that require an 8-32 threaded fastener; correct length and head style for your application.
• Helps restore stable, vibration-free operation when worn or stripped fasteners are replaced.

• Disconnect power and water before servicing; wear eye protection and gloves.
• Use the correct screwdriver or driver bit to avoid stripping the screw head.
• Do not overtighten—turn until snug and secure to avoid damaging threads or surrounding parts.
• If the original used a washer or nut, reuse or replace as needed and the screw length and head type match the original.

This terminal box cover closes the dishwasher's electrical junction box under the unit, protecting and retaining the supply-wire connections. Replace a cracked, loose, or missing cover to restore a safe enclosure and proper wire containment. What it does:

• Encloses the dishwasher's junction box to prevent accidental contact with live wiring
• Helps secure and contain the incoming power wires
• Keeps debris out of the electrical connection area
• Common signs of failure: missing or broken cover, loose fit, stripped fastener point, rattling behind the kick panel

• Includes 1 terminal box cover

• Disconnect power at the circuit breaker before servicing
• Remove the lower access/kick panel to reach the junction box; remove the fastener and old cover
• Ensure all wiring is inside the box and the strain relief is secure; position the new cover and secure the fastener
• Do not operate the dishwasher without the junction box cover installed

The Door Balance Link Kit is an OEM replacement part for Whirlpool dishwashers. This kit includes the necessary components to ensure proper balancing and operation of the dishwasher door.

Causes of needing to replace the door balance link kit include wear and tear over time, damage due to mishandling or impact, or issues with the door hinges or springs.

Symptoms that may indicate the need for a new door balance link kit include:

• The dishwasher door feeling loose or unstable
• Difficulty in opening or closing the door smoothly
• The door failing to stay in the desired position when opened

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dishwasher models.

This push retainer is a small press-on fastener that secures components to shafts or studs inside your appliance. It restores a tight, reliable hold so knobs, trim, or linkages don't loosen or fall off during use. What it does:

• Presses onto a shaft or stud to secure knobs, trim, or linkages—no threads required
• Maintains spring tension to resist vibration during normal operation
• Replaces a missing, bent, or weakened retainer
• Common symptoms: loose or wobbly knobs/trim, parts slipping off, or a retainer that won't stay on

• 1 push retainer

• Disconnect power; for gas appliances, also shut off the gas supply
• Access the shaft/stud and carefully remove the old retainer with pliers; avoid damaging adjacent plastic parts
• Press the new retainer on squarely using a deep socket or nut driver; do not hammer directly
• If the mating shaft or component is damaged or deformed, address that before installing the new retainer

A small metal clip that secures the appliance's ground wire to the chassis. Restores a reliable ground connection to reduce loose or arcing contacts and help prevent intermittent electrical faults. What it does:

• Secures the ground wire to the appliance frame to maintain a solid earth connection.
• Prevents a loose ground that can cause arcing, intermittent power issues, or visible sparking at the connection.
• Holds the wire in place through normal vibration and movement so terminals stay tight and stable.
• Replaces damaged, bent, or missing grounding fasteners to restore safe electrical continuity.

• Disconnect power at the breaker or unplug the appliance before inspecting or replacing the clip.
• Use proper hand tools to remove and reinstall the screw or fastener that holds the clip—do not overtighten.
• Ensure the ground wire is routed and stripped correctly; replace wiring if insulation or conductor is damaged.

This power cord connects your appliance to a household outlet. Replacing a worn or damaged cord restores safe, reliable power and can help resolve no-power or intermittent power issues caused by a compromised lead.

• Delivers electrical power from the outlet to the appliance
• Replaces cords with cracked, frayed, or heat-damaged insulation or a damaged plug
• Helps when the unit won't power on or loses power when the cord is moved
• Addresses visible scorching, arcing, or melting on the cord or plug

• Disconnect power before servicing; verify no voltage is present
• Note wire positions or take a photo before removal; match to the same terminals on install
• Use the proper strain relief/clamp and route away from sharp edges, moving parts, and heat sources
• Confirm the ground connection is secure; do not modify the plug

This thermostat bracket holds the oven or range thermostat securely in place, ensuring accurate temperature sensing and stable oven performance. Replaces a worn or broken bracket to restore proper thermostat positioning. What it does:

• Secures the thermostat assembly to the oven/range interior so the thermostat bulb or probe senses temperature correctly
• Prevents the thermostat from shifting or contacting heating elements
• Commonly replaced when the bracket is cracked, bent, or missing and causes temperature or control issues
• Helps reduce temperature inconsistencies caused by a loose or damaged mounting

• Disconnect power to the appliance before servicing to avoid electrical shock or injury
• Handle the thermostat and sensor bulb carefully; avoid kinks or direct pressure on sensing elements
• Basic hand tools are typically required; verify part alignment before tightening fasteners

Thermostat has 1/4 inch terminals.

The High Limit Thermostat is an OEM part for Whirlpool dishwashers. This safety feature is designed to prevent the dishwasher from overheating by shutting off the power if the internal temperature exceeds a certain limit. It acts as a safeguard against potential hazards, such as fires, and ensures the dishwasher operates within safe temperature ranges.

Over time, the high limit thermostat can become defective due to normal wear or electrical issues within the dishwasher. A malfunctioning thermostat may not accurately respond to temperature changes, which can lead to overheating or the dishwasher not reaching the necessary temperature for optimal cleaning.

Symptoms of a bad High Limit Thermostat include:

• Dishwasher not starting or completing a cycle
• The dishwasher stops heating water, affecting cleaning performance
• Overheating, which could potentially damage dishes or the dishwasher itself

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Door Latch Strike is an OEM part for Whirlpool dishwashers. This part ensures that the dishwasher door securely latches when closed, maintaining a tight seal to prevent water leakage during the wash cycle.

Causes of a bad door latch strike include wear and tear from frequent opening and closing of the dishwasher door, accidental impact that can bend or break the strike, or buildup of debris that interferes with proper latching.

Symptoms of a bad door latch strike include:

• Dishwasher door not latching securely
• Water leaking from the door during operation
• Difficulty in closing or opening the dishwasher door
• The dishwasher not starting because the door isn’t properly closed

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Spring Tension Hose Clamp is an OEM part for Whirlpool washing machines. It is designed to secure hoses in place, preventing leaks by maintaining consistent tension on the hose connections.

Over time, spring tension hose clamps can lose their effectiveness due to metal fatigue, corrosion, or damage from frequent tightening and loosening. This can lead to leaks and improper hose connections.

Symptoms of a bad spring tension hose clamp include:

• Water leaks around hose connections
• Loose or disconnected hoses
• Unusual noises or vibrations during operation
• Water pressure issues within the washing machine

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
