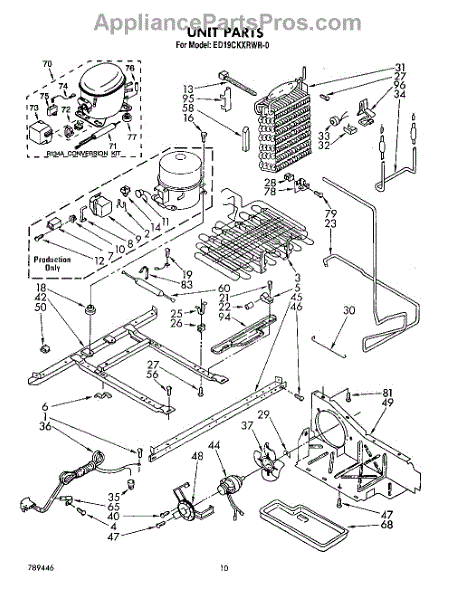

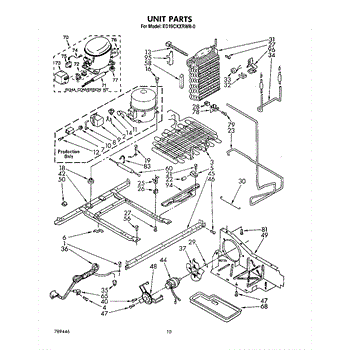

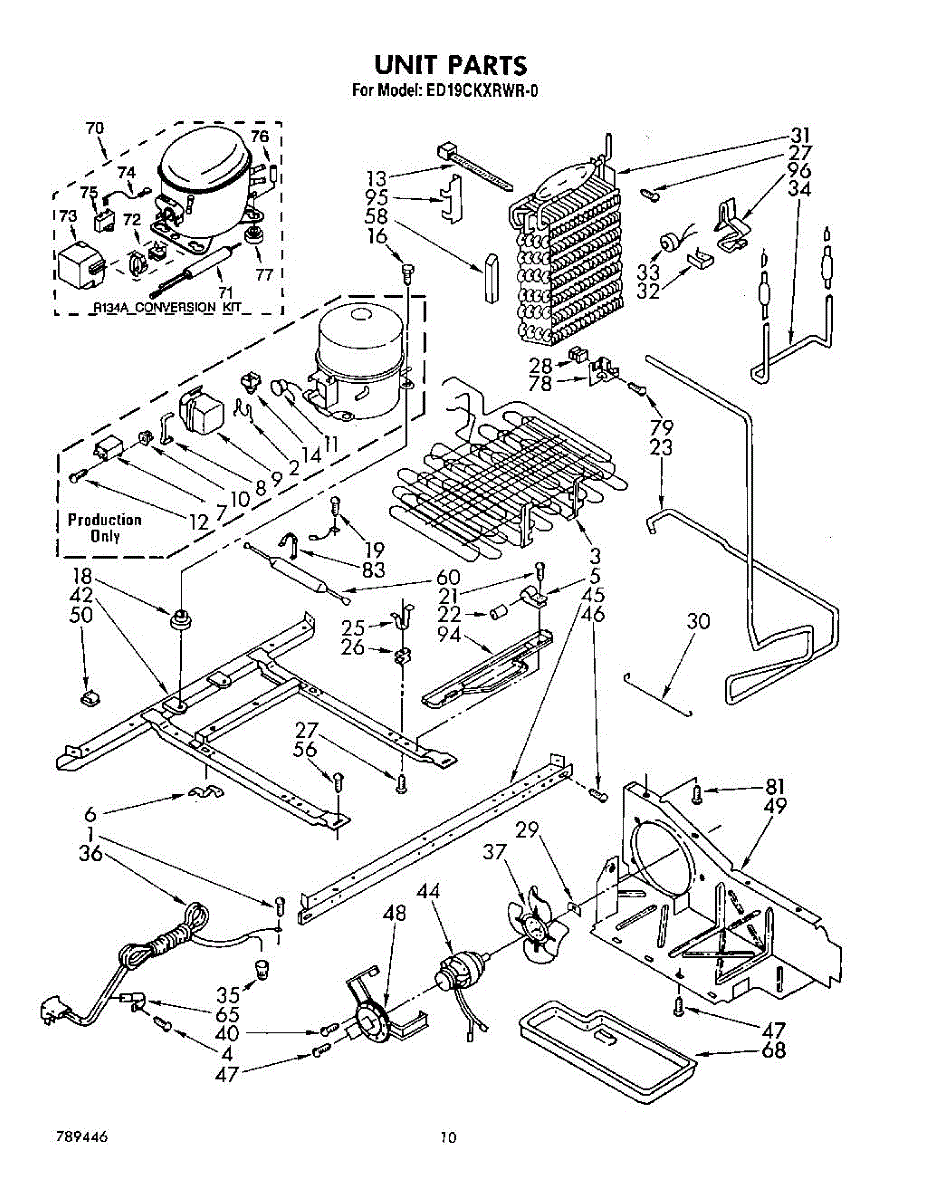

Parts for Whirlpool ED19CKXRWR0: 06 - Unit , Not Illustrated Parts

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

The Run Capacitor is an OEM part for Whirlpool appliances, designed to provide the necessary electrical charge to start and run the compressor motor. This part attaches to the compressor to aids in maintaining a consistent motor speed and ensuring smooth operation. The run capacitor plays a crucial role in the appliance's electrical system, storing and releasing energy as needed to power the motor.

Causes of a bad Run Capacitor include electrical surges, wear and tear over time, or overheating, which can lead to a failure in providing the necessary start-up energy or maintaining motor speed.

Symptoms of a bad Run Capacitor include:

• The appliance does not start.
• The motor shuts off shortly after starting.
• The appliance is humming but not running.
• Increased energy consumption.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This factory fastener is a #8-18 x 5/8-inch Type AB screw designed for appliance assembly. It secures panels and components to restore a tight, rattle-free fit and dependable alignment. What it does:

• Thread-forming Type AB design engages thin metal or plastic components
• Secures panels, brackets, trim, or covers to reduce looseness and vibration
• Replaces missing, stripped, or corroded fasteners
• Helps maintain alignment for proper operation and reduced noise

• One screw

• Disconnect power before servicing; shut off water supply if working near water lines
• Use the correct driver for the screw head; start by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking plastic
• Repair damaged holes or replace worn clips/inserts before installing the new screw

• Size: #8-18 x 5/8 in (length 0.625 in)
• Thread type: Type AB, thread-forming

This part is a grommet. This is a genuine OEM part made by Whirlpool and has been sourced directly from the manufacturer. This part is intended to replace a broken or misplaced grommet in a variety of different appliance models.Grommets have a number of uses in different appliances. Typically, grommets are important for letting water pass through the appliance without leaking. Over time, grommets can become brittle, cracked, or lost and may need replacing. Please follow appropriate safety precautions when attempting to replace any appliance parts. Make sure the appliance is completely disconnected from its gas, water, and power sources before attempting any repairs or replacements. Proper tools might be required to replace this part. For more accurate information on how and where to install this replacement grommet, reference the appropriate manufacturer owner's manual and diagrams. As an authentic replacement part, this grommet is suitable for use on several different models of refrigerators, freezers, and washers manufactured by Whirlpool, Kenmore, KitchenAid, Roper, and other Whirlpool brands. Please note that this is a genuine part made of high-quality, durable, rubber material and is sold individually.

This part is a grommet. This is a genuine OEM part made by Whirlpool and has been sourced directly from the manufacturer. This part is intended to replace a broken or misplaced grommet in a variety of different appliance models.Grommets have a number of uses in different appliances. Typically, grommets are important for letting water pass through the appliance without leaking. Over time, grommets can become brittle, cracked, or lost and may need replacing. Please follow appropriate safety precautions when attempting to replace any appliance parts. Make sure the appliance is completely disconnected from its gas, water, and power sources before attempting any repairs or replacements. Proper tools might be required to replace this part. For more accurate information on how and where to install this replacement grommet, reference the appropriate manufacturer owner's manual and diagrams. As an authentic replacement part, this grommet is suitable for use on several different models of refrigerators, freezers, and washers manufactured by Whirlpool, Kenmore, KitchenAid, Roper, and other Whirlpool brands. Please note that this is a genuine part made of high-quality, durable, rubber material and is sold individually.

A replacement machine screw with 8-32 threads used to secure panels and components on compatible Whirlpool appliances. Installs quickly to restore proper fit and stop rattling or loose parts. What it does:

• Secures panels, trim, brackets or components that use 8-32 machine-thread fasteners
• Restores proper alignment and prevents vibration-related noise
• Replaces missing, stripped, or damaged screws that allow parts to come loose
• Works where a standard 8-32 machine screw is specified by the manufacturer

• Disconnect power and/or gas before servicing the appliance to reduce shock or injury risk
• Use the proper screwdriver or nut driver for the screw head to avoid stripping
• Thread gently and stop when snug; do not overtighten to prevent stripping or damage
• If threads are damaged, replace with the correct-size screw rather than forcing it

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

The Nut is an OEM replacement part for Whirlpool refrigerators. This small yet essential component is used to secure various parts of the refrigerator, such as shelves, panels, or brackets, ensuring stability and proper alignment. Its durable design ensures reliable performance in the demanding environment of a refrigerator.

Causes of a bad or missing Nut can include wear over time, accidental stripping of threads, or loss during maintenance or repairs. A damaged or missing nut can lead to loose components and reduced functionality.

Symptoms of a bad or missing Nut include:

• Loose or wobbly shelves, brackets, or panels
• Difficulty keeping refrigerator components securely in place
• Rattling or unusual noises during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Ref Defrost Thermostat L70 Comes With Bracket

This Incoloy defrost heater melts frost buildup on the evaporator to help restore normal airflow and cooling. Replaces a failed heater to reduce excessive frost and recurring defrost cycles. What it does

• Heats the evaporator coil during the defrost cycle to remove ice and frost buildup.
• Helps restore proper airflow and consistent cooling when frost is preventing normal operation.
• Common symptom: heavy frost or ice on the evaporator and reduced cooling performance.
• Designed for use in the refrigerator/freezer defrost system; replaces a burned-out or open heater.

• High-level installation: power off and unplug appliance before servicing; access the evaporator compartment per your model's service manual.
• Verify heater continuity with a multimeter before replacement; handle the element carefully to avoid bending or damage.
• Reassemble panels and restore power, then confirm normal defrost cycles and cooling.

This OEM Replacement Part is a high-quality, 2-watt condenser fan motor for Whirlpool refrigerators.The motor is designed to optimize your refrigerator's cooling performance. This 115-volt motor operates with a clockwise rotation.

Symptoms of a bad condenser fan motor kit include:

• Gradual rise in interior freezer temperatures
• Inability to maintain consistent cooling performance
• Loud buzzing or grinding noises coming from inside
• Tripped breakers or failure to restart after service

Causes stem from normal wear of ball bearings as the high-efficiency motor operates continuously. Exposure to dust or debris introduced through openings accelerates wear over many years of use.

This OEM part is also compatible with brands including Kenmore, KitchenAid, and Danby.

8 x 1/12

Color: Black. Due to manufacturer changes this replacement is now 17" x 7".

This compressor overload is the thermal protector for your refrigerator's compressor. It opens the circuit when the motor overheats or draws excessive current, helping prevent damage and restoring reliable starts when the original protector fails.

• Interrupts power to protect the compressor during overheat or overcurrent conditions
• If failed, symptoms include: compressor won't start, repeated clicking or brief hum then stop, warm refrigerator/freezer, and an unusually hot compressor shell
• A weak protector may trip repeatedly and reset after cooling, causing intermittent cooling
• Works in tandem with the start relay/device to manage compressor startup current

• Disconnect power before servicing and pull the unit forward for rear access
• Remove the rear cover; note wire positions and take a photo for reference
• Pull the old overload straight off the compressor terminal; transfer leads and firmly seat the new overload in the same orientation
• Capacitors can retain a charge—handle with care; reinstall cover and restore power to test

This terminal block cover protects the appliance's electrical connection area from accidental contact and debris, helping reduce the risk of shorts and corrosion while keeping wiring secure and contained. What it does:

• Covers and shields the power terminal/block where the power cord connects
• Helps prevent accidental contact with live terminals and reduces short risk
• Keeps out dust, lint and debris that can cause corrosion or arcing
• Useful when the original cover is cracked, missing or showing burn marks

• Always disconnect power (unplug or switch off breaker) before servicing electrical components
• Typically installs over the terminal block and secures with the existing fastener(s); inspect mounting hardware for wear
• Replace if cracked, melted or if terminals are exposed; ensure cover seats fully before restoring power

This wire assembly connects the capacitor to the appliance's motor or control, restoring a secure electrical path for reliable start/run operation. Replaces a damaged or worn harness to help resolve starting and intermittent power issues. What it does:

• Provides insulated wiring and terminals to link the capacitor to the motor or control
• Ensures a secure electrical connection for proper start/run signaling
• Can resolve symptoms such as failure to start, humming or intermittent motor starting
• Prevents shorts or arcing from frayed or damaged wiring when functioning correctly

• Always disconnect power at the breaker or unplug the appliance before servicing
• Capacitors can hold a dangerous charge — have the capacitor safely discharged before disconnecting wires
• Match connectors and routing to the original harness; secure wires away from moving parts and heat sources

Capacitor supplies a short burst of stored electrical energy to help the appliance motor start and run efficiently. Replacing a failing capacitor can restore reliable motor startup and reduce humming or intermittent operation. What it does

• Provides the electrical boost motors need to start and maintain proper speed.
• A failing capacitor commonly causes motors to hum, struggle to start, run slowly, or stop unexpectedly.
• Used on motors and fans that require a start/run assist; replacing a bad capacitor often resolves startup and intermittent operation issues.

• Always disconnect power to the appliance before accessing electrical components.
• Discharge the capacitor safely (use insulated tools and gloves) before touching terminals — capacitors can hold a dangerous charge.
• Photograph or label wiring and terminal locations before removal so replacements reconnect exactly the same way.

This small rubber grommet cushions and supports a fan motor, helping reduce vibration and noise while the appliance is running. It fits into the motor bracket to provide a snug, insulated mounting point.

• Isolates fan motor vibration to cut rattling or buzzing
• Helps keep the motor aligned in its bracket
• Can wear, crack, or compress over time, causing vibration or noise
• Replacing a deteriorated grommet restores smooth, quieter operation

• Disconnect power before servicing
• Access the fan assembly and support the motor to relieve strain
• Note grommet orientation; transfer any sleeves or hardware as found
• Seat the new grommet fully in the bracket before remounting the motor

Specs: 10-16 x 1/2 inch.

This part has been discontinued by the manufacturer and is no longer available.

Epoxy repair kit - aluminum tubing.

Spray paint. Color: Toast. Size: 12 oz. can.

Spray paint. Color: Platinum. Size: 12 oz. can.

Bottle with brush. Color: Toast. Size: 0.6 fl.oz.

Size: 1/2 inch.

Size: 5/8 inch.

Touch-up paint. Color: Almond. Size: 1 qt. can. (Uncut)

Touch-up paint. Color: Black. Size: 0.6 fl.oz. can.

Spray paint. Color: Harvest gold. Size: 12 oz. can.

Touch-up paint. Color: Harvest gold. Size: 1 qt. can.

Touch-up paint. Color: Toast. Size: 1 qt. can.

Touch-up paint. Color: Platinum. Size: 1qt. can.

Size: 3/4 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.

Color: White. Size: 1 qt. can. Acrylic appliance paint.

Size: 3/16 inch.

Size: 1/4 lb.

Size: 63-1/2 x 35-1/2 x 2-5/8 inch.

Sealer for refrigerant line insulation.

Bottle with brush. Color: Harvest Gold. It's 0.6 fluid ounces.

This OEM grease is a purpose-made appliance lubricant that reduces friction and protects moving parts for smoother operation and longer component life. Use where specified by the manufacturer for bearings, slides, or motor shafts. What it does:

• Lubricates gears, bearings, rollers and shafts to reduce wear and noise
• Helps prevent binding, seizing, and grinding on moving components
• Protects metal parts from corrosion where grease is specified
• Keeps parts moving smoothly under normal operating temperatures

• Disconnect power before servicing any appliance; follow manufacturer service instructions
• Apply sparingly to clean, dry surfaces; avoid over-greasing which can attract debris
• Wear gloves and wipe excess grease from surrounding areas to prevent staining

Color: White. Size: 13 oz. Spray paint primer. can.

This clip kit secures small panels, wiring harnesses, or trim on compatible Whirlpool appliances to prevent rattling and keep components in their intended position. It restores proper fit and helps reduce noise from loose parts. What it does:

• Holds wiring harnesses and cables in place to prevent chafing or contact with moving parts
• Secures panels, trim, or hoses so assemblies stay aligned and quiet
• Reduces rattling, buzzing, or vibration caused by loose components
• Keeps parts positioned during normal use and transport

• Disconnect power (unplug or shut off breaker) before starting any repair
• Use basic hand tools; avoid forcing clips into place to prevent breakage
• Replace any damaged clips with the exact kit to ensure proper fit
• Re-check that fastened parts are secure and that there are no pinched wires before restoring power

Bottle with brush. Color: Platinum. Size: 0.6 fl.oz.

Color: Black. Size: 12 oz. Acrylic appliance aerosol can spray paint.

Color: White. Size: 2 oz. can. Porcelain touch-up paint.

Color: Almond

Almond. Size: 13 oz. can. Acrylic appliance paint.

Bottle with brush. Color: Black. Size: 0.6 fl.oz.

The Alumilastic Cement is an OEM part for Whirlpool appliances, typically used in refrigerators and freezers. It serves as a thermal mastic compound, designed to provide a secure and heat-conductive bond between various components, such as evaporator coils and the interior walls of the appliance.

Causes of a bad alumilastic cement can include drying out, cracking, or losing its adhesive properties over time. This can occur due to age, exposure to temperature fluctuations, or improper application. When the cement fails, it can lead to poor thermal conductivity and decreased cooling efficiency.

Symptoms of a bad alumilastic cement include:

• Reduced cooling performance
• Unusual noises from the cooling system
• Components becoming loose or detaching
• Increased energy consumption

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Appliance Touchup Paint is an OEM product for Whirlpool appliances. This touchup paint is used to cover scratches, chips, and minor blemishes on the surface of various appliances, helping to maintain their appearance and protect them from rust and other damage. It is specifically formulated to match the original color and finish of Whirlpool appliances, ensuring a seamless repair.

Causes of needing touchup paint include everyday wear and tear, accidental impacts that cause chipping or scratching, and exposure to harsh cleaning chemicals that can damage the finish. Regular use of touchup paint can help keep appliances looking new and extend their lifespan.

Symptoms indicating the need for Appliance Touchup Paint include:

• Visible scratches or chips on the appliance surface
• Areas of exposed metal prone to rust
• Blemishes that affect the overall aesthetic of the appliance

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
