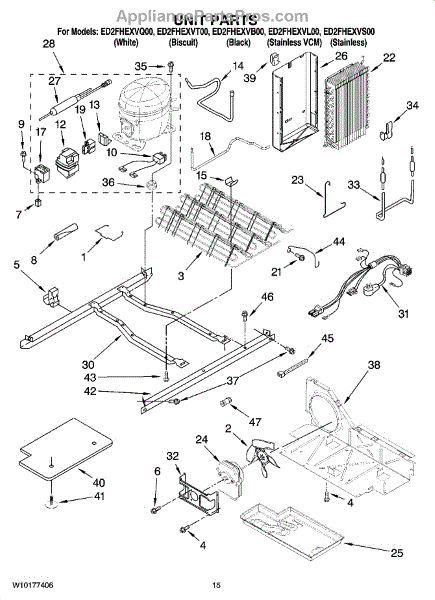

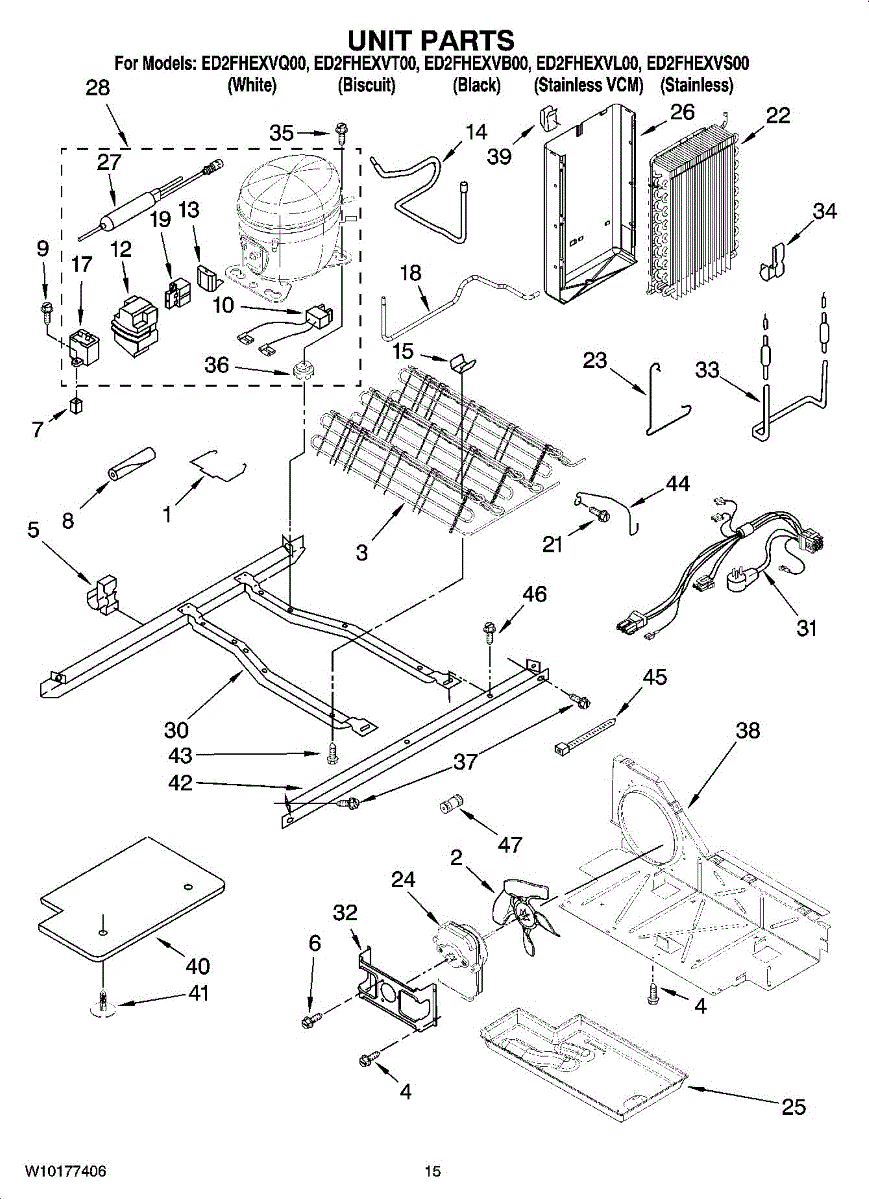

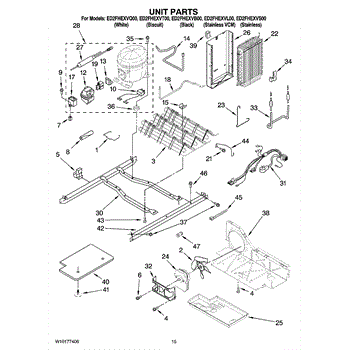

Parts for Whirlpool ED2FHEXVS00: 09 - Unit Parts

Reduces contaminants for cleaner, better-tasting water and ice. Replace every 6 months or when indicator light activates. Verify fit by model number.

This bale strap is the replacement strap used to secure and support the appliance's bale or handle assembly, restoring proper hold and alignment for normal operation. It replaces a worn or broken strap to help the door/handle stay connected and function reliably. What it does:

• Secures the bale/handle assembly to the door or frame so the handle stays engaged during use
• Restores proper tension and positioning when the original strap is cracked, stretched, or torn
• Helps prevent the bale or handle from detaching or sagging under normal use
• Reduces rattling or loose-handle symptoms caused by a compromised strap

• One replacement bale strap

• High-level replacement: remove access panel or trim as required, detach the old strap, and fasten the new strap in the same orientation
• Use basic hand tools; avoid forcing parts to prevent breakage
• Disconnect power and follow appliance-specific safety procedures before servicing

The Fan Blade is an OEM part for Whirlpool refrigerators. It is essential for circulating air throughout the refrigerator, ensuring that the temperature remains consistent and the cooling process is efficient. The fan blade helps distribute cold air fr

Refrigerator not cooling or freezer too warm? A faulty condenser may be the cause. This part helps dissipate heat for proper cooling performance.

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage

This is a replacement mounting screw used to secure appliance panels and small components. It provides a correct-fit fastener to restore secure attachment and eliminate rattles or loose parts. What it does:

• Secures trim, panels, brackets, or sma

Type AB #8-18 x 5/8 inch thread-forming screw secures panels and components in appliances. Replace missing, stripped, or corroded fasteners.

This wire assembly is a factory-style wiring harness that replaces damaged or worn wiring to restore proper electrical connections between appliance components. It helps resolve intermittent power and control issues caused by broken, burnt, or loose wires. What it does:

• Re-establishes reliable electrical connections between controls, motors, switches, or sensors.
• Commonly used when wires are frayed, melted, or have corrosion that causes intermittent operation.
• Can stop symptoms such as no power to a circuit, components not running, or sporadic on/off behavior.
• Maintains routed wire grouping and connector fit to prevent chafing and short circuits.

• Disconnect all power (unplug or turn off breaker) before beginning any repair.
• Take photos of existing routing and connector orientations before removal to ensure correct reinstallation.
• Replace the harness full-length; do not splice or tape damaged wires as a long-term solution.
• Use basic hand tools.

This wire assembly connects the capacitor to the appliance's motor or control, restoring a secure electrical path for reliable start/run operation. Replaces a damaged or worn harness to help resolve starting and intermittent power issues. What it does: <

This terminal block cover protects the appliance's electrical connection area from accidental contact and debris, helping reduce the risk of shorts and corrosion while keeping wiring secure and contained. What it does:

• Covers and shields the pow

Refrigerator won't cool or compressor won't start? This overload protector prevents compressor damage from electrical surges. Simple 15-minute fix.

Compressor won't start or stops running? This thermal overload protector prevents motor overheating by cutting power when temperatures exceed safe limits.

Replacement clip for refrigerators and freezers. Secures shelves, bins, or internal components. Order a new clip if yours is broken, cracked, or missing.

The Run Capacitor is an OEM part for Whirlpool refrigerators. It is responsible for helping the compressor motor start and run efficiently by providing an extra electrical boost. This component ensures that the refrigerator operates smoothly and mainta

The Run Capacitor is an OEM part for Whirlpool appliances, designed to provide the necessary electrical charge to start and run the compressor motor. This part attaches to the compressor to aids in maintaining a consistent motor speed and ensuring smoo

Fridge clicks or hums but won't cool? A failed start relay prevents the compressor from starting. Simple DIY repair—just pull off and replace.

The Compressor Start Relay is an OEM part for Whirlpool refrigerators. This part provides the necessary power boost to start the compressor.

Causes of a bad start relay can include electrical issues, wear and tear from regular use, or damage from power surges or overheating.

Symptoms of a bad compressor start relay include:

• The refrigerator not cooling properly
• The compressor not starting or frequently shutting off
• Clicking noises coming from the compressor area
• The refrigerator running but not reaching the desired temperature
• Increased energy consumption

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Replacement fastener screw for appliances. Secures panels, trim, clips, and components. Needed when original screws are stripped, missing, or damaged.

Refrigerator not cooling or freezing food? A faulty evaporator coil prevents proper temperature regulation. Requires brazing and refrigerant work.

Fix frost buildup in your refrigerator with this defrost heater mounting clip. Secures heater to evaporator for consistent defrosting performance.

Refrigerator not cooling but freezer works? A failed condenser fan motor prevents heat from escaping. DIY repair takes 10-20 minutes with basic tools.

Water leaking from bottom of fridge? Cracked evaporator drip tray lets defrost water escape. Moderate DIY repair, about 45-60 minutes with our guide.

Drier tube for refrigerators. Installs in the sealed refrigeration system to remove moisture. Replace if cracked, corroded, or during compressor repairs.

Refrigerator not cooling or running constantly? The compressor circulates refrigerant to maintain proper temperature. Expert-level repair component.

Refrigerator not cooling properly? A damaged condenser fan motor bracket causes fan wobble and poor airflow. This mounting bracket restores stability.

If your freezer is icing up or coils are freezing, replace the defrost heater. Melts frost from evaporator coils during defrost cycle. DIY-friendly repair.

Fix frost buildup in your refrigerator with this defrost heater mounting clip. Secures heater to evaporator for consistent defrosting performance.

Rubber grommet kit that mounts and cushions the compressor. Replace worn, cracked, or damaged grommets to restore proper support and isolation.

Rubber grommet kit that mounts and cushions the compressor. Replace worn, cracked, or damaged grommets to restore proper support and isolation.

Fix excessive buzzing or rattling noise from your refrigerator's fan area. This rubber grommet cushions the fan motor mount to reduce vibration and noise.

8 x 1/12

Fix uneven cooling and warm spots in your refrigerator with this air baffle. Directs cold air properly throughout compartments. Simple DIY fix.

Refrigerator fan guard protects the evaporator or condenser fan from debris. Replace if cracked, broken, or missing to prevent fan damage. Verify fit by model number.

This is a replacement 1/4-20 threaded screw used to secure appliance components and panels. It restores proper fastening where a matching screw is missing, loose, or stripped and helps stop rattling or misalignment. What it does:

• Secures panels,

Connects water tubes of different sizes at the base of your refrigerator door. Replace if leaking, cracked, or calcified to restore a watertight seal.

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.

Size: 3/16 inch.
