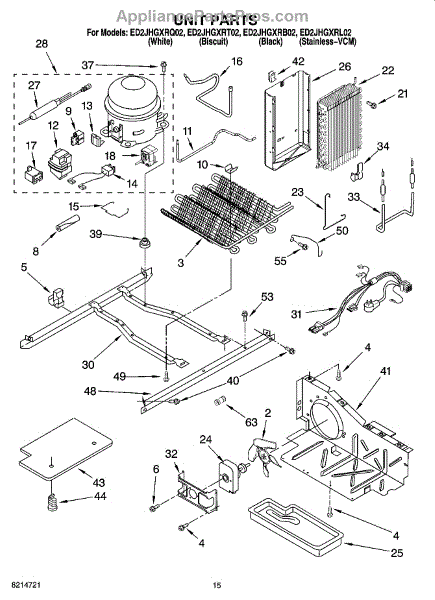

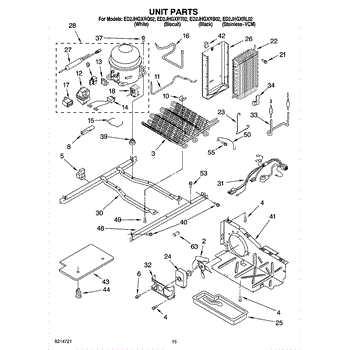

Parts for Whirlpool ED2JHGXRL02: 09 - Unit Parts

Reduces contaminants for cleaner, better-tasting water and ice. Replace every 6 months or when indicator light activates. Verify fit by model number.

Refrigerator not cooling or freezer too warm? A faulty condenser may be the cause. This part helps dissipate heat for proper cooling performance.

Loose panels or rattling components? This mounting screw secures body panels and electronics in appliances. Quick 5-minute fix for most models.

Replacement mounting screw for securing panels, trim, and components. Needed when original screws are stripped, missing, or lost during repairs.

Guide sleeve for washer drum or agitator assembly. Replaces worn, cracked, or missing sleeves that cause misalignment or rattling during operation.

The Compressor Start Relay is an OEM part for Whirlpool refrigerators. This part provides the necessary power boost to start the compressor.

Causes of a bad start relay can include electrical issues, wear and tear from regular use, or damage from power surges or overheating.

Symptoms of a bad compressor start relay include:

• The refrigerator not cooling properly
• The compressor not starting or frequently shutting off
• Clicking noises coming from the compressor area
• The refrigerator running but not reaching the desired temperature
• Increased energy consumption

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Replacement clip for refrigerators and freezers. Secures shelves, bins, or internal components. Order a new clip if yours is broken, cracked, or missing.

Protects electrical connections from shorts and corrosion. Covers power terminal where cord connects to compressor. Simple screwdriver removal.

Compressor won't start or stops running? This thermal overload protector prevents motor overheating by cutting power when temperatures exceed safe limits.

Fixes freezer that won't start or runs intermittently. This capacitor wire assembly restores secure electrical connections to the motor for reliable operation.

This bale strap is the replacement strap used to secure and support the appliance's bale or handle assembly, restoring proper hold and alignment for normal operation. It replaces a worn or broken strap to help the door/handle stay connected and function reliably. What it does:

• Secures the bale/handle assembly to the door or frame so the handle stays engaged during use
• Restores proper tension and positioning when the original strap is cracked, stretched, or torn
• Helps prevent the bale or handle from detaching or sagging under normal use
• Reduces rattling or loose-handle symptoms caused by a compromised strap

• One replacement bale strap

• High-level replacement: remove access panel or trim as required, detach the old strap, and fasten the new strap in the same orientation
• Use basic hand tools; avoid forcing parts to prevent breakage
• Disconnect power and follow appliance-specific safety procedures before servicing

Refrigerator stopped cooling or compressor won't start? This run capacitor provides the electrical boost needed to start the compressor motor. Easy DIY fix.

Refrigerator stopped cooling or compressor won't start? The run capacitor provides electrical charge to keep the compressor motor running smoothly.

Fridge making clicking sounds and not cooling? A faulty compressor start device causes repeated clicks and cooling failure. Simple DIY repair.

Replacement fastener screw for appliances. Secures panels, trim, clips, and components. Needed when original screws are stripped, missing, or damaged.

Refrigerator not cooling or freezing food? A faulty evaporator coil prevents proper temperature regulation. Requires brazing and refrigerant work.

Fix frost buildup in your refrigerator with this defrost heater mounting clip. Secures heater to evaporator for consistent defrosting performance.

Refrigerator not cooling but freezer works? A failed condenser fan motor prevents heat from escaping. DIY repair takes 10-20 minutes with basic tools.

Water leaking from bottom of fridge? Cracked evaporator drip tray lets defrost water escape. Moderate DIY repair, about 45-60 minutes with our guide.

Drier tube for refrigerators. Installs in the sealed refrigeration system to remove moisture. Replace if cracked, corroded, or during compressor repairs.

Fix a refrigerator that won't cool or runs constantly with this compressor. Essential sealed system component. Professional installation recommended.

No power to your fridge? This wire harness assembly restores electrical connections between components, fixing power loss and intermittent failures.

Refrigerator not cooling properly? A damaged condenser fan motor bracket causes fan wobble and poor airflow. This mounting bracket restores stability.

If your freezer is icing up or coils are freezing, replace the defrost heater. Melts frost from evaporator coils during defrost cycle. DIY-friendly repair.

Rubber grommet kit that mounts and cushions the compressor. Replace worn, cracked, or damaged grommets to restore proper support and isolation.

Rubber grommet kit that mounts and cushions the compressor. Replace worn, cracked, or damaged grommets to restore proper support and isolation.

Fix excessive buzzing or rattling noise from your refrigerator's fan area. This rubber grommet cushions the fan motor mount to reduce vibration and noise.

8 x 1/12

Fix uneven cooling and warm spots in your refrigerator with this air baffle. Directs cold air properly throughout compartments. Simple DIY fix.

Secures components in your coffee maker. Replace if broken, loose, or missing to prevent leaks or rattling. Verify fit with your model number.

Replacement mounting screw for refrigerators and freezers. Secures panels, brackets, or internal components. Order if original is stripped, lost, or damaged.

Refrigerator fan guard protects the evaporator or condenser fan from debris. Replace if cracked, broken, or missing to prevent fan damage. Verify fit by model number.

Replacement 1/4-20 threaded screw for securing refrigerator panels, brackets, and assemblies. Restores proper fastening when original is missing or stripped.

Replacement 8-32 machine screw for refrigerators. Secures panels, trim, and internal brackets. Needed when original fastener is stripped, lost, or damaged.

Size: 1/2 inch.

Size: 5/8 inch.

Fix refrigerant leaks or low cooling with this 3/4 inch service valve. Essential for AC system pressure testing and refrigerant recharge procedures.

Fix refrigerant leaks or low cooling with this 3/16 inch service valve. Essential for AC recharging and system maintenance on multiple models.

Refrigerator not cooling properly? A faulty 1/4 inch service valve can prevent proper refrigerant flow. This valve connects refrigerant lines in your system.

Service valve for refrigerators, freezers, and ice makers. Used for refrigerant system service and maintenance. 5/16 inch fitting size for technicians.

Fix refrigerant leaks or cooling issues with this 3/8 inch service valve. Essential for refrigeration system repairs and maintenance on multiple models.

Connects water tubes of different sizes at the base of your refrigerator door. Replace if leaking, cracked, or calcified to restore a watertight seal.
